ETS PA922 iPro Audio Balun Cable for iPads & Smartphones with Monitoring Tap - 18 Inch

ITEM #: ETS-PA922 MFG #: PA922

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ETS-PA922

PA922 - Overview

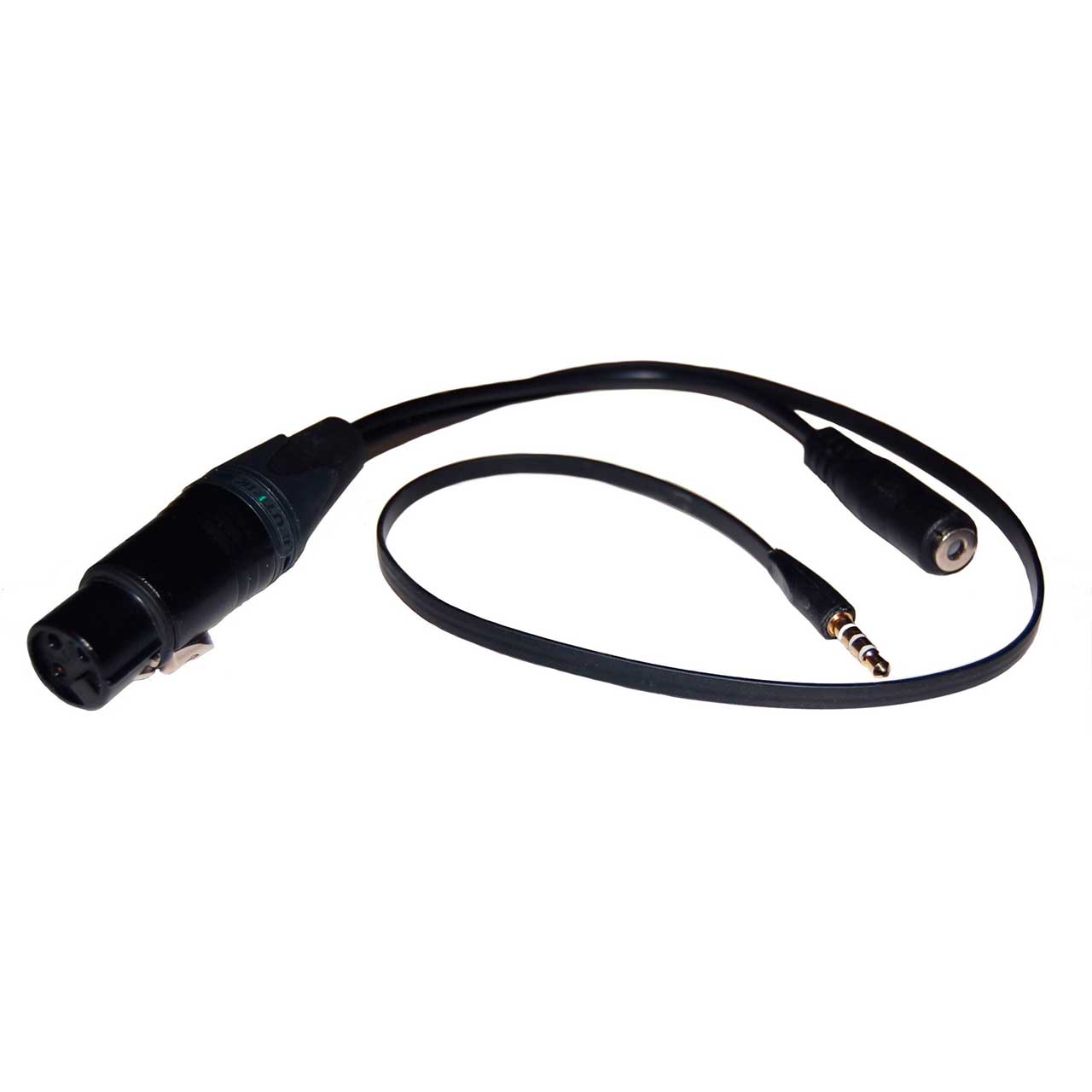

The ETS PA922 Smartphone Audio Balun Cable for iPhone mates professional XLR microphones with the 3.5mm TRRS jack of a smartphone's audio input jack, allowing software on the iPhone to record professional quality audio. The PA922 also includes a 3.5mm female jack for monitoring the incoming audio as well as "listen-in" software.

Cables feature built-in ETS Balanced Line technology. The PA922 includes a 3.5mm TRRS mini-plug with 18" tangle free flat cable plus a 3.5mm jack with 6" pigtail to Female XLR. The PA922 is similar to the PA921 with an additional 3.5mm jack on a 6-inch pigtail. This pigtail audio plug provides an audio source so one can hear what is being recorded simultaneously. Software is provided by ETS with purchase of each PA922 to take advantage of the audio monitoring tap and "listen-in". This software works on Apple iPhone smartphones ONLY.

  • Features:

    • Connects the XLR-style microphone to the TRRS plug on a smartphone to allow for professional quality digital audio recording
    • Useful for field (ENG) recording and listening. Software required (supplied with PA922) to use the `listen-in' feature, only available for the Apple iPhone smartphones
    • Recording events such as interviews, parties, concerts and other spontaneous events
    • The PA921 may be used with other smartphones, but, sound quality will vary
    • Passive devices (no power required)
    • Small form factor
    • Low profile TRRS plug fits with most smartphone cases in place
    • 18-inch tangle-free flat cord with 6-inch audio cord
    • Made in USA


  • Specifications:

    • Bandwidth: 10 Hz to 20 KHz
    • Connectors: 3.5mm TRRS mini-plug to FXLR + 3.5mm jack
    • 3.5mm Mini Plug Impedance: 600 ohm
    • XLR Impedance: 100 ohm
    • Common Mode: 60dB min. @ 1KHz
    • Rejection: 40dB min. over the frequency range
    • Dimensions: 22mm dia. x 533mm (including pigtail)
    • Net Weight 0.11 Kg
