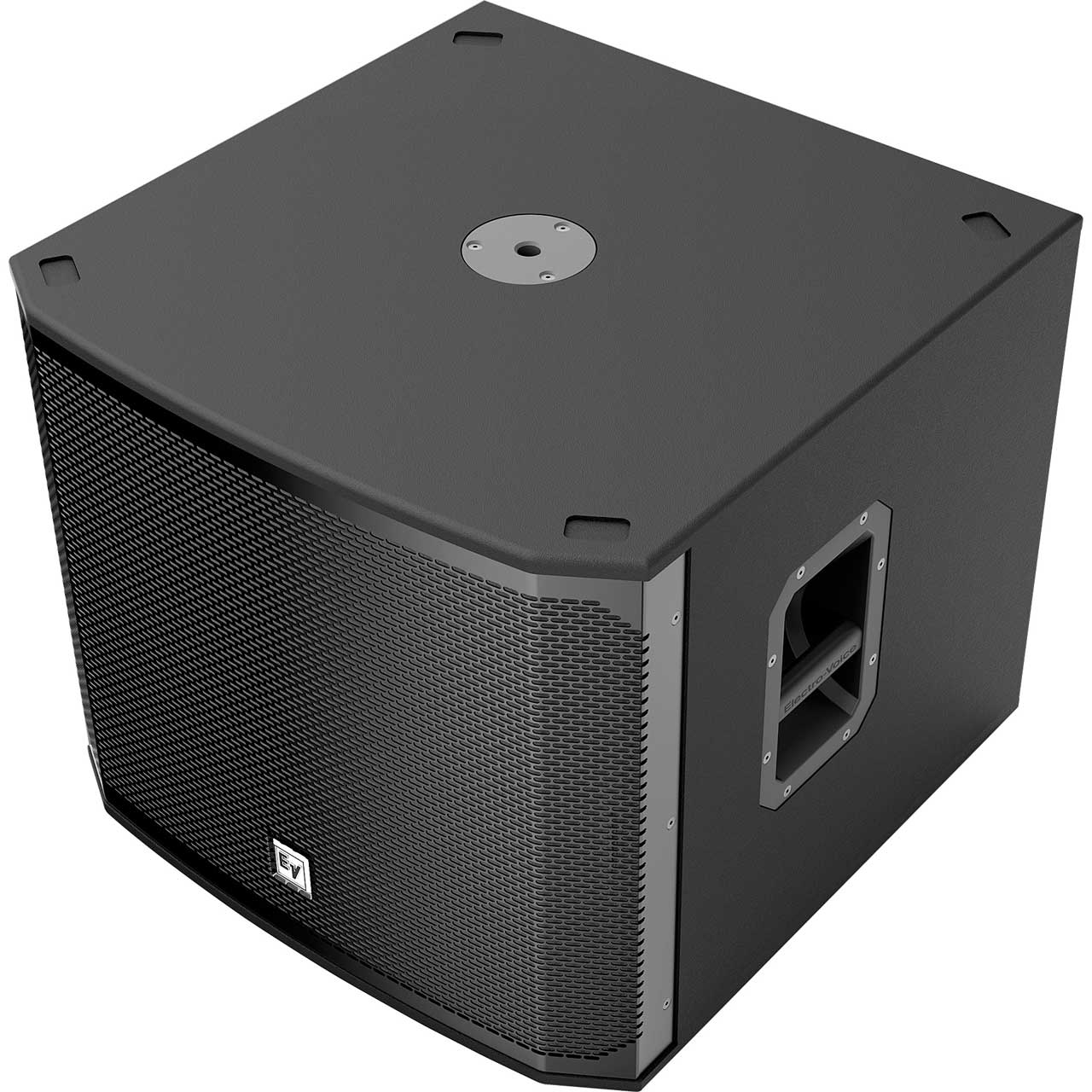

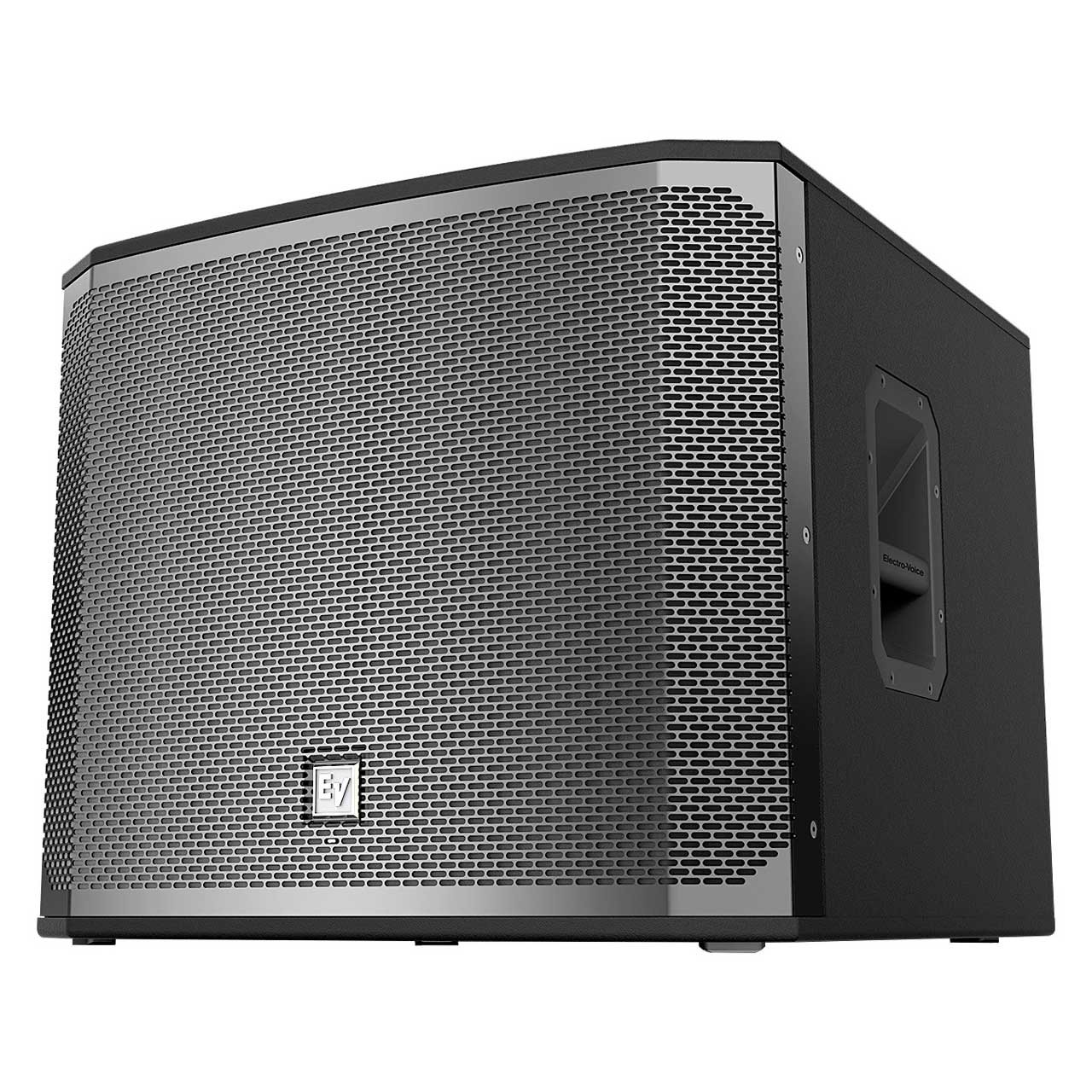

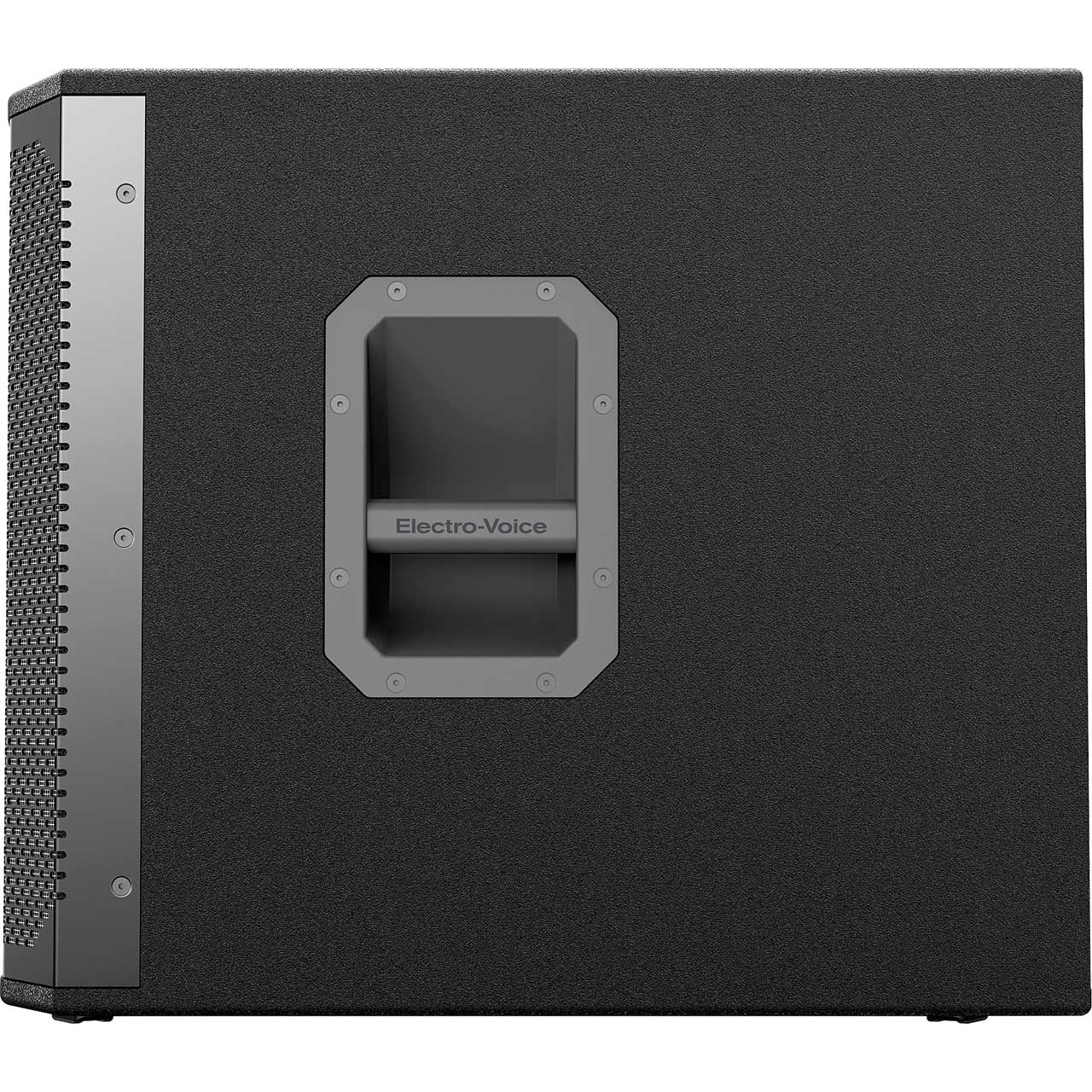

Electro-Voice EKX-18S 18 Inch Passive Subwoofer

ITEM #: EV-EKX-18S MFG #: EKX-18S

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$1,971.00

Our Price:

$1,099.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


EKX-18S - Overview

EV engineering and innovation working together for maximum sonic impact
The EKX series is the newest member of the Electro-Voice portable loudspeaker family, and combines legendary EV sound quality and reliability with the latest technology - all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications.

The EKX series features eight models (four powered and four passive), including 12" and 15" two-way models and 15" and 18" subwoofers. EKX is positioned above the ZLX and ELX series and below the ETX series.

Ideal for portable and installed applications
Lightweight, compact 15-mm wood enclosures with internal bracing, durable EVCoat finish, eight M10 threaded mounting points (full-range models), aluminum pole-mounts, and all-metal handles. Subs feature large slot ports for low distortion and excellent bass extension, and are equipped with a metal grille reinforcement bar.

  • Features:

    • 1600 W (peak), 134 dB peak SPL on the EKX-18S utilizing highsensitivity transducers designed and engineered by EV.
    • Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
    • Large slot ports for low distortion and excellent bass extension.
    • Metal grille reinforcement bar (two bars on the EKX-18S).
    • M20 threaded pole mount plate.

  • Specifications:

    • Axial Sensitivity: (SPL, 1 W @ 1 m) 96 dB
    • Connector Type: Dual NL4
    • Coverage: (Nominal -6 dB) H 90 Deg.
    • Coverage: (Nominal -6 dB) V 60 Deg.
    • Enclosure Material: 15 mm, plywood with EVCoat
    • Frequency Response: (-10 dB) 35 Hz - 300 Hz Half Space Measurement
    • Frequency Response: (-3 dB) 50 Hz - 100 Hz Half Space Measurement
    • Grill: 18 AWG steel with powdercoat
    • LF Transducer: EVS-18C 457 mm (18 in)
    • Maximum SPL; 134 dB
    • Minimum Impedance: 7 Ohm
    • Nominal Impedance: 8 Ohm
    • Power Handling (Continuous / Peak): 400 W/1600 W
    • Recommended High-Pass Frequency: 30 Hz
    • Shipping Weight; 40.1 kg (88.41 lbs)
    • Height: 12RU 520 mm (20.47")
    • Width; 606 mm (23.86")
    • Depth: 612 mm (24.09")
    • Weight Net: 31.8 kg (70.11 lbs)

  • GTIN:

    0800549772150
