Sennheiser EW-DP 835 SET Evolution Wireless Digital Handheld Mic System - 520-576MHz

ITEM #: EW-DP835SET-R1-6 MFG #: 700031

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$829.00

Our Price:

$699.00

Availability: In Stock
iAvailability Description Popup


    700031 - Overview

    Sennheiser EW-DP delivers an industry leading audio workflow that only advanced digital technology and UHF transmission can offer. This fully digital UHF wireless microphone system features an all-new portable design and unmatched audio quality, purpose-built for filmmakers, content creators, and broadcasters.

    At the heart of EW-DP is a compact digital receiver that provides an intuitive user experience for all. Bluetooth synchronization and system control via our Smart Assist app help you save time and energy on set. A front facing OLED display allows for easy menu navigation and Smart Notifications help to troubleshoot your system when you encounter a challenge. Magnetic and stackable mounting configurations seamlessly integrate the receiver into your camera build while multiple powering options are ready to tackle long days on location.

    The EW-DP 835 Set includes the SKM-S handheld transmitter with the MMD 835 cardioid dynamic microphone module, ideal for on-camera interviews and capturing isolated dialog in noisy environments.

    • Features:

      • Fully digital UHF wireless microphone system for video applications
      • Integrated Bluetooth for synchronization and control
      • Smart Notifications for troubleshooting and system guidance
      • Intelligent battery management provides operating time (hours:minutes)
      • Extended battery life: up to 12h on transmitter, 7h on receiver
      • Magnetically stackable components for versatile mounting
      • Industry leading 134 dB dynamic range for distortion free transmission
      • Up to 56 MHz bandwidth for flexibility in any RF environment
      • Exceptionally low latency (1.9 ms)
      • External charging and powering via USB-C (receiver only)
      • Smart Assist app for monitor & control
      • Optional plug-on transmitter features XLR & 3.5 mm inputs, +48V & recording via microSD (ENG Set or component only)

    • Specifications:

      • System
      • Audio link frequency ranges: R1-6 520 - 576 MHz
      • Bluetooth® Low Energy (BLE) frequency range: 2402 - 2480 MHz
      • Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
      • Audio THD: ≤ -60 dB for 1 kHz@ -3 dBfs input level
      • Dynamic range: 134 dB
      • System latency: 1.9 ms
      • Operating temperature: 14 °F - 131 °F
      • Relative humidity: 5 - 95 % (non-condensing)

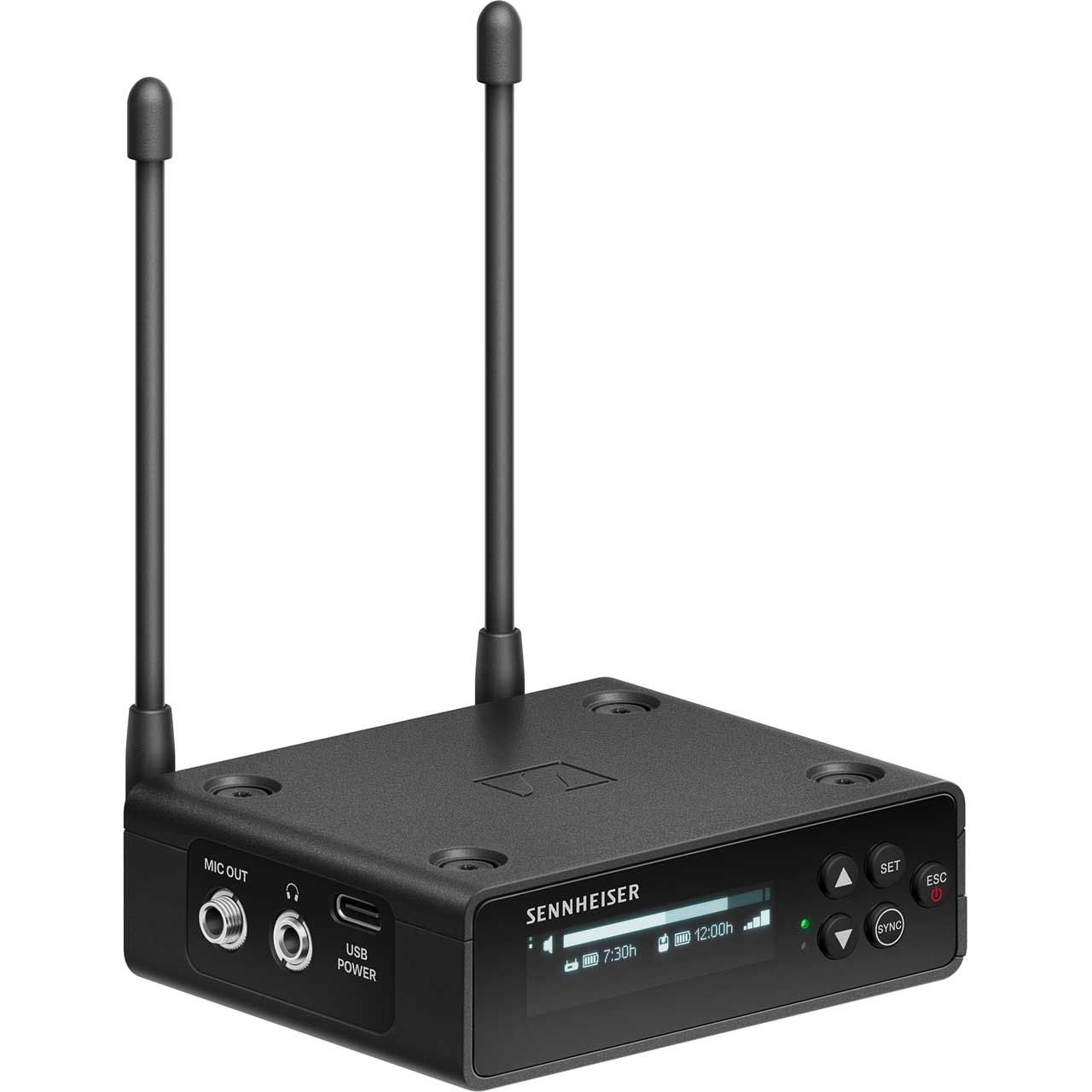

        EW-DP EK Portable Receiver
      • Input voltage ~ 1.8 - 4.35 V
      • Input current: Typ. < 250 mA / Max < 400, mA (BA 70), Typ. < 400 mA, Max < 750 mA (2x AA batteries) < 300 mA@5 V (USB-C standalone)
      • Power Supply: 2x AA batteries 1.5V or BA70 rechargeable battery pack or USB-C PD power supply (max.): 5V / 1500mA, 9V / 900mA, 12V / 700mA
      • Transmit power (radiated): BLE: max. 10 mW EIRP
      • Audio output power: < 2 dBV max. (high level) / < 4dBU max (high level)
      • Headphone Output: < 50 mW into 16 Ohms
      • Dimensions: 3.39" x 2.64" x 1.1"
      • Weight (without antennas and power supply): 0.31 lbs)

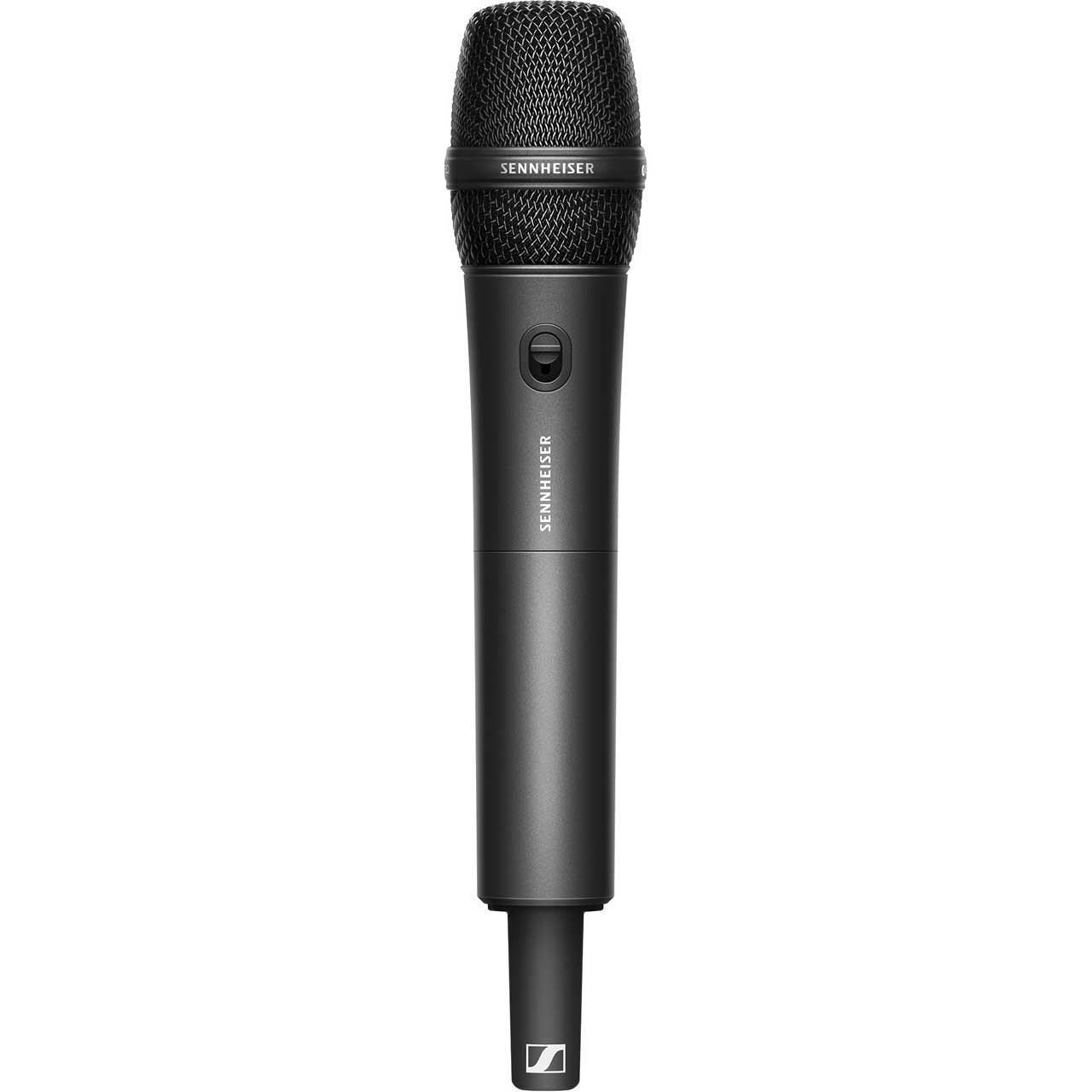

        EW-D SKM-S (Handheld Transmitter)
      • Input voltage: 2.0 - 4.35 V
      • Input current: < 300 mA
      • Power supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
      • Occupied bandwidth: 200 kHz
      • Transmit power (radiated): Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP), BLE: max. 10 mW EIRP
      • Dimensions (° x l) (incl. MMD 835 microphone module): 1.97" x 10.55" (without microphone module): 1.57" x 7.87"
      • Weight (without batteries) (incl. MMD 835 microphone module): 0.67 lbs), (without microphone module): 7.14 lbs

        MMD 835 (Microphone Module)
      • Transducer principle: dynamic
      • Sensitivity: 2.1 mV/Pa
      • Sound pressure level: 154 dB SPL
      • Pick-up pattern: cardioid

    • Item Includes:

      • 1x EW-DP EK digital portable single channel receiver
      • 1x EW-D SKM-S digital handheld transmitter
      • 1x MMD 835 dynamic cardioid microphone module
      • 1x Mounting kit (cheese plate, cold shoe, belt clip & screws)
      • 1x BA 70 li-ion battery & (2) AA battery
      • 1x Locking 3.5 mm TRS plug to 3.5 mm TRS plug cable
      • 1x Locking 3.5 mm TRS plug to XLR plug cable
      • 1x USB-C charging cable

    • GTIN:

      0615104375857
