Sennheiser EW-DP ME4 SET Evolution Wireless Digital Cardioid Lavalier Mic System - 552-607.8MHz

700022 - Overview

• Features:

  • Fully digital UHF wireless microphone system for video applications
  • Integrated Bluetooth for synchronization and control
  • Smart Notifications for troubleshooting and system guidance
  • Intelligent battery management provides operating time (hours:minutes)
  • Extended battery life: up to 12h on transmitter, 7h on receiver
  • Magnetically stackable components for versatile mounting
  • Industry leading 134 dB dynamic range for distortion free transmission
  • Up to 56 MHz bandwidth for flexibility in any RF environment
  • Exceptionally low latency (1.9 ms)
  • External charging and powering via USB-C (receiver only)
  • Smart Assist app for monitor & control
  • Optional plug-on transmitter features XLR & 3.5 mm inputs, +48V & recording via microSD (ENG Set or component only)


• Specifications:

  • System
  • Audio link frequency ranges: R4-9 552 - 607.8 MHz
  • Bluetooth® Low Energy (BLE) frequency range: 2402 - 2480 MHz
  • Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
  • Audio THD: ≤ -60 dB for 1 kHz@ -3 dBfs input level
  • Dynamic range: 134 dB
  • System latency: 1.9 ms
  • Operating temperature: 14 °F - 131 °F
  • Relative humidity: 5 - 95 % (non-condensing)

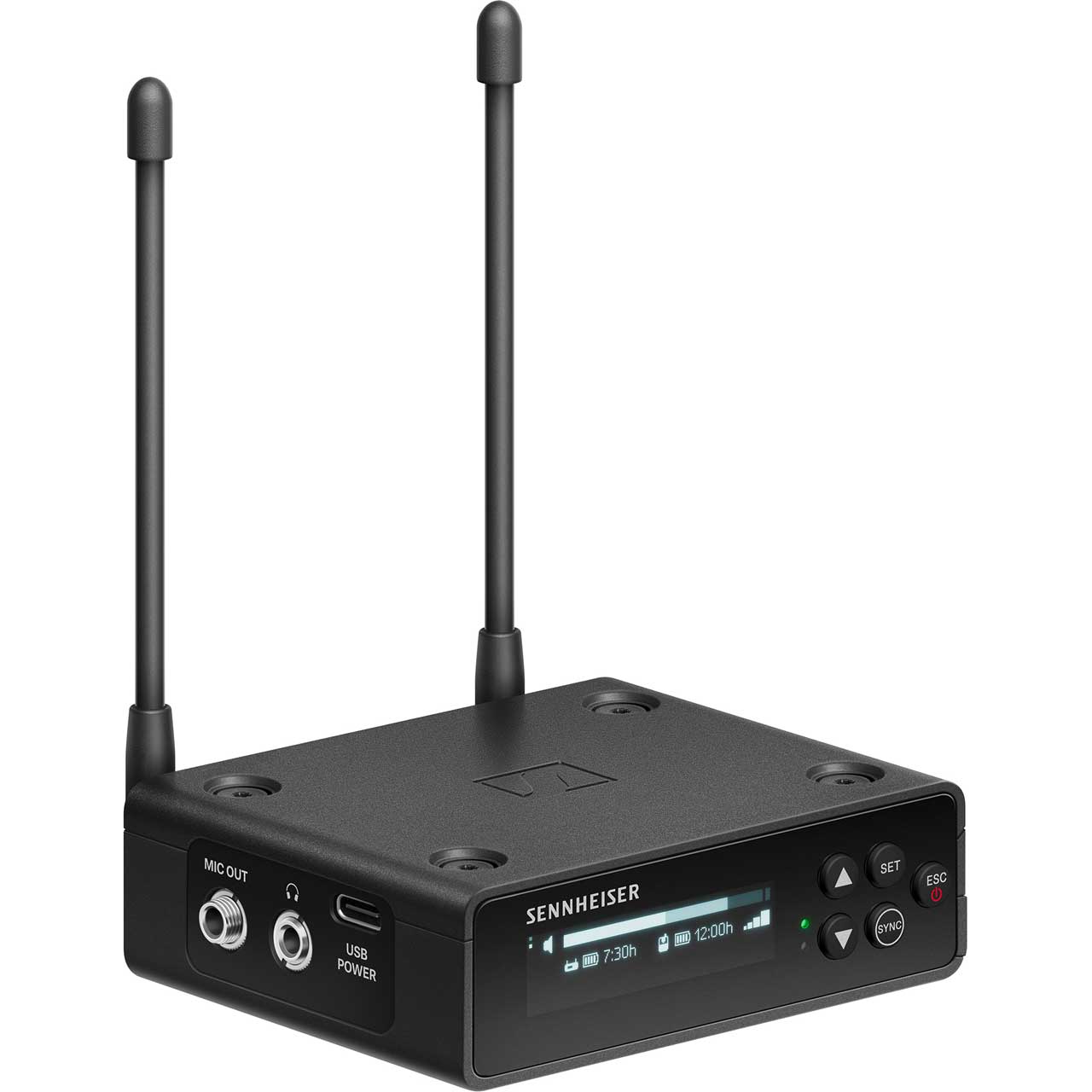

    EW-DP EK Portable Receiver
  • Input voltage ~ 1.8 - 4.35 V
  • Input current: Typ. < 250 mA / Max < 400, mA (BA 70), Typ. < 400 mA, Max < 750 mA (2x AA batteries) < 300 mA@5 V (USB-C standalone)
  • Power Supply: 2x AA batteries 1.5V or BA70 rechargeable battery pack or USB-C PD power supply (max.): 5V / 1500mA, 9V / 900mA, 12V / 700mA
  • Transmit power (radiated): BLE: max. 10 mW EIRP
  • Audio output power: < 2 dBV max. (high level) / < 4dBU max (high level)
  • Headphone Output: < 50 mW into 16 Ohms
  • Dimensions: 3.39" x 2.64" x 1.1"
  • Weight (without antennas and power supply): 0.31 lbs)

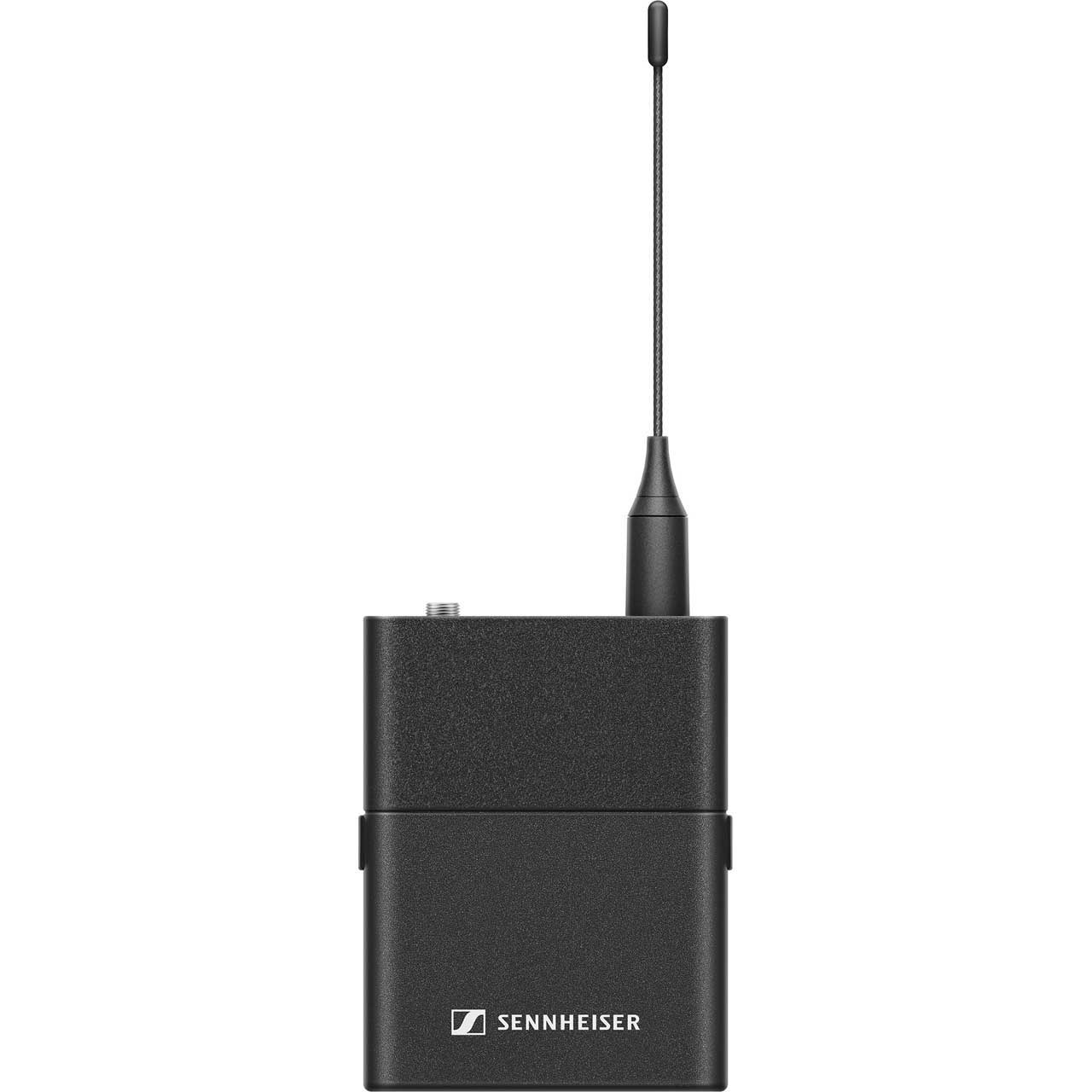

    EW-D SK (Bodypack Transmitter)
  • Input voltage 2.0 - 4.35 V
  • Input current < 300 mA
  • Power supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
  • Occupied bandwidth: 200 kHz
  • Transmit power (radiated): Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) BLE: max. 10 mW EIRP
  • Dimensions (without antenna): 2.48" x 3.15" x 0.79"
  • Weight (without batteries): 0.26 lbs

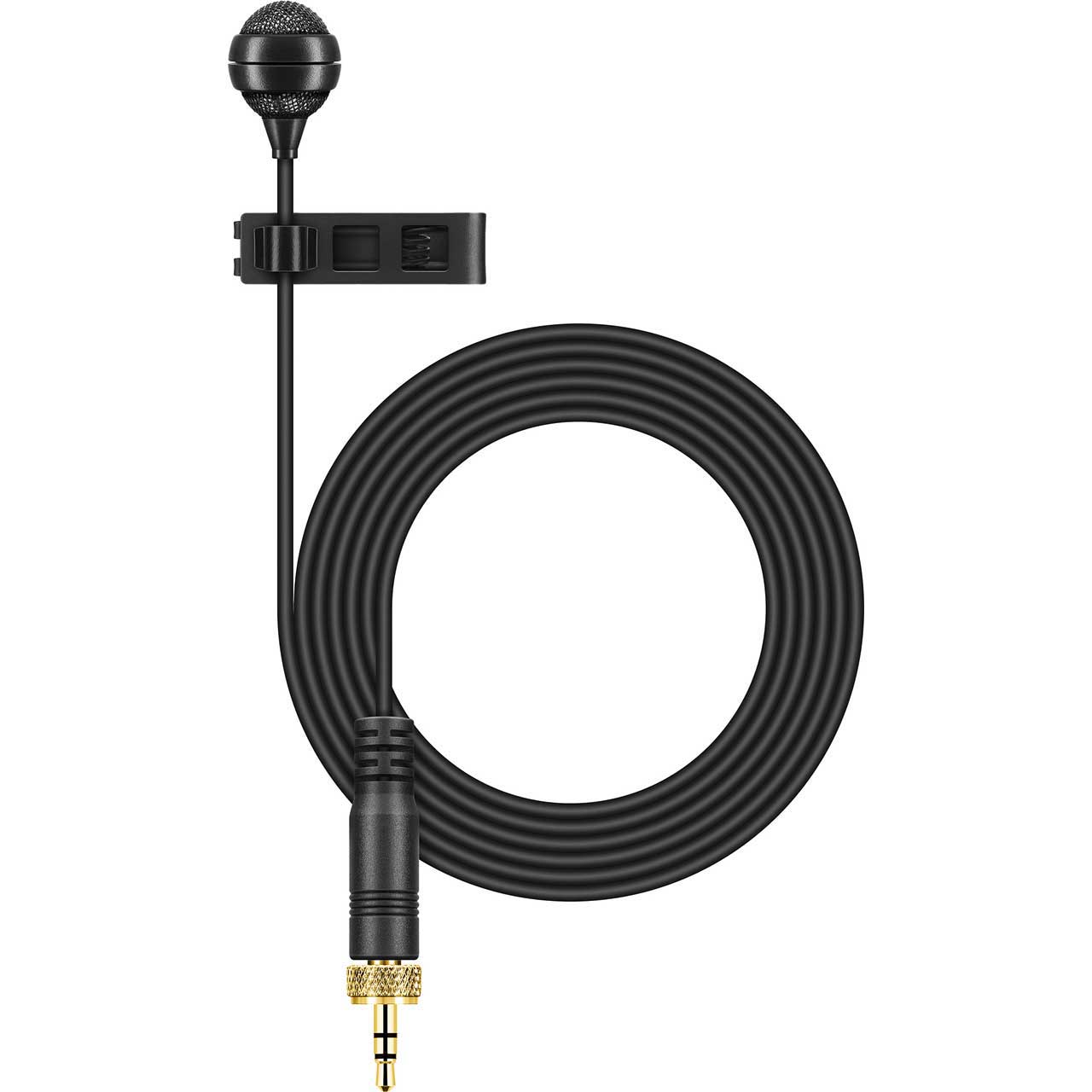

    ME 4 (Lavalier Microphone)
  • Transducer principle: pre-polarized condensor microphone
  • Pick-up pattern: cardioid
  • Sensitivity (free field, no load) (1 kHz): 40 mV/Pa
  • Max. SPL at 1 kHz: 120 dB
  • Frequency response: 50 to 18,000 Hz
  • Equivalent noise level A-weighted: 31 dB
  • Connector: 3.5 mm jack
  • Cable length: approx. 62.99"
  • Supply voltage: 7.5 V

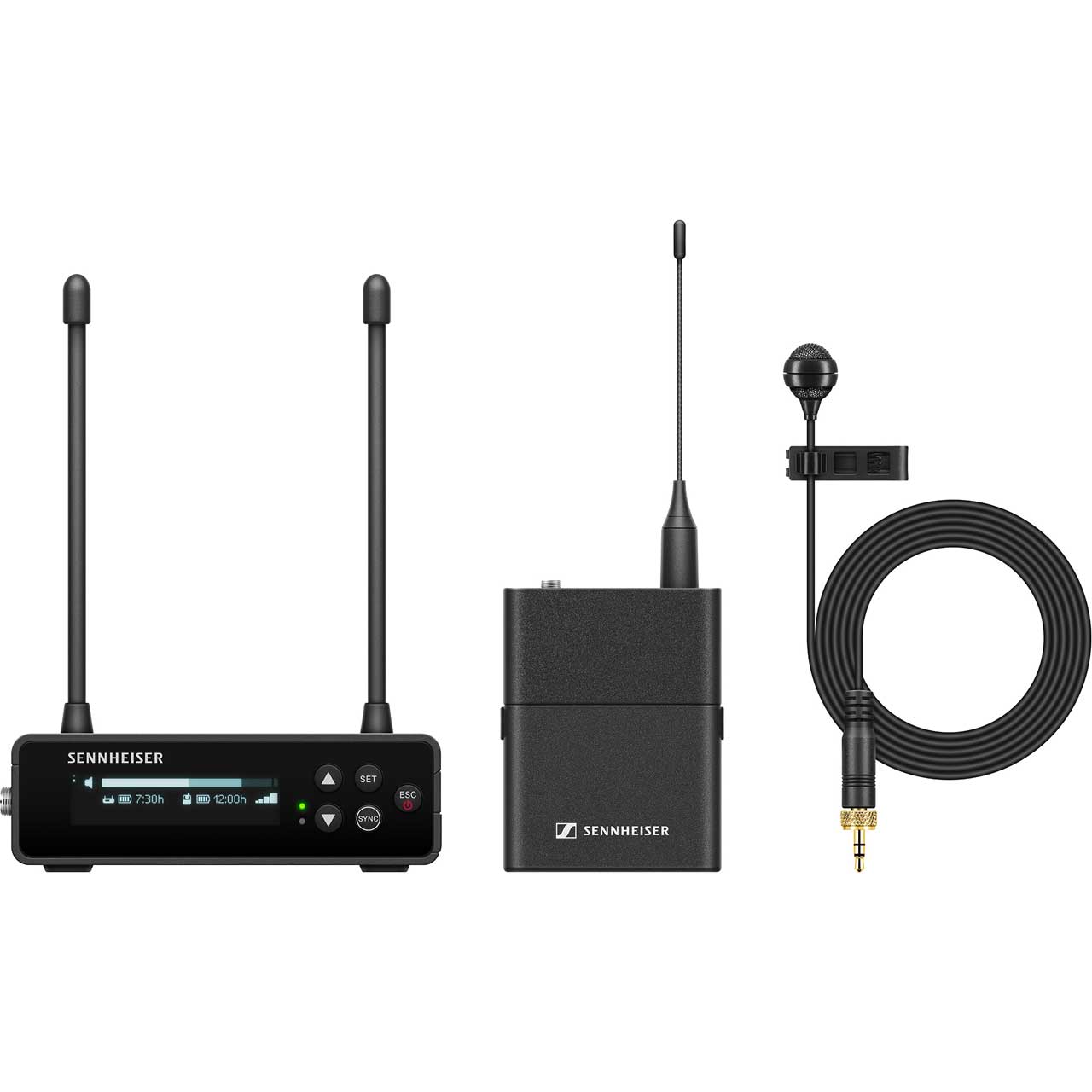

• Item Includes:

  • 1x EW-DP EK digital portable single channel receiver
  • 1x EW-D SK digital bodypack transmitter
  • 1x ME 4 cardioid lavalier microphone
  • 1x Mounting kit (cheese plate, cold shoe, belt clip & screws)
  • 1x BA 70 li-ion battery & (2) AA battery
  • 1x Locking 3.5 mm TRS plug to 3.5 mm TRS plug cable
  • 1x Locking 3.5 mm TRS plug to XLR plug cable
  • 1x USB-C charging cable


• GTIN:

  0615104376106
