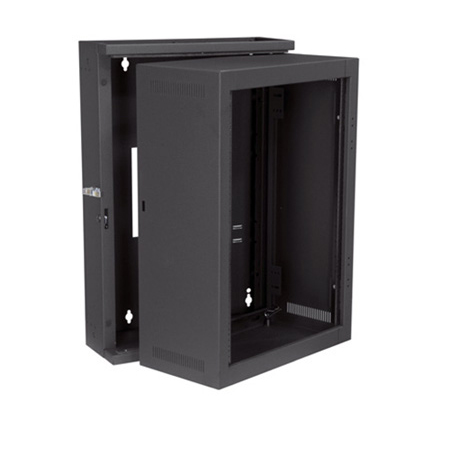

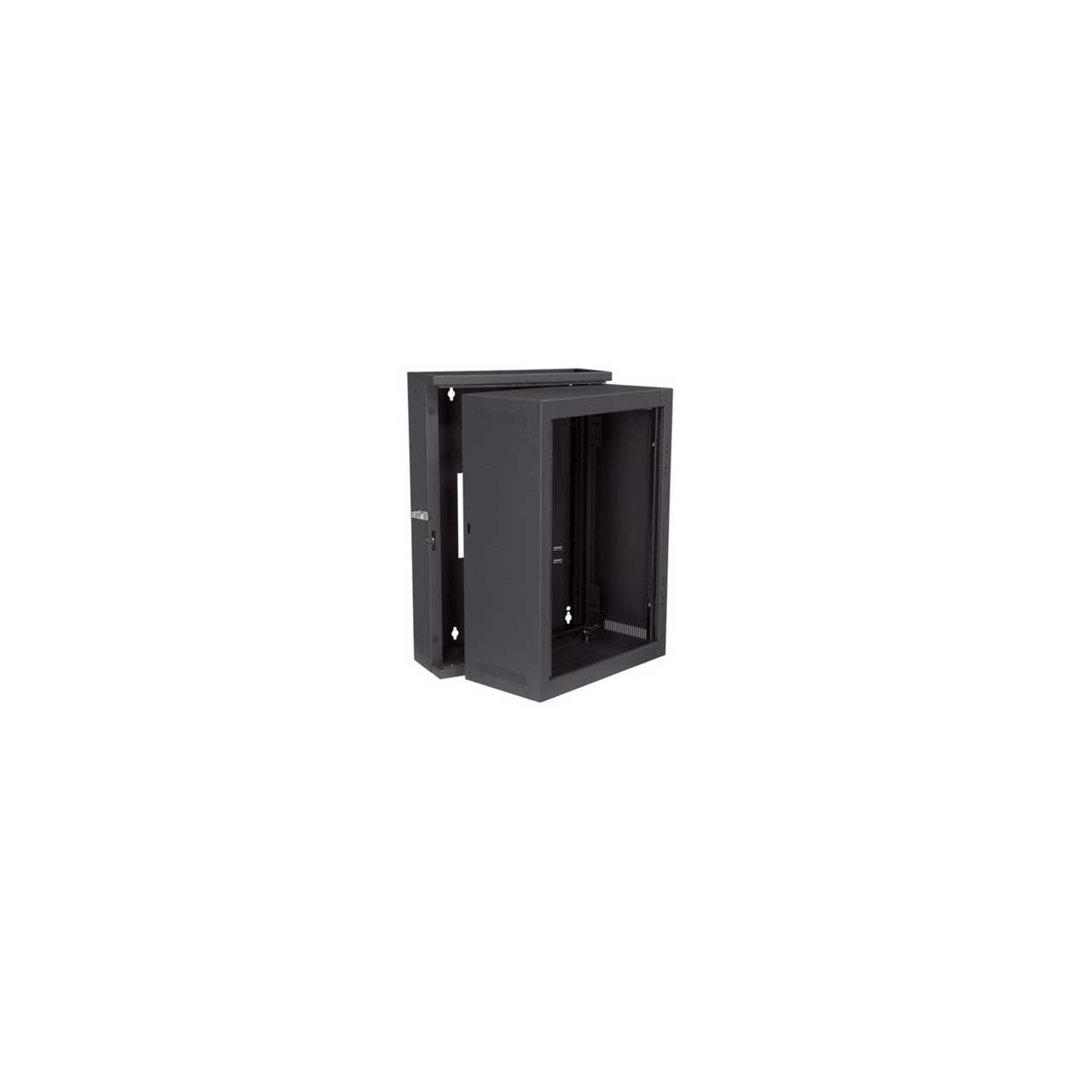

Middle Atlantic EWR-16-22 EWR Series 16 Space 22 Deep Wall Mount Rack

EWR-16-22 - Overview

• Features:

  • Fully welded construction for strength
  • Patented Tool Free Quick-Mount system for center section mounting
  • Center section swing is reversible, and can be both keylocked and padlocked
  • Center section is keyed differently from optional front door for security
  • Optimized for passive thermal management


• Specifications:

  • General Info
  • Finish Type: Textured Black Powder Coat
  • UL Standards Tested: UL2416


  • Listing Agencies/Third Party Information
  • RoHS: Yes
  • Greenguard: Yes
  • CSA Standard: Yes
  • UL Listing No: E313734


  • Dimensions
  • Usable Depth: 20"
  • Usable Height: 28"
  • Capacity Weight (US): 150
  • Depth: 22.325"
  • Height: 35"
  • Width: 23.375"
  • Primary Package Weight (US): 85
  • Rack Units: 16


  • Technical Information
  • Rackrail Type: 10-32
  • UL Load Capacity: 200
  • Material: Steel
  • Mounting: Horizontal


• easily removable for cable pass-through 10 1/2" x 10 1/2" laser knockout opening in the backpan for electrical pull-box Durable black textured powder coat finish 22" Deep units (20" useable) Models with Solid Front Door available.:



• GTIN:

  0656747057236
