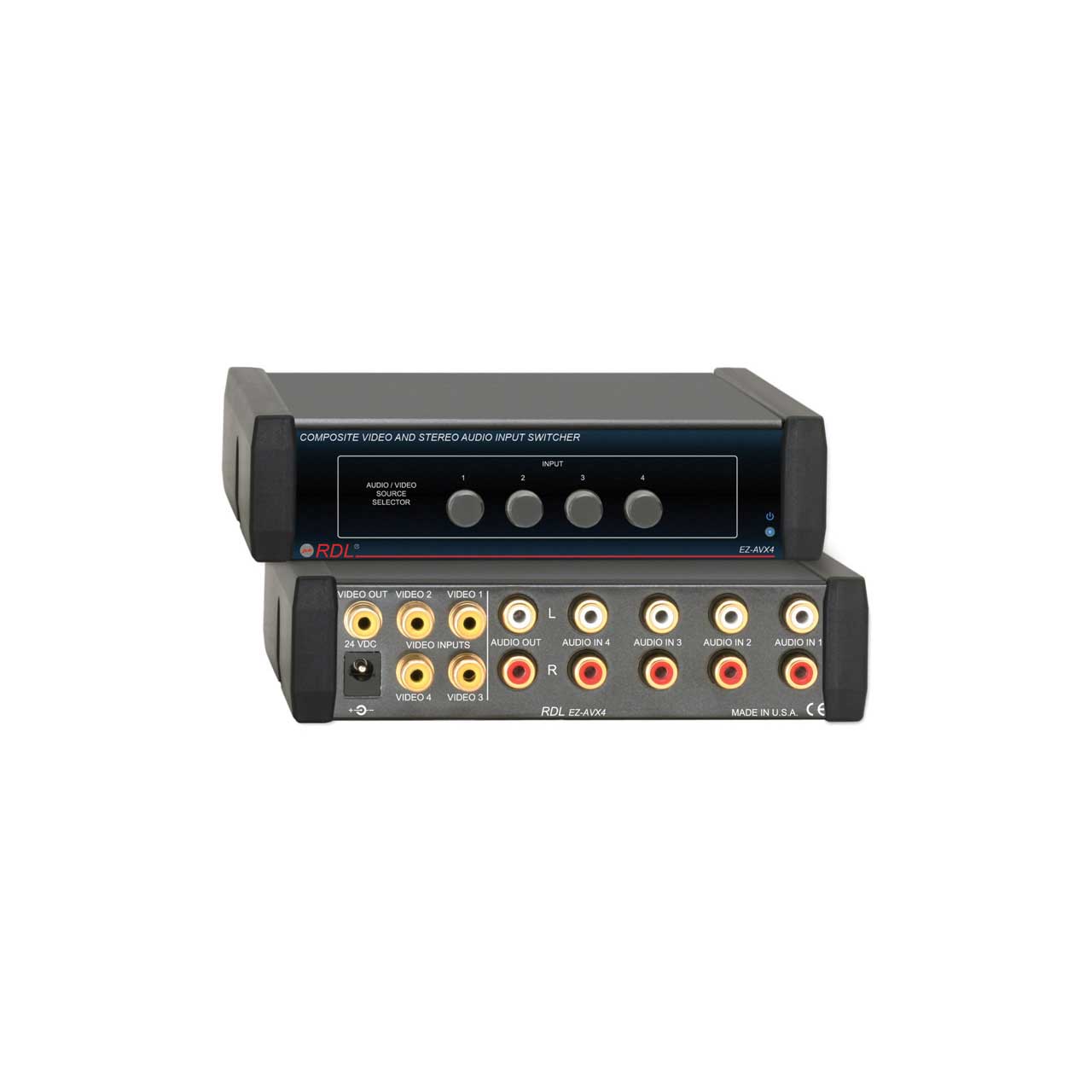

RDL EZ-AVX4 4x1 Composite Video and Stereo Audio Input Switcher

ITEM #: EZ-AVX4 MFG #: EZ-AVX4

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$362.44

Our Price:

$271.83

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


EZ-AVX4 - Overview

The EZ series offers unparalleled flexibility. Each unit is fully labeled on the front and rear for use either as a finished product or as a utility module. Installation of multiple products is quick and easy using the comprehensive range of EZ rack mounts, chassis, bezels, drawers and accessories. High quality full-size switches, long life controls, quality connectors, solid-state audio and video switching, gold plating and superior engineering combine to make EZ the best value in the industry. EZ products are attractive, reliable, packed with features and are simple to install and operate. When long-term performance, quality and value matter, the choice is EZ.

  • Features:

    • Four Input Source Selection
    • Video Inputs Accept NTSC or PAL Signals
    • Unbalanced Stereo Audio Inputs and Output
    • Simultaneous Audio and Video Switching
    • Audio and Video on Color-Coded RCA Jacks
    • Inputs and Outputs on Rear Panel
    • Full-Size Interlocking push buttons on Front Panel

  • Specifications:

    • Audio Specifications
    • Inputs (4): Stereo on dual RCA jacks, > 10 k Ohm, -10 dBV nominal, +10 dBV max.
    • Gain: Unity, nominal
    • Output: Stereo on dual XLR jacks, -10 dBV nominal, +10 dBV max.
    • Frequency Response: 10 Hz to 20 kHz (±0.01 dB)
    • THD+N: < 0.02%
    • Off Attenuation: > 95 dB
    • Noise: <-95 dB (below -10 dBV output).

      Video Specifications
    • Inputs (4): RCA jack, 1V p-p, 75 Ohm
    • Output: RCA jack, 1V p-p, 75 Ohm
    • Bandwidth: >350 MHz
    • Differential gain: <0.1%
    • Differential phase: < 0.1 degree
    • Off Attenuation: > 40 dB @ 10 MHz
    • Noise: <-90 dB (1V p-p video, 75 Ohm)
    • 24 Vdc power supply current: 85 mA (idle), 100 mA (max.)
    • Case dimensions: 5.75" (14.6 cm)W x 5" (12.7 cm)D
    • Mounting size: 1/3 rack width.
    • Power supply included

  • GTIN:

    0813721010049
