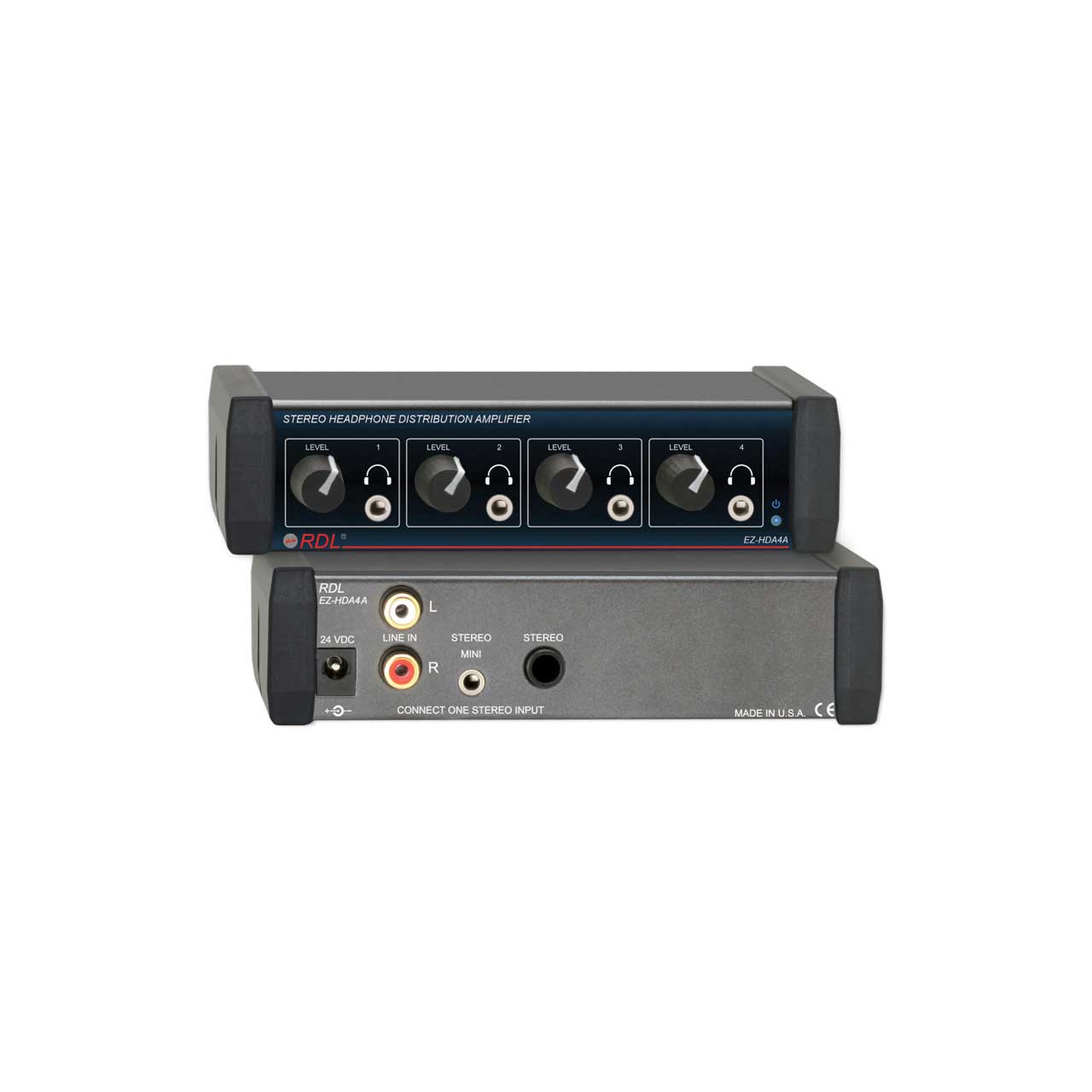

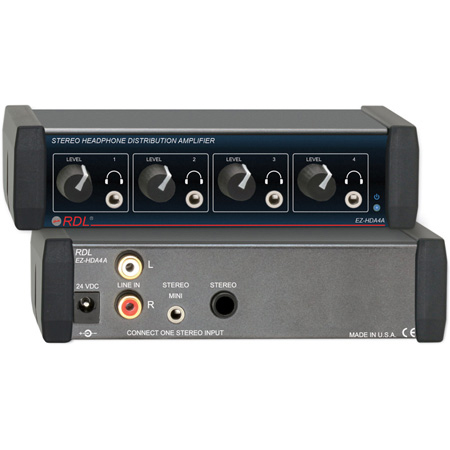

RDL EZ-HDA4A 1x4 Stereo Headphone Distribution Amp Front-Panel Outputs

ITEM #: EZ-HDA4A MFG #: EZ-HDA4A

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$286.58

Our Price:

$214.94

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


EZ-HDA4A - Overview

The EZ series offers unparalleled flexibility. Each unit is fully labeled on the front and rear for use either as a finished product or as a utility module. Installation of multiple products is quick and easy using the comprehensive range of EZ rack mounts, chassis, bezels, drawers and accessories. High quality full-size switches, long life controls, quality connectors, solid-state audio and video switching, gold plating and superior engineering combine to make EZ the best value in the industry. EZ products are attractive, reliable, packed with features and are simple to install and operate. When long-term performance, quality and value matter, the choice is EZ.

  • Features:

    • One Stereo Input to Four Stereo Outputs
    • Unbalanced Inputs on Rear Panel
    • Input on MINI, 1/4" (6.3 mm) or RCA Jacks
    • Headphone Outputs on Front Panel
    • Front kOutputs on MINI Jacks
    • Front-Panel LEVEL Control for Each Output
    • Gold-Plated RCA Input Connectors
    • Each Output is Driven Separately
    • Knobs for Easy Level Adjustment

  • Specifications:

    • Inputs (3): Stereo on dual RCA jacks, stereo mini jack or 1/4" (6.3 mm) TRS, > 10 kOhm, -10 dBV nominal, +8.5 dBV max. (RCA and 1/4"), -16 dBV nominal, +2 dBV max. (Mini)
    • Level control: Off to +2.5 dB gain (RCA and 1/4" inputs, 100 Ohm output load), Off to +9 dB gain(Mini input, 100 Ohm output load)
    • Outputs (4): Stereo on Mini jacks (front panel), 60 mW (100 Ohm load)
    • Frequency Response: 20 Hz to 50 kHz (±1.5 dB)
    • THD+N: < 0.1% (10 mW output, 100 Ohm load)
    • Crosstalk: < -75 dB (1 kHz)
    • Noise: < -95 dB (below 10 mW output, 100 Ohm load, maximum gain)
    • 24 Vdc power supply current: 40 mA (idle), 65 mA (max.)
    • Case dimensions: 5.75" (14.6 cm)W x 3" (7.6 cm)D
    • Mounting size: 1/3 rack width

  • Item Includes:

    • 1x Power supply

  • GTIN:

    0813721010056
