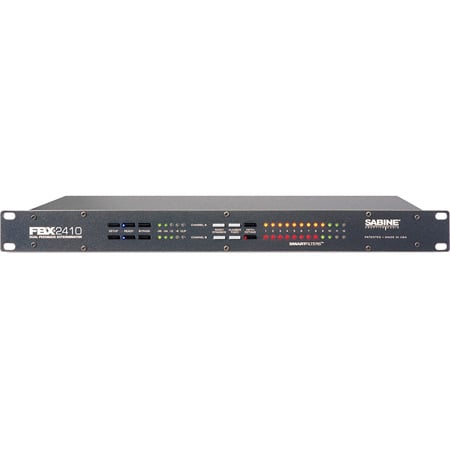

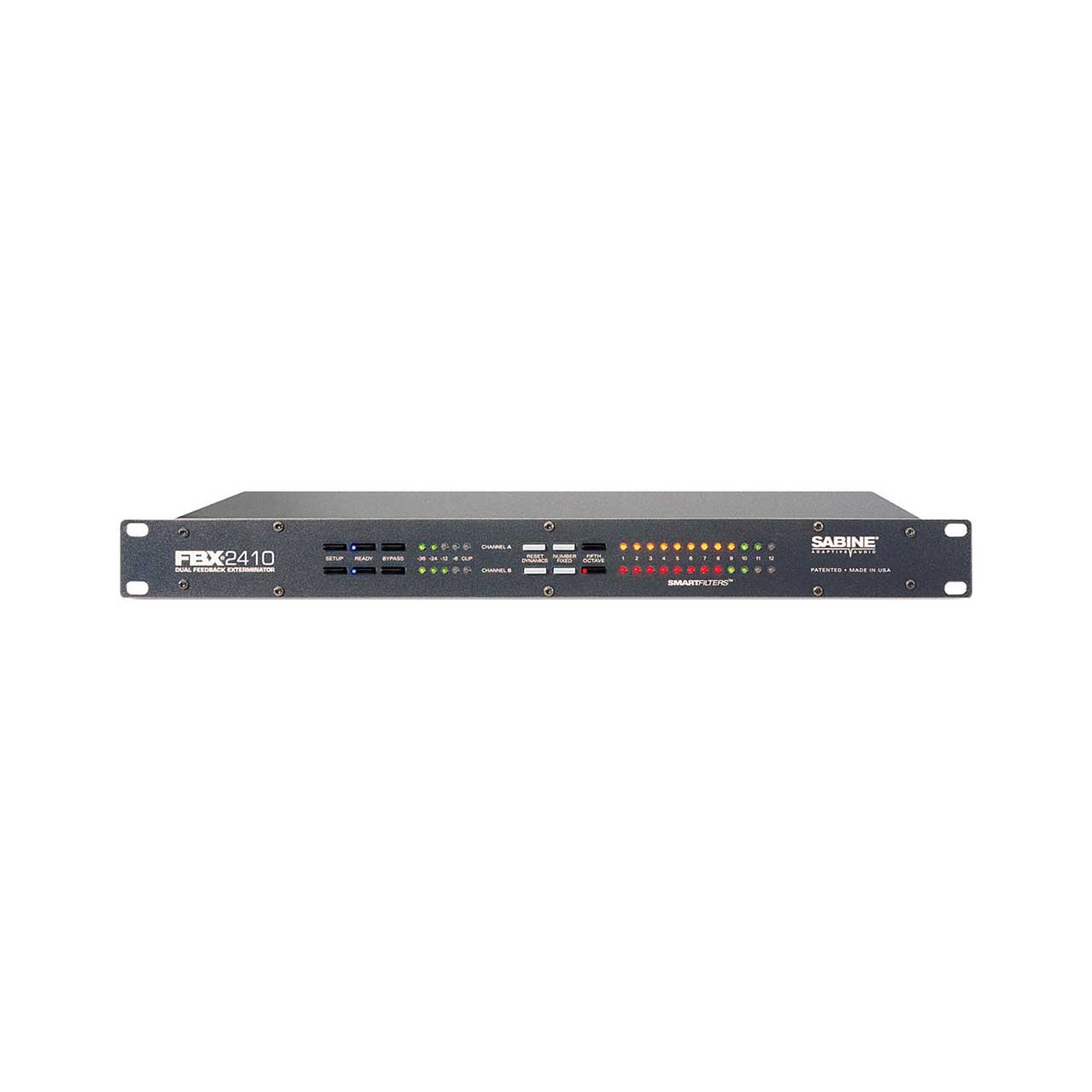

Sabine FBX2410-U 24-Bit Dual Channel Pro Feedback Exterminator

ITEM #: FBX-2410 MFG #: FBX2410-U

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the FBX-2410

FBX2410-U - Overview

Since Sabine first invented digital feedback control in 1991, FBX Feedback Exterminators have set the standard for transparent and reliable automatic feedback control. Now Sabine is proud to announce the latest innovation in automatic feedback controllers: The FBX2410 Dual Feedback Controller.

The new FBX2410 includes the latest improvements to Sabine's patented feedback control algorithms, providing the fastest ever feedback detection and elimination. Sabine's one Hz placement accuracy means these filters are even more transparent, and the signal to noise ratio has been improved by 10dB. All this means the best just got better.

FBX Feedback Exterminators set themselves apart for their ability to control feedback during the program, not just at setup time. If feedback occurs during that crucial moment of the show, in the middle of the big solo, or just when the worship leader begins the sermon, the FBX places a filter that only kills the feedback, not the sound and power you work so hard to achieve. Think of the FBX as a very advanced set of automatic parametric filters. If you had the time, the filters, and the test equipment, you could find the feedback frequencies, dial in the precise filter location, and make a very narrow filter, just deep enough to remove the offending tone. The FBX does it all for you auto-matically, and it does it faster than any other method. How do we do it? First let's consider just how a superior feedback control filter should behave. Filters can be described by their Speed, Accuracy, Resolution, and Sonic Integrity.

The industry's best digital signal processors give the FBX2410 a distinct speed advantage over all other automatic feedback controllers. And in Setup Mode the speed is increased, so you can complete your entire setup of the FBX in less than 30 seconds.

Sabine: The highest quality automatic feebdack controller The new FBX2410 continues Sabine's leadership in the field of innovative and effective feedback control. With improved specs and audio performance, the FBX Feedback Exterminator is made in the USA. Call us or head to your nearest Sabine dealer and try the new FBX for yourself. You will hear your sound and nothing else!

  • Specifications:

    • FBX/PARAMETRIC Filters
    • 12 independent digital notch filters per channel, controlled automatically from 40 Hz to 20 KHz. Filter width: user-controllable - either 1/10 or 1/5 octave*, constant "Q" Resolution: 1 Hz
    • Time required to find and eliminate feedback: 0.4 seconds, typical @ 1 KHz Number of Dynamic vs. Fixed filters per channel: user selectable. Last configuration stored in memory. Dynamic filter Timer: Resets dynamic filters in 1, 5, 30, or 60 minutes.

      Input / Output
    • Input/Output Maximum Signal Levels: Balanced +18dBV peak, unbalanced +12 dBV peak Output Drive: Unit will perform as specified driving a load >600 Ohms Input Impedance: Balanced or unbalanced >40K Ohms, PIN 2 high Output Impedance: Balanced or unbalanced 150 Ohms nominal, PIN 2 high
    • Bypass: True power off bypass Headroom: +14 dB peak @ 4 dBV nominal input, balanced I/O Connectors: XLR-3 and 1/4" TRS

      Performance
    • Frequency response: 20 Hz – 20 KHz +/- 0.3 dB Gain matching: +/- 0.2 dB SNR - Dynamic Range: >108 dB THD: .005% at 1 KHz
    • < 0.01% 20 Hz – 10 KHz < 0.025% 10 KHz – 20 KHz Dynamic Range: >108 dB

      Dimensions
    • 1-U rack mount; 19 x 1.75 x 6.25 in. nominal (rack mountable); 48.3 x 4.5 x 15.9 cm nominal
    • WEIGHT
    • 8.0 lbs. (3.6 kg) nominal

      Operating Temperature
    • Safe operating temperature: -15 to +50 degrees centigrade ambient temperature (5 to 122F)

  • GTIN:

    0708277927340
