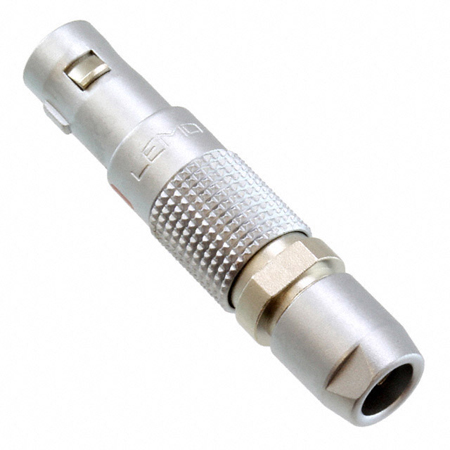

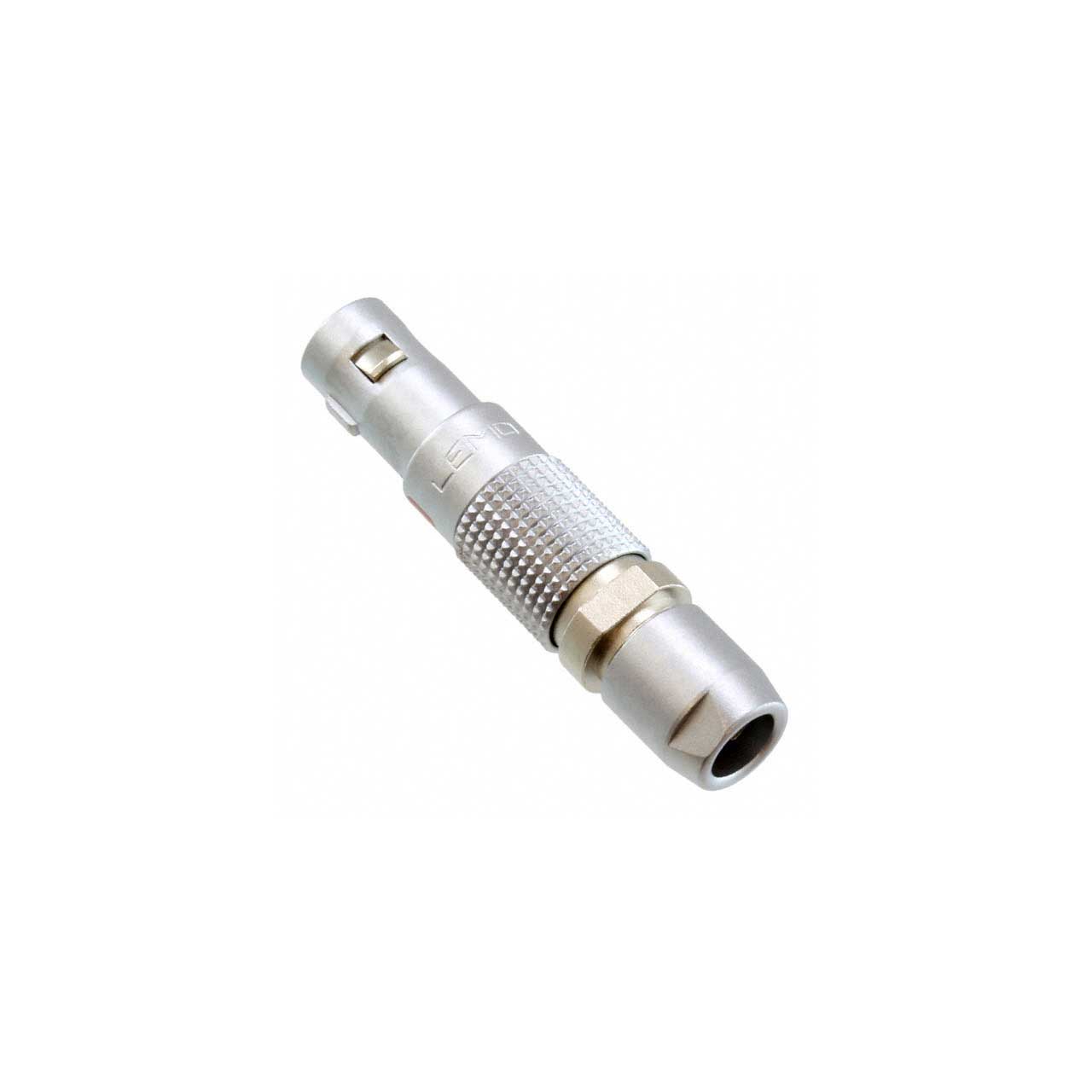

Lemo FGG.00.304.CLAD35 IP50 Circular Push Pull Straight Plug Connector - 3.5mm Collet

FGG.00.304.CLAD35 - Overview

• Specifications:

  • Connector Type: Straight Plug
  • Contact Gender: Pin (Male)
  • Number of Contacts: 4 Contact
  • Mounting Style: Cable Mount
  • Termination Style: Male Solder
  • Keying: 1 key (alpha=0, plug: male contacts, receptacle: female contacts)
  • Wire Gauge: 30 AWG
  • IP Rating: IP50
  • Shell Material: Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces
  • Shell Plating: Chrome
  • Weight: 3.45 g
  • Configuration: 00.304 : 4 Low Voltage
  • Insulator: L: PEEK (UL 94 / V-0/1.5)
  • Rated Current: 2 Amps
  • Contact Type: Solder
  • Contact Dia.: 0.5 mm (0.02in)
  • Bucket Dia.: 0.4 mm (0.016in)
  • Max. Solid Conductor: 0.09 mm^2 (AWG 28)
  • Max. Stranded Conductor: 0.05 mm^2 (AWG 30)
  • R (max): 8.7 mOhm
  • Vtest (contact-shell): 650 V (AC), 920 V (DC)
  • Vtest (contact-contact): 800 V (AC), 1130 V (DC)


• Item Includes:

  • 1x Lemo FGG.00.304.CLAD35 IP50 Circular Push Pull Straight Plug Connector - 3.5mm Collet
