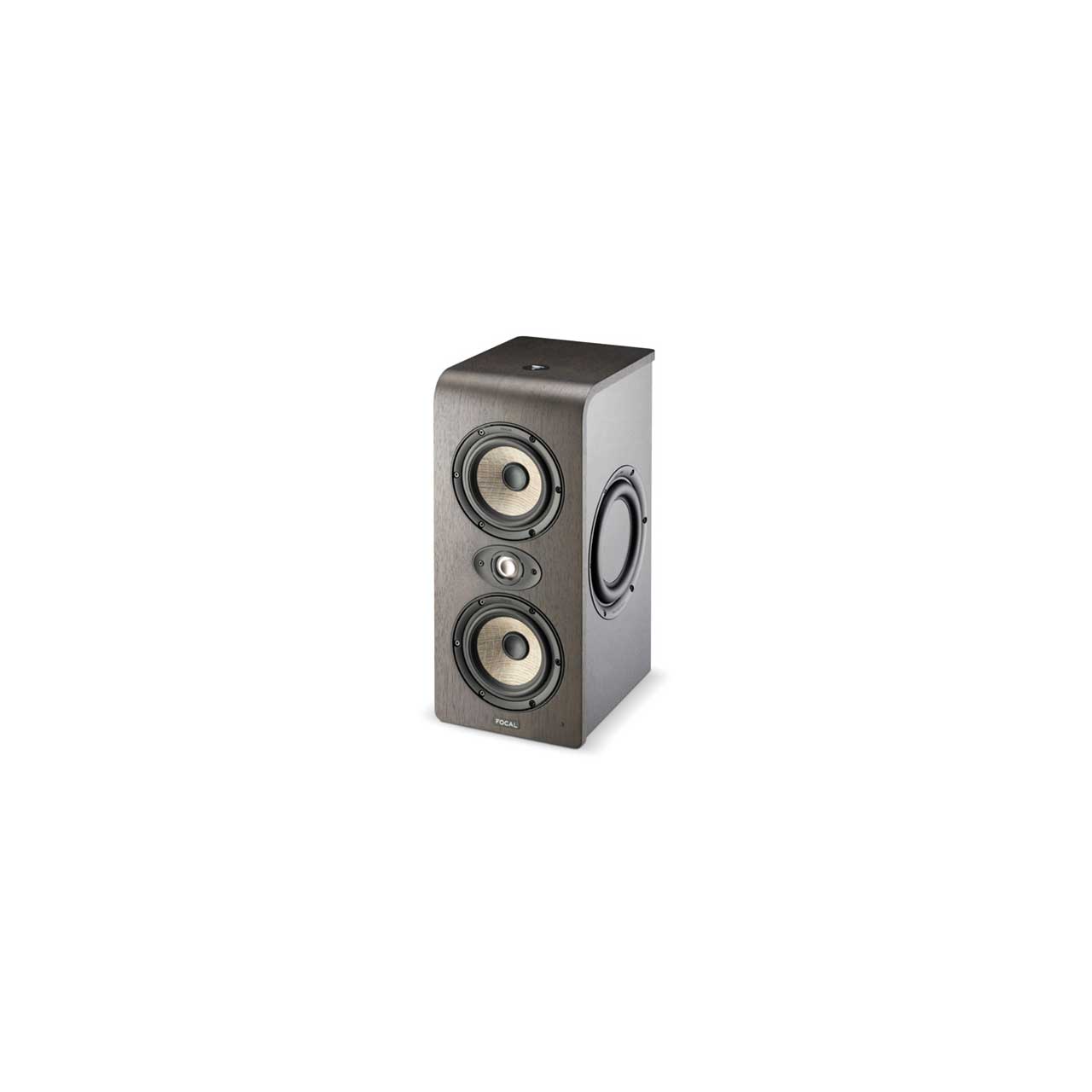

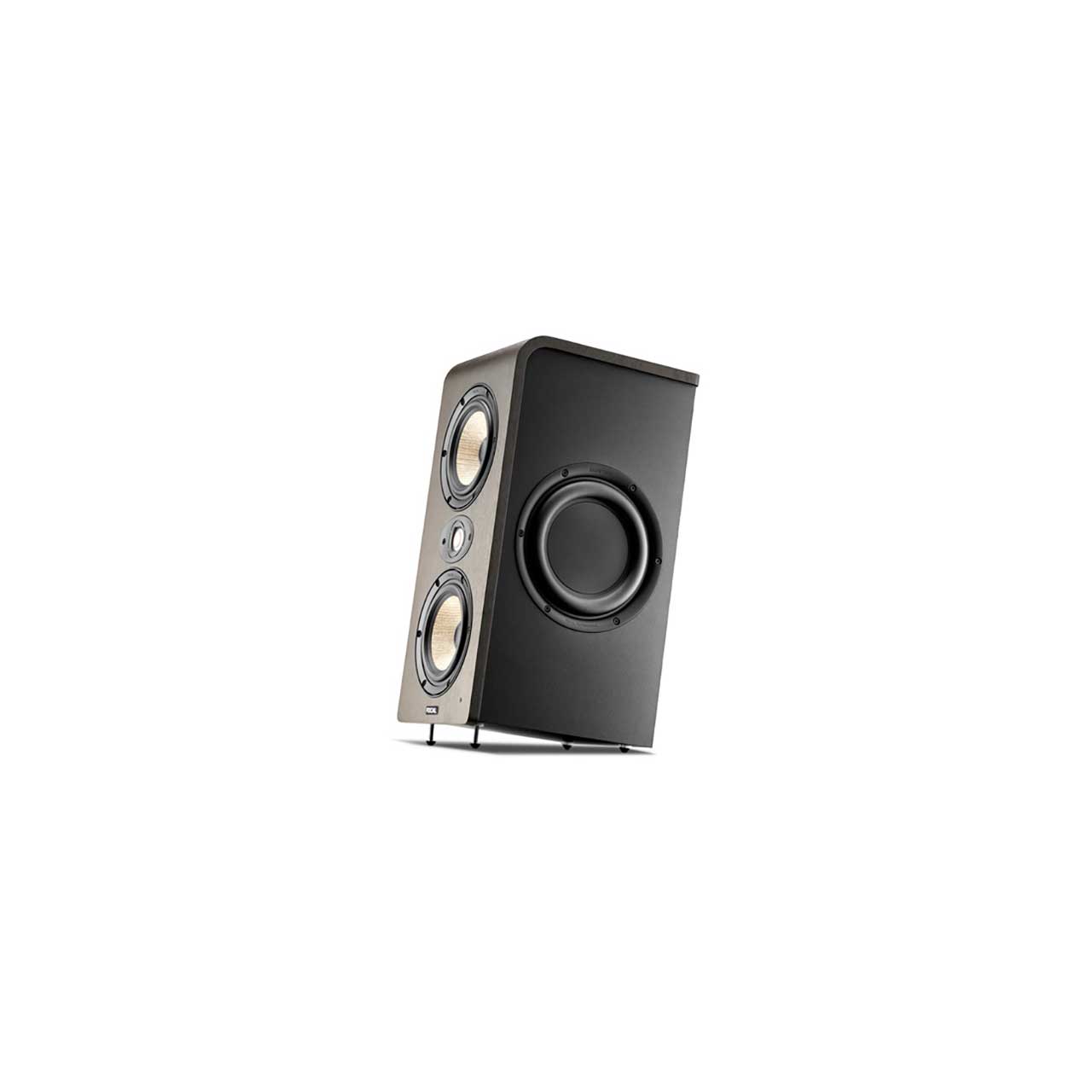

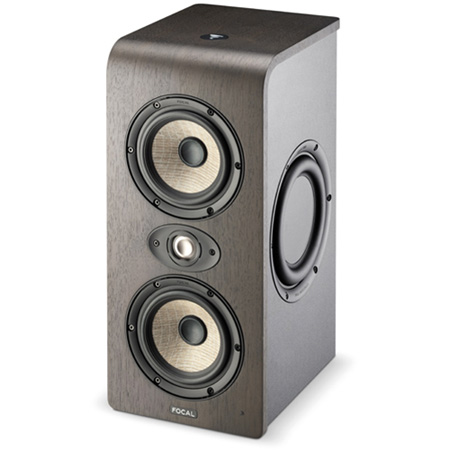

Focal SHAPETWIN 3-Way Shielded Monitor

ITEM #: FOCAL-SHAPETWIN MFG #: SHAPETWIN

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$1,149.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SHAPETWIN - Overview

Focal Shape Twin (FOPRO-SHAPETWIN) is the standard bearer of the Shape series and stands out through its excellent rendering of the whole audio spectrum, in addition to its broad frequency response in the low end, and to its high SPL considering its size. The compact design makes it easy to integrate, even into the most cramped of rooms. Its 2.5-way design gives it a decisive advantage when it comes to controlling the bass and lower mid-range registers which are the hardest to control in small rooms. This monitor will express its full potential from a listening distance of three feet away (1m).

  • Features:

    • Tweeter with very low directivity for a flexible sweet spot
    • Designed without a port (double passive radiator) allowing it to be placed near a wall
    • 2.5 channels to provide optimal control of bass and low mid-range registers
    • Numerous settings for optimal integration
    • Accurate control, even in the very high frequencies
    • Flax sandwich cone: controlled and articulated bass, natural and detailed lower mid-range and upper mid-range registers
    • Fastening mechanisms for mounting to the ceiling or a wall (fastening accessories not supplied)

  • Specifications:

    • System
    • Type: Shape Twin
    • Frequency Response (±3dB): 40Hz - 35kHz
    • Max SPL (of musical signals): 110.5dB SPL (peak at @ 1m)

      Electronics
    • Inputs/Impedance:
      Type: XLR: balanced 10 kOhms
      RCA Connectors: unbalanced 10 kOhms with sensitivity compensation
    • Mid-Range and Low Frequency Amplifier: 2 x 80W, class AB
    • High Frequency Amplifier: 50W, class AB
    • Automatic Standby:
      Off: Approximately 30 minutes with no signal
      Deactivate Standby: Signal detection > 3mV
    • Power Supply:
      Voltage: 220-240V (fuse T2AL / 250V) or 100-120V (fuse T3.15AL / 250V)
      Connection: IEC connector and detachable power cable

      Settings
    • High-Pass Filter: Adjustable Full range 45/60/90Hz
    • Bass Level (0-250Hz): Adjustable, ±6 dB
    • Mid-Range/Bass (160Hz, Q=1): Adjustable, ±3 dB
    • Treble Level: Adjustable, ±3 dB
    • Power ON/OFF: On/off switch on rear panel
    • Power Consumption in Standby: < 0.5W
    • Displays and Controls: LED for power on/off and standby

      Transducers
    • Woofers: 2 x 5" (13cm) Flax Cone woofers
    • Tweeter: 1" (25mm) 'M'-shaped Aluminum/Magnesium

      Cabinet
    • Construction: 0.6" (15mm) MDF
    • Finish: Vinyl, Real Walnut and Black Paint
    • Dimensions including 4 Rubber Feet (HxLxD): 18.8 x 8.3 x 11" (478 x 211 x 279mm)
    • Weight: 24lbs (11kg)

      Recommended Mounting Kits
    • Wall Mounting Kit: K&M® 24471 + K&M® 24359 adapter
    • Ceiling Mounting Kit: K&M® 24496 + K&M® 24359 adapter

  • GTIN:

    0191561834033
