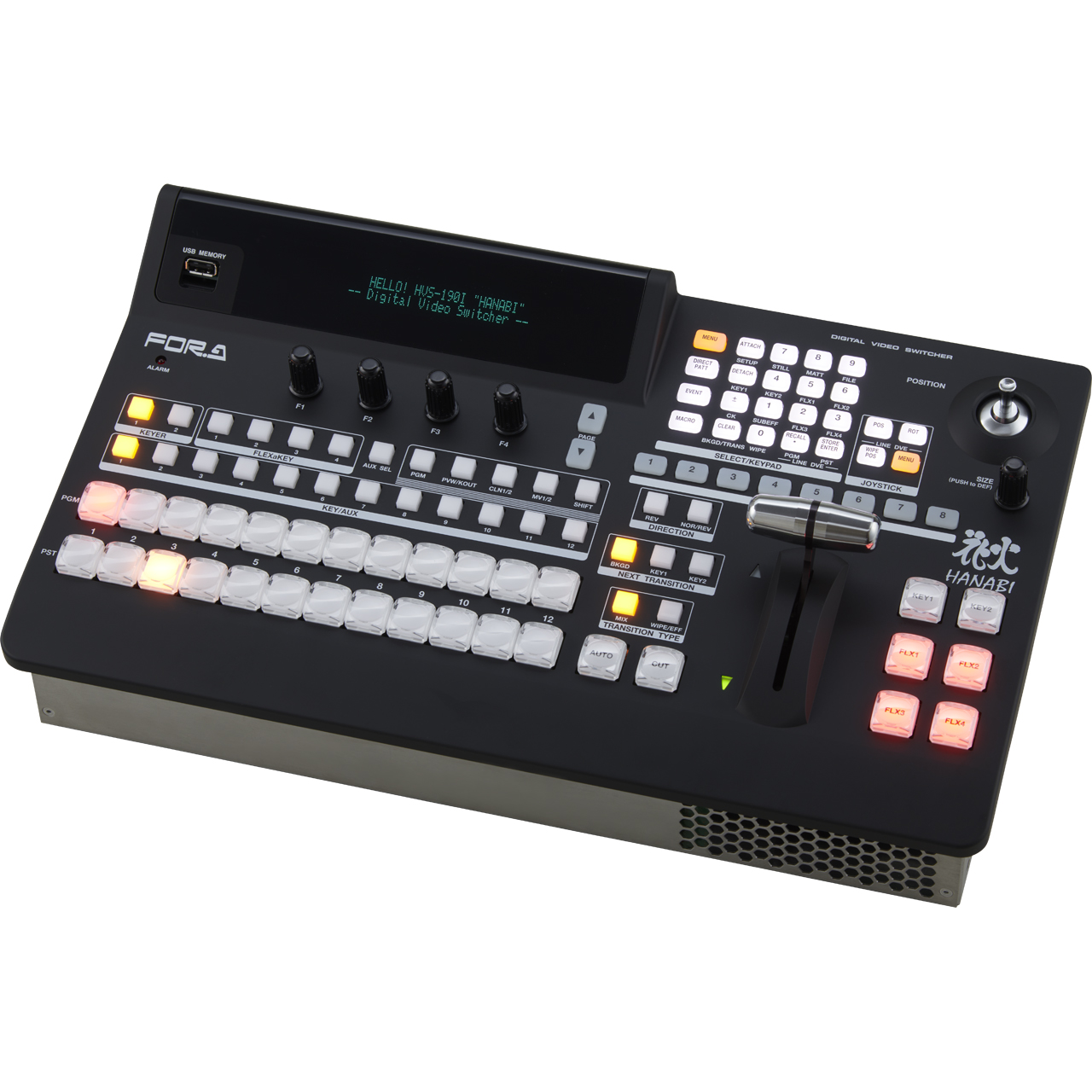

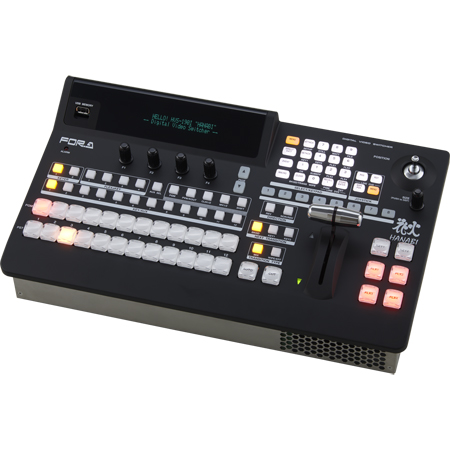

FOR-A HVS-190I Hanabi 1M/E 8x4 Mobile Live Event Production Video Switcher with 12-Button Control Panel - NDI Capable

ITEM #: FORA-HVS-190I MFG #: HVS-190I

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$11,000.00

Our Price:

$10,450.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


HVS-190I - Overview

Introducing the FOR-A HVS-190I, a portable 1 M/E video switcher that builds on the features of the capable and popular HVS-490. Take advantage of remote control for off-site event management and add an HVS-NIF card for NDI connectivity in a highly reliable mixed SDI/IP system. Includes frame synchronization, resizing, 2.5D wipes and other DVEs, chroma keying, FLEXaKEY™, and more.

The HVS-190I also has a built-in Web server that lets you change settings from a PC or a tablet. A clip memory feature has been added to the still store to support playback of video or animations and enhances productions through the use of CG wipes, while the multi-viewer meets a diverse range of monitoring needs. The equipment can be used in all types of locations, including live events, sports, news studios, OB vans, editorial offices and presentation venues, making it the ideal tool for shaping the imaginative your ideas.

Remote Control
Set up 190I at venues to manage events remotely from a control panel at your base of operations.

PTZ Camera Control
Control multiple PTZ cameras-pan, tilt, or zoom, activate tally lights, set or apply presets, or use stored macros for video switching coordinated by bus buttons. Connect to up to 16 cameras.

Support to Build SDI/NDI Mixed System
Easily add devices or computer content compatible with NDI output (such as videos, videoconferencing streams, presentations, or computer graphics) to SDI systems. Reliable baseband switchers can also be added to your NDI system.

SDI/IP Conversion and Routing
Add PTZ camera output, computer content, or other sources to SDI equipment, and freely convert between SDI and MoIP while routing video/audio from a single switcher to multiple devices. SDI/IP sources and output can be arranged side by side with the built-in multi-viewer for monitoring over MoIP.

2-way Transfer of Signals using only LAN Cables
Beneficial for broadcasting, live production, corporate events, or other applications, regardless of the market.

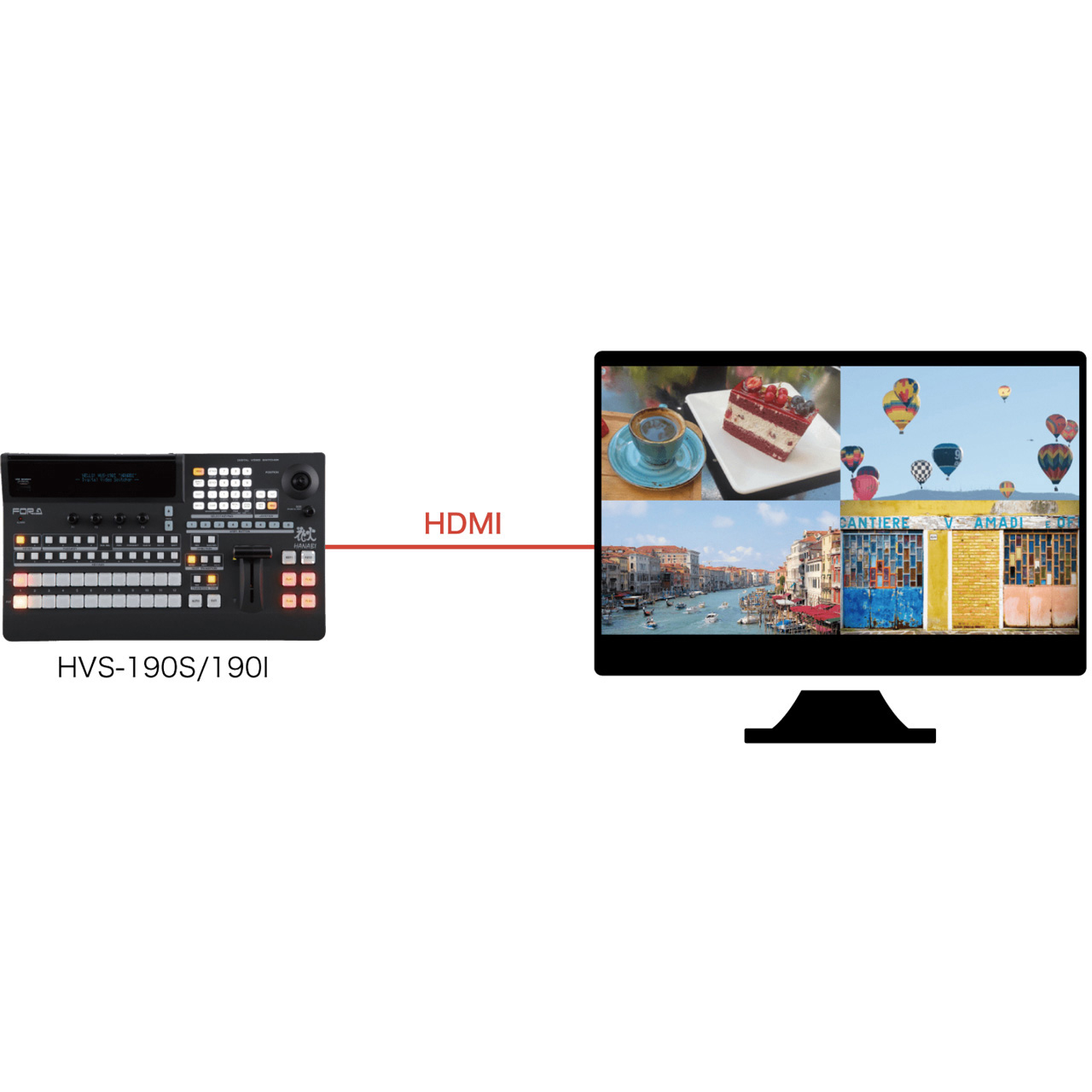

HDMI Output
4K resolution is supported in HDMI 2.0 Level-B output. Can be used to monitor 4 images on 1 screen.

Audio Playback Support
Play back clips with audio. Sound effects can be mixed on switched videos using CG-Wipe effects. To utilize this function, download the audio data to the HVS-190I in advance.

Digital Audio Interface
Add the HVS-49AES Digital Audio I/O Card (sold separately) for 4 AES inputs and 4 outputs. Mux audio to PGM output, or demux audio from any input.

DVE
Provides 4 freely assignable 2.5D DVEs.* Configure enlargement, reduction, rotation, borders, and other settings for each channel composited. Also available for background transitions. * Up to 2 DVEs when using 3G-SDI.

Applications
- Mixed SDI/NDI Production: Video feeds with both on-site and remote performers can be sent to the switcher along with computer content. In addition to the PGM bus the unit provides an ample selection of Aux buses (12), that can be used to send any video back to remote talent.
- SDI/IP Simulcasts - Simultaneously with SDI playout, connect to streaming sites via a MoIP stream, enabling mixed or coordinated broadcasts of both sources.

NDI is a registered trademark of Vizrt.

Please Note: NDI Input/Output HVS-NIF option card is sold separately.

  • Features:

    • 1M/E Switcher 3G/HD, Mobile

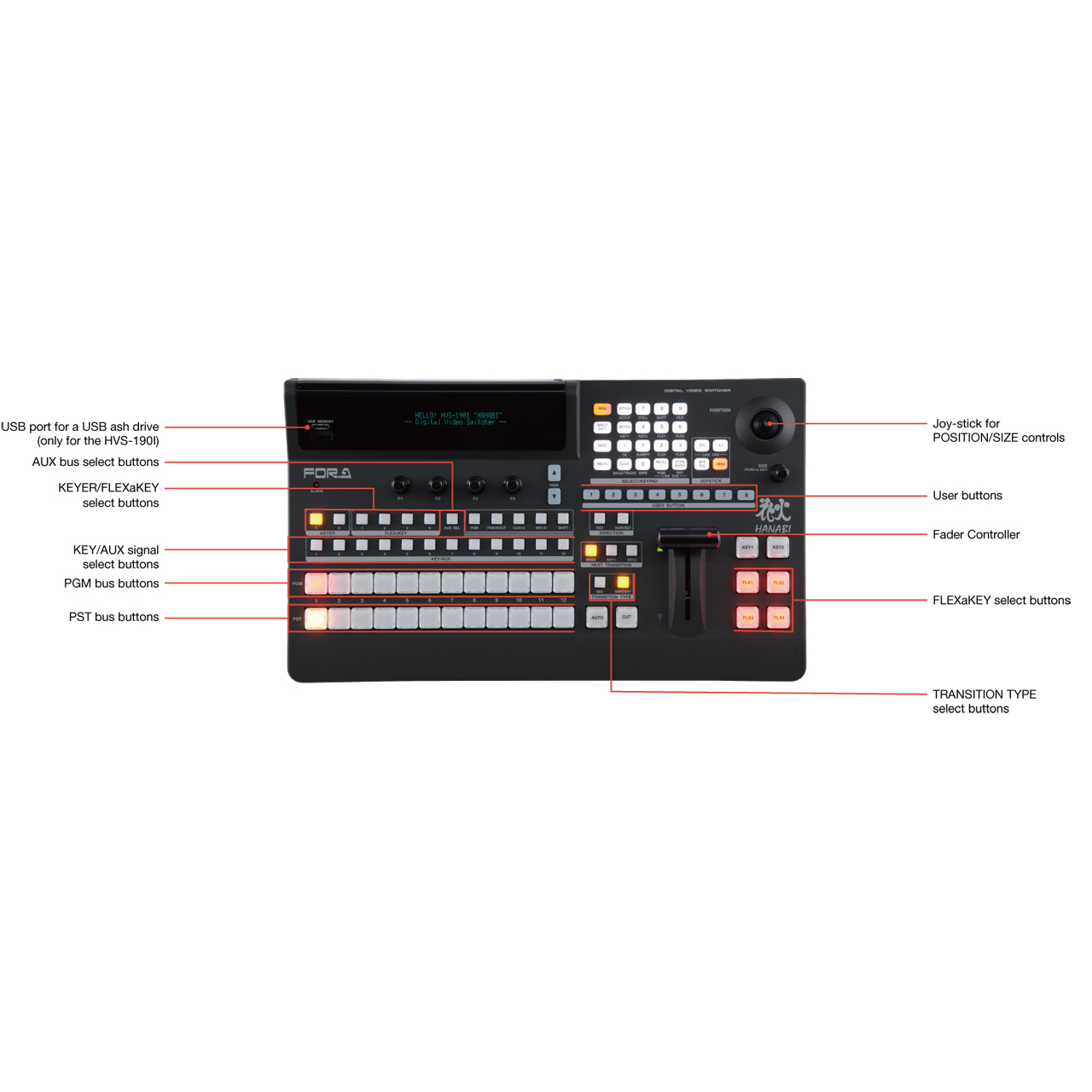

    • 12-Button Control Panel
    • HD-SDI inputs, 4x HD SDI outputs and 1x HDMI output, Aux Cut/Mix trans
    • Frame Synchronizer & Proc Amp on Each Input
    • 2x Keys & 4 FLEXaKEY with 1 assignable Chroma Key
    • 4x 2.5D DVE for keys and Background transitions
    • 2x Still Stores, 31sec HD clip player
    • Multi Viewer with 39 patterns, Macro/Event memory, WebGUI Browser built-in
    • NDI Input/Output with HVS-NIF option card (not included)

  • Specifications:

    • Video Formats:
      - 1080p/59.94, 50 (Level-A)
      - 1080i/59.94, 50
      - 1080p/23.98, 24, 25, 29.97
      - 1080PsF/23.98, 24, 25, 29.97
      - 720p/59.94, 50
    • Color Sampling:
      - YCbCr: 4:2:2 10bit
    • Number of Video Inputs:
      - Std: 8x SDI
      - Max: 16 Up to 2 cards (on I/O option slots)

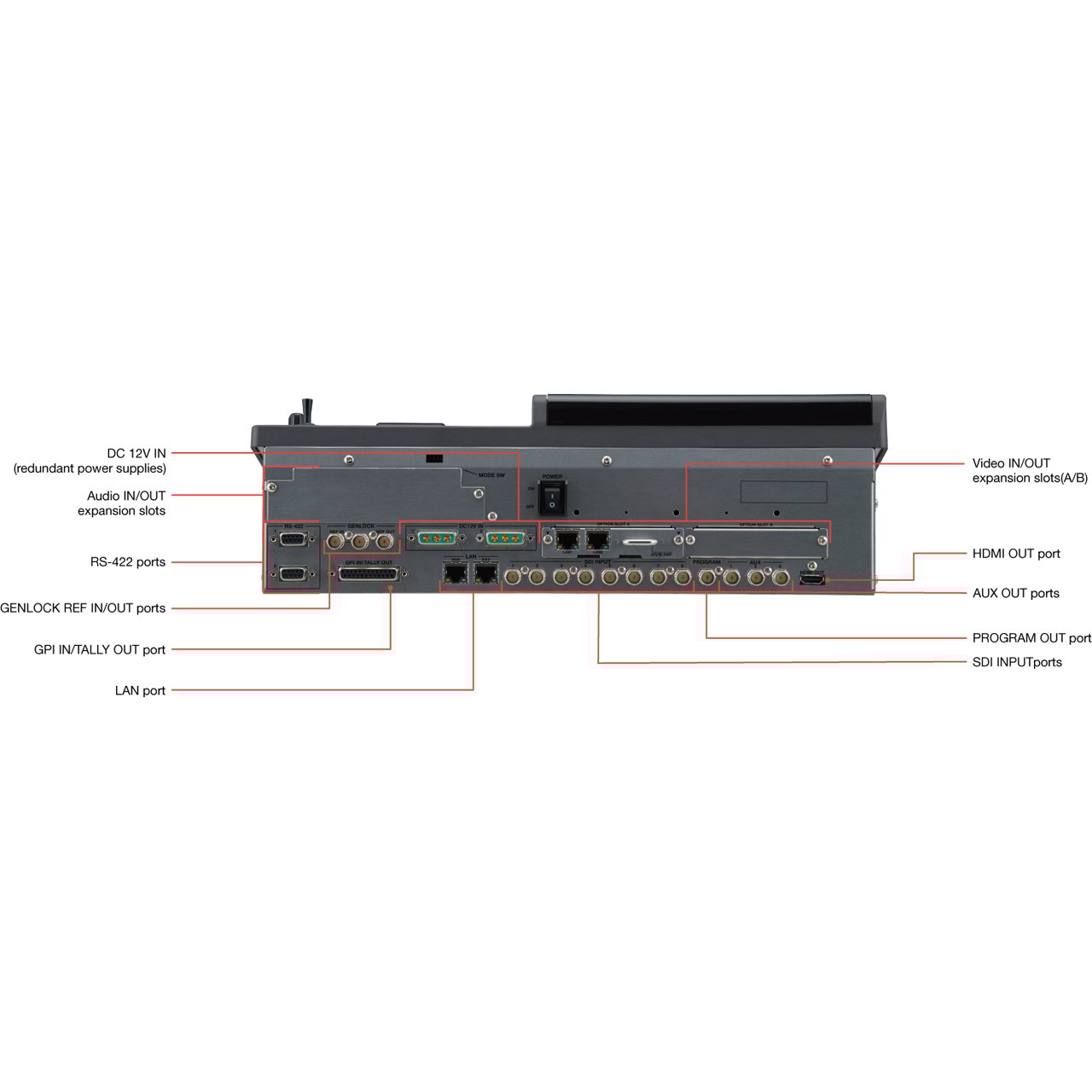

    • Video Inputs:
      - HD-SDI or 3G-SDI 75Ω 8x BNC
      - All inputs with frame synchronizer for each
      - 1080p/59.94, 50 (Level-A/B)
      - ANC data is not passed for Level-B signals or when using FS
    • Video Input (option): Up to 3 cards
    • Number of Video Outputs:
      - Std 5, 4x SDI, 1x HDMI
      - Max: 11 - Up to 3 cards (on I/O option slots)
    • Video Outputs:
      - HD-SDI or 3G-SDI (Level-A only) 75Ω 4x BNC
      - 1x HDMI 2.0 Level-B
    • Genlock Input:
      - BB (NTSC/PAL) or Tri-level sync 75Ω 1x BNC
      - Loop-through or 75Ω terminated
    • Genlock Adjustment Range: Horizontal timing: ±1H
    • Genlock Output: BB (NTSC/PAL) or Tri-level Sync 75Ω 1x BNC
    • FS/Proc Amp: W/ frame synchronizer and Proc Amp for all inputs
    • Chromakey: 1 channel
    • DVE Channel: 4 channels (2 channels in 1080p/59.94, 50) (For BKGD, KEY1-2 and FLEXaKEY1-4)
    • Multi-Viewer:
      - Std: 1 channel Max: 2 channels (2-16 windows, 39 layout patterns)
      - Features: Title, Tally, Audio meter, Safety area and Border
      - Delay: 1 frame referring to PGM output
    • Event Memory: 100 events: Settings for BKGD, KEY1-2, FLEXaKEY1-4, AUX, MV, CK, SUBEFF, STILL
    • Input Adjustment Range: ±0.5 H (-0.3 H to +0.7H for 1080/50p Level-B)
    • GPI In/Tally Out:
      - 1x 25-pin D-sub
      - 24-input/output: GPI in/out, tally output
      - Open collector or relay contact input Open collector output
    • RS-422:
      - 2x 9-pin D-sub (female)(inch screws) for video recorder/player, router, tally unit and editor connection
      - 1x USB2.0 (Type-A) for USB stick connection
    • Temperature: 32°F - 104°F
    • Humidity: 10% - 90% (no condensation)
    • Power: AC 100V - 240V ±10% 50/60Hz
    • Consumption:
      - Standard: 66W (at AC 100V - 120V), 68W (at AC 220V - 240V)
      - With full options: 184W (at AC 100V - 120V), 178W (at AC 220V - 240V)
    • Dimensions: 16.53" x 9.65" x 3.46" (420mm x 245mm x 88mm)
    • Weight:
      - 12.89lbs (5.85kg)(Standard)
      - 17lbs (7.7kg)(w/ full options)

  • Item Includes:

    • 1x HVS-190 3G/HD 1M/E Mobile Switcher
    • 1x 12-Button Control Panel
    • 1x AC Adapter
    • 1x Power Cord
    • 1x HVS-190ED - Editor Control Software
      *HVS-NIF NDI option card sold separately
