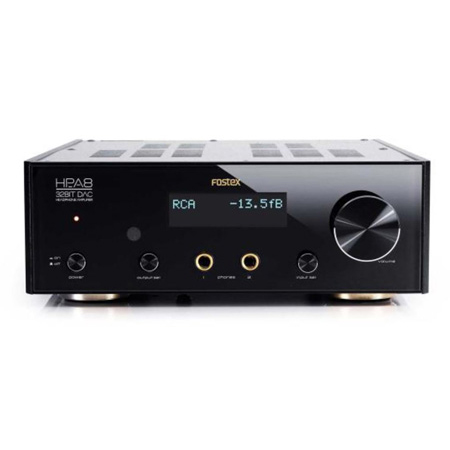

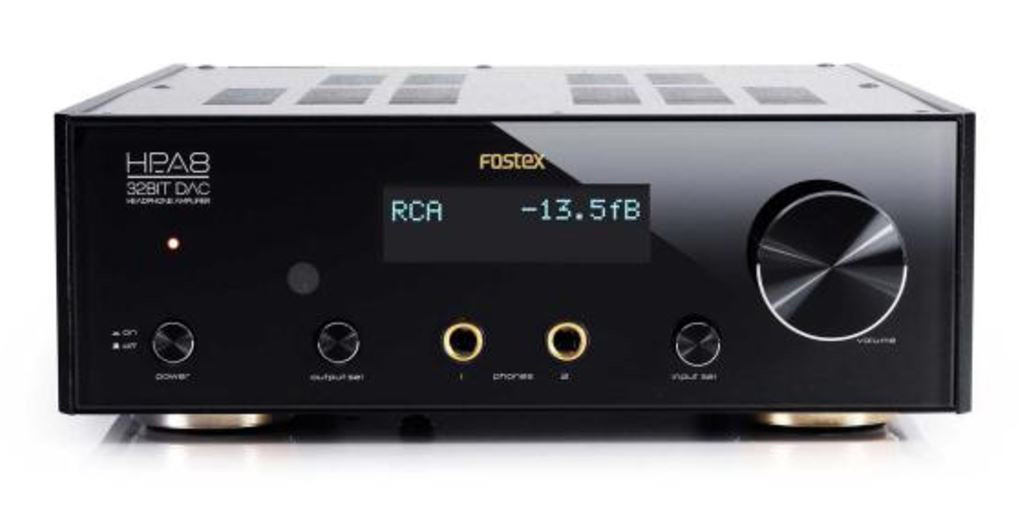

Fostex HP-A8C Headphone Amplifier and 32 Bit D/A Converter

ITEM #: FX-HP-A8C MFG #: HP-A8C

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the FX-HP-A8C

HP-A8C - Overview

The new HP-A8C is Fostex's flagship 32bit D/A Converter & Headphone Amplifier model that features finely designed analog and digital circuitries as well as the epoch-making DSD audio playback function.
Housed in a gorgeous enclosure featuring glass front panel and black side panel, the HP-A8C is set to spark the interest of both high-end headphone users as well as PC audio makers, professionals and enthusiasts.

Caution about use of SD cards:
SD card higher than Class 6 is strongly recommended.
Even SD card higher than Class 6 may cause playback jumps if the card is with slow random access speed.
SDXC card should not be used. Do not insert a SDXC card to prevent from malfunction.
File name must be less than 53 characters including the extension.
An SD card can contain up to 10 folders and a folder can contain 30 files.

  • Features:

    • High fidelity 32bit D/A converter (Asahi Kasei's AK4399) and all discrete analog circuitry headphone amplifier
    • Complies with USB Audio Class 2.0 up to 32bit / 192kHz (24bit on Windows)
    • Asynchronous mode by highly precise TCXO (Temperature Compensated Cristal Oscillator) clock
    • Highly precise level adjustment by an electronic volume designed for audio equipment
    • Large capacity toroidal power transformer
    • Built-in SD (SDHC) card drive for epoch-making DSD file (DSF format) reproduction in addition to the firmware update
    • Selectable between the internal clock and the external clock (except for USB and SD card)
    • Built-in up-sampling function of x 2 and x 4
    • Digital filter selection between the conventional "sharp roll-off" and the "minimum delay" developed by Asahi Kasei to eliminate pre-echo
    • Direct out mode bypassing the volume control circuit
    • Variable headphone amplifier's gain from 0dB to -12dB by 0.5dB step for perfect match with any type of headphones

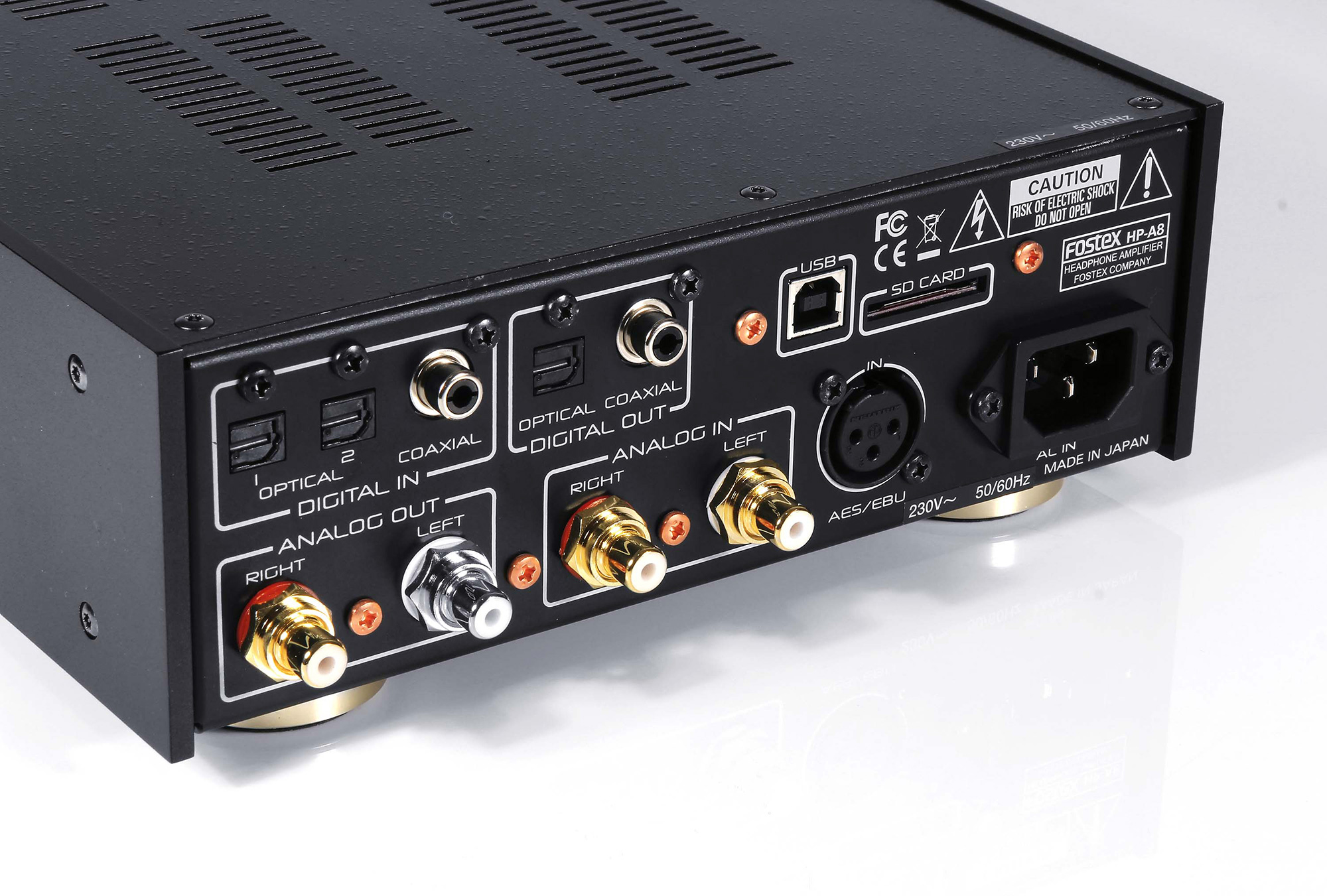

    • Various inputs including USB, AES/EBU, Coaxial, Optical (x2) and analog RCA
    • A dedicated remote controller is supplied
    • Beautiful white organic LED for the display

  • Specifications:

    • Input
    • Sampling Resolution USB Port: up to 32 bit/192 kHz (24 bit on Windows) 192 kHz sample rate
    • 32-bit for Mac
    • 24-bit for Windows
    • Interface: 1 x High Speed USB 2.0
    • Digital: 2 x optical connector, square
    • 2 x coaxial connector, RCA pin
    • Format: Optical and Coaxial: S/PDIF
    • Resolution: USB: 44.1 to 192 kHz, Optical: 44.1 to 192 kHz, Coaxial: 44.1 to 192 kHzAES/EBU: 44.1 to 192 kHz
    • SDHC: DSF
    • Analog Audio Connector: RCA pin left and right

      Output
    • Headphone Outputs - Connector: Stereo Phone
    • Max Output: 700 mW (32ω loaded)
    • Recommended Load Impedance: 16 to 600ω
    • THD: Less than 0.002% at 1 kHz, 32ω loaded, 100 mW
    • Frequency Response: 10 to 80,000 Hz ±0.3 dB
    • Digital Audio Connectors: Optical, square
    • Format: S/PDIF

  • GTIN:

    0636827302456
