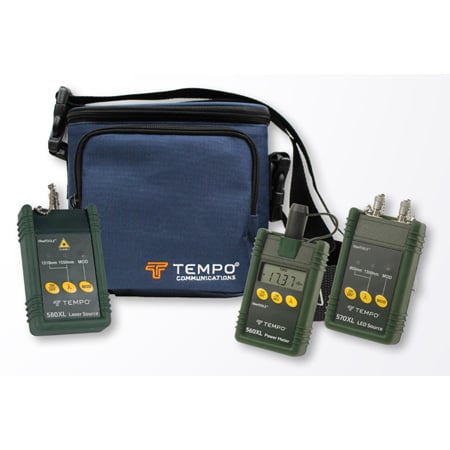

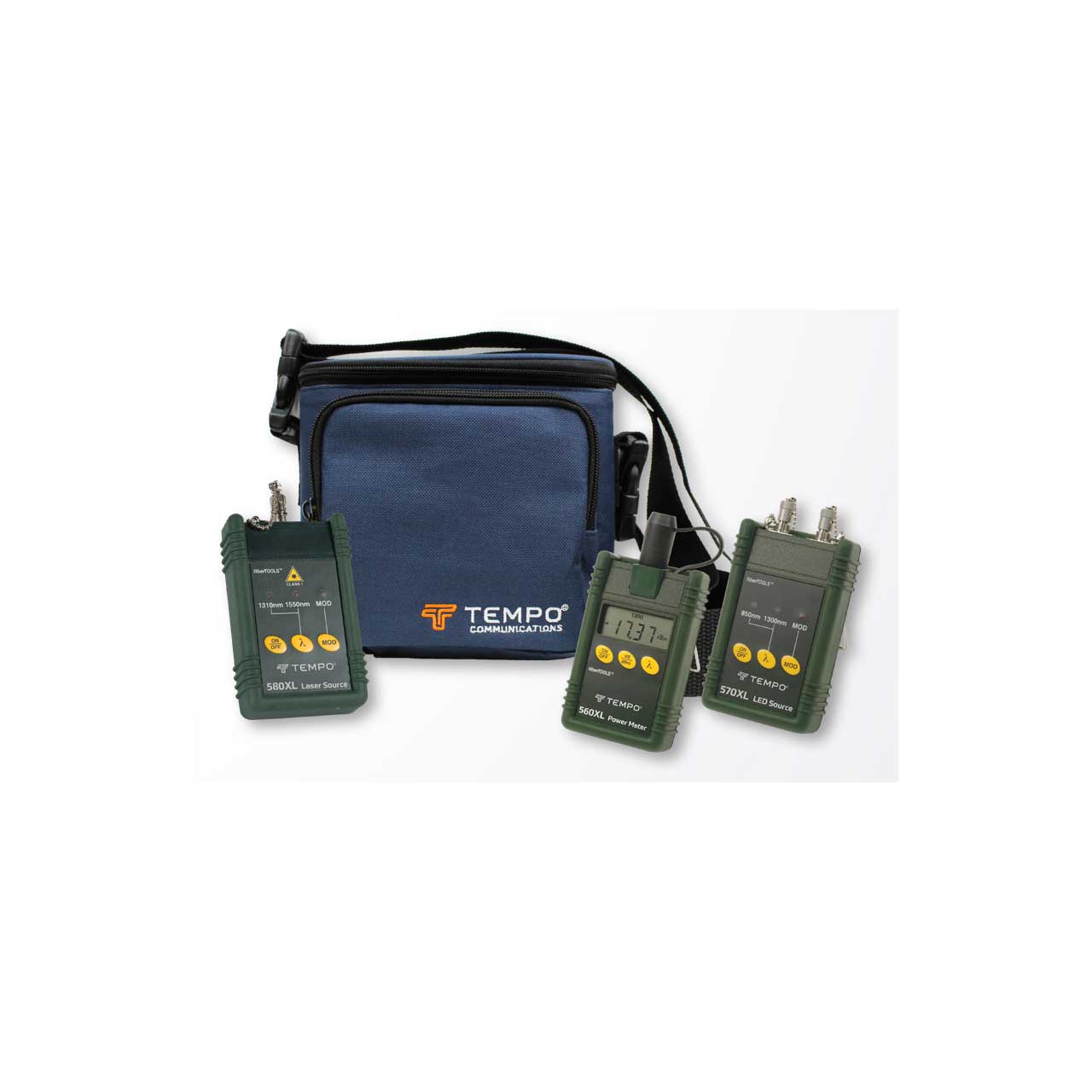

Tempo 5890-ST Multimode & Singlemode Fiber Optic Test Set with ST Interface

ITEM #: GRL-5890-ST MFG #: GRL-5890-ST

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the GRL-5890-ST

GRL-5890-ST - Overview

The XL fiberTOOLS are designed for the professional to perform installation and maintenance measurements on fiber optic cabling networks. The instrument family consists of individual devices (optical power meters, 850/1300nm LED sources, 1310/1550nm Laser sources, Visual Fault Locator) and complete Insertion Loss Test Sets. The XL fiberTOOLS are designed to accurately measure optical power levels and link loss on multimode and singlemode cabling networks. These full feature general purpose fiber optic instruments are easy to operate and economically priced to outfit all technicians performing fiber optic installation and maintenance.

  • Features:

    • Insertion loss test set for multimode and single mode fiber
    • 850/1300nm loss measurements
    • 1310/1550nm loss measurements
    • Connector for FC, SC or ST
    • Rugged package design
    • Easy to use portable package
    • Economically priced

    • 560XL Fiber Optic Power Meter
    • Easy to use - three buttons control all functions
    • Long battery life
    • Loss measurements in (dB); power measurements in (dBm)
    • 0.01dB measurement resolution
    • Snap on connector interface adapts to FC, SC and ST connectors. Contact
    • User selectable auto shut-off
    • Rugged and splash-proof
    • Economically priced

    • 580XL 1310/1550nm Laser Source
    • 1310/1550nm wavelengths
    • Stable calibrated output
    • Easy to use
    • Continuous wave and modulated output
    • Fixed connector interface FC, SC or ST
    • Long battery life - approx. 80 hours
    • User selectable auto shut-off
    • Rugged and splash-proof
    • Economically priced

    • 570XL 850/1300nm LED Source
    • 1310/1550nm wavelengths
    • Stable calibrated output
    • Easy to use
    • Continuous wave and modulated output
    • Fixed connector interface FC, SC or ST
    • Long battery life - approx. 80 hours
    • User selectable auto shut-off
    • Rugged and splash-proof
    • Economically priced


  • Specifications:

    • Interface Connector : ST
    • Loss Measurements : 850/1300 NMTR, 1310/1550 NMTR
    • Type: Multimode & Singlemode


  • Item Includes:

    • 560XL Optical Power Meter
    • 570XL-ST 850/1300 nm LED Source With ST Connector
    • 580XL-ST 1310/1550 nm Laser Source With ST Connector
    • T1030 ST/PC SOC Adapter
    • 915B Carrying Case


  • GTIN:

    0783310845003
