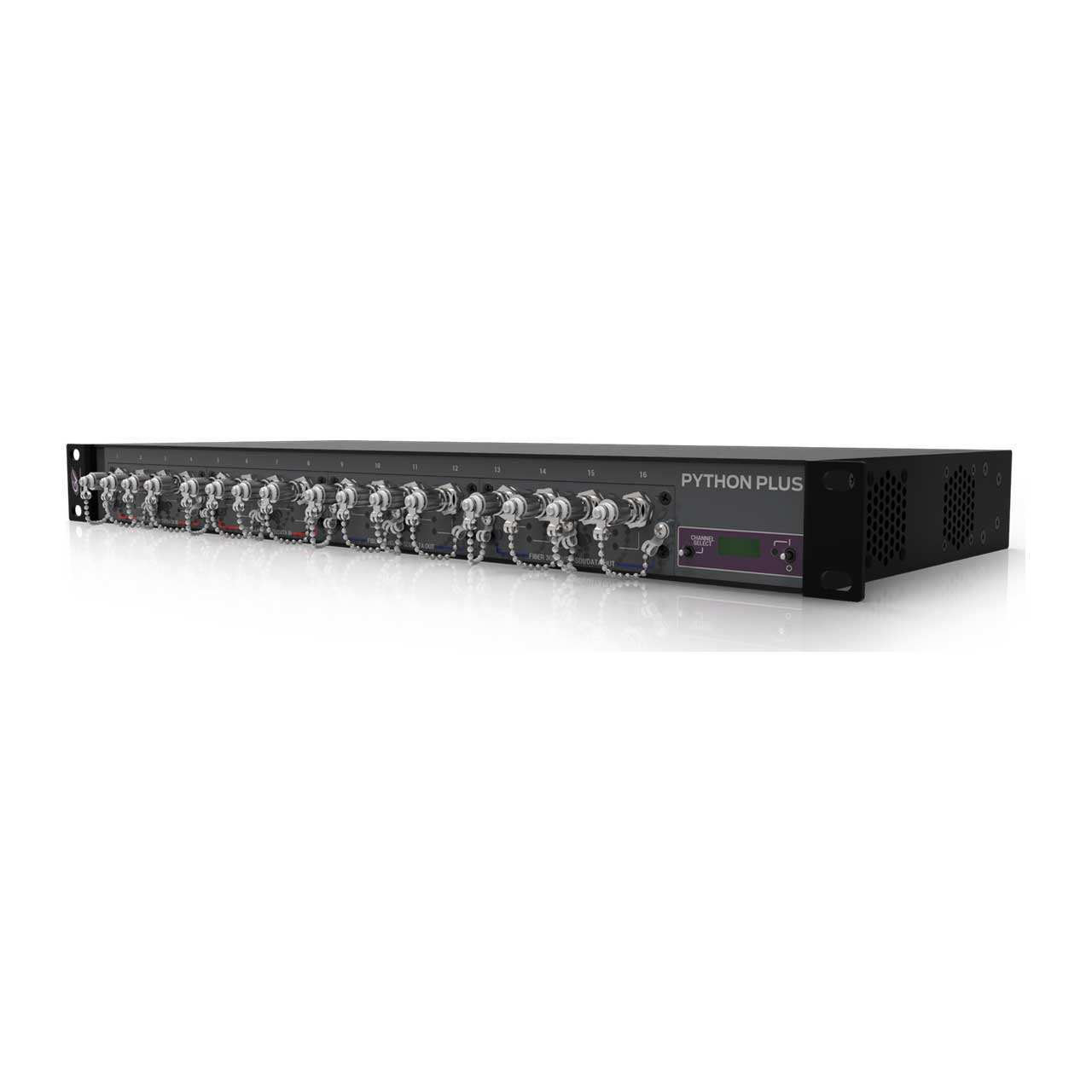

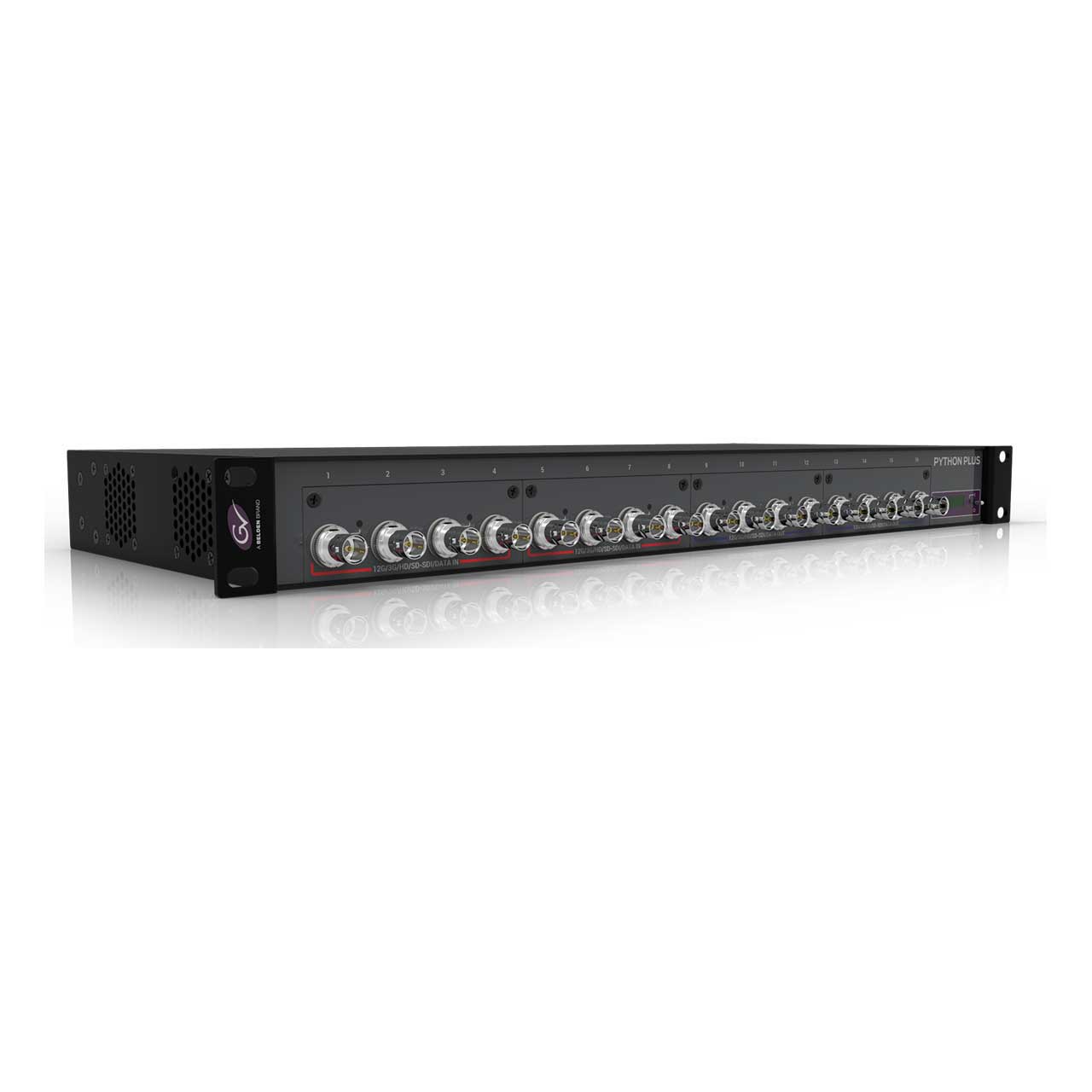

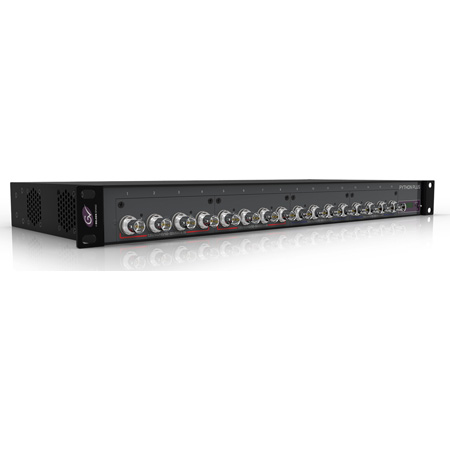

Grass Valley S2-RX-ST Python plus 2 Channel Rear Panel Receiver - ST/UPC

ITEM #: GVLY-S2-RX-ST MFG #: S2-RX-ST

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the GVLY-S2-RX-ST

S2-RX-ST - Overview

Grass Valley S2-RX-ST is a Multichannel Fiber Optic SDI and IP Transport System with CWDM Management & Multiplexing
Python Plus is their answer to lowering the cost of digital video and fiber distribution, eliminating concerns about distance, interference or ground loop issues. With today's demanding market - technology shift-ing to IP and the constant increase in bandwidth demands driven by 3G and 4K UHD - Python Plus simplifies transport solutions. Each unit can transport a mix of digital and IP cameras or virtually any digital video transceiver through fiber or copper cables.

  • Features:

    • Economical, low profile packaging
    • Up to 4 quad cards per 1 RU frame
    • Wide range of digital formats
    • 19.4 Mb/s to 12 Gb/s transport on coax I/O
    • 3 Gb/s or 10 Gb/s on each fiber I/O
    • Compatible with digital television standards: SMPTE ST 292/SMPTE ST 259/SMPTE ST 424/SMPTE ST 2081/SMPTE ST 2082
    • Handles DVB/ASI signals
    • Immune to pathological data errors
    • Equalizes coax up to 12 Gb/s
    • Coaxial BNC I/O, and ST/UPC on fiber I/O
    • Wide optical budget
    • Low system jitter
    • Low power consumption
    • High reliability, durable design
    • CWDM multiplexing (optional)
    • Turns any optical signal into CWDM
    • Re-times and extends optical transmission
    • Up to an additional 25 km (15.5 mi.)
    • Up to 50 km (31 mi.) with APD receiver (optional)
    • Available dual or single fiber outputs with LC/UPC or ST/UPC connectors
    • Active switching for fiber redundancy (optional)
    • Front panel monitoring of all I/O
    • Redundant power supply inputs
    • Fast setup, plug and play operation
    • Compatible with other Grass Valley HD/SD-SDI transport systems


  • Specifications:

    • Coaxial
    • Transmission Method: Digital
    • I/O level: 800 mVp-p ±10%
    • I/O Impedance: 75Ω
    • Return Loss:
      > 15 dB 5 MHz - 1.5 GHz
      > 10 dB 1.5 GHz - 3 GHz
      > 7 dB 3 GHz - 6 GHz
      > 4 dB 6 GHz - 12 GHz
    • Coaxial Input EQ (Belden 1694A):
      12G: 60m
      6G: 120m
      3G: 200m [up from 120m]
      1.5G: 200m
      270M: 400m
    • Bit-Error Rate at -21dBm Rx Optical Power: PRSB 223-1, 1x 10-12
    • Timing Jitter (Color Bars): <2 UI, alignment jitter: <0.2 UI

      Optical
    • Operating Wavelength: 1310nm with optional CWDM: 1271-1611nm
    • Link Margin: Up to 22dB
    • 1310nm Transmitter Output Power: -7dBm
    • CWDM Transmitter Output Power: -5 to 1dBm
    • Receiver Sensitivity:
      6G-12G: -11dBm with color bars
      270M-3G: -20dBm pathological
    • Optical Stheirce: SFP or SFP+
    • Maximum Data Rate, per Channel: 12Gb/s or 10Gb/s
    • Fiber Type: Single-mode
    • Optical Connectors:
      Front: ST/UPC
      Rear: ST/UPC and LC/UPC

      Mechanical/Environmental
    • Dimensions (WxHxD): 10.5 x 1.75 x 16.7" (266.7 x 44.45 x 424.18mm)
    • Weight, Each End: 5Lbs (2.27kg)
    • Electrical Connectors: BNC
    • Optical Connectors:
      Front: ST/UPC
      Rear: ST/UPC and LC/UPC
    • Input Voltage: 11-18 VDC
    • Power Consumption: <25W
    • Indicators: Power on, SDI data presence, optical power
    • Temperature Range: -4° to 113°F (-20° to 45°C)
    • Humidity Range: 0 to 95% non-condensing
