Camplex opticalCON Hybrid MED 16 Multimode Fiber MPO with 2 Power Conductors - NKO16M-XP-0-33 - 108 Foot

ITEM #: HF-OC16MD-0108 MFG #: HF-OC16MD-0108

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$2,047.95

Our Price:

$1,877.49

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


HF-OC16MD-0108 - Overview

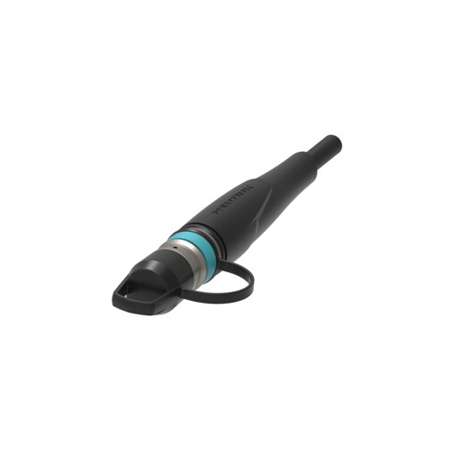

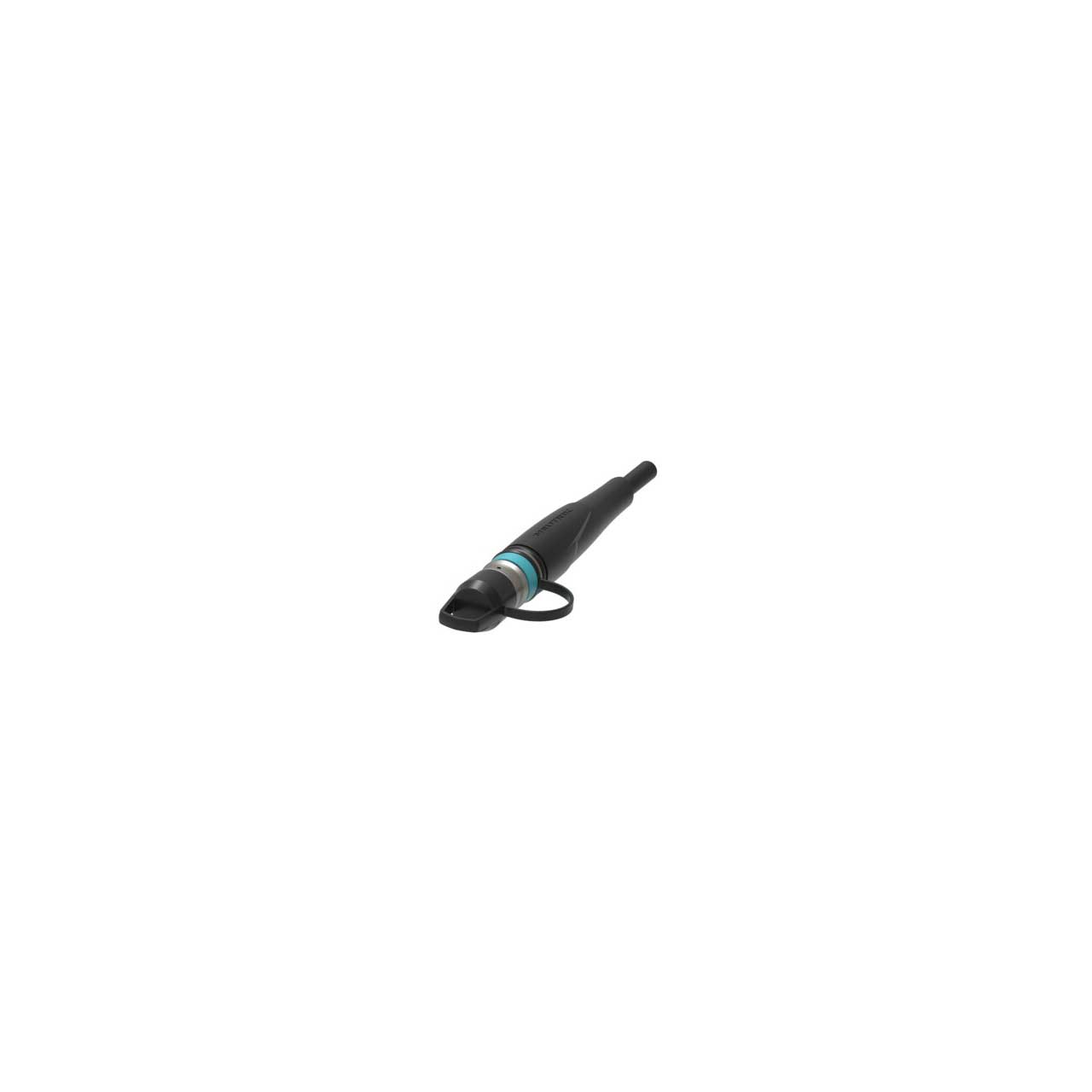

The HF-OC16MD-0108 is a pre-assembled opticalCON male to male cable with 16 multimode fiber channels and 2 power pins built around the Hybrid Med series connector. opticalCON HYBRID MED is more robust, reliable and easier to maintain than any other common hybrid systems. With new technology based on fiber lenses, Neutrik's opticalCON HYBRID MED achieves an extremely robust signal with minimal loss. The optical connection is exceptional well protected against dirt and dust by its lenses and an additional sealing cover.

  • Features:

    • Ruggedized and dirt protected hybrid connection system:
    • 1 lensed MPO connector with 16 fiber channels
    • 2 power contacts
    • 1 ground
    • Accommodates a unique lensed optical MPO connector
    • Excellent dust and dirt protection
    • Easy to maintain and nurse-proof design with glove protection
    • Shielded system with EMI protection design
    • Suitable for indoor healthcare applications

  • Specifications:

    • Contact resistance: < 7 mΩ
    • Insulation resistance: > 10 GΩ (initial)
    • Mains: 12V AC / 10A / @50 Hz
    • Cable retention: 500 N
    • Insertion force: < 45N
    • Withdrawal force: < 45N
    • Lifetime: 10,000 mating cycles
    • Wiresize (power): 4x 20 AWG
    • Locking device: Push/Pull
    • Flammability: UL94 V-0
    • Temperature range: -40°C to +75°C
    • Insertion loss: Typ. 0.65 dB per connection / Max. 0.9 dB per connection
    • Return loss: Typ. 28 dB per connection / Min. 25 dB per connection
    • Channels: 16


HF-OC16MD-0108 - Required Accessories
