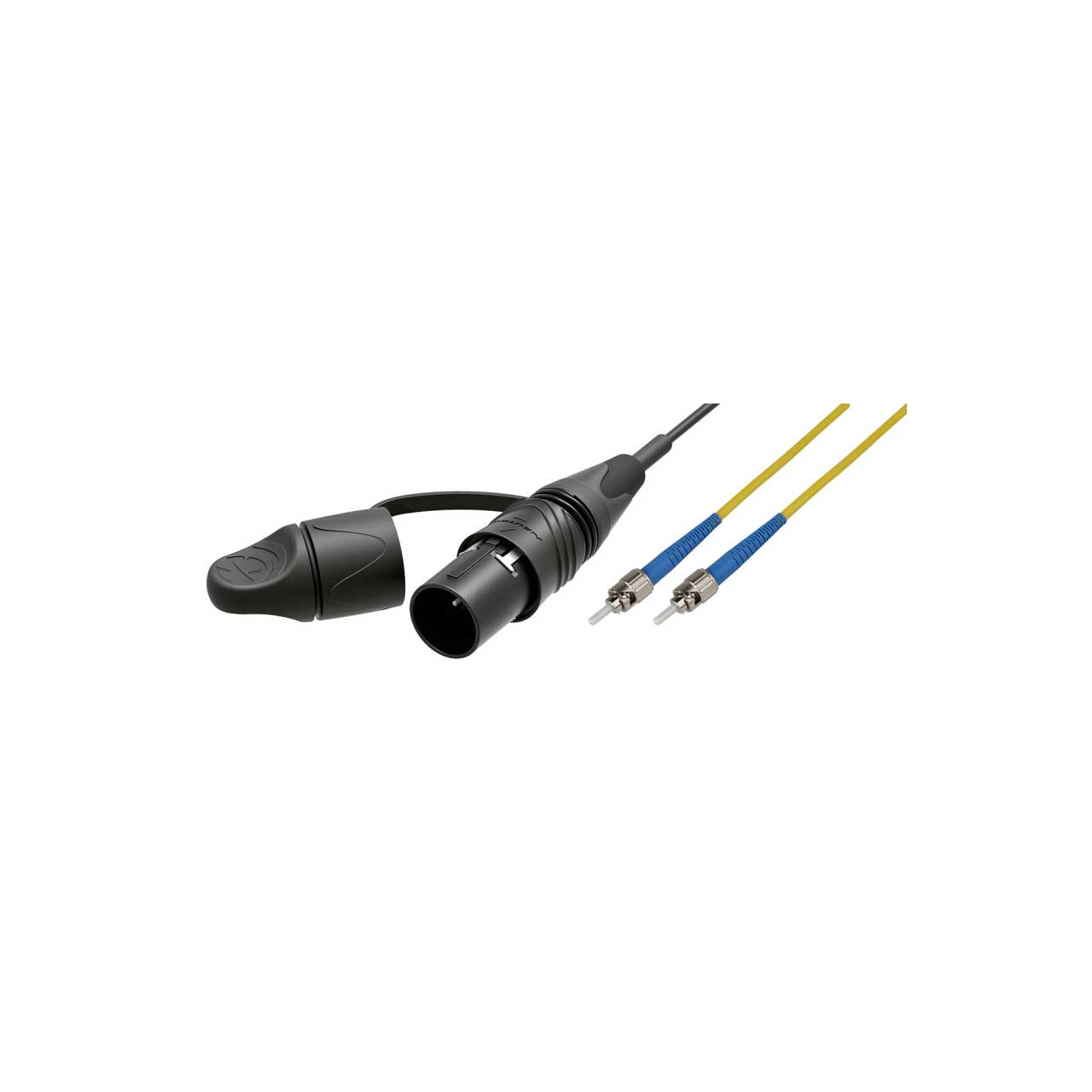

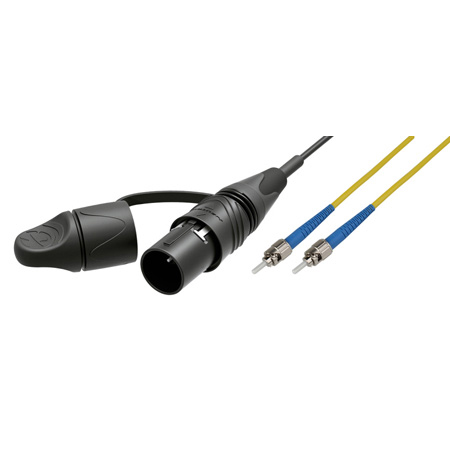

Camplex opticalCON DUO LITE to Dual ST Single Mode Fiber Optic Tactical Patch Cable NKO2S-ST-L-0 - 6 Foot

ITEM #: HF-OCL2S-ST-06 MFG #: HF-OCL2S-ST-06

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$323.95

Our Price:

$277.49

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


HF-OCL2S-ST-06 - Overview

Neutrik opticalCON DUO LITE Singlemode to Dual ST fiber breakout cables by Camplex provide a semi-rugged alternative to opticalCON Advanced systems when the action calls for a compact, lightweight solution. The cable is designed to allow higher bend radius performance typically used in rack interconnects, camera cranes, steadicam rigs, truck bays and other similarly controlled environments. Best of all, It is fully compatible with standard opticalCON DUO connections. The DUO delivers a ruggedized 2-channel fiber optic connection system for semi and permanent installation. Mated connections are waterproof acc. to IP65 safety standards and the reliable push-pull locking mechanism assures there is never an accidental disconnect. All connections are compatible with standard opticalCON DUO chassis NO2-4FDW-A connectors. ST Breakout ends are ideal for mating to truck, OB van and studio patch bays or for connection to IP networks and video extenders.

  • Features:

    • 2-Channel Singlemode Tactical Patch Cable Dust and Waterproof According to IP65 in Mated Condition Bend Insensitive Fiber Rugged Push-Pull Locking Mechanism with Rubber Caps Lifetime 2500 Mating Cycles Easy to Clean Shutterless Connectors Rugged Cable Retention Utilizing Aramid Yarn Strength member Extremely Flexible and Crush Resistant Lightweight Plastic Housing Compatible with Standard opticalCON DUO NO2-4FDW-A / QUAD NO4FDW-A

  • Specifications:

    • Neutrik opticalCON DUO LITE NO2MX Connectors SINGLEMODE - Senko 215-103-K1 – 125Μm ST Connector Cable Retention > 250 N Insertion Force < 35 N Withdrawal Force < 35 N Insertion Loss < 0.45 dB / connection Optical Connector 1.25 mm ceramic ferrule Minimal Bending Radius 3 cm DUO / 3.5mm QUAD Cladding Diameter 125 &M;m PUR Number of Fibers 2 Cable Retention Aramid Yarn


HF-OCL2S-ST-06 - Required Accessories
