Hollyland MARS 400S PRO 400 Foot HDMI HD-SDI/3G-SDI Wireless Video Transmission System

ITEM #: HL-MARS400SPRO MFG #: HL-MARS 400S PRO

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Hollyland
Free Shipping with $49 Minimum Order

Our Price:

$549.00

Special Price:

$299.00

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

HL-MARS 400S PRO - Overview

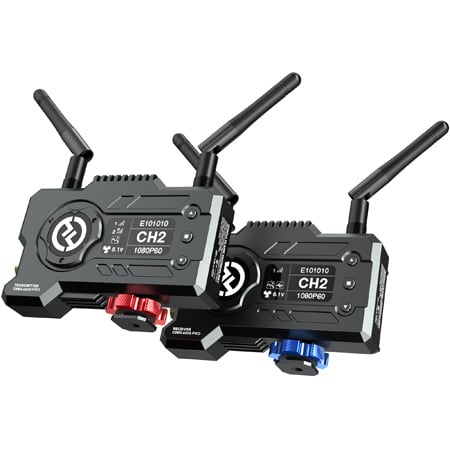

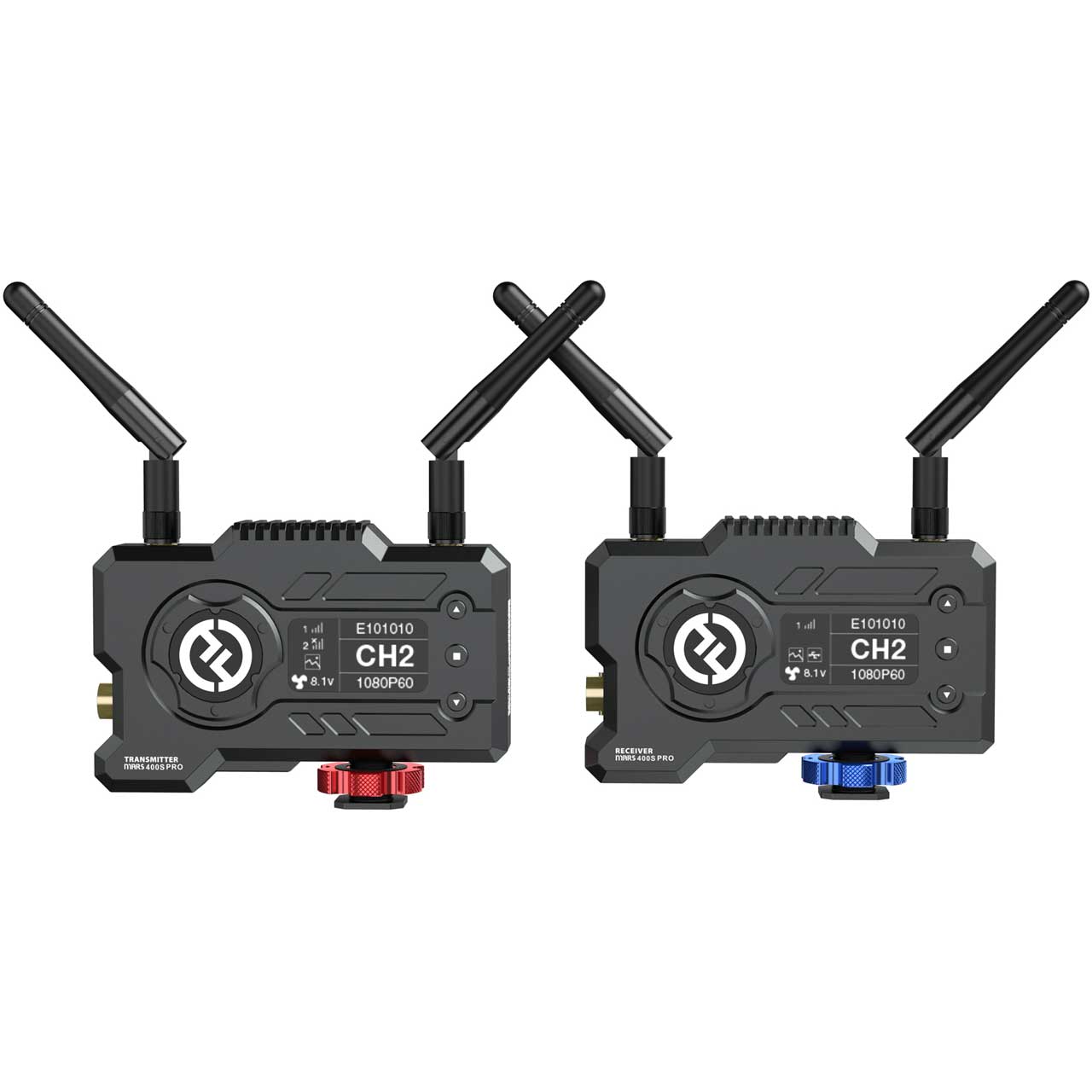

The Hollyland MARS 400S PRO is a wireless HD video transmission system. The MARS 400S Pro uses the latest coding, decoding and 5G wireless transmission technology that can achieve ultra-low latency wireless video. It has a 400 foot range with a clean line of sight and supports up to 1080P 60Hz resolution for full HD HDMI/SDI video transmission. MARS 400S PRO also can support 2 APPs monitoring when connection with 1 receiver (HL-MARS400SPRORX).

Sleek Industrial Design
Lower Gravity Center, and Much More Stable & Convenient Installation with the Brand-New Transverse Design and the Integrated Cold Shoe.

0.1S Low Latency
400ft Reliable Wireless A&V Transmission with Only 0.1S Latency.

Both SDI & HDMI
SDI & HDMI Inputs on TX and SDI & HDMI Outputs on RX.

Multiple Fan Modes
Off, Low Speed & Auto Fan Modes for Different Applications and Better Shooting Experiences.

Optimized Monitoring Feed
Data Rate Raised from 8M Bps to 12M Bps for High-Definition Monitoring Quality.

Multiple Power Options
5~12V Wide Voltage Power Supply with Type-C Charging Option Added to Various L-Series Batteries and 6~16V DC Power Options.

Pro APP Monitoring
Supports up to 4 Phones & Tablets Real-Time Monitoring with Professional Monitor Features, such as Waveform, Focus Peaking, Zebra, Zoom In/Out, 3D Luts, etc.

Channel Scan & Firmware Update On APP
Optimal Channel A Click Away on RX and the HollyView APP, and Easy & Quick Firmware Update on the App.

Direct Video For Live Stream
The newly introduced USB Type-C to RJ45 Adaptor allows direct video pull-stream from the MARS 400S PRO to your personal computer, avoiding further video compression through an additional video capture card, less investment for a high-quality and easier video streaming experience. For dual network card computers, connect the MARS 400S PRO transmitter to the camera, and connect the receiver to the computer's network interface through the Type-C adaptor. Then, connect the computer to a wireless router through the wireless network card to gain Internet access for live streaming.

  • Features:

    • 400ft Transmission Range between TX and RX(LOS)
    • 300ft Transmission Range between TX and APP(LOS)
    • Integrated Cold Shoe for Quick Installation
    • Transmission Latency is Less than 0.1s
    • SDI Input & HDMI Input at TX
    • SDI Output & HDMI Output at RX
    • Supports DC Power Supply, USB Type-C Power Supply and Battery Power Supply
    • 1 Transmitter Supports 2 Receivers (1 Transmitter Supports 1 Receiver and 2 APPs Monitoring, or 1 Transmitter Supports up to 4 APPs Monitoring Without Receiver)
    • Supports Smart Channel Selection
    • Supports APP Firmware Upgrade
    • Direct Data Stream from RX for Live Streaming


  • Specifications:

    • Wireless
    • Wireless Range: 400'/121.92m (Line-of-Sight)
    • Channel Bandwidth: 20 MHz
    • Frequency Range: 5 GHz
    • Latency: < 0.1 sec
    • RF Power: ≤ 21 dBm
    • RF Sensitivity: -80 dBm
    • Wi-Fi: Yes

      Interfaces

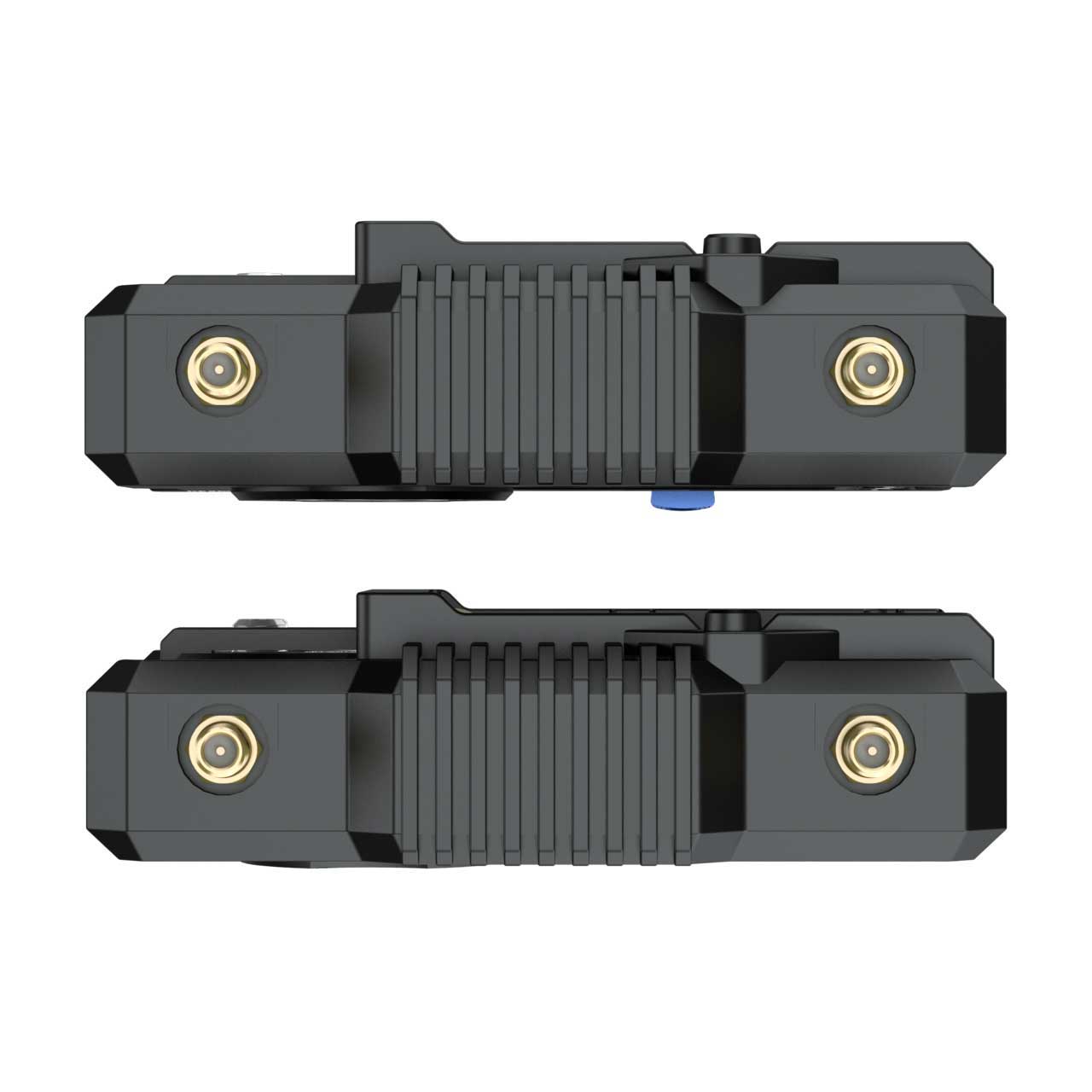

    • Transmitter Antenna Ports: 2x RP-SMA Male
    • Receiver Antenna Ports: 2x RP-SMA Male

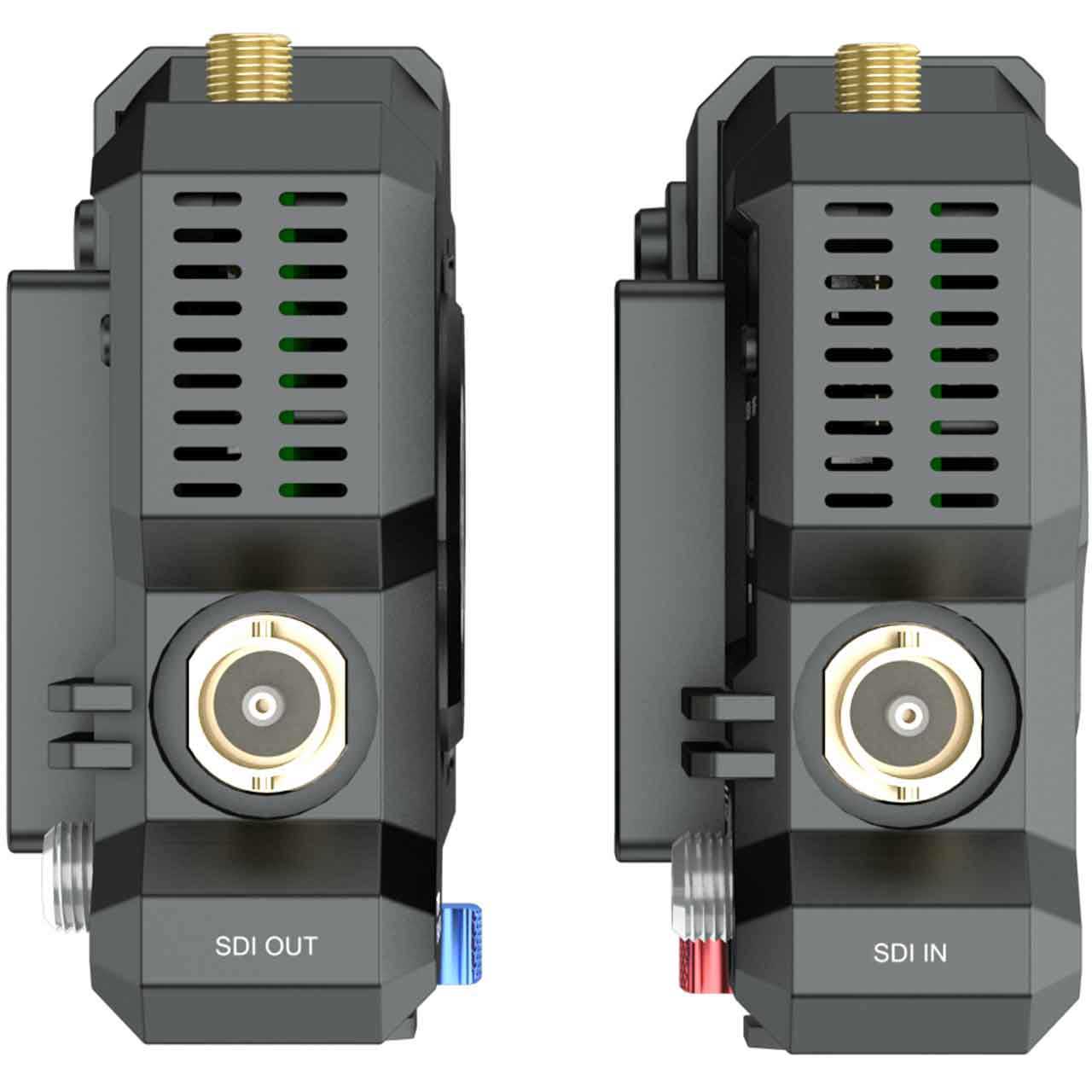

    • Transmitter Video Connectors:
      - 1x BNC (3G-SDI/HD-SDI) Input
      - 1x HDMI Input
    • Receiver Video Connectors:
      - 1x BNC (3G-SDI) Output
      - 1x HDMI Output
    • Transmitter Other I/O:
      - 1x USB Type-C
      - 1x DC Input
    • Receiver Other I/O:
      - 1x USB Type-C
      - 1x DC Input
    • Embedded Audio: SDI, HDMI

      Video Format
    • SDI/BNC:
      - 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
      - 1080i at 50, 59.94, 60 fps
      - 1080PsF at 23.98, 24, 25 fps
      - 720p at 50, 59.94, 60 fps
    • HDMI:
      - 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
      - 1080i at 50, 59.94, 60 fps
      - 720p at 50, 59.94, 60 fps
      - 576p at 50 fps
      - 480p at 60 fps

      Display
    • Transmitter Panel Type: OLED
    • Receiver Panel Type: OLED

      Power
    • Transmitter Battery Support: 1x Sony L-Series/NP-F Type
    • Receiver Battery Support: 1x Sony L-Series/NP-F Type
    • Transmitter Power Connector: 1x Barrel (6 to 16V DC) Input
    • Receiver Power Connector: 1x Barrel (6 to 16V DC) Input
    • Transmitter Power Consumption Device: (11 W)
    • Receiver Power Consumption Device: (7 W)

      General
    • Transmitter Mounting:
      - 1x 1/4"-20 Female
      - 1x Integrated Cold Shoe
    • Receiver Mounting:
      - 1x 1/4"-20 Female
      - 1x Integrated Cold Shoe
    • Materials: Metal
    • Transmitter Dimensions: 4.33" x 2.83" x 1.34"
    • Receiver Dimensions: 4.33" x 2.83" x 1.34"
    • Transmitter Weight: 0.5lbs
    • Receiver Weight: 0.5lbs
    • Package Weight: 1.85lbs
    • Box Dimensions (LxWxH): 7.3" x 5.7" x 3.2"


  • Item Includes:

    • 1x Transmitter
    • 1x Receiver
    • 5x Antenna
    • 1x User Guide
    • 1x DC Adapter


  • GTIN:

    0191460001451
