Hollyland SOLIDCOM M1 1.9GHz Full Duplex Wireless Intercom System with 8 Beltpacks - 200Hz to 7KHz

ITEM #: HL-SOLIDCOMM1-8B MFG #: HL-SOLIDCOM M1-8B

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$6,999.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


HL-SOLIDCOM M1-8B - Overview

With major technical breakthrough, Hollyland is proud to present you a whole new series of full-duplex wireless intercoms - Solidcom. As the first member of this series, the Solidcom M1 with 8 beltpacks is a go-to choice for micro-mid events with a capacity from 100 to 1000 guests, including church events, electronic field productions, exhibitions, concerts, etc.

Industry-First Solution to Power Up to a 1300 Foot Radius Communication Range
For the first time in the industry, an integrated panel antenna is inserted into the base station. Besides, Solidcom M1 is also equipped with a pair of external FRP antennas. Combining these 2 antenna options, Solidcom M1 significantly improves on-site work efficiency and flexibility, and prolongs transmission range to a great extent.

Enhanced Audio Quality
Adopting self-developed Noise-Cancellation Algorithms and a super-wide frequency response, Solidcom M1 delivers authentic and premium sound at broadcast-level sampling rate.

Enhanced Operating Experience
An integrated panel antenna is embedded in the base station for effortless setup. Featuring minimalist button design, the beltpack provides you intuitive operating experience. In addition, settings and grouping of the whole set can be adjusted easily via base station, APP or web.

Intuitive Grouping at a Single Tap
Setting up groups with Solidcom M1 is an intuitive experience. It's as easy as selecting the numbers of specific beltpacks and making them a group. Either through the base station, Hollyland APP or webpage, a group can be created and managed in seconds.

Multi-Device Cascade Connection for Hassle-Free Group Communication
Fitted with 4 different interfaces 2W (XLR connector), 4W (RJ45), POE/LAN power supply, and cascading interfaces), the base station can be cascaded to multiple sets of different audio equipment only by connecting with a standard network cable or an XLR cable.

Each set of Solidcom M1 is equipped with 8 beltpacks. Simultaneous group calls for 16 people in 3 groups are made possible with 2 cascaded sets, with a standard network cable of 328ft (100m) for cascading, sufficient for staff dispatching of most events.

Out-Of-The-Box Convenience
The beltpacks are paired by factory default and are good to use out of the box. In the event of cross-area collaboration where changing or adding beltpacks is needed, users only need to connect the beltpacks to the base station via USB to Type-C cables to pair and group the beltpacks.

A Plethora of Choices for Your Ears
Solidcom M1 comes standard with professional LEMO headphones whose microphones can be switched on by putting down the microphone boom or vice versa. The headphone is also featured with the Sidetone function which allows the user to hear his own voice even with the headphone on and then adjusting speaking volume in time.

PLEASE NOTE! The SOLIDCOM M1 System is compatible with the following:
Clear-Com Wired/Wireless Intercom System
Datavideo Intercom System
Hanson Wired Intercom System
Altair Wireless Intercom System

  • Features:

    • Carrier-grade voice quality, up to 450 meters line-of-sight usage distance
    • 1.9GHz frequency, support frequency configuration in different regions
    • Automatically switching between external omnidirectional fiberglass Antenna and built-in panel antenna
    • Full-duplex wireless communicating
    • The Station supports up to eight beltpacks to talk at the same time. Station, App and Webserver configuration upgrade supported.
    • Beltpack supports simultaneous calls in three groups
    • The Station supports cascading or connecting with the 2/4 wire audio systems
    • Station's power could be supplied by POE cascading or NP-F type batteries
    • Built-in lithium battery for the beltpacks. Usage for over 6 hours
    • Portable storage charging base, easy to carry
    • 10 level volume. Different needs of scenes satisfied.

  • Specifications:

    • Station
    • Interfaces:
      - POE interface (RJ45)
      - Power supply interface (RJ45)
      - 4-wire audio interface
      - USB interface
      - 2 wire audio interface
    • Power Supply: POE power suppy, NP-F type batter
    • Frequest Response: 200Hz - 7kHz
    • Signal-to-Noise Ratio: >50dB
    • Distortion: <1%
    • Use Ranger: 450m line-of-sight usage
    • Frequency Band: 19Ghz
    • Modulation Mode: GFSK
    • Transmit Power: Max. 21dBm
    • Receiving Sensitivty: <-93dBm
    • Power Consumption: < 3W
    • Dimensions: 10" x 7.1" x 1.9"
    • Weight: 3.4lbs

      Beltpack
    • Interfaces:
      - 3.5mm headset
      - LEMO headset
      - USB Type-C
    • Power Supply: 1500mAh lithium polymer battery
    • Frequency Response: 200Hz - 7kHz
    • Signal-to-Noise Ratio: > 50dB
    • Distortion: <1%
    • Use Range: 450m line-of-sight usage
    • Frequency Band: 19GHz
    • Modulation Mode: GFSK
    • Transmit Power: Max. 21dBm
    • Receiving Sensitivty: <-93dBm
    • Power Consumption: < 0.6W
    • Dimensions: 4.1" x 2.55" x 0.88"
    • Weight: 0.44lbs

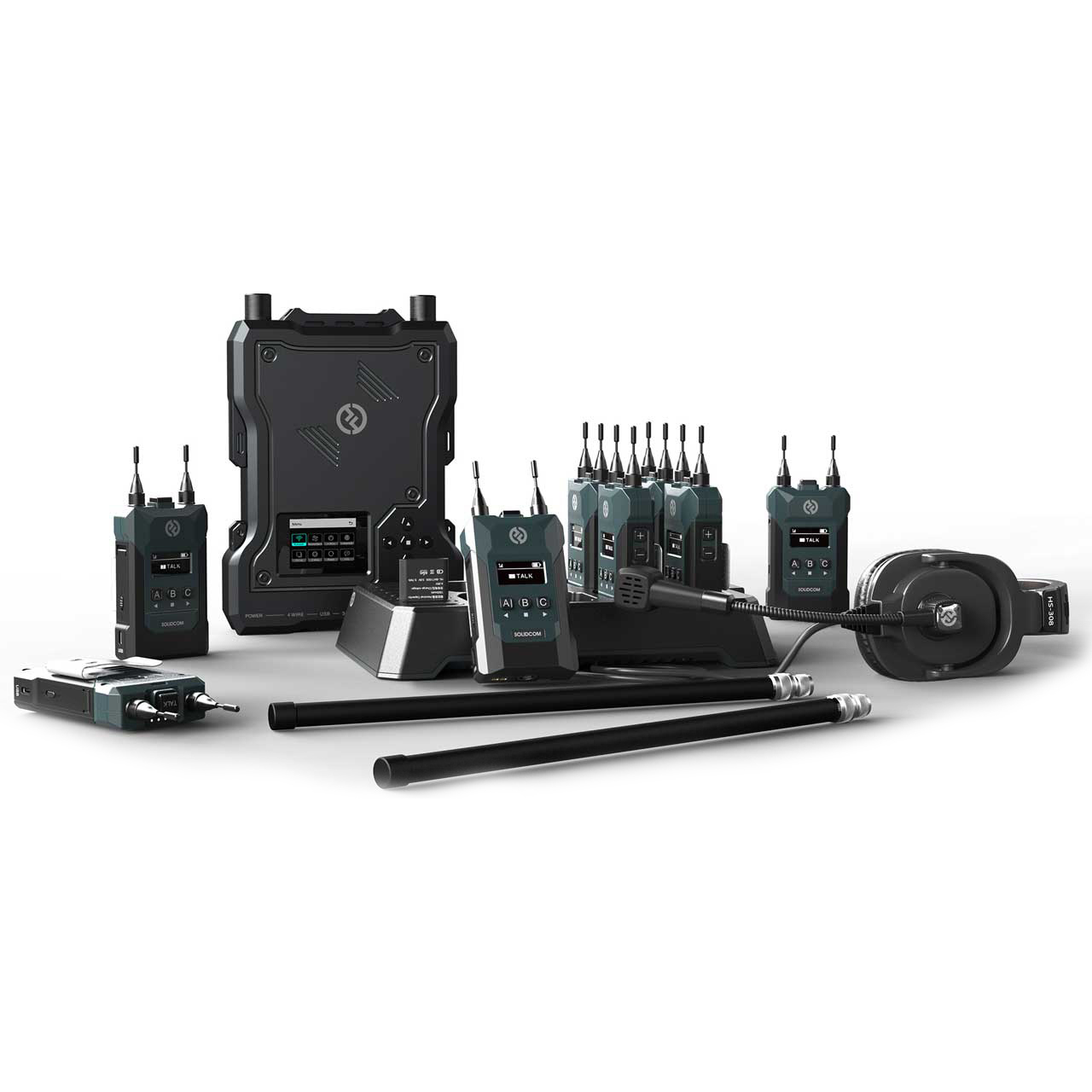

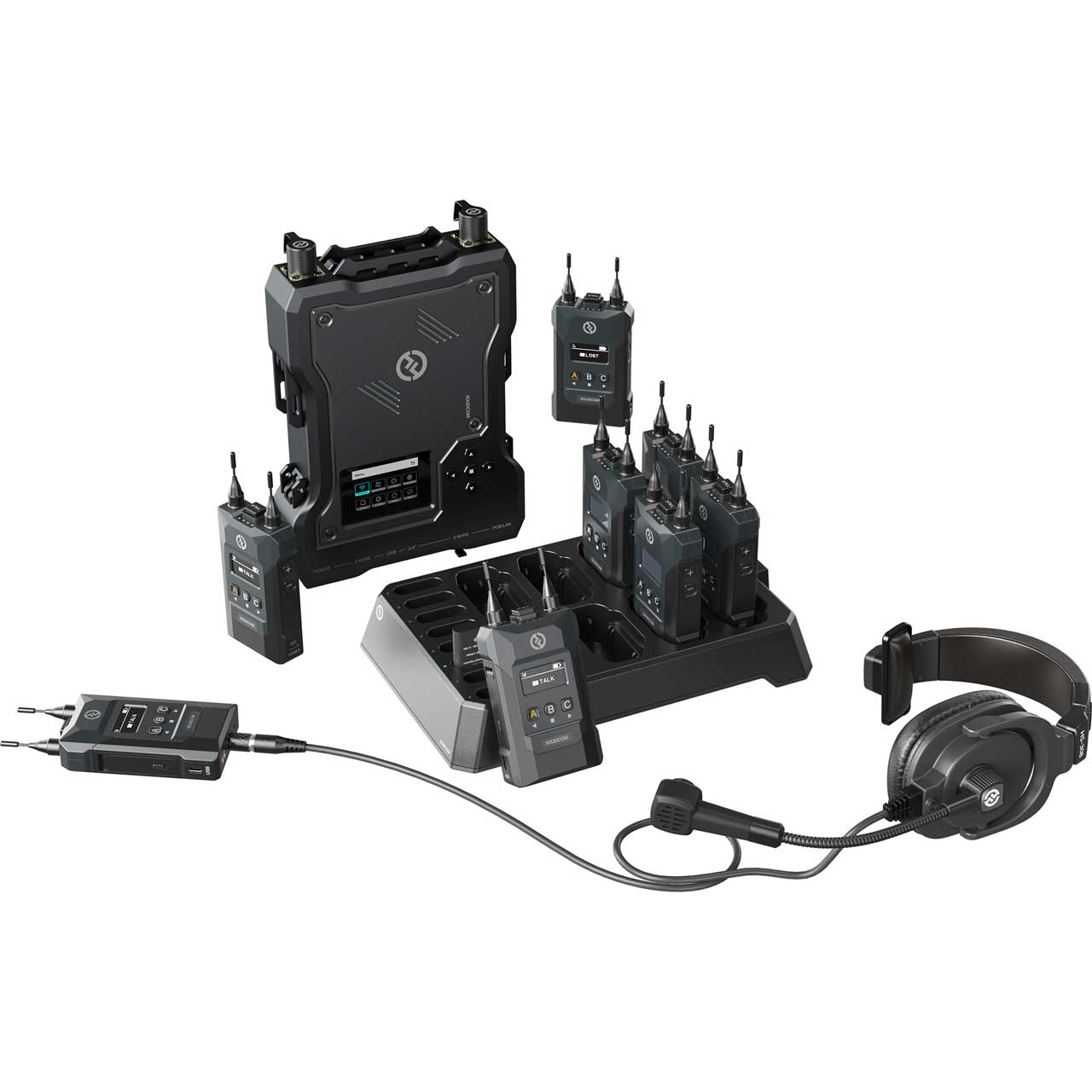

  • Item Includes:

    • 1x Station
    • 8x Beltpack
    • 1x Charging Base
    • 2x High Gain Omnidirectional Antenna
    • 8x LEMO Single-Ear Headset
    • 1x RJ45 to XLR Cable (5 meters)
    • 1x USB-Type-A to Type-C Cable
    • 1x POE Adapter
    • 1x 4-Pin XLR Adapter
    • 16x Beltpack Battery
    • 1x 3/8 Installation Accessory

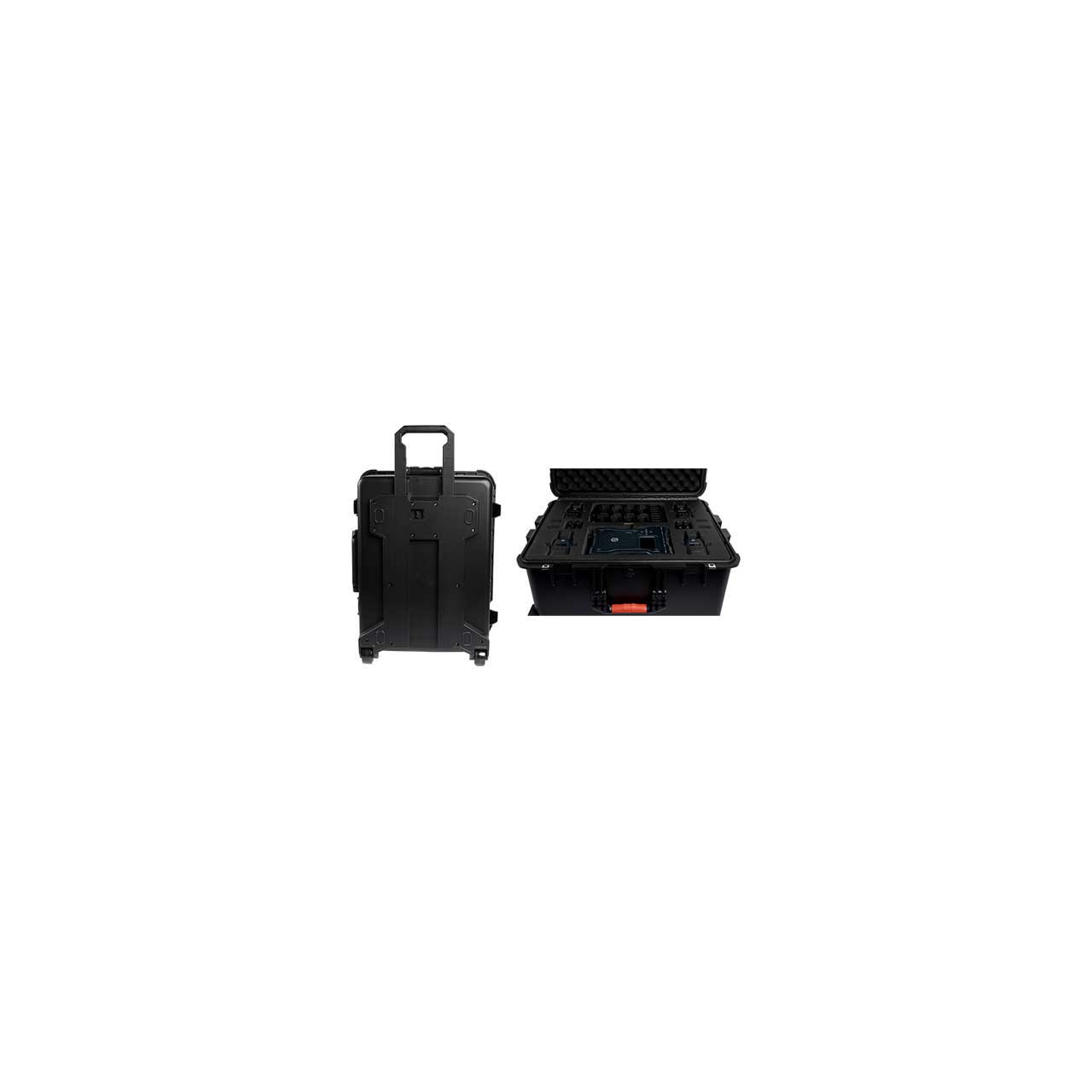

    • 1x Deluxe Padded Hard Case
    • 1x User Guide

  • GTIN:

    0191460002052
