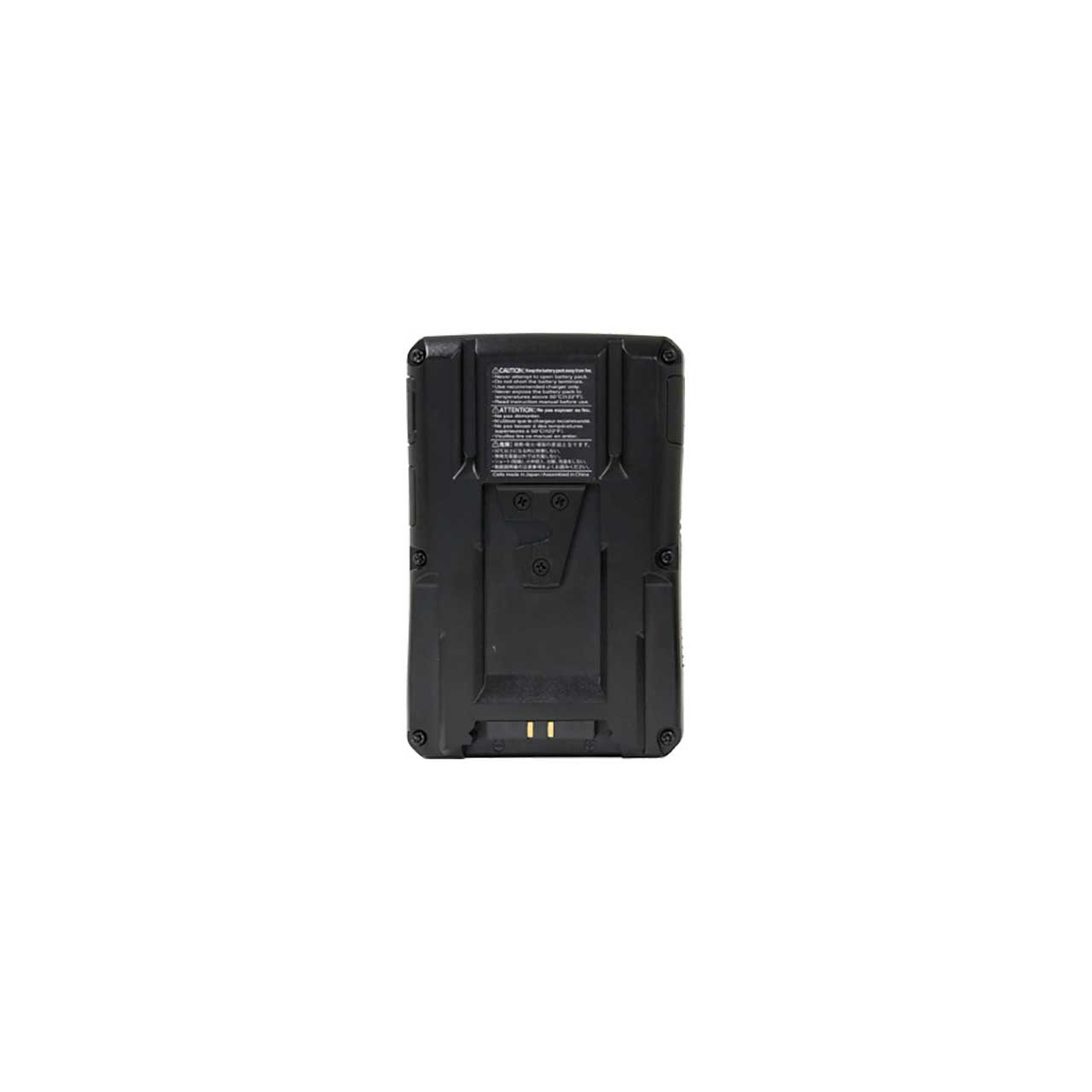

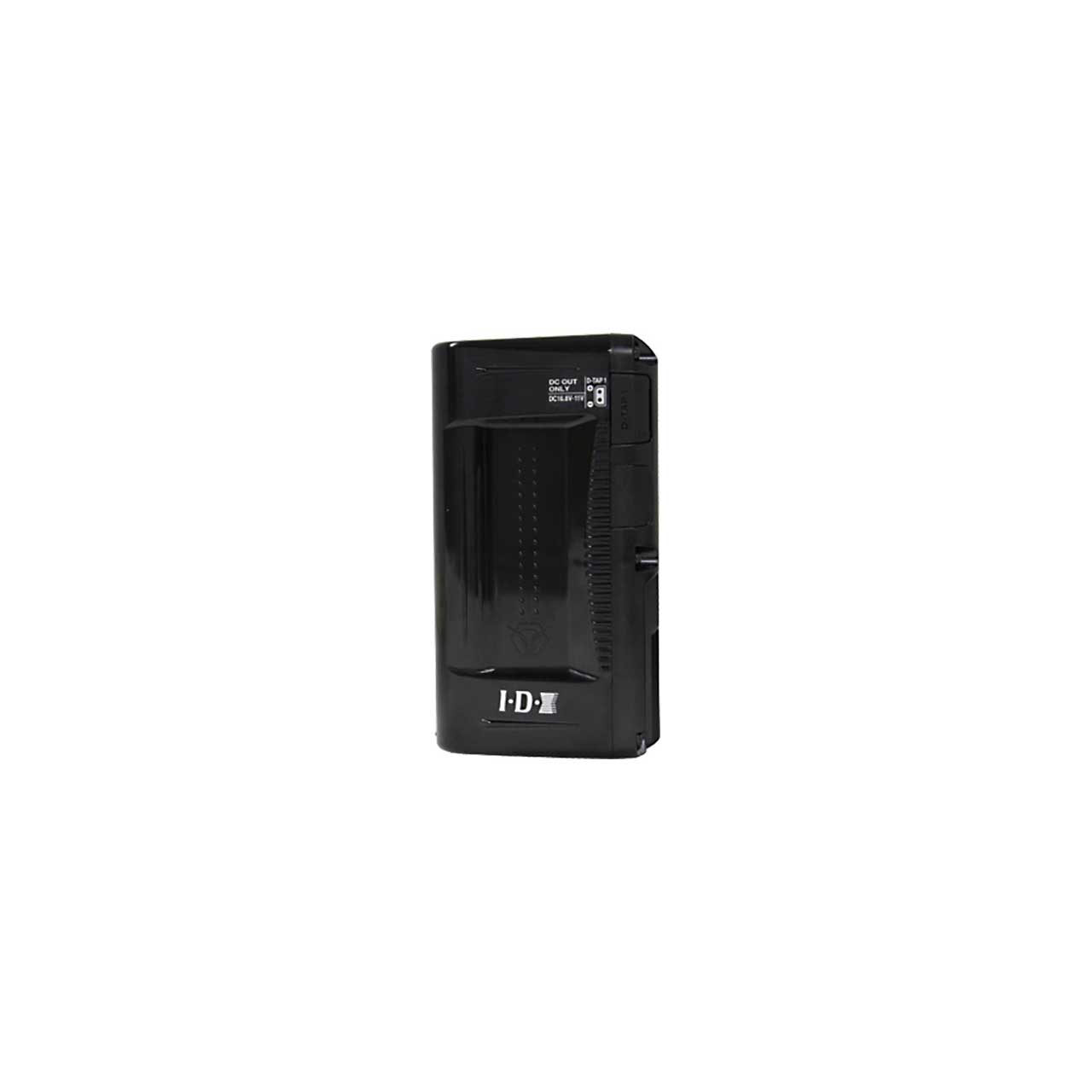

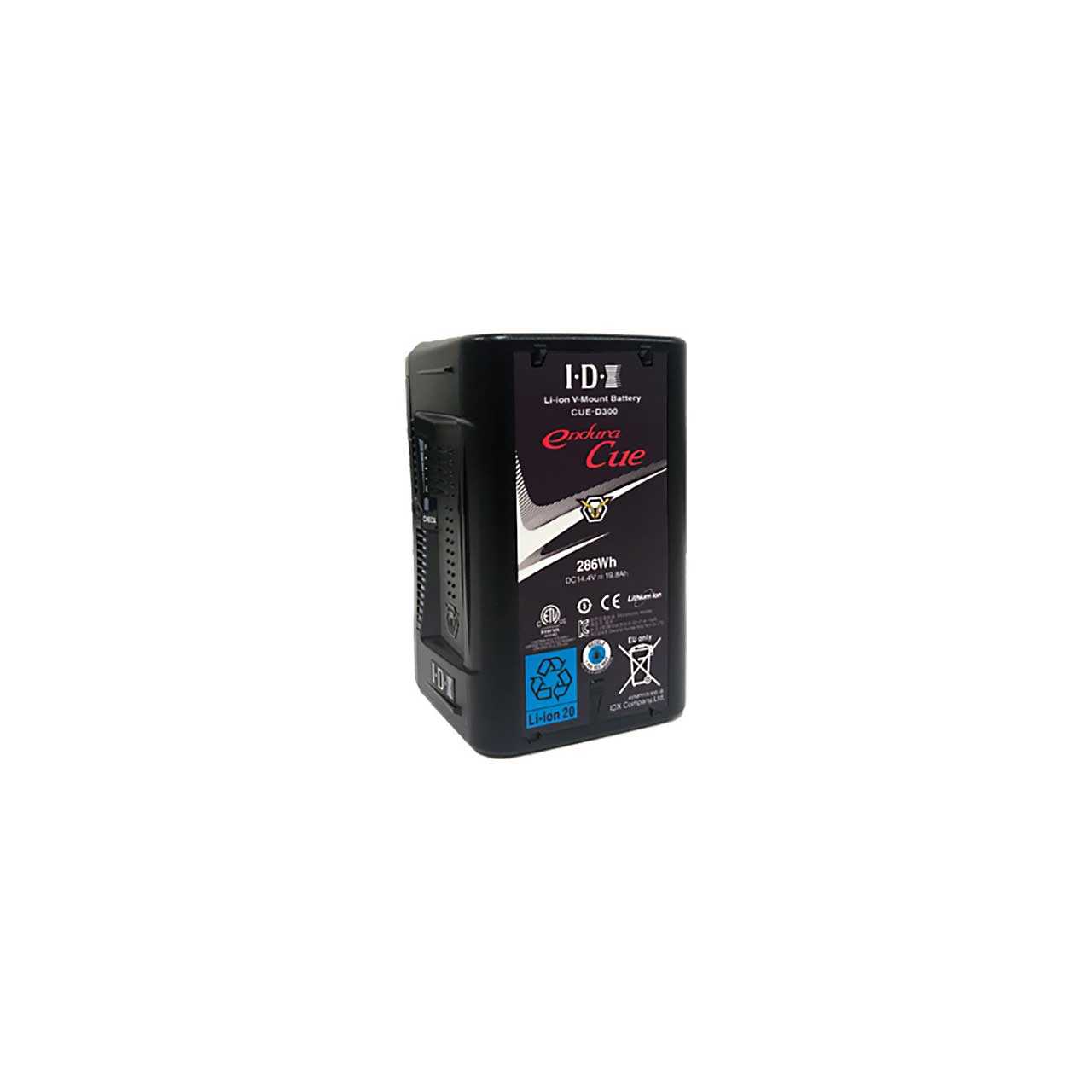

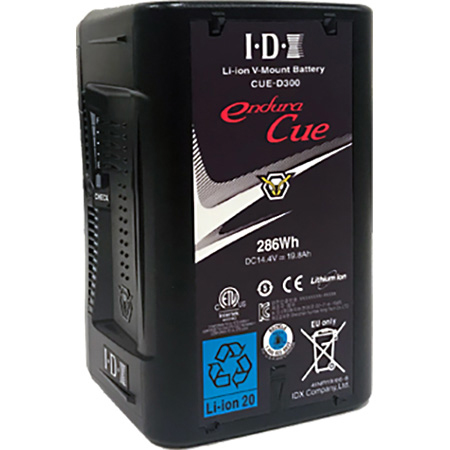

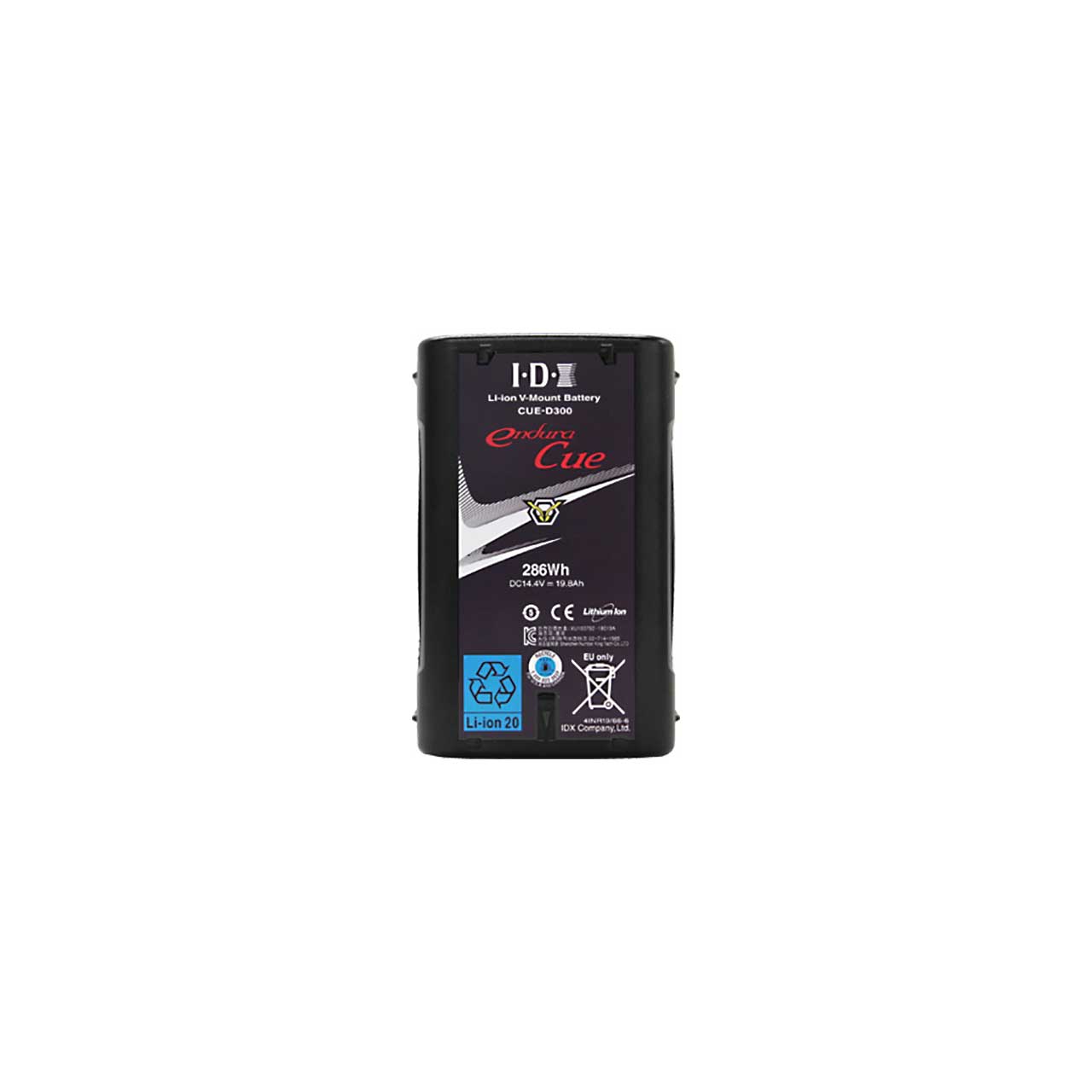

IDX CUE-D300 V-Mount Battery - 286Wh Capacity

CUE-D300 - Overview

• Features:

  • 286Wh capacity
  • Capable of handling up to 14A loads Ø
  • (1) 100W D-Tap Output (unregulated)

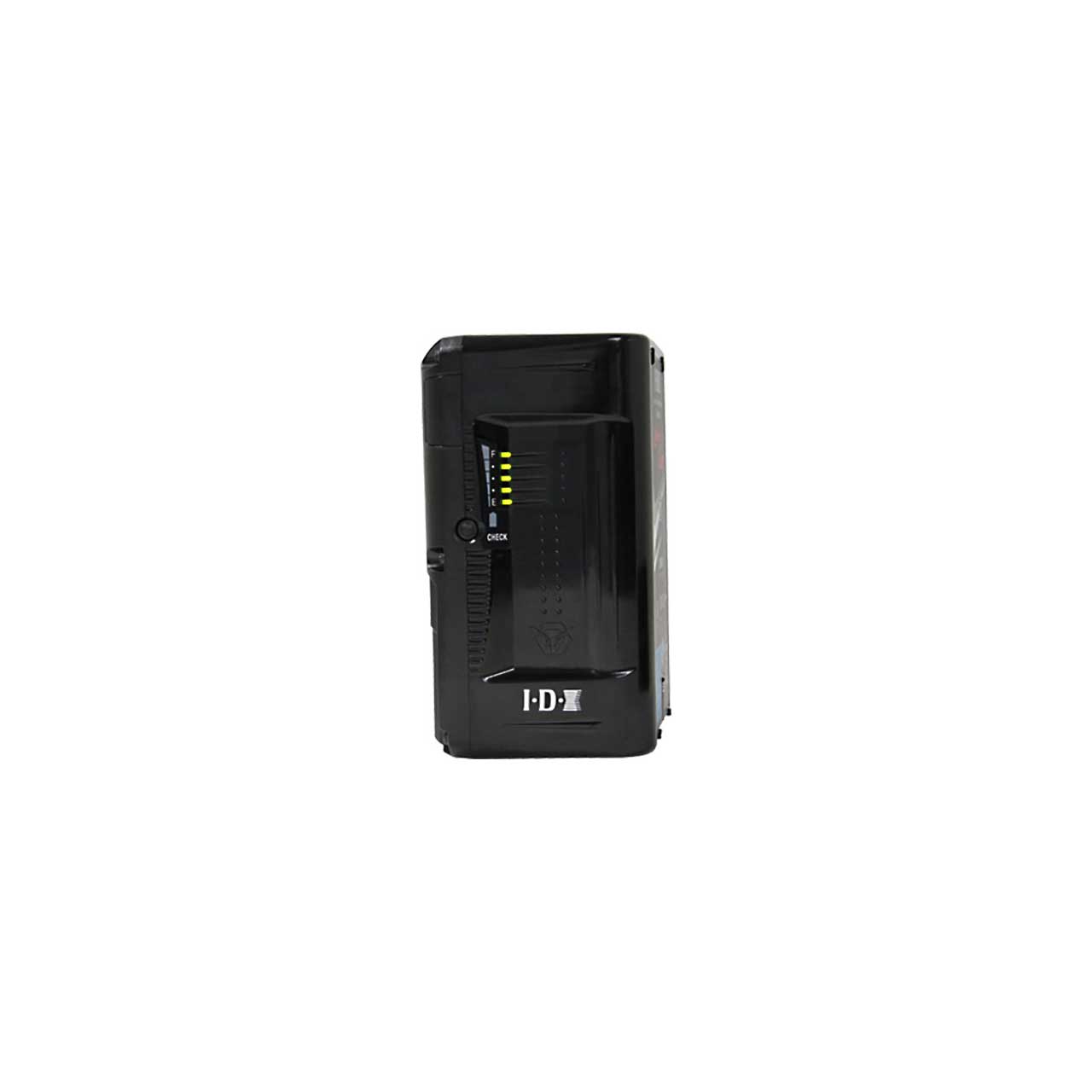

  • 5 Power Indicator LEDs
  • Battery circuit protection ensures the CUE-D300 is fully protected against common causes of battery misuse, guarding against over charge, over discharge, and over current.
  • The highest grade Lithium Ion cells are used to ensure the CUE-D300 is one of the most reliable batteries on the market.
  • 11V auto cut-off prevents over-discharging (while load is applied)
  • Compatible with all ENDURA V-Mount Battery chargers (firmware update may be required on certain charger models)
  • Environmentally friendly and recyclable


• Specifications:

  • Battery Capacity: 286Wh (14.4V/ 19.8Ah)
  • Max.Output Voltage: 16.8V DC
  • Nominal Voltage: 14.4V DC
  • Maximum Discharge Current: 14A
  • D-Tap: 100W each
  • End Voltage: 11V
  • Battery Protection: Over charge, Over discharge, Over current
  • Ambient Temperature: To charge: 32°F ~ 104°F (50°F ~ 86°F recommended)
  • To discharge: -4°F ~ 113°F (50°F ~ 104°F recommended)
  • To store: -4°F ~ 122°F (one month)
  • Dimensions: 3.82(W) x 5.75(H) x 3.11(D) inches
  • Weight: 3.53 lbs approx.
