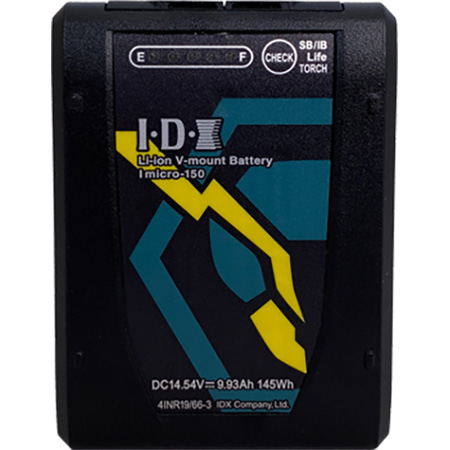

IDX Imicro-150 Micro V-Mount Battery - 145Wh Capacity - 100W D-Tap

IMICRO-150 - Overview

• Features:

  • 145Wh capacity
  • Meets passenger aircraft travel regulations
  • Capable of handling up to 14A loads‡

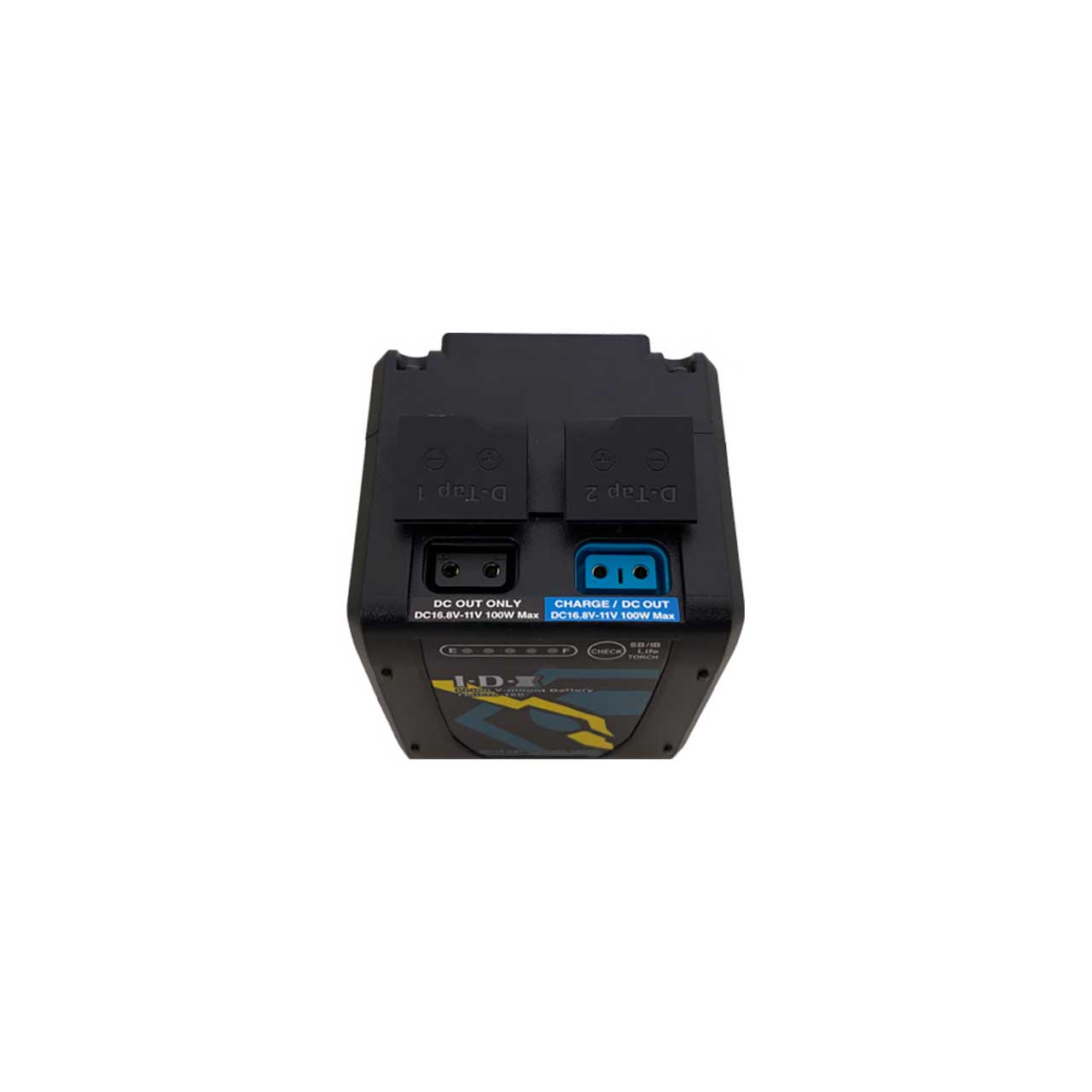

  • (1) 100W D-Tap Advanced Output (unregulated) - D-Tap Output with the added ability to charge battery using low-cost D-Tap Charger (VL-DT1)
  • (1) 100W D-Tap Output (unregulated)
  • 5 Power Indicator LEDs (displaying 10% increments)
  • Battery circuit protection ensures the Imicro-150 is fully protected against common causes of battery misuse, guarding against over charge, over discharge, over current and exposure to high temperatures
  • The highest grade Lithium Ion cells are used to ensure the Imicro-150 is one of the most reliable batteries on the market
  • 11V auto cut-off prevents over-discharging (while load is applied)
  • Fully compatible with all ENDURA V-Mount Battery chargers and accessories
  • Environmentally friendly and recyclable


• Specifications:

  • Battery Capacity: 145Wh (14.4V/ 9.9Ah)
  • Max.Output Voltage: 16.8V DC
  • Nominal Voltage: 14.5V DC
  • Maximum Discharge Current: 14A‡
  • D-Tap: 100W each
  • End Voltage: 11V
  • Battery Protection: Over charge, Over discharge, Over current, Thermal protection
  • Ambient Temperature to Charge: 32° to 104°F (50° to 86°F)
  • To discharge: -4° to 113°F (50° to 104°F)
  • To store: -4° to 122°F (less than 1 month)
  • Dimensions (WxHxD): 2.8 x 3.8 x 2.7"
  • Weight: 1.68Lbs approx.
  • Note: ‡ may vary depending on the operating temperature
