IDX MD-NBV V-Mount Plate with Multiple D-Taps

ITEM #: IDX-MD-NBV MFG #: MD-NBV

Primary Image
IDX
Free Shipping with $49 Minimum Order

Our Price:

$206.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

MD-NBV - Overview

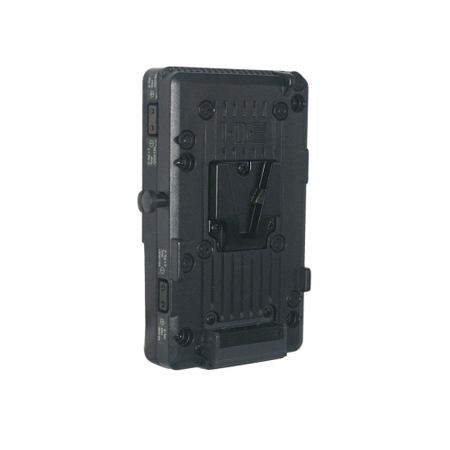

Designed to be sandwiched between a V-Mount camera and battery or mounted on a V-Dock, the MD-NBV, has five (5) D-Taps and allows you to power accessories such as onboard monitors, lights, wireless receivers, media recorders, signal converters, etc. Max draw from each D-Tap is 24W/2A (each D-Tap independently fused), and total Max draw is 120W/10A.

  • Features:

    • V-Mount (male) to V-Mount (female) adaptor plate
    • Five D-Tap outputs (2A max each)
    • All D-Taps independently fused
    • Accepts and mounts to all ENDURA batteries and accessories
    • Precision design and high-grade components ensure secure locking and connectivity to all ENDURA batteries and accessories


  • Specifications:

    • Maximum D-Tap Output: 2A/24W each (fused)
    • Maximum Total Output: 10A/120W
    • Dimensions:
    • 97(W) x 143(H) x 27(D) mm
    • 3.65(W) x 5.63(H) x 1.08(D) inch
    • Weight: 317g / 0.7lbs approx.
    • Replaces A-E2DT-2
