Ikan PT4900S-PTZ-TM-V2 19-Inch SDI High-Bright Beam Splitter PTZ Teleprompter V2 with Talent Monitor

ITEM #: IKAN-4900SPTZTM2 MFG #: PT4900S-PTZ-TM-V2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$3,799.00

Our Price:

$3,699.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


PT4900S-PTZ-TM-V2 - Overview

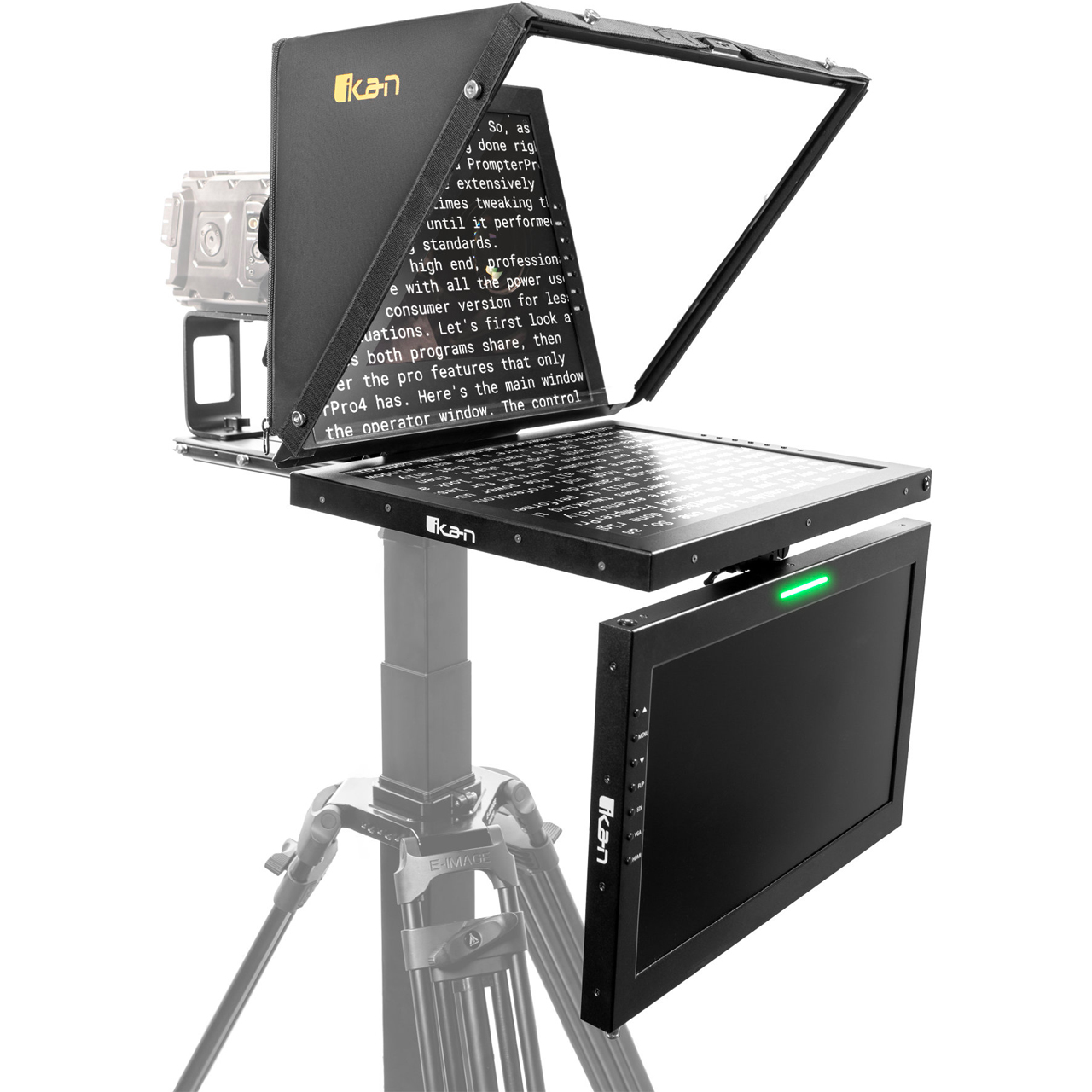

Ikan's PT4900 professional teleprompter series is designed for a quick and easy setup to work efficiently in studio or broadcast applications. The included teleprompter hood fully encloses the PTZ camera allowing it to move freely inside the hood. The teleprompter features a 65/35 reflective glass that makes the reflection easier to see for the presenter. The lightweight aluminum teleprompter has multiple 1/4-20" and 3/8-16" threads for mounting to a tripod or pedestal. The monitor includes SDI, HDMI, and VGA video inputs. Its high bright screen ensures clear visibility in any lighting condition. The monitor also features a wide viewing angle and a 19" widescreen SDI talent monitor with a built-in tally light.

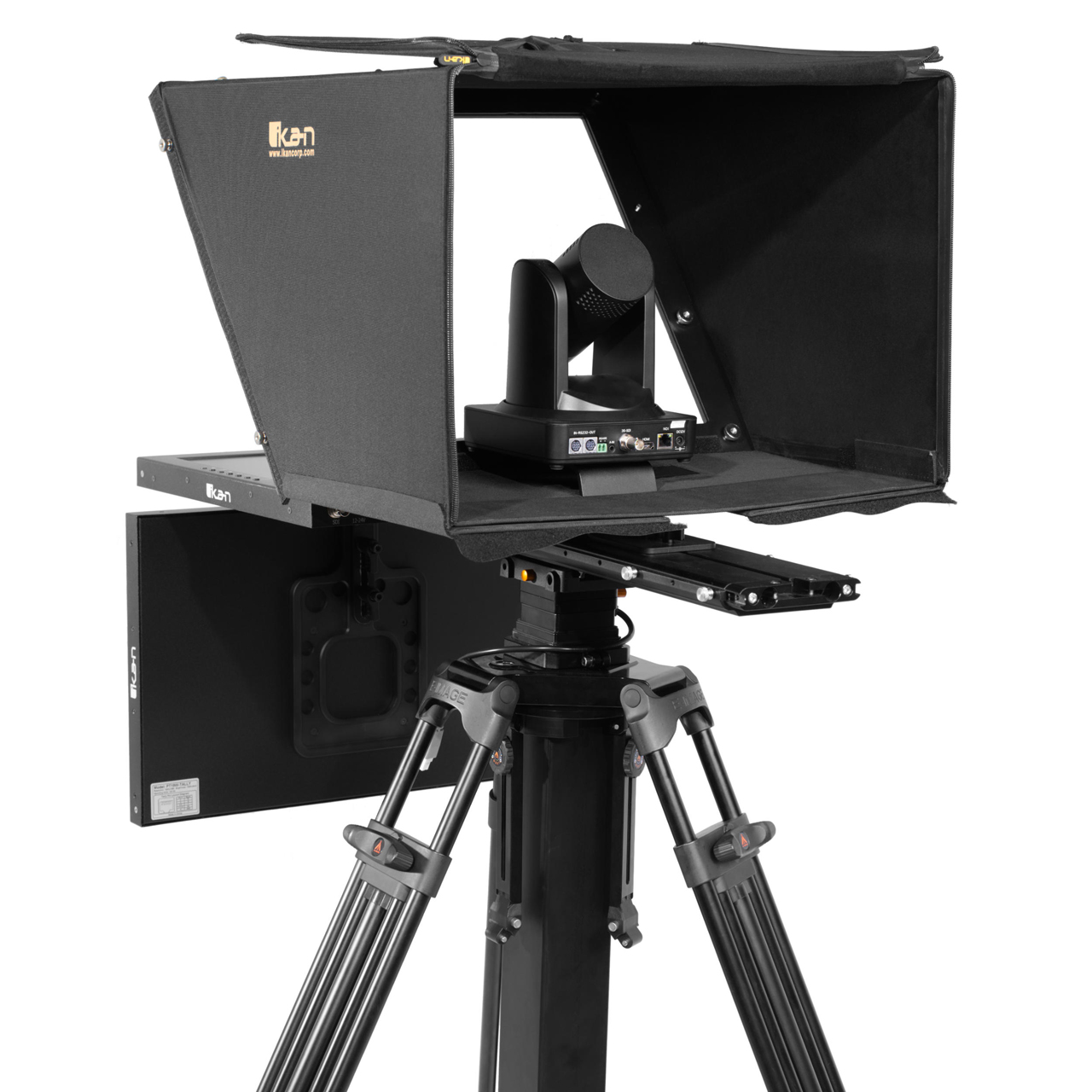

Fully Enclosed PTZ Hood

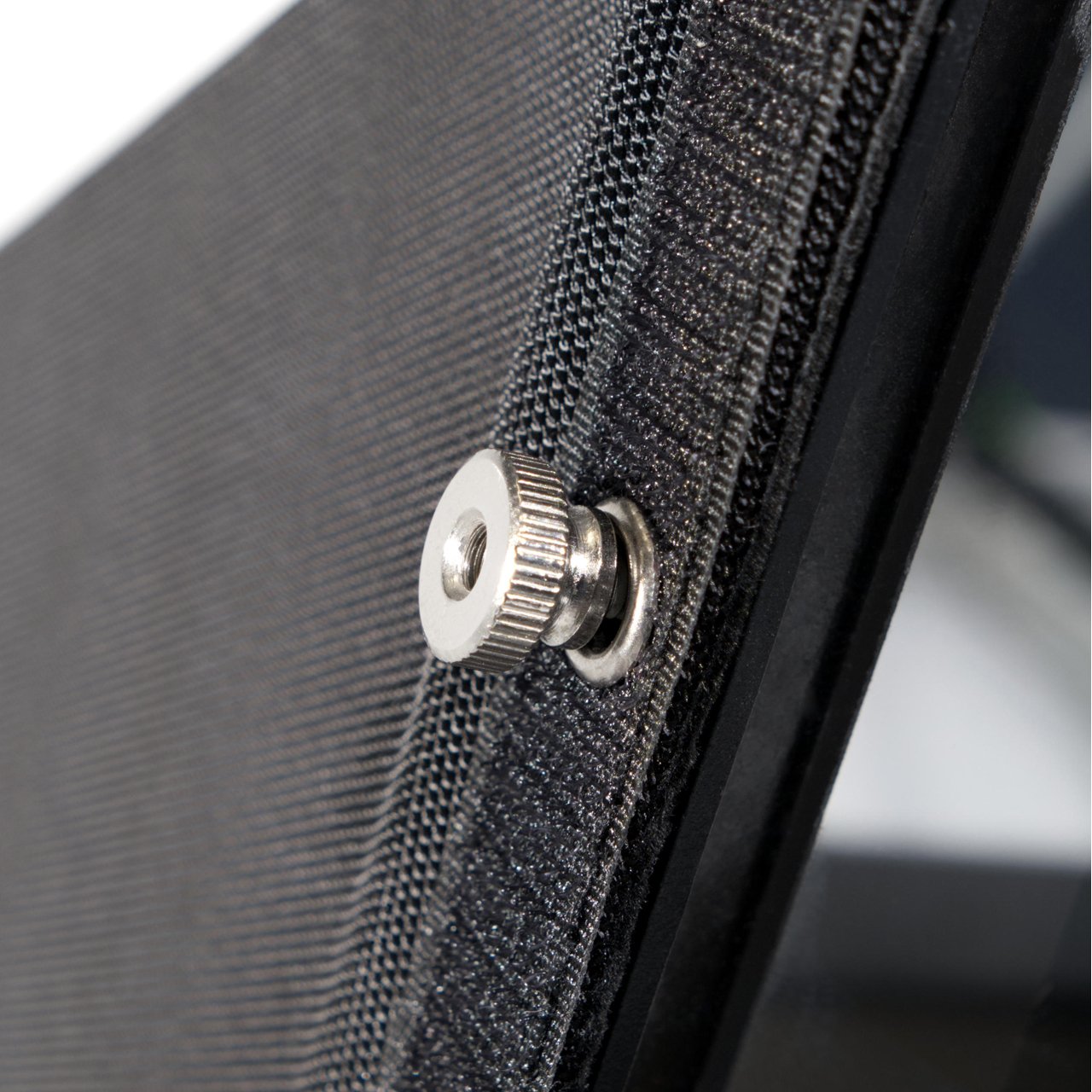

The PTZ teleprompter features a lightweight hood that fully encloses the PTZ camera, which allows it's movement to remain unconstrained. The hood includes an opening in the back that gives you quick access to the PTZ cameras inputs and outputs. The opening can be closed with a drawstring which removes the possibility of any light leaks. It is also anchored to the frame with bolts and additionally secured with magnets for extra stability.

High-Bright Teleprompter Monitor
The 1000 nit high bright screen is able to deliver clear and vivid text visibility in various lighting conditions. In environments with intense lighting, such as outdoor settings or brightly lit studios. This feature is particularly vital for outdoor teleprompting, where sunlight can wash out the display of a standard monitor.

Easy to Balance
The PT4900S-PTZ-TM-V2 includes a long rail which allows you to easily balance your entire teleprompter setup. The teleprompter base can be easily moved forwards and backwards until the perfect balance is set.

Large Range of Camera Compatibility
Ikan's PTZ Teleprompter includes a large canvas hood, making it compatible with the vast majority of PTZ cameras.

Extreme Clarity
The glass is coated so that it reflects 65% of the light projected onto it while allowing the remaining 35% to pass through. This unique characteristic enables the presenter to read the reflected script text clearly, projected from a monitor below or behind the glass, while simultaneously allowing the camera positioned directly behind the glass to record through it without capturing the reflected text.

Image Flip Button
Both the teleprompter monitor and talent monitor feature an image flip button that allows for both horizontal and vertical flipping of the displayed image. This feature is ideal for presenters who are video conferencing since it enables the presenter to view themselves as if they were looking into a mirror, giving a greater sense of comfort during the video conference or live stream.

Widescreen Talent Monitor
The 19" Widescreen Talent Monitor is designed to conveniently attach below the teleprompter to enable on-screen talent see their presentations live. The monitor features 3G-SDI, HDMI, and VGA, inputs. The native resolution is 1920 x 1080 HD and max brightness is 1000 nits. The talent monitor includes a 15mm mounting system that connects it to the teleprompter.

Built-in Tally Light for On Air Status

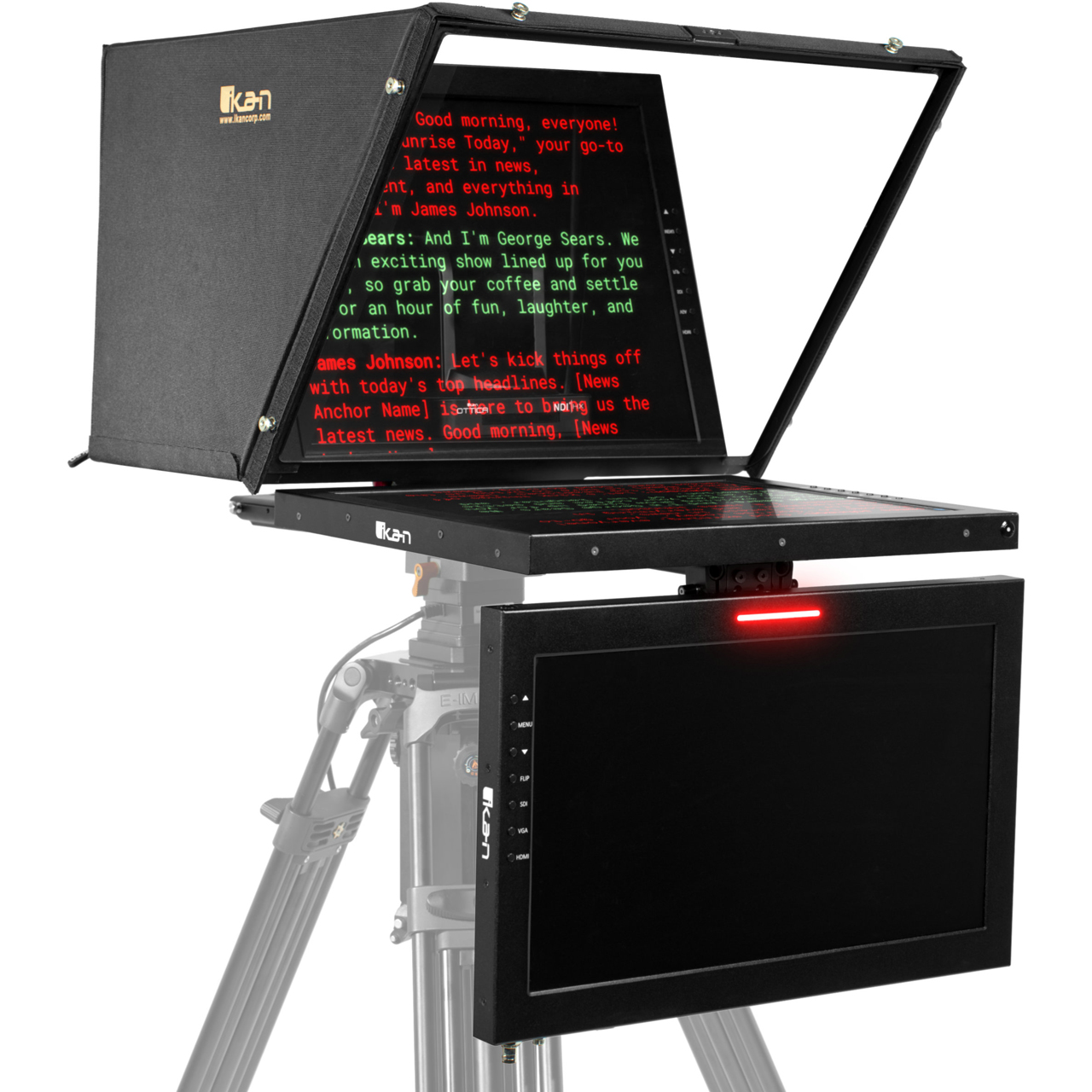

The widescreen talent monitor features a tally light that illuminates red, green, and yellow. This means that a director can cut between cameras and the tally color will let the on-camera talent know which camera is live.

Dual Tally Lights
The talent monitor can be mounted as either a talent monitor or a script monitor. The monitor features a toggle switch that allows you to choose which of the two tally lights you would like to use depending on which setup you decide to choose.

Ships in Reusable Foam
The professional teleprompter is shipped in reusable custom cut foam which will help keep the kit safe and organized when you set it up or break it down. The custom cut foam fits perfectly fit in the optional Ikan PT-CASE-4U rolling hard case.

  • Features:

    • PTZ Hood fully encloses camera allowing it to move freely
    • Includes 19" SDI widescreen talent monitor w/ tally lights
    • Compatible with most PTZ cameras

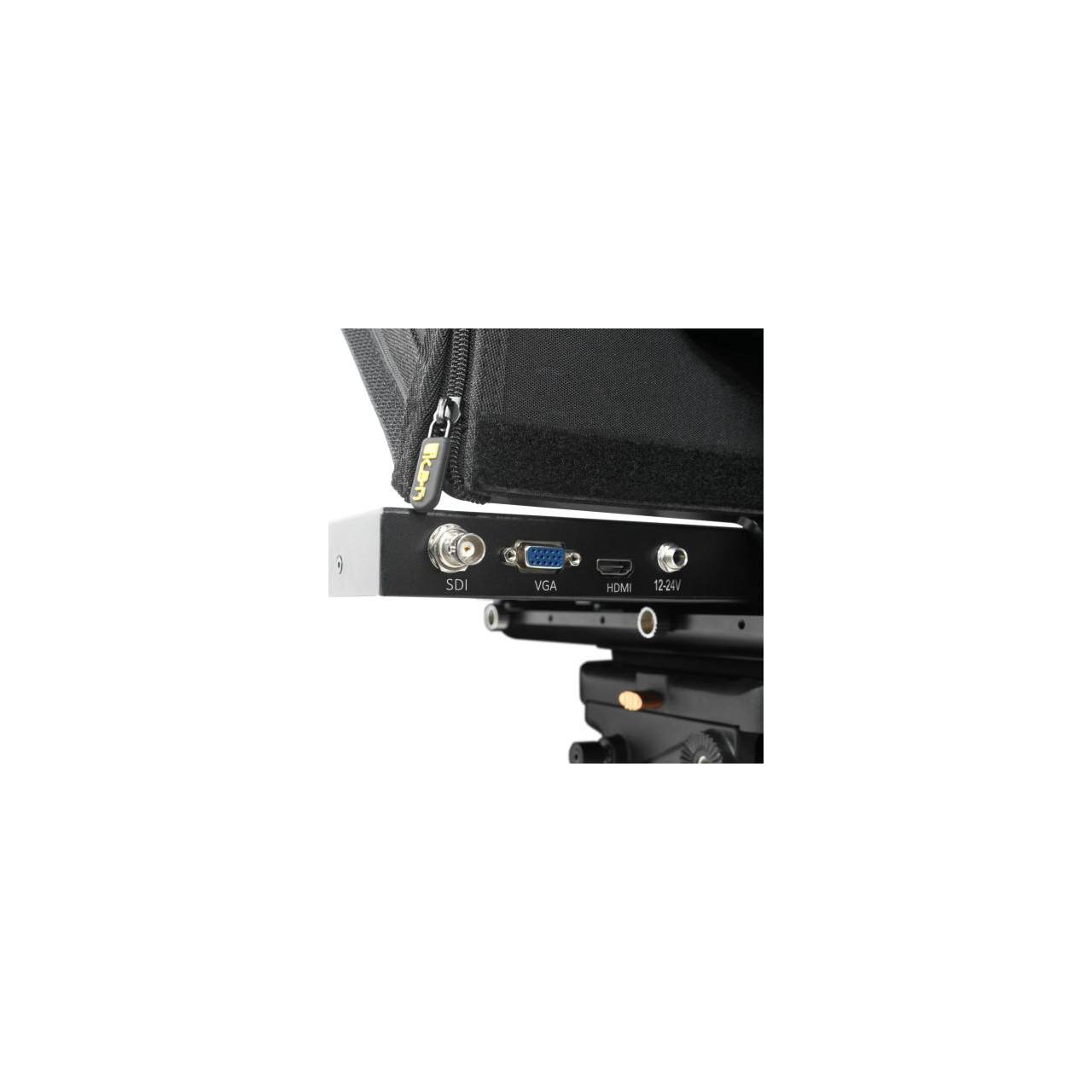

    • Teleprompter script monitor features SDI, HDMI, & VGA Inputs
    • 1000-nit nigh bright monitor
    • High-quality American made 65/35 beam splitter glass
    • Screen readable from up to 25'
    • Multiple camera mounting options
    • Easy balancing with adjustable base
    • Lightweight and compact design
    • Ships in reusable foam for easy transport
    • Monitor supports image flip
    • PrompterPro software for Mac & PC is FREE with this teleprompter

  • Specifications:

    • 19" Teleprompter
    • Riser Plate Height:
      - Short: 2.06" (52.5mm)
      - Tall: 5.31" (135mm)
      - DSLR: 6.29" (160mm)
    • Length of Rods: 15mm x 400mm
    • Build Material:
      - Chassis: Anodized Aluminum
      - Rods: Carbon Fiber
    • Reading Range: 25' (7.62m)
    • Beamsplitter Ratio: 65/35
    • Beamsplitter Shape: Rectangular
    • Beamsplitter Material: Glass
    • Tripod Mounts:
      - 11 x 1/4" -20 Female
      - 9 x 3/8" -16 Female
    • Low Plate Weight: 29.6lbs
    • Medium Plate Weight: 30lbs
    • High Plate Weight: 30.13lbs
    • DSLR Plate Weight: 29.5lbs
    • Teleprompter Height: 16.1" (411mm)

      19" SDI Teleprompter Monitor
    • Aspect Ratio: 4:3
    • Max. Brightness: 1000 cd/m2
    • Screen Size (Diagonal): 19"
    • Mount: VESA 100mm
    • Video Inputs: SDI, HDMI, VGA
    • Input Voltage: DC 12V/4A
    • Power Consumption: 30W
    • Weight: 6lbs
    • Dimensions: 17" x 15" x 1"
    • Native Resolution: 1280 x 1024
    • Viewing Angle: 160° (H)/170° (V)
    • Build Material: Aluminum Chassis
    • Image Flip: Horizontal:
      - Yes
      - Vertical: Yes

      19" Widescreen Talent Monitor
    • Aspect Ratio: 16:9
    • Max. Brightness: 1000 cd/m2
    • Screen Size (Diagonal): 18.5"
    • Mount: VESA 100mm
    • Video Inputs: SDI, HDMI, VGA
    • Input Voltage: DC 12V/5A
    • Power Consumption: 36W
    • Weight: 5.73lbs
    • Dimensions: 18.3" x 12.3" x 1.2"
    • Native Resolution: 1920 x 1080
    • Viewing Angle: 178° (H)/178° (V)
    • Build Material: Aluminum Chassis
    • Image Flip:
      - Horizontal: Yes
      - Vertical: Yes
    • Tally Interface: RJ45

      PTZ Teleprompter Add-On Kit
    • PTZ Riser Height: 51mm
    • PTZ Riser Weight: .58lbs
    • PTZ Hood Dimensions:
      - Top: 19.06" x 15.31"
      - Bottom 8.16" x 15.31"
      - Height: 12.56"
    • Hood Material: Polyester Canvas
    • Riser Plates Material: Aluminum
    • Glass Frame Holder Material: Aluminum
    • Kit Net Weight: 5.1lbs

  • Item Includes:

    • 1x Teleprompter Base
    • 1x 19" SDI Teleprompter Monitor
    • 1x 19" SDI Widescreen Talent Monitor
    • 1x Tall Riser
    • 1x Small Riser
    • 1x DSLR Riser
    • 1x PTZ Riser
    • 1x Teleprompter Hood
    • 1x Teleprompter Glass
    • 1x Warranty Card
    • 1x Power Supply
    • 1x Prompter Pro 4 Digital Download

  • Warranty:

    • 1 Year Limited Warranty

  • GTIN:

    0847983036165
