ikan S7P SAGA 7-Inch Super High Bright 3G-SDI/HDMI Touchscreen Monitor with 3D Luts and Scopes

ITEM #: IKAN-S7P MFG #: S7P

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the IKAN-S7P

S7P - Overview

The ikan Saga S7P is equipped with an LCD panel that cranks out 2000 nits of brightness, which is about 4 times as bright as most monitors. Not only is the panel bright, but it is also extremely sharp and accurate. The S7P can be powered either by L series batteries or via the included AC adapter.

3D-Lut and HDR Capabilities
The Saga S7P allows you shot your footage in log format, while previewing in real time on the monitor in HDR or loading custom LUTs via the MicroSD card slot. HDR previews of HLG 2020, HLG 709, and HLG P3.

High End Video Analysis
The S7P is packed with video analysis features that help you get the perfect picture. The monitor has highly accurate Waveform, Vectorscope, RGB Parade and Histogram. You'll also have both options of navigating features via the intuitive touchscreen or easy to use scroll wheel.

Inputs and Outputs

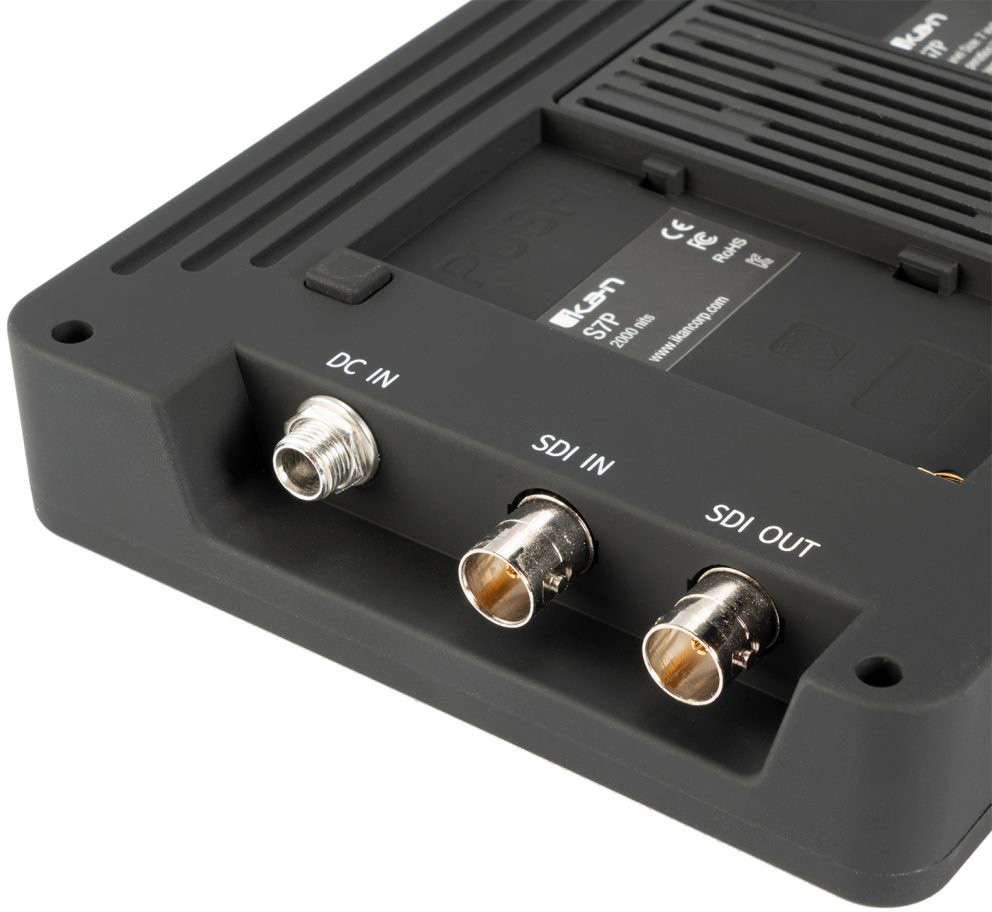

The S7P is equipped with both HDMI and 3G-SDI inputs and outputs. In addition, the monitor also has a 3.5mm headphone output so you can monitor your audio from the S7P.

Battery Power

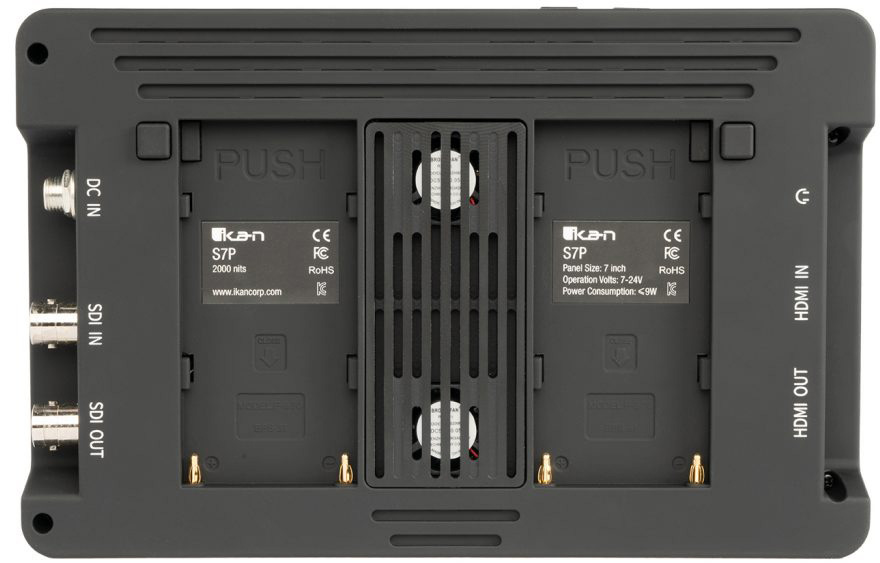

The S7P has the option to use either one or two L series batteries at a time. Additionally, the monitor can be powered via the screw thread DC in port for a secure connection.

  • Features:

    • 1920 x 1200 touchscreen display
    • Daylight viewable monitor 2000 nit high bright panel
    • Real time LUT preview in HDR or loadable 3D LUTs
    • Supports Anamorphic de-squeeze in real-time with a squeeze of 1.33x.
    • Waveform, RGB parade, vectorscope, histogram, peaking, false color, pixel-to-pixel, clip guides, image flip, audiometer
    • 4K Ultra HD support via HDMI
    • 3G-SDI & HDMI input and output, 3.5mm audio output
    • Dual L series battery slots

      Software Features:
    • 3D LUTs
    • HDR Preview
    • Waveform
    • Y/YUV/RGB Parade
    • Y/RGB Histogram
    • Vector
    • False Color
    • Peaking
    • Timecode
    • Zebra
    • Guide
    • Aspect Ratio (Anamorphic De-Squeeze 1.33x)
    • Pixel to Pixel
    • Zoom
    • Image Flip
    • Freeze Frame
    • Battery Level

  • Specifications:

    • Supported Video Signal
    • SDI:
      720x480i @ 59.94, 60 Hz
      720x576i & 720*576p @ 50 Hz
      1280x720p @ 50, 60 Hz
      1920x1080i @ 50, 59.94, 60 Hz
      1920x1080psf @ 24, 25, 29.97, 30 Hz
      1920x1080p @ 23.93, 24, 25, 29.97, 30, 50, 59.94, 60 Hz
    • HDMI:
      720x480i & 720x480p @ 59.94, 60 Hz
      720x576i & 720x576p @ 50 Hz
      1280x720p @ 50, 59.94, 60 Hz
      1920x1080i @ 50, 59.94, 60 Hz
      1920x1080psf @ 24, 25, 29.97, 30 Hz
      1920x1080p @ 23.97, 24, 25, 29.94, 30, 50, 59.94, 60 Hz
      3840x2160p @ 24, 25, 30 Hz
      4096x2160p @ 24 Hz
    • Aspect Ratio: 16:10
    • Battery: L Series Battery
    • Brightness: 2000 cd/m2
    • Contrast Ratio: 1100:1
    • Inputs:
      1x HDMI
      1x 3G-SDI
      1x 3.5mm Audio
    • Outputs:
      1x HDMI
      1x 3G-SDI
    • Resolution: 1920 x 1200
    • Viewing Angle: 178° (89°/89°)
    • Weight: 1.5lbs (0.68kg)
    • Dimensions: 7.3" x 4.4" x 1.1" (185mm x 112mm x 28mm)
    • Shipping Weight: 3lbs (1.36kg)
    • Shipping Dimensions: 12" x 12" x 6" (305mm x 305mm x 152mm)

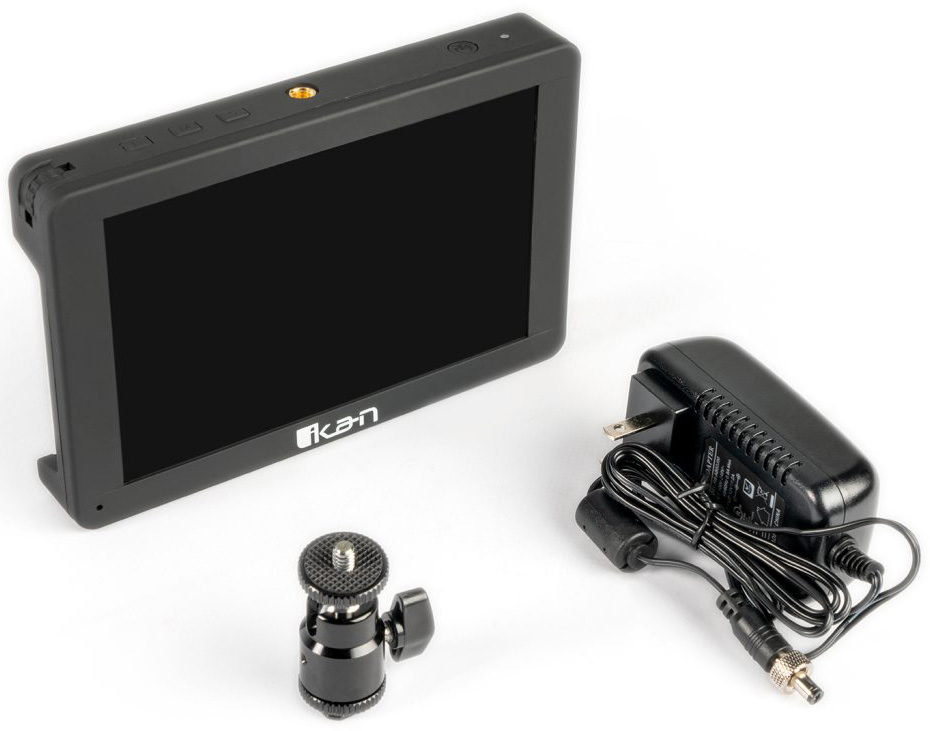

  • Item Includes:

    • 1x S7P Monitor
    • 1x Power Adapter
    • 1x Show Mount
