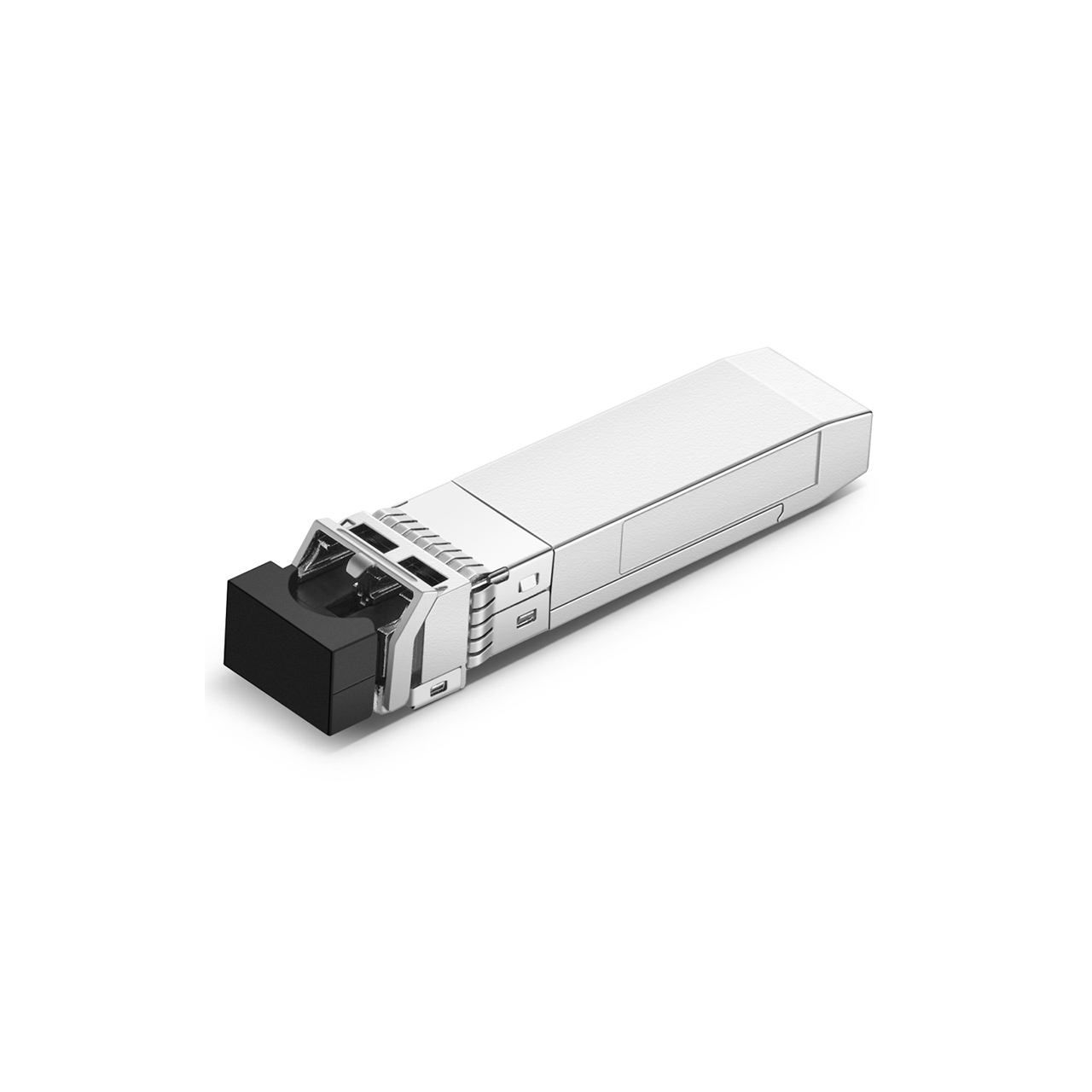

25GBASE-SR 850nm 100m DOM Duplex LC/UPC MM Optical SFP Transceiver Module For Cobalt Indigo 2110 Daughter Cards

ITEM #: INDIGO-SFP25G MFG #: SFP28-25GSR-85-I

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Unique Product Solutions
Free Shipping with $49 Minimum Order

Our Price:

$199.99

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    SFP28-25GSR-85-I - Overview

    The SFP28 transceiver provides 25GBase-SR throughput up to 100m over multimode fiber (MMF) using a wavelength of 850nm via an LC duplex connector. Featuring low power consumption, high speed, this 25G transceiver is ideal for 25G Ethernet, data center, and 5G Wireless Network, suitable for both outdoor and indoor deployments. It is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.

    • Features:

      • Built-in Macom Chip, Max. Power Consumption 1W
      • Tested in Targeted Switch for Superior Performance, Quality, and Reliability
      • Interoperable with Other IEEE-compliant 25G Interfaces for Seamless Integration
      • High-speed Connectivity Compliant to IEEE 802.3by
      • FS BOX - Support Real-time Configuration

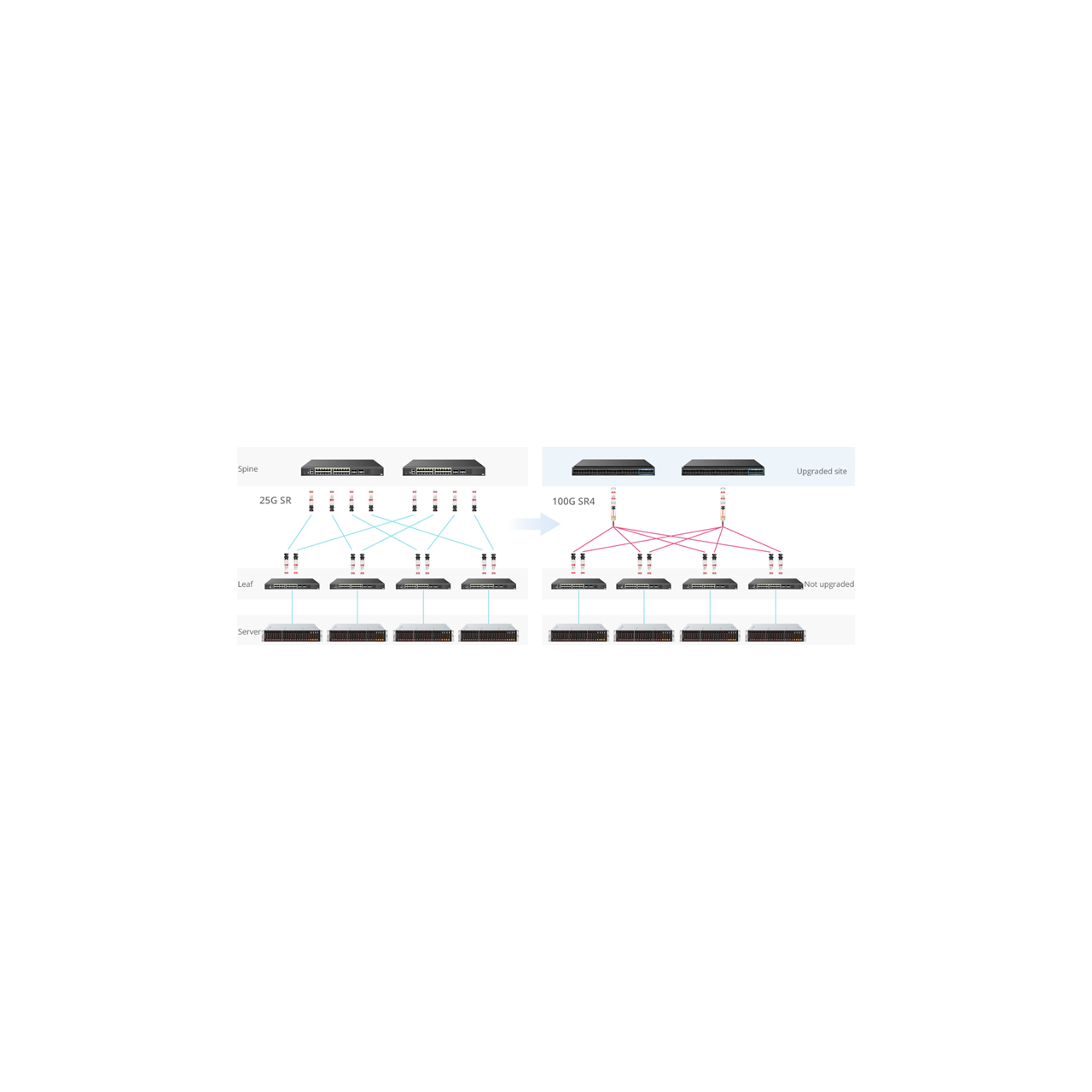

      • Support 4x25G Fan out and Easy Migration to 100G Platforms
      • Industrial Temp -40°C to +85 °C
      • Hot Pluggable SFP28 MSA Compliant
      • Class 1 FDA Laser Safety and RoHS Compliant


    • Specifications:

      • Form Factor: SFP28
      • Max Data Rate: 25.78Gbps
      • Wavelength: 850nm
      • Max Cable Distance: 100m@OM4/70m@OM3

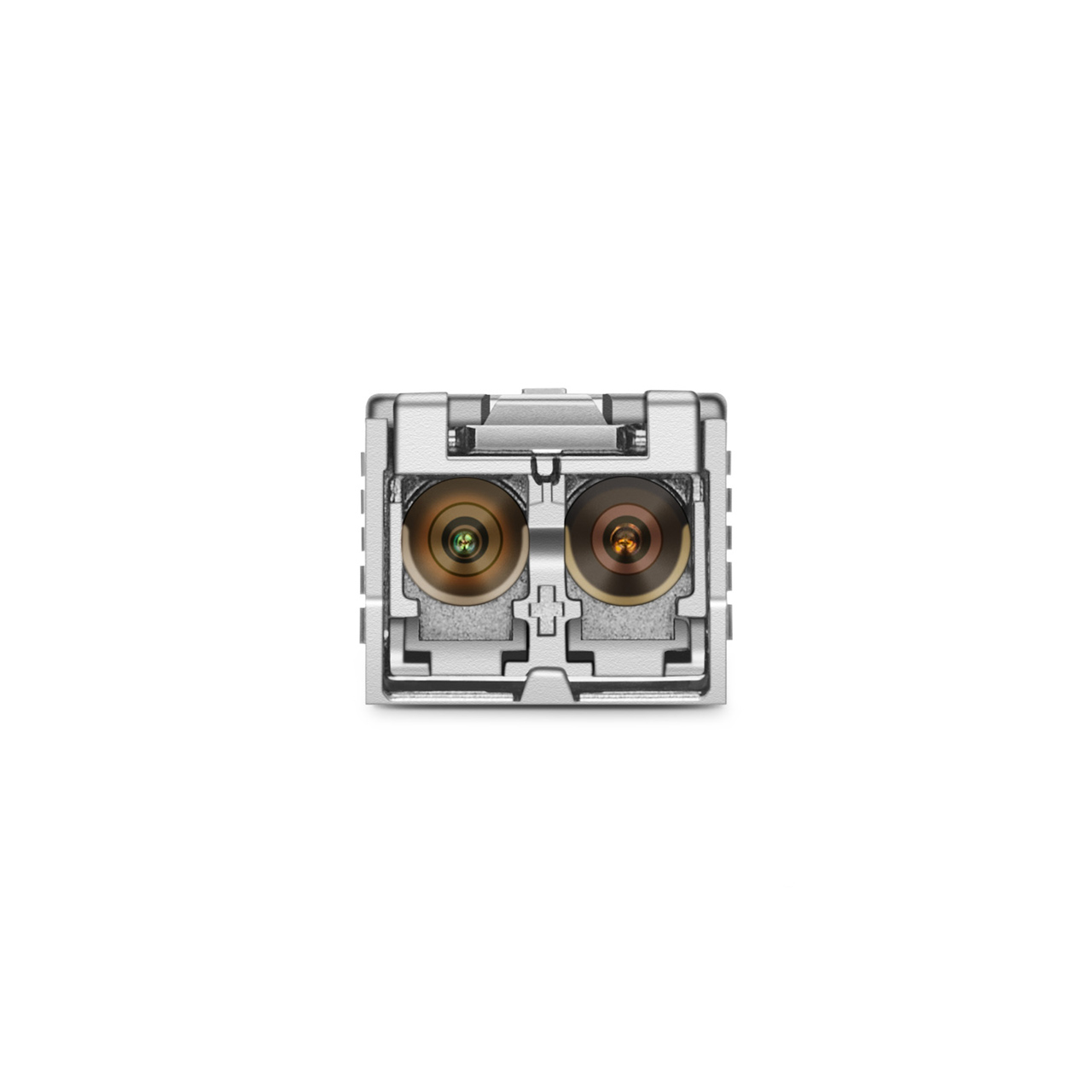

      • Connector: Duplex LC
      • Media: MMF
      • Transmitter Type: VCSEL
      • Receiver Type: PIN
      • TX Power: -7.9~1.9dBm
      • Receiver Sensitivity: <-6dBm
      • Powerbudget: -1.9dB
      • Receiver Overload: 2.4dBm
      • Power Consumption: <1W
      • Extinction Ratio: >2dB
      • DDM/DOM: Supported
      • Industrial Temperature Range: -40 to 185°F (-40 to 85°C)
      • CDR: TX & RX Built-in CDR
      • FEC Function: Support RS-FEC, FC-FEC
      • Protocols: IEEE 802.3by, SFF-8472, SFF-8432, SFP28 MSA, CPRI, eCPRI
      • Core Size: 50/125 μm
      • Packaging Technology: COB Packaging


    • Warranty:

      • 5 Year Warranty
