Interspace Industries MCV7 MasterCue V7 Pro Ethernet Cueing System for Live Events

ITEM #: INTI-MCV7 MFG #: MCV7

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$3,880.00

Our Price:

$3,650.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


MCV7 - Overview

The Interspace Industries MasterCue V7 is the professional choice for Event Cueing and Presentation Slides! You need full control of all your connected devices. MCV7 has Ethernet, each main unit has its own webpage so you can set up the functions for it remotely and see the actions (cues) made. Using Ethernet allows for a controlled infrastructure between the connected world and the control room.

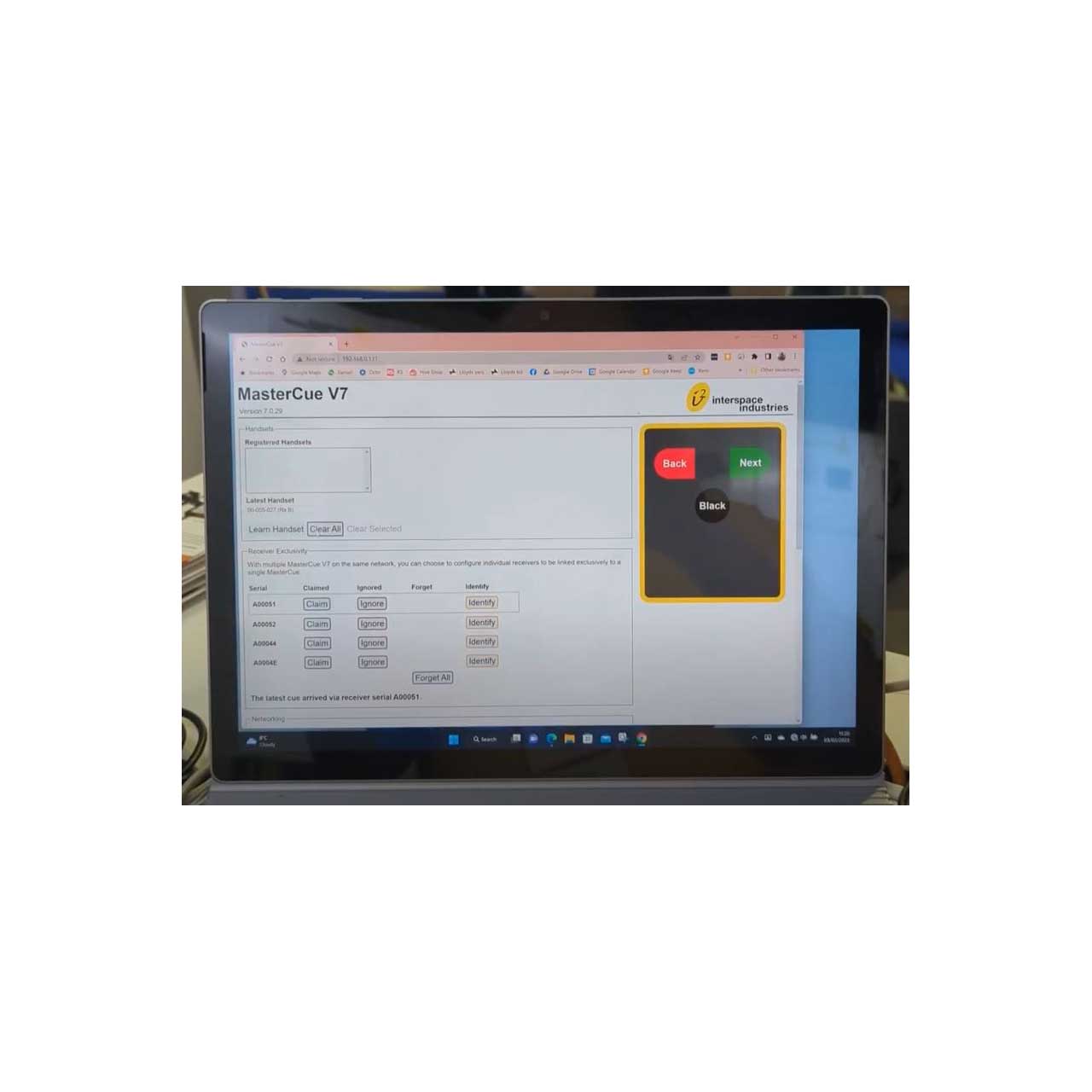

The MasterCue V7 Web Page gives you that remote access and control of your settings. MCV7 has 6 USB ports with independent "port enable" buttons so you can select the correct computer for the correct presenter. With 6 USB ports to control the graphics you can have main, back-up, slides and multiple systems on the same LAN with individual set up and control. The proven i2Net provides multidrop with a cable range (1 mile / 1500m) provides a simple connectivity solution for MCV7 system and the i2Net devices.

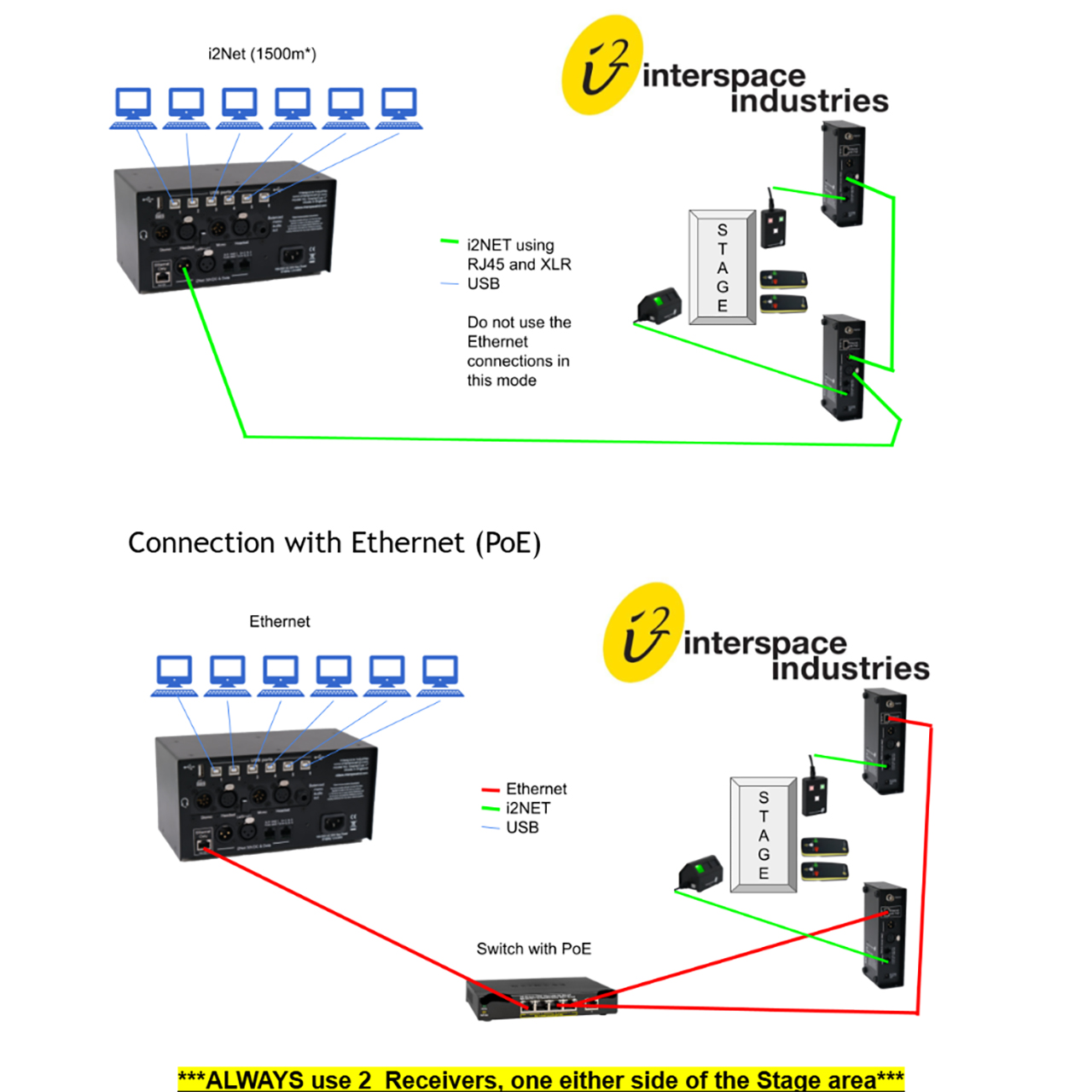

The RF receivers can be connected on PoE Ethernet on the local LAN for easy deployment. When connecting Multiple systems on the same LAN, you can configure each system to operate independently to each other. i2Net is included to operate the Wired button and Lamp. The whole MCV7 system can run on i2Net to provide a degree of simplicity using multidrop topology with the extended cable range of up to 1 mile (1500m)! MCV7 continues and expands the MasterCue values from the very first one, 25 years ago.

Please Note: MasterCue V7 works with existing pre-installed Intercom Systems, you will need your own intercom system (sold separately). MasterCue V7 has been designed to work with Ethernet systems, it is strongly suggested that the End User and Installer/Technician be fully versed in Ethernet technology before purchase.

  • Features:

    • Remote RF receivers (x2 for diversity)
    • i2LP Confidence Lamp
    • i2WB Wired button
    • Comms 4 pin and 5 pin on hum free connections
    • Mic stand fitting on RF receivers

  • Specifications:

    • Specifications
    • Power: Universal mains in 100V to 264VAC 30W - Line out power on i2Net 28V 20W
    • Signals: USB, i2Net, Ethernet, PoE Ethernet

      Dimensions (inch) D x W x H:
    • Main unit (controller): 4" 5/16 x 8" 7/8 x 4" 1/2 - Weight 34oz
    • RF receiver: 3" 2/4 x 2" 1/8 x 7 1/2" - Weight 013 7/8oz
    • i2Net Lamp (i2LP): 2" 3/8 x 4" 1/16 x 2" 3/4 - Weight 6oz
    • i2Net Wired button: 1" 3/8 x 2" 3/16 x 3" 3/8 - Weight: 4oz

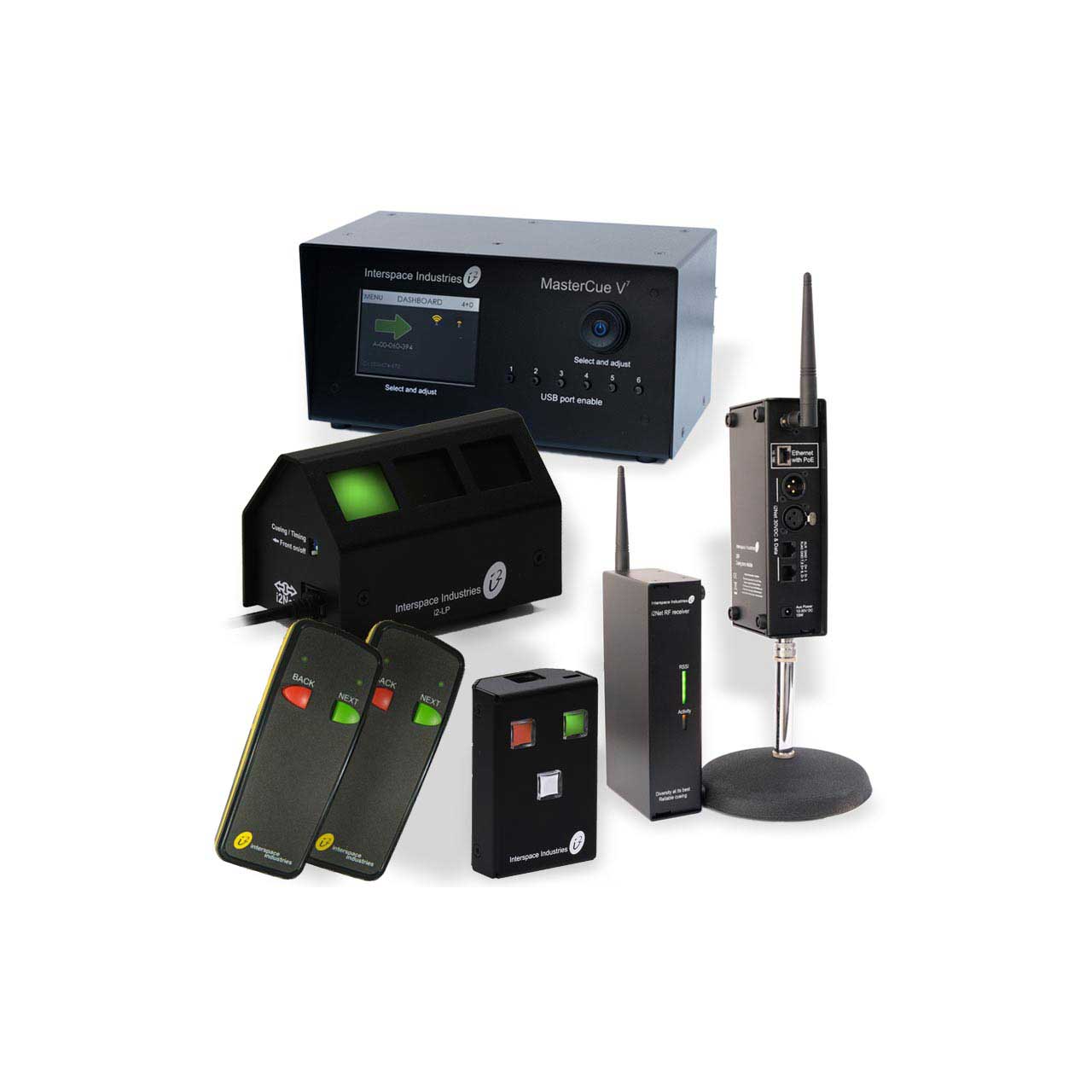

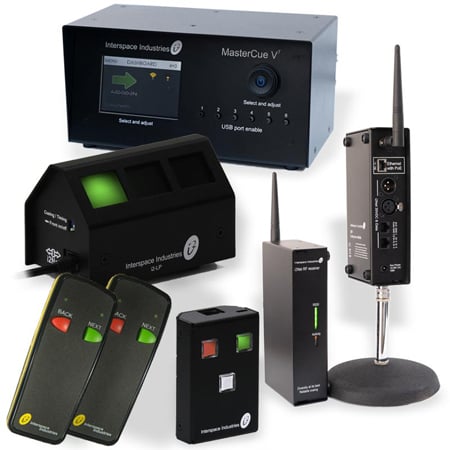

  • Item Includes:

    • 1x MasterCue MCV7U Main unit*

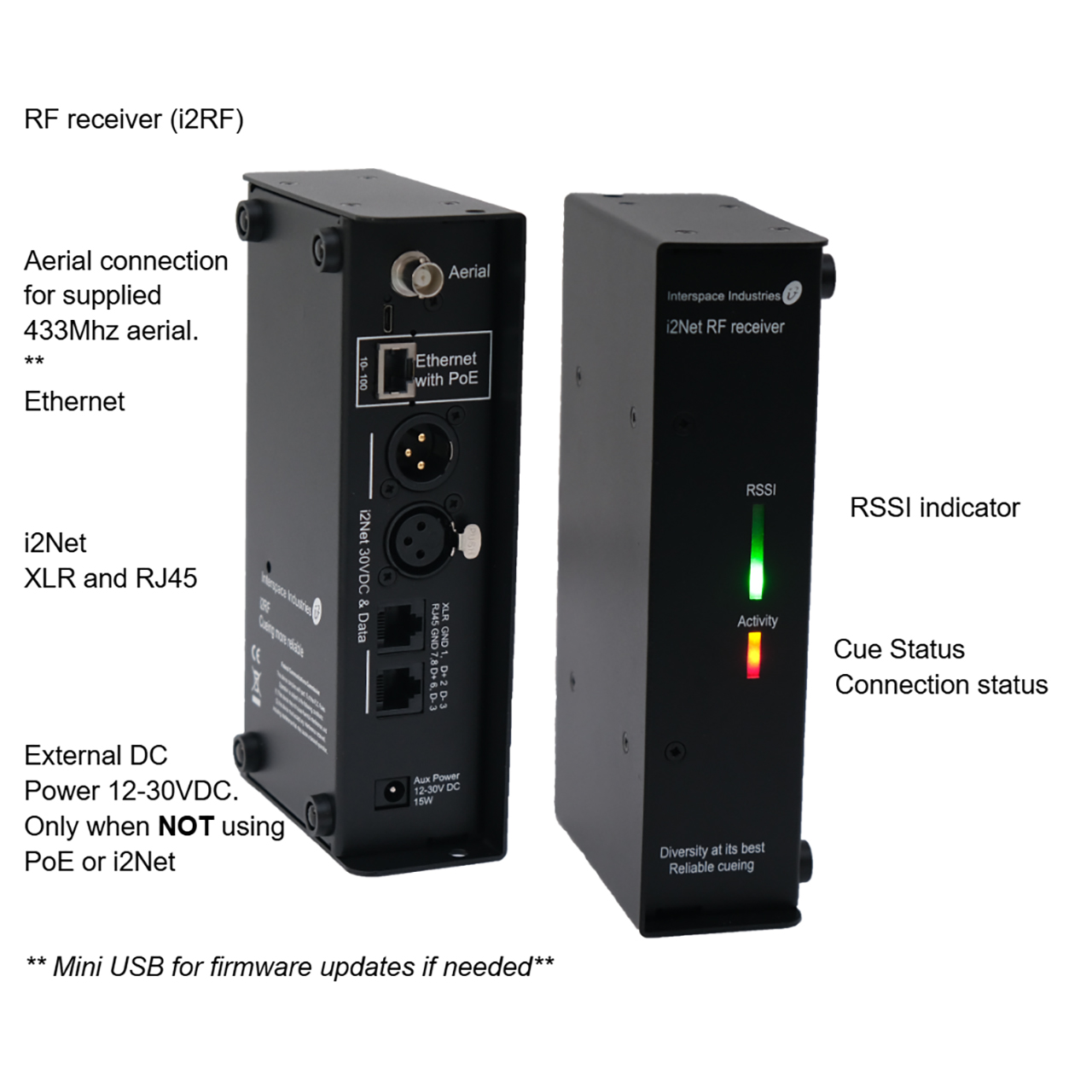

    • 2x i2RF V7 RF Receivers* with 2 BNC 433Mhz Aerials (antennas)
    • 1x I2LP Confidence Lamp for Cues and Signal Verification
    • 1x i2WB Wired button

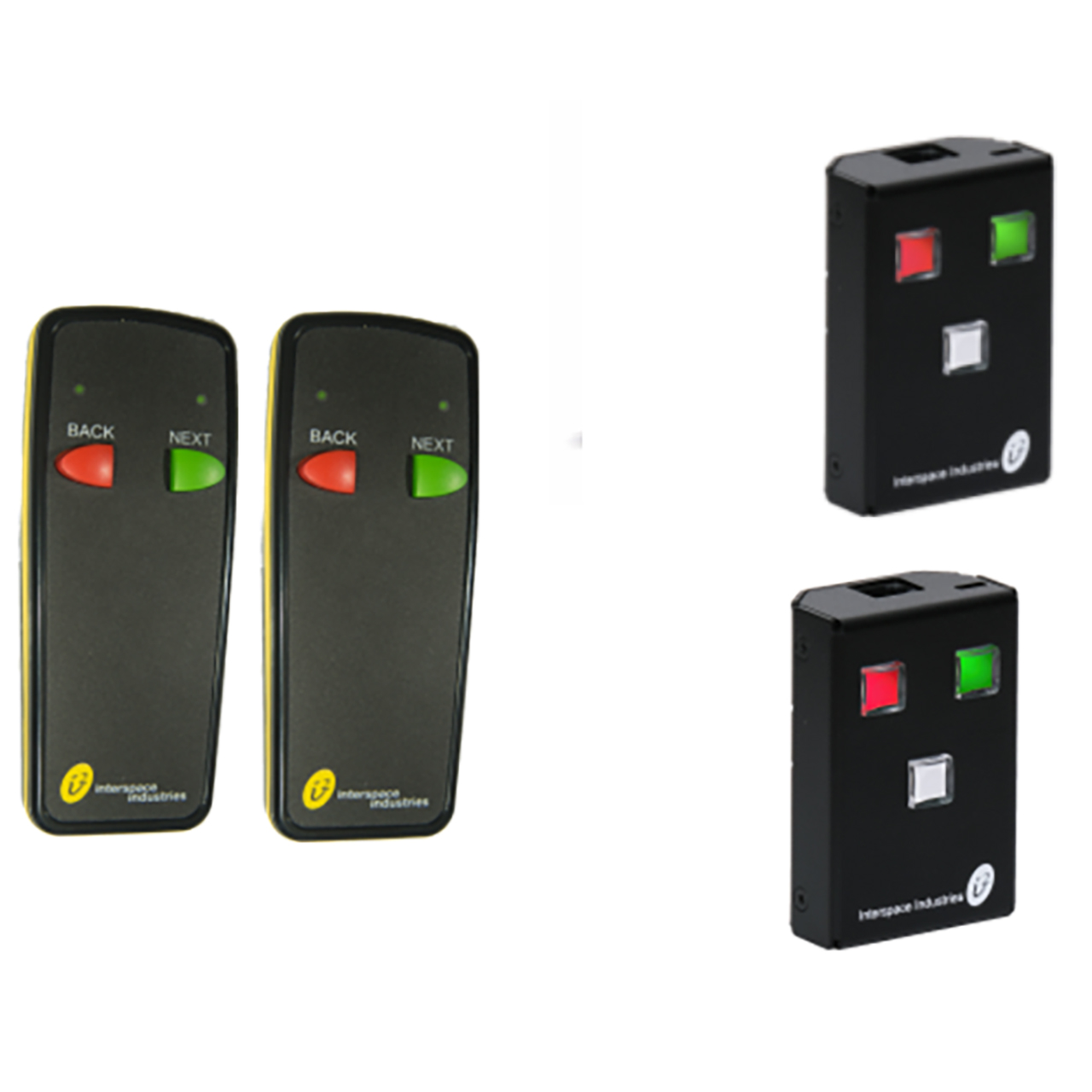

    • 2x i2RF-S2 2 button RF handsets with Next and Back
    • 1x Mains power cable
    • 6x USB cables
    • *Please Note: These items are ONLY available as part of this MasterCue V7 System Kit and are NOT sold separately.

  • Warranty:

    • 3 Year Limited Factory Warranty
