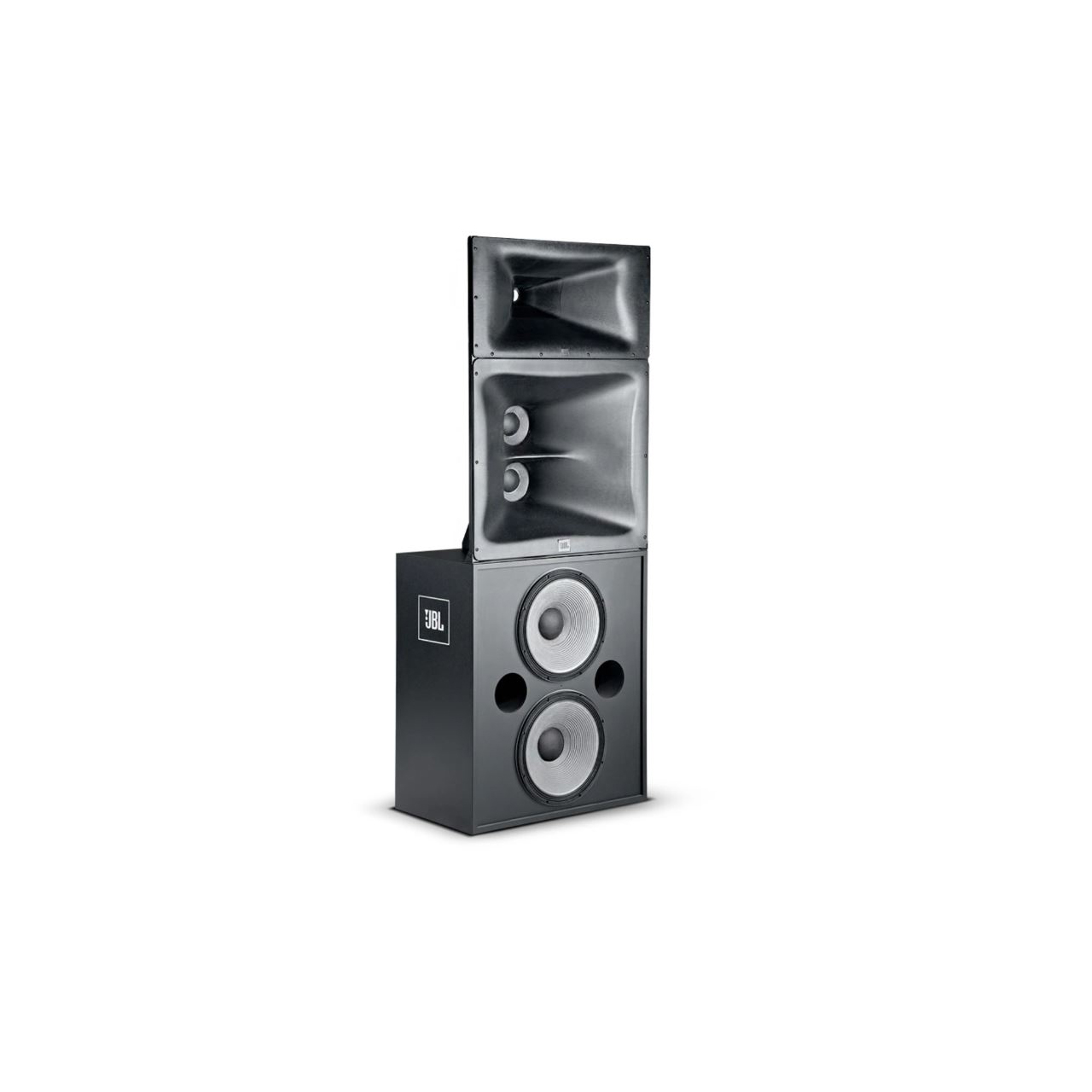

JBL 5732-M/HF Tri-Amplified High Power Low Profile Screen Array Cinema Loud Speaker System

ITEM #: JBL-5732-M-HF MFG #: 5732-M/HF

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$3,199.55

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


5732-M/HF - Overview

3-Way High Power ScreenArray Loudspeakers

Designed for high power critical sound reproduction in premier cinemas, studio production and post production applications, the JBL 5732 high power ScreenArray features true three-way design, enhanced by advanced engineering. JBL's latest technical innovations are integrated into a system design that provides superior coverage, maximum power handling and uniform acoustic power output, along with extremely low distortion. Today's premier cinemas require perfect coverage in every seat of the auditorium, wide dynamic range and extended bandwidth, as well as inaudible levels of distortion. Digital soundtracks require sound systems for premier auditoriums that can accurately reproduce the sound exactly as recorded. This is simply high power critical sound reproduction for premier cinemas, studio production and post production at it's finest!

  • Features:

    • Three-way ScreenArray design for maximum output, optimal coverage, and minimum distortion.
    • 700W midrange featuring two 8" Differential Drive transducers
    • Large format 4" neodymium, damped titanium diaphragm, high frequency compression driver.
    • 1200W low-frequency section with two 15" Vented Gap Cooled low frequency transducers
    • New molded Optimized Aperture Waveguide technology for ultra low distortion and extremely uniform frequency response.
    • JBL Patented SSCT Screen spreading Compensation
    • Focused Coverage Technology
    • Flat Front Wave Guide for easy baffle wall installation
    • Shallow 18" profile for minimum behind screen depth requirements.

  • Specifications:

      System
    • Frequency Range (-10dB): 30Hz - 20kHz
    • Frequency Response (&polusmn;3dB): 40Hz - 19kHz
    • Rated Maximum SPL: 128dB SPL continuous @ 1m, 134dB Peak
    • System Input Power Handling:
      - LF: 1200W
      - MF: 700W
      - HF: 150W
      - Hor. Coverage Angle (-6dB): 90°
      - Vert. Coverage Angle (-6dB): 20° up, 30° down
    • Crossover Frequencies: 1,250Hz, 1.3kHz
    • Dimensions (HxWxD): 76.3" x 30.0" x 17.8" (1937mm x 762mm x 450mm)
    • Net Weight: 190lbs (86kg)
    • Shipping Weight: 223lbs (101kg)

      M/HF Component Electronics
    • Mid Frequency Transducers: 2x 2169H, 200mm (8") dia. Differential Drive neodymium magnet, 76mm (3") dual-coil edgewound ribbon voice coil.
    • High Frequency Transducer: 2452H-SL 38mm (1.5") exit compression driver with 100mm (4") diameter voice coil and neodymium magnet.
    • Nominal Impedance:
      - MF: 4Ω
      - HF: 8Ω
    • Minimum Impedance:
      - MF: 4Ω @ 1050Hz
      - HF: 8Ω @ 4kHz
    • Input Power Handling (AES 2-Hour Rating):
      - MF: 700W
      - HF: 150W
    • Free-Field Sensitivity:
      - MF: 110dB SPL, 2.83V @ 1m (3.3ft)
      - HF: 115dB SPL, 2.83V @ 1m (3.3ft)
    • Input Connectors: Screw terminal barrier strip
    • Dimensions (HxWxD): 41.5" x 30.0" x 17.8" (1054mm x 762mm x 450mm)
    • Net Weight: 48lbs (21.6kg)
    • Shipping Weight: 63lbs (29.7kg)
