JBL AC895 Compact Two-Way Full-Range Loudspeaker with 8-Inch LF - Black

Name: JBL AC895 Compact Two-Way Full-Range Loudspeaker with 8-Inch LF - Black
Brand: JBL Professional
SKU: JBL-AC895
Price: 884.00 USD
Availability: PreSale

ITEM #: JBL-AC895 MFG #: AC895

JBL Professional

Our Price:

$884.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

AC895 - Overview

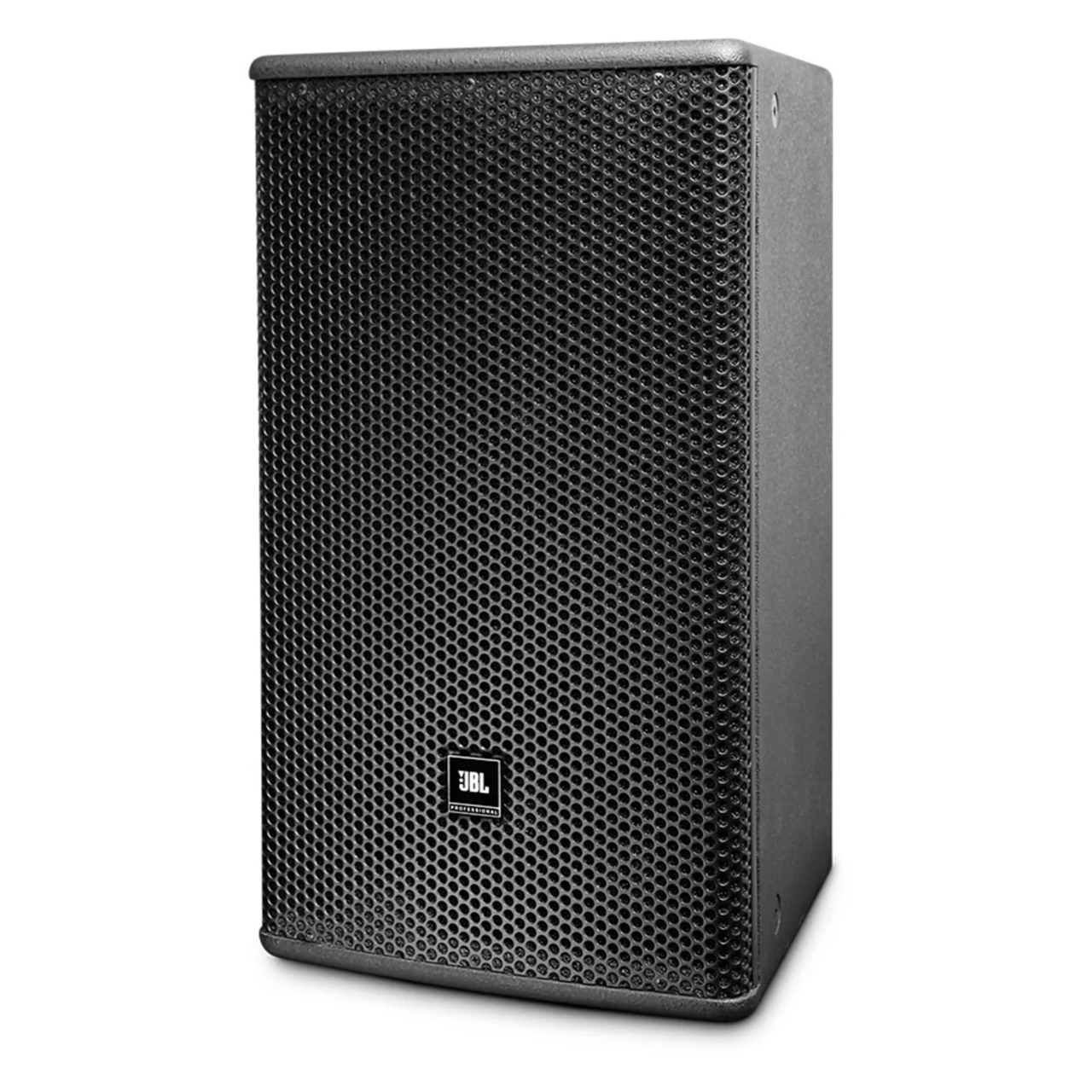

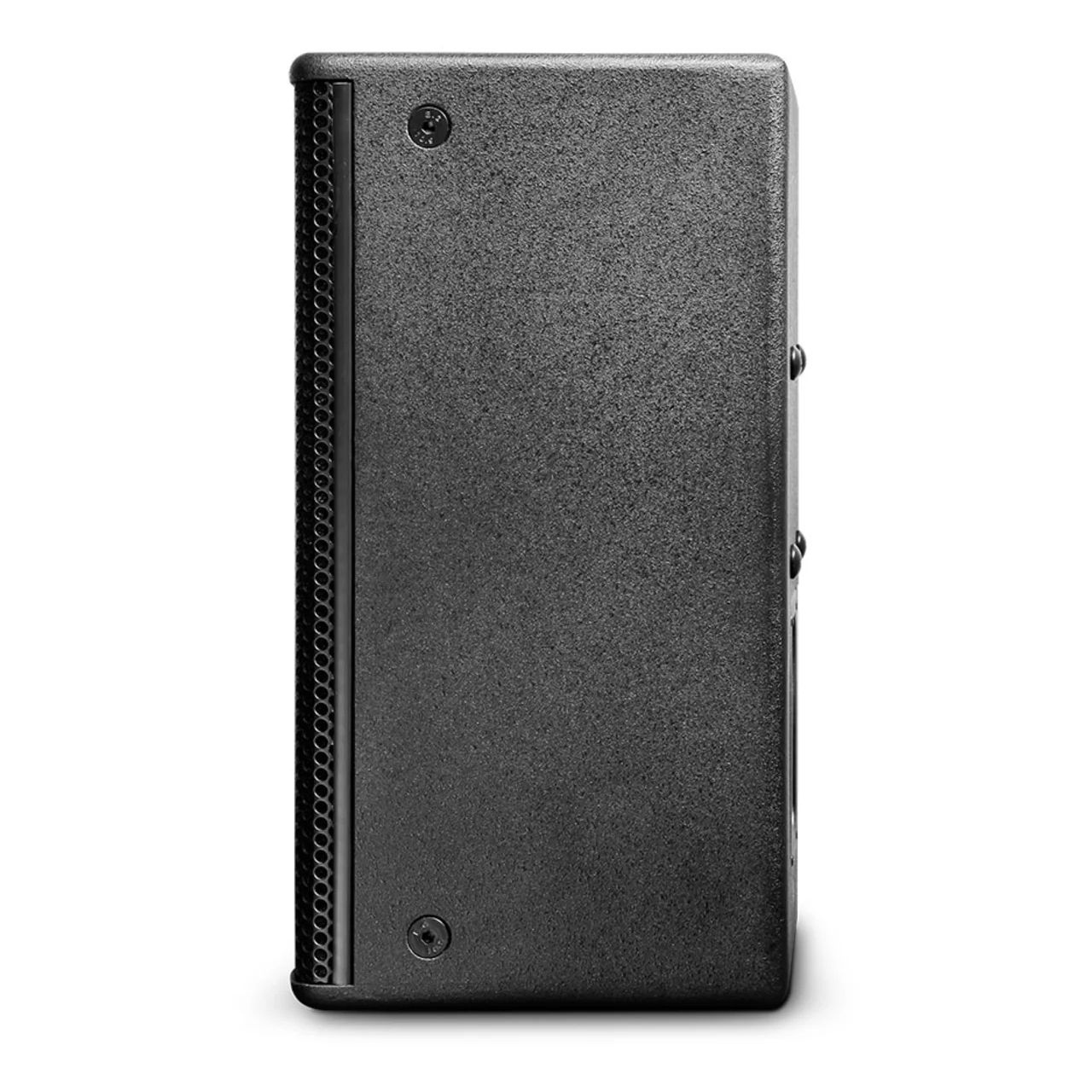

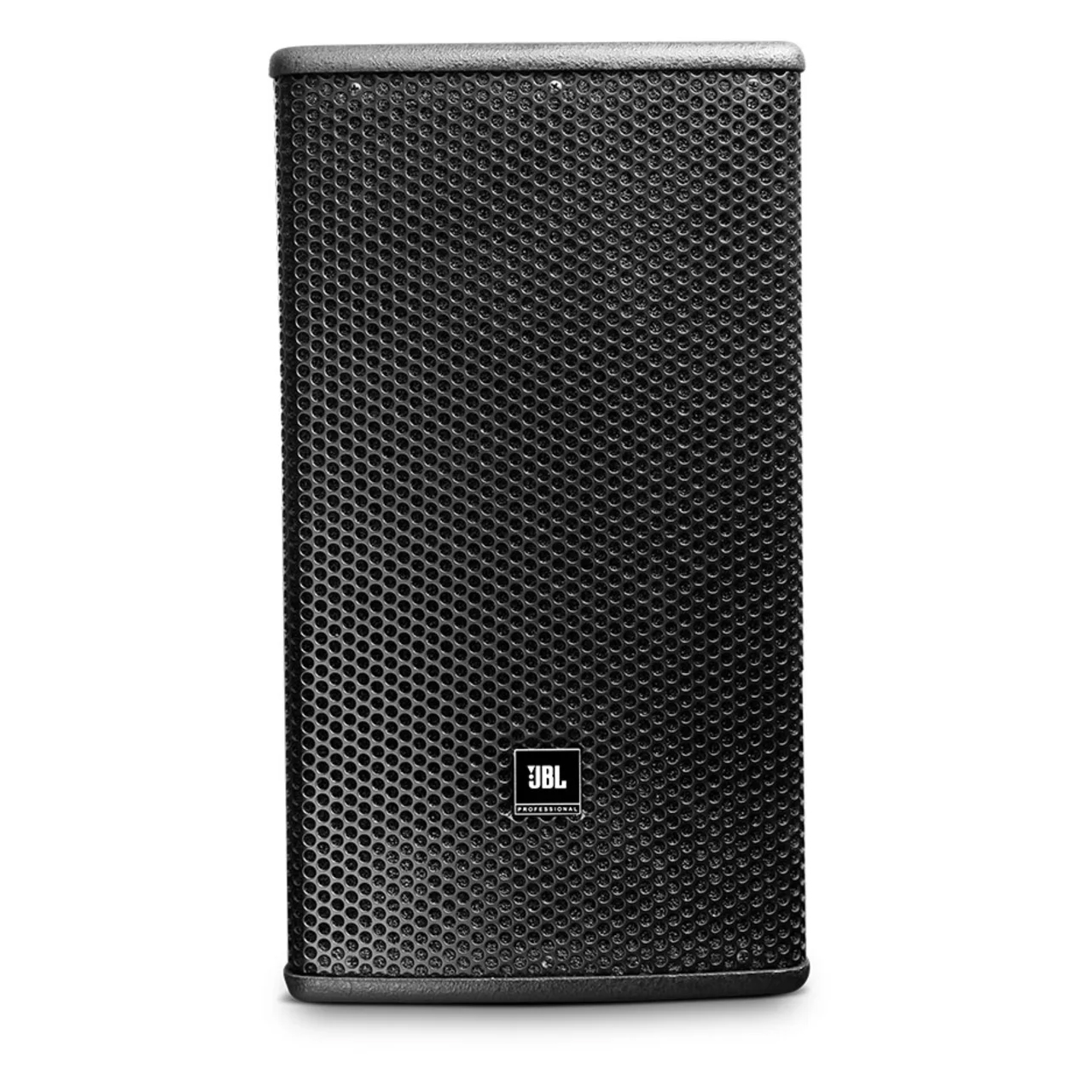

The JBL AC895 is a compact 2-way full-range loudspeaker system comprised of one 8 in (209 mm) low frequency driver and one 1 in (25 mm) exit/1 in (25 mm) voice-coil compression driver. The rotatable PT Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation. Highslope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount or similar type mounting. AC895 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.

Applications Include:
- Performing Spaces
- Clubs & Bars
- Houses of Worship
- Multi Media Spaces
- Retail & Hospitality Spaces
- Presentation Suites
- Educational Facilities

Features:
- Compact enclosure
- 8 in (209 mm) LF transducer

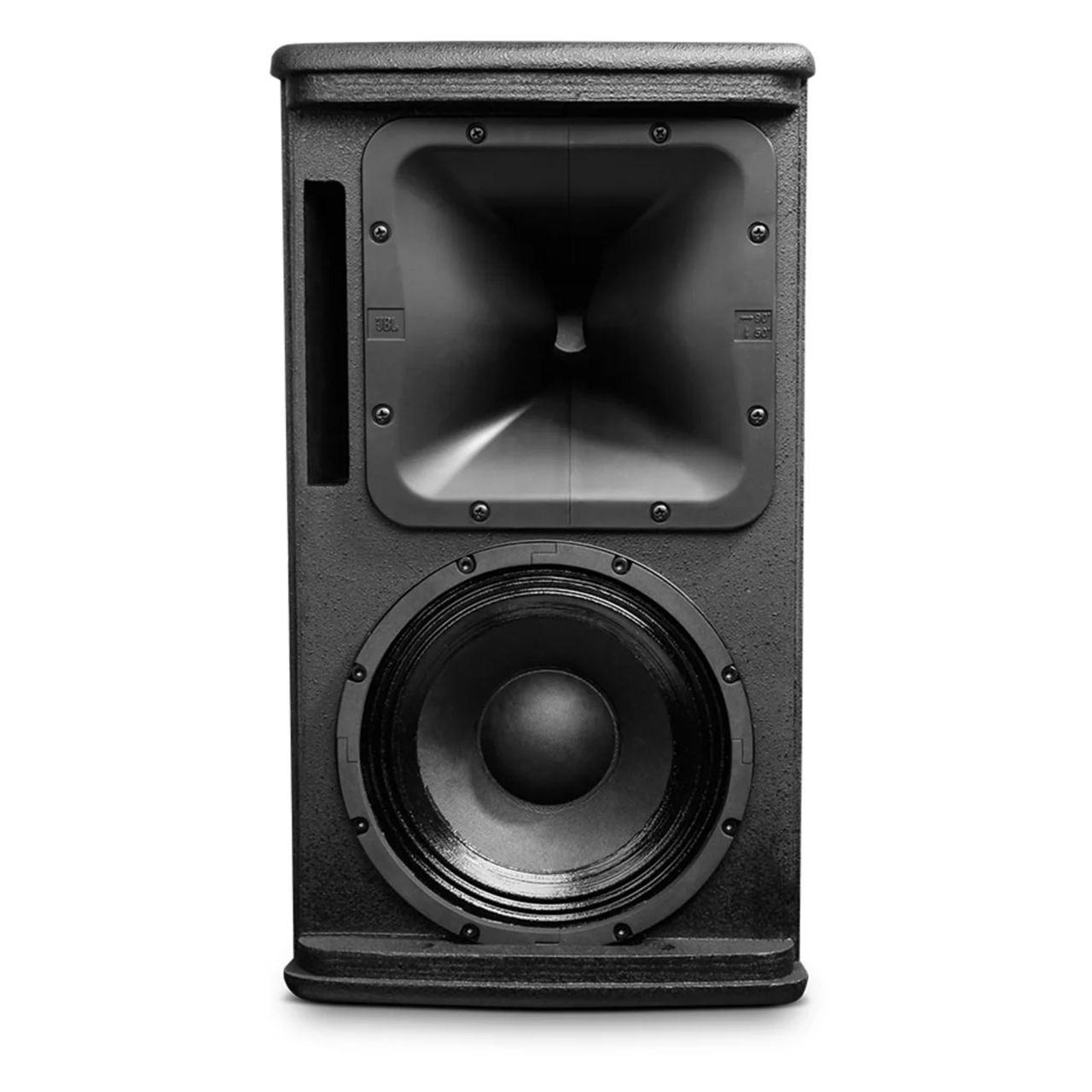

- 90° x 50° Progressive TransitionT Field Rotatable Waveguide with a 25 mm (1") exit 25mm (1") diaphragm compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple Attachment Points for Ultimate Flexibility
Specifications:
- Frequency Range (-10dB): 70Hz - 20kHz
- Frequency Response (±3dB): 90Hz - 18kHz
- System Sensitivity (1w @ 1m): 94dB
- Nominal Impedance: 8 ohms
- Maximum SPL (1m): 116dB (122dB peak)
- System Power Rating:
  - 250W (1000W peak), 2 hrs (AES rated)
  - 150 W/300 W/600 W (Continuous/Program/Peak) (IEC rated)
- Coverage Pattern: 90° x 50° (H x V)
- Crossover: 2kHz
- LF Driver: 1x 8" woofer (P/N: 5055470), 209mm (8") driver with 50mm (2") voice-coil
- HF Driver: 1x 2414H-C driver with 25mm (1") exit/25 mm (1") voice-coil

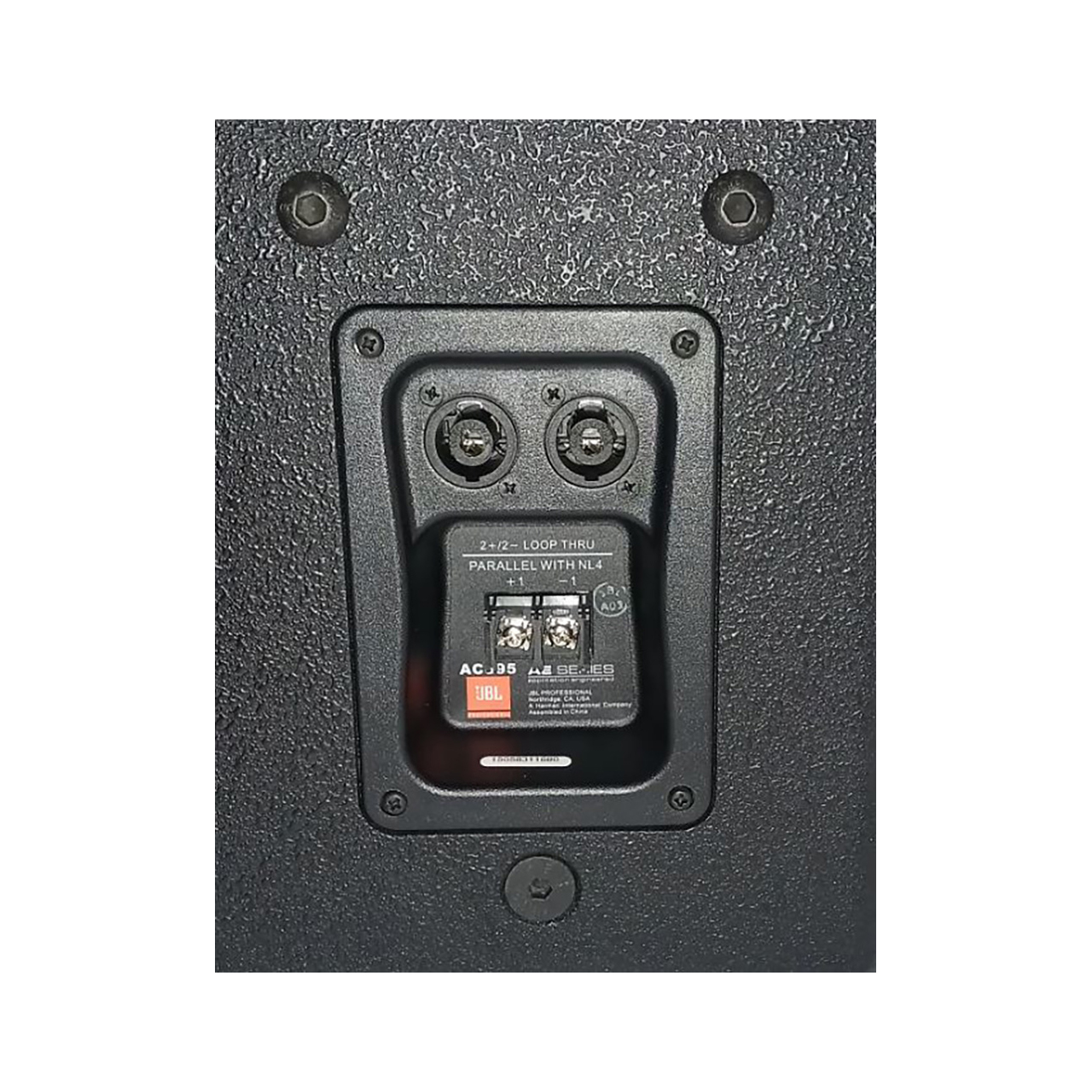

- Input Connector: Dual Neutrik NL4MP connectors plus covered barrier trip terminals
- Enclosure: 15mm multi-ply hardwood plywood
- Grille: Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
- Finish: Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
- Suspension Attachment: 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
- Dimensions (HxWxD): 18.5" x 10.4" x 10.0" (470mm x 265mm x 254mm)
- Net Weight (each): 22.4lbs (10.2kg)
- Crossover Modes: Passive
- Nominal LF Driver Impedance: 8 ohms
- Nominal HF Driver Impedance: 8 ohms
Item Includes:
- 1x JBL AC895 Compact Two-Way Full-Range Loudspeaker with 8-Inch LF - Black
Warranty:
- 3 Year Limited Warranty
GTIN:
0691991001253
