CAPTURE BOTH SIDES OF THE CONVERSATION

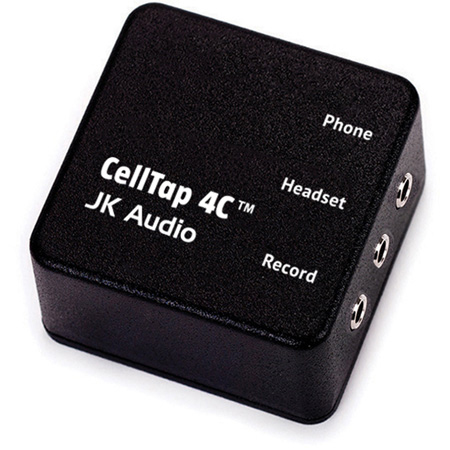

CellTap 4C, interview-recording adapter connects between the headset and cell phone, providing stereo output to a recorder or mixer.
CellTap 4C is compatible with most smart phones, tablets, and notebooks that use the 3.5 mm 4-conductor TRRS headset jack. Simply connect CellTap 4C between your existing ear-bud headset and phone, and then connect the stereo output to a mic level input on your recorder or mixer. The transformer coupled stereo output provides the local mic on the left channel and the caller on the right channel. Local audio is a full bandwidth connection, meaning your voice will sound considerably better than the caller. Of course, audio quality is limited by the quality and placement of the microphone on the ear-bud style headset.
CellTap 4C will not interfere with headset button controls on most devices. A headset is required for operation, as the phone will not recognize CellTap 4C without a headset connected.
Internal switch supports both Sleeve = Ground / R2 = Mic, and Sleeve = Mic / R2 = Ground wiring standards. The word standard is used loosely, since there are no actual standards for headset wiring or control operation. Therefore, we cannot promise compatibility with every phone.
Operation:
Connect CellTap between the 2.5 mm earpiece jack of your cell phone and your earpiece or headset. Now connect a tape recorder or powered speakers to the 3.5 mm mini jack. This audio output contains a nice mix of both sides of the conversation. Group Listen -Simply connect a powered speaker to the audio output jack and you will have a new conferencing capability. Everyone in the room can hear your conversation, but only the person wearing the headset can talk to
the distant party. While this is not a speakerphone, in many cases it is better. Note: Wireless phones generate substantial radio frequency (RF) noise during a call which can easily leak into audio cables or equipment. Be sure to keep the wireless phone one to two feet away from any audio cables or equipment. It is also important to keep the wireless adapter cord away from any other audio cords.
WARNING - There are many laws that prohibit the recording of telephone conversations without prior consent from both parties. Be sure to check the laws in your area.
This device is passive, no AC or battery power needed.
CellTap is not Bluetooth compatible.
