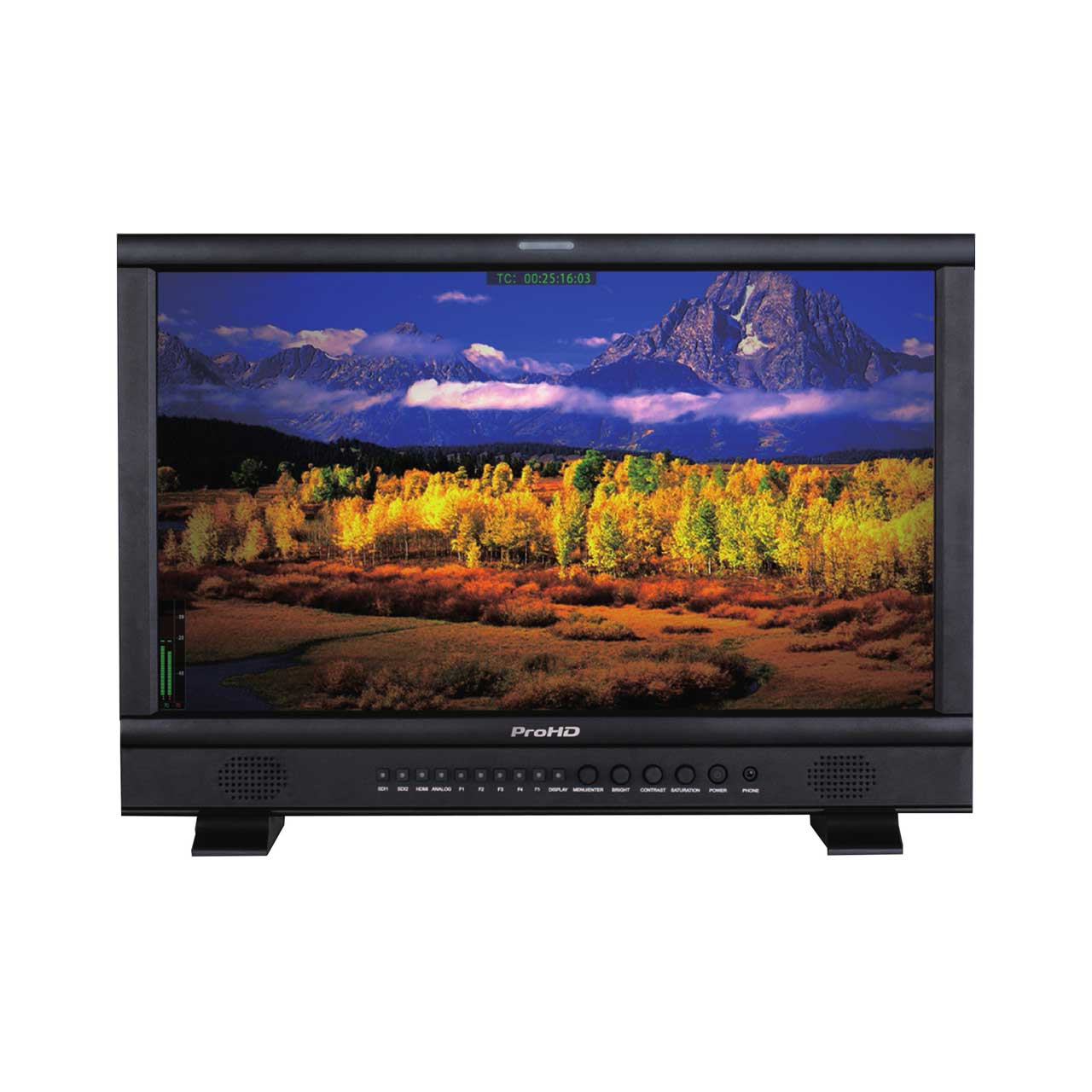

JVC DT-N21H ProHD Multiformat 21.5-Inch Broadcast Field & Studio LCD Monitor

ITEM #: JVC-DT-N21H MFG #: DT-N21H

Primary Image
JVC
Free Shipping with $49 Minimum Order

Our Price:

$2,165.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

DT-N21H - Overview

The JVC DT-N21H is a broadcast 21.5” studio & field LCD monitor that displays multiple formats including 3G-SDI & 2K. It features 2-Channel embedded audio support as well as an Anton Bauer battery mount plate making it perfect for field applications.

Supports 3G/HD/SD-SDI and 2K-SDI
DT-N21H supports 3G-SDI (SMPTE 425M) Level-A & B, 2K-SDI (SMPTE 2048-2) 60p Level-A & B display.

Full HD LCD panel with LED backlighting
The monitor features a 1920×1080 pixel full HD resolution LCD panel with LED backlighting, with 160° wide viewing angle (horizontal and vertical), 700:1 contrast, and 16.7M color depth.

ITU-709 color space
The DT-N21H is compatible with ITU-709 standard color space for HDTV broadcasting.

Selectable gamma preset
The DT-N21H supports gamma preset selection from: 2.2, 2.4 and 2.6.

TSL UMD control and display
The DT-N21H monitor supports UMD controlling input via RS485 and RS232 port, compatible with TSL 3.1 and 4.0 UMD protocol.

USB firmware upgradable
The Monitor offers a USB port on the rear side, for monitor firmware upgrade. Users can download firmware from official website to a USB stick, and the upgrade operation is directly on the monitor, without PC or other adaptors.

Audio meters display
The DT-N21H supports SDI/HDMI embedded audio 2-channel meters display, and analog audio 2-channel meters display.

  • Features:

    • SDI Timecode (LTC, VITC1&2) and AFD info display
    • R/G/B/Mono, False color, Zebra stripes display
    • Peaking focus assist display mode
    • H/V delay, freeze frame display mode
    • Safety area selection: 80%, 85%, 90%, 93%, 95%
    • Scale marker: 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
    • Native scan, over scan and normal scan selection
    • GPI control via RS485 port connection
    • 3 User setting data storage
    • TALLY light with adjustable brightness
    • 4 User definable function keys
    • Easy One-key Menu operation
    • Built-in speaker (2.5W, 8 )
    • AntonBauer battery plate for field application


  • Specifications:

    • Size: 21.5 inches wide format
    • Display area: 477mm×268mm
    • Resolution: 1920×1080 (Full HD)
    • Color depth: 16.77 million
    • Aspect ratio: 16:9
    • Brightness: 250cd/m2
    • Contrast: 1000:1
    • Viewing Angle: 178°(H) / 178°(V)
    • Surface treatment: Non-glass
    • Backlighting: LED
    • Working voltage: DC / battery 11V-17V
    • Power consumption: Max 32W
    • Working temperature: 0°C +40°C
    • Working humidity: 10% 90%
    • Storage temperature: 15°C 60°C
    • Storage humidity: 10% 90%
    • VESA standard: 100mm×100mm (M4×4mm screw)
    • Dimensions: 525×358×87mm
    • Net weight (w/o stand): 6.2 Kg
    • CVBS: NTSC / PAL
    • Y/Pb/Pr: 480i, 480p, 576i, 576p, 720p (50 / 60), 1080i (50 / 60); 480i / 576i / 480p / 576p; 1080i (60 / 59.94 / 50)
    • HDMI: 720p (60 / 59.94 / 50); 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98); 1080psf (30 / 29.97 / 25 / 24 / 23.98); 2048×1080p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
    • SMPTE-2048-2: 2048×1080i 50 / 59.94 / 60;
    • SMPTE-425M: 1080p (60 / 59.94 / 50); 1080i (60 / 59.94 / 50)
    • SDI SMPTE-274M: 1080p (30 / 29.97 / 25 / 24 / 23.98)
    • SMPTE-RP211: 1080psf (30 / 29.97 / 25 / 24 / 23.98)
    • SMPTE-296M: 720p (60 / 59.94 / 50)
    • SMPTE-125M: 480i (59.94)
    • ITU-R BT.656: 576i (50); 640×480, 800×600, 1024×768, 1152×864, 1280×768,
    • VGA: 1280×960, 1280×1024, 1600×1200


  • GTIN:

    6948193503462
