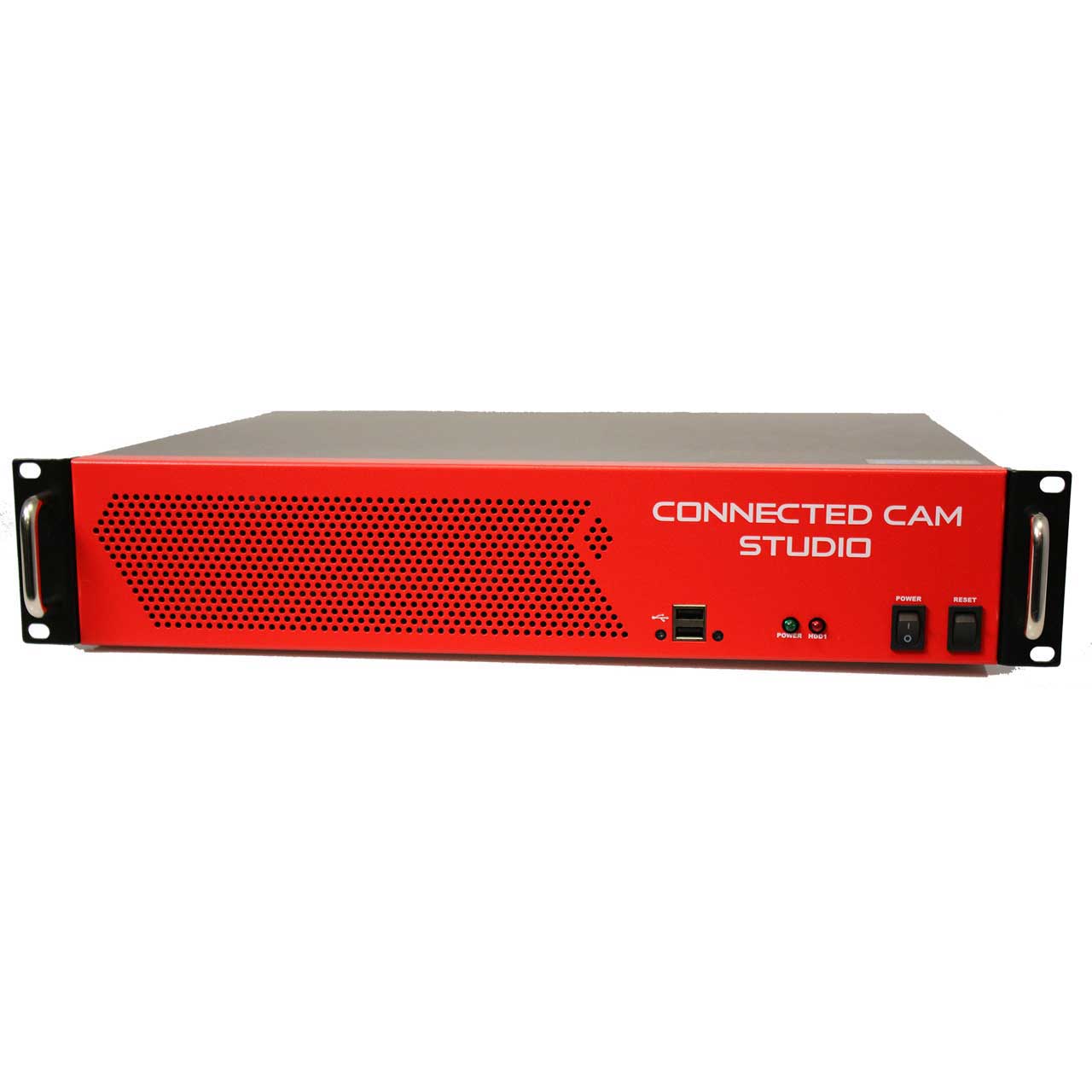

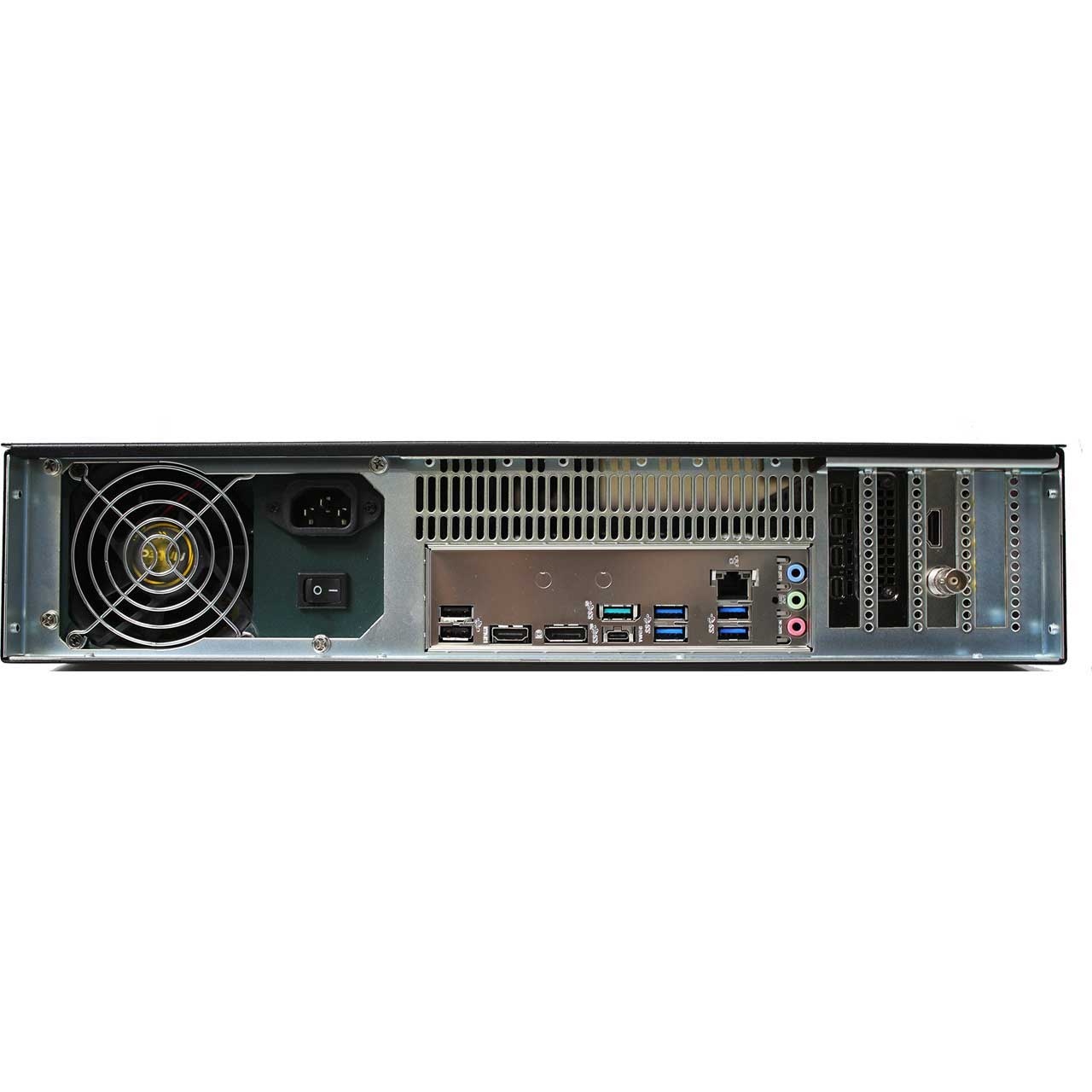

JVC KM-IP8 CONNECTED CAM 8-NDI Input vMix Studio Switcher

KM-IP8 - Overview

• Features:

  • Optimal for switching live programming in SD up to full HD 1080 60p
  • Provides a minimum of 8 NDIr|HX inputs at 1080 60p using vMix 4K licensed software.
  • Part of JVC's live production workflow solution
  • vMix 4K licensed software
  • 2RU
  • 1x 3G-SDI output
  • 4x DisplayPort outputs
  • 1x HDMI output
  • Windows 11 Pro
  • Gigabit Ethernet network port
  • Includes standard keyboard and mouse.


• Specifications:

  • Network Video Input
  • Minimum of 8 IP video inputs (up to 1080p60) via NDI, SRT, RTSP, RTMP/VLC, UDP, H.264, H.265

    3G-SDI Video Output
  • 1x HD/SD-SDI + HDMI: Program output with embedded audio
  • HD 720 25/29.97/50/59.94p
  • HD 1080 25p/29.97p/50i/59.94i/59.94p
  • SD 480 50i/59.94i/25p/29.97p

    Network Video Outputs
  • NDI, SRT, RTMP/S, H.264, H.265

    Recording
  • ISO recording of all inputs

    Storage
  • 500GB SSD - system
  • 500GB SSD - media and recording storage (recording time varies depending on number of media files stored on drive and recordings configuration)

    Audio Input
  • 3.5mm line in/microphone connector
  • HD/SD-SDI embedded audio
  • IP input embedded audio
  • USB 2.0/3.0 for AD converters and Audio Mixers

    Dimensions (without rack ears)(WxLxH)
  • 16.8 x 15 x 3.5"
