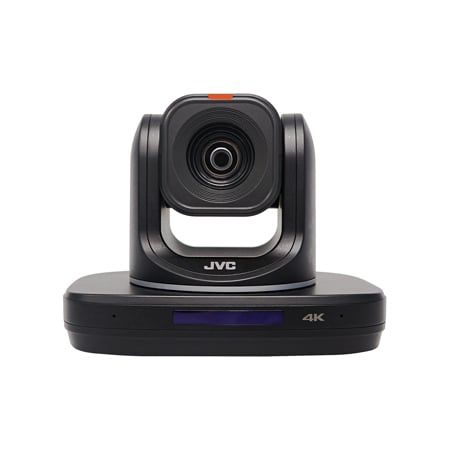

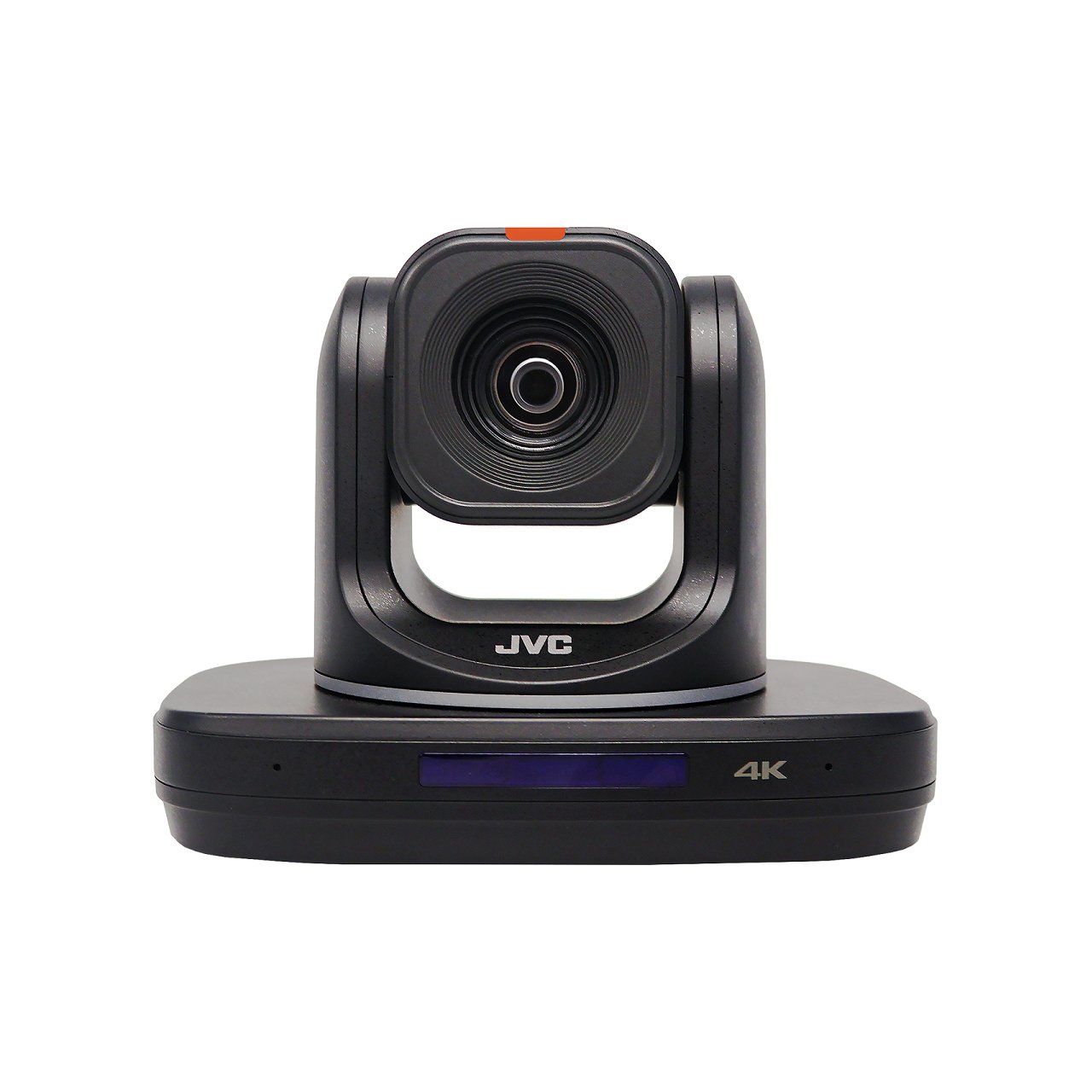

The JVC KY-PZ540NBU is a 40x Zoom, H.265/HEVC Streaming, Auto Tracking PTZ Camera. It features a 1/1.8 inch CMOS image sensor, 255 preset positions, and a pan speed of 80 degrees per second.
40x Full Resolution HD Zoom Capability
40x full resolution zoom is achieved in HD with JVC Variable Scan Mapping (VSM) technology which dynamically scans the 4K sensor to produce a seamless and lossless image transition.
Five Auto Tracking Settings
Standard, Area, Stage, Wide Area and Fine Adjustment
"Subject Movement and Recognition Tracking Auto Tracking" now has five new function settings to provide intelligent operation for sophisticated and engaging productions.
In the Standard mode, you can set the headroom spacing above the subject.
In the Area mode, The camera captures the Area frame where the target subject is visible. When the subject moves to an adjacent Area, the camera pans to the new Area.
4K60p H.265/HEVC Streaming
Ultra-high resolution 4K60p streaming is ideal for viewing sports and events. Highly efficient H.265/HEVC compression technology also produces similar or better image quality than H.264 at 50% of the bitrate.
NDI HX3
The camera has the NDI HX3 mode which delivers maximum quality and near zero latency transmission at a reduced bandwidth compared to NDI High Bandwidth.
NDI SDK Version: NDI 5
This camera (built-in NDI HX3) supports NDI 5. NDI 5 support Reliable UDP (RUDP) transmission protocol. RUDP ensure reliability through re-transmission with high-speed communication, such as UDP.
