Kinefinity Edge Core Pack with KineVF2 OLED Viewfinder/KineMAG NANO 1TB SSD/Movcam Handgrip Pack/MAVO Edge Solid Case

ITEM #: KINE-A901-001-01 MFG #: KINE-A901-001-01

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$4,100.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


KINE-A901-001-01 - Overview

Get a robust range of accessories for your MAVO Edge 8K or 6K camera with the KINE-A901-001-01 MAVO Edge Essential Accessory Pack from Kinefinity. This kit includes necessary components like a KineEVF2 OLED Viewfinder, a 1TB KineMAG Nano SSD, two V-Mount batteries, two GripBAT batteries, multiple movcam accessories, a hard shell carrying case, and more.

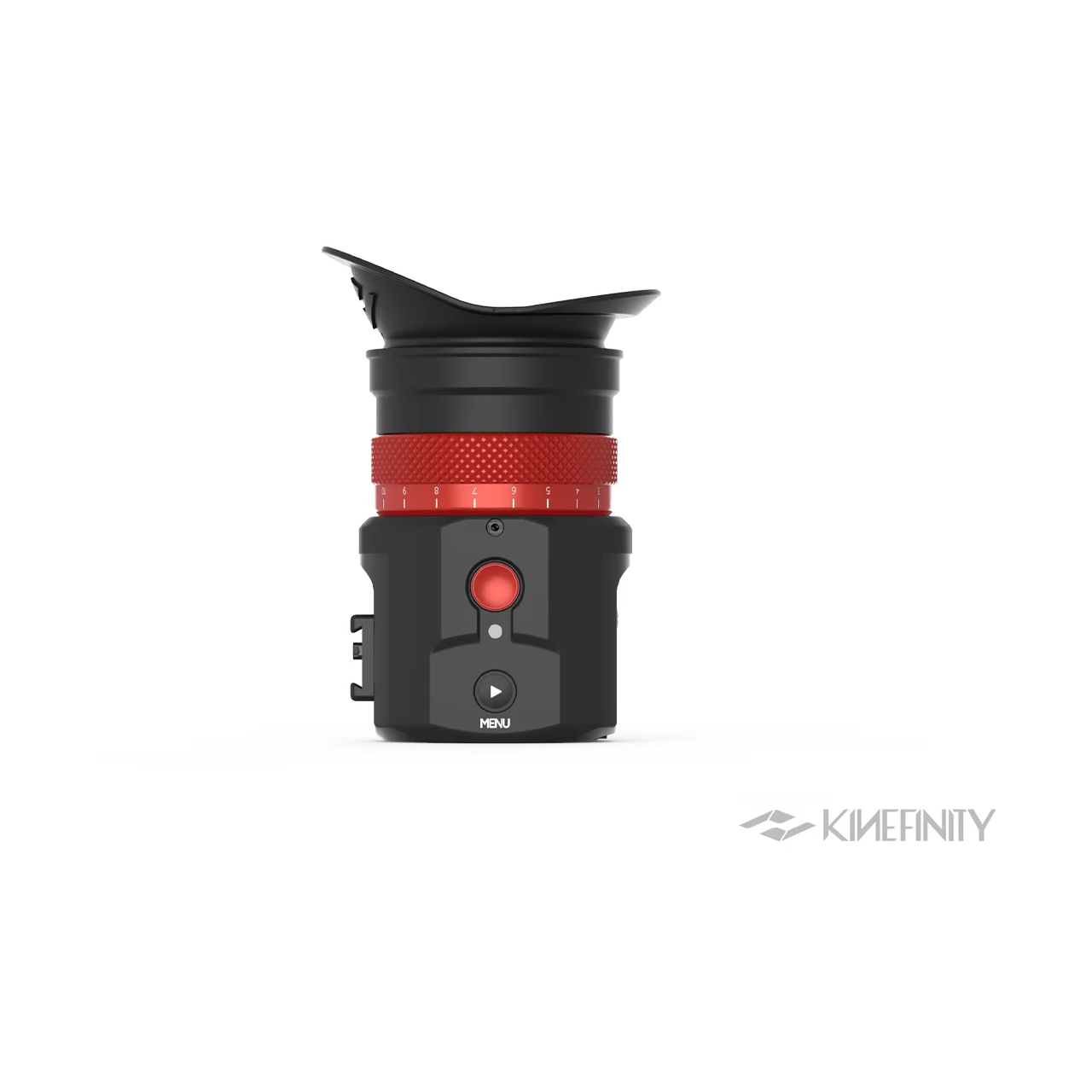

KineEVF2 OLED Viewfinder
Add an EVF to your MAVO LF, Edge 8K, or TERRA 4K camera with this KineEVF OLED Viewfinder from Kinefinity. The viewfinder features a micro-OLED display with a 1920 x 1080 resolution that can view the video from your camera in crisp detail in 16 million colors. A built-in diopter allows you to adjust the focal view based on your eyesight. There is also a built-in proximity sensor to power off if it is not being used. The compact, lightweight EVF uses very little power, and it receives power and data using a separately available EVF cable from the camera.

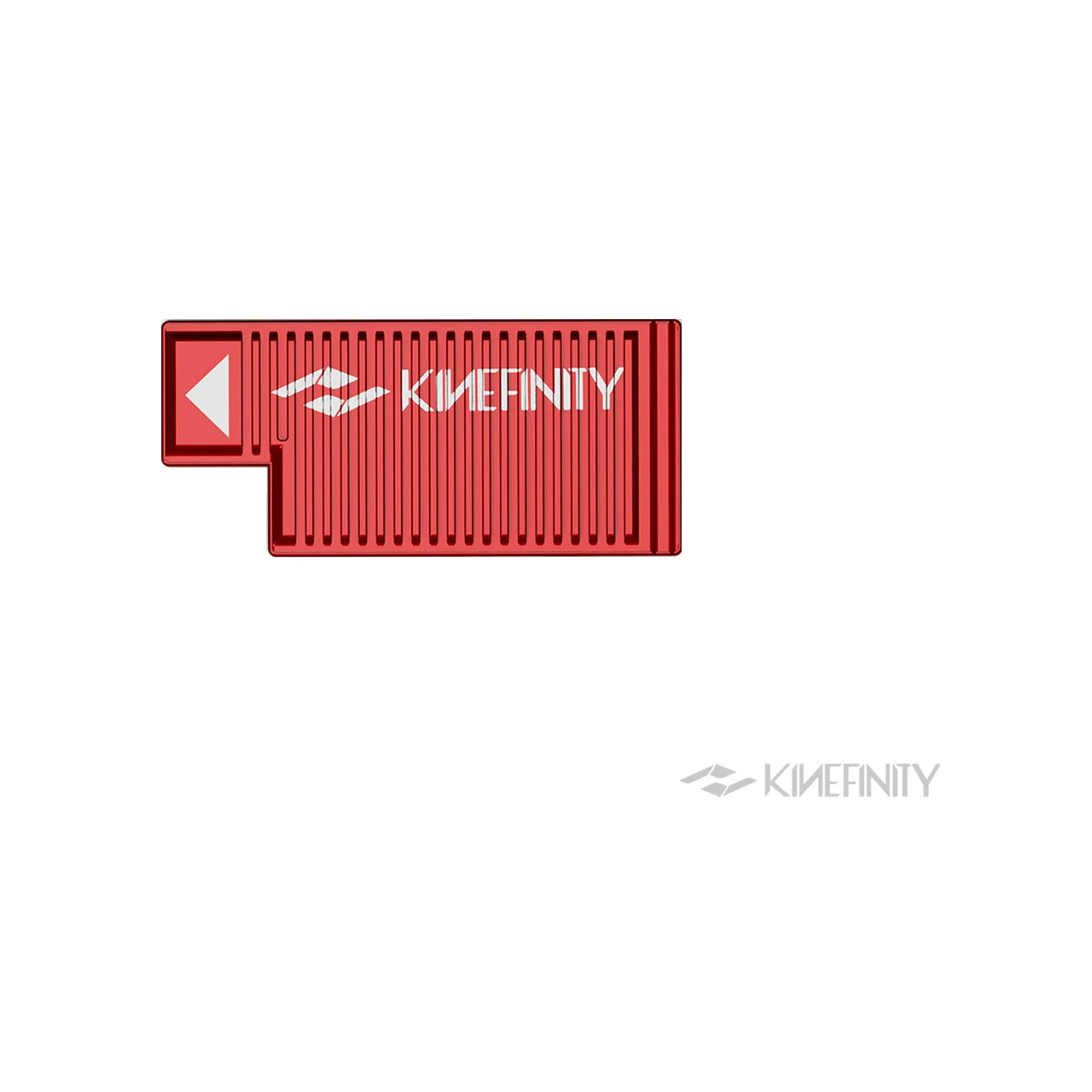

KineMAG Nano (1TB)
Add fast and ample media for high-resolution video capture with your MAVO Edge 8K camera using the 1TB KineMAG Nano from Kinefinity. The KineMAG Nano is designed specifically for the MAVO Edge 8K camera slots, and it has a heat-dissipating plate on the body to keep the temperature cool. Inside, an NVMe M.2 2280 SSD allows you to record up to 1TB of video, and it features read-only and RAID 5 write settings for the safety of your data. To offload your data, there is a high-speed USB-C 3.1 Gen 2 port that allows you to transfer data up to 10 Gb/s directly to your computer..

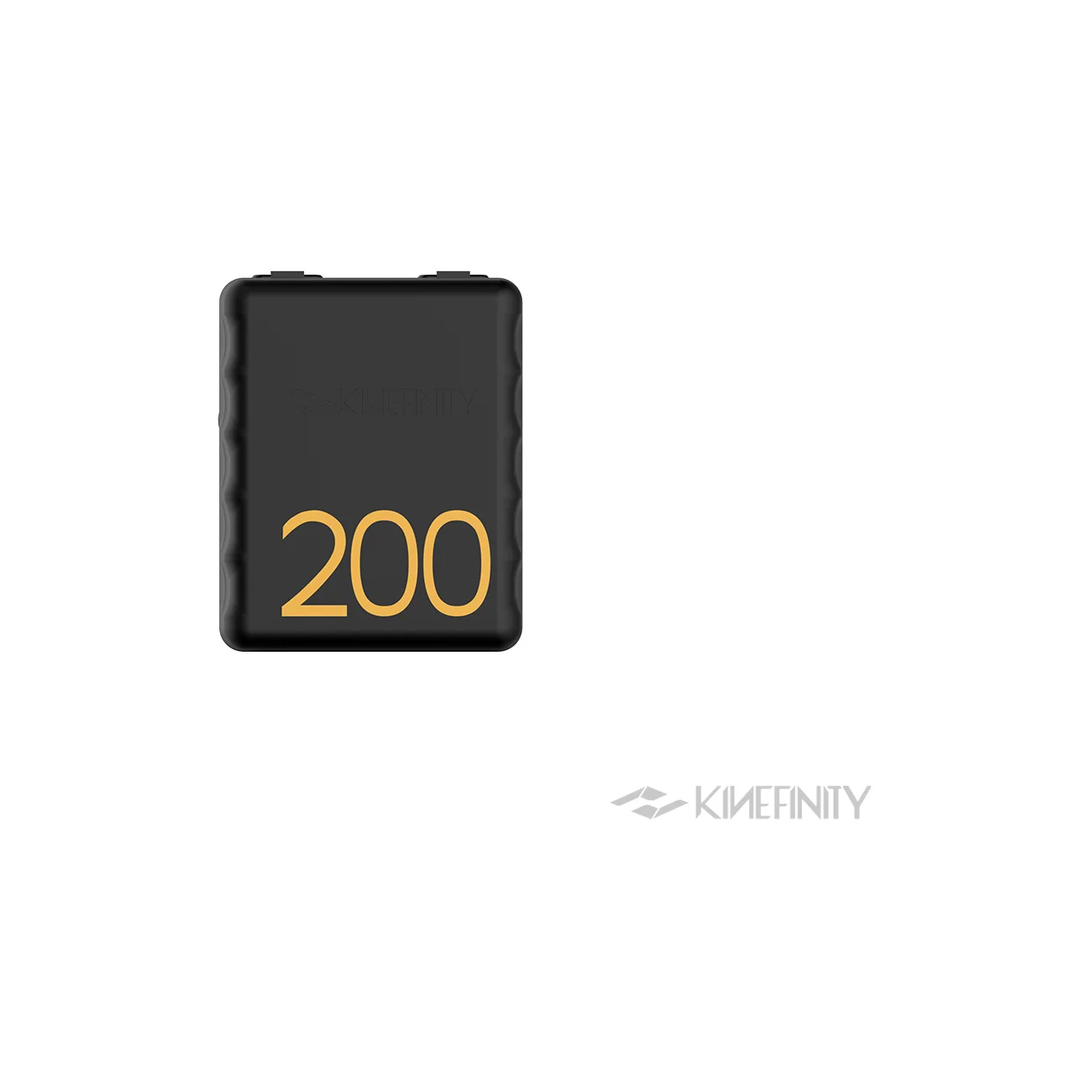

PD KineBAT
PD KineBAT 200 is Kinefinity's third generation V-mount battery. Compared with the previous generation PD KineBAT, it features much larger capacity and extended battery life, providing continuous and reliable power supply for the camera systems with standard V-mount.

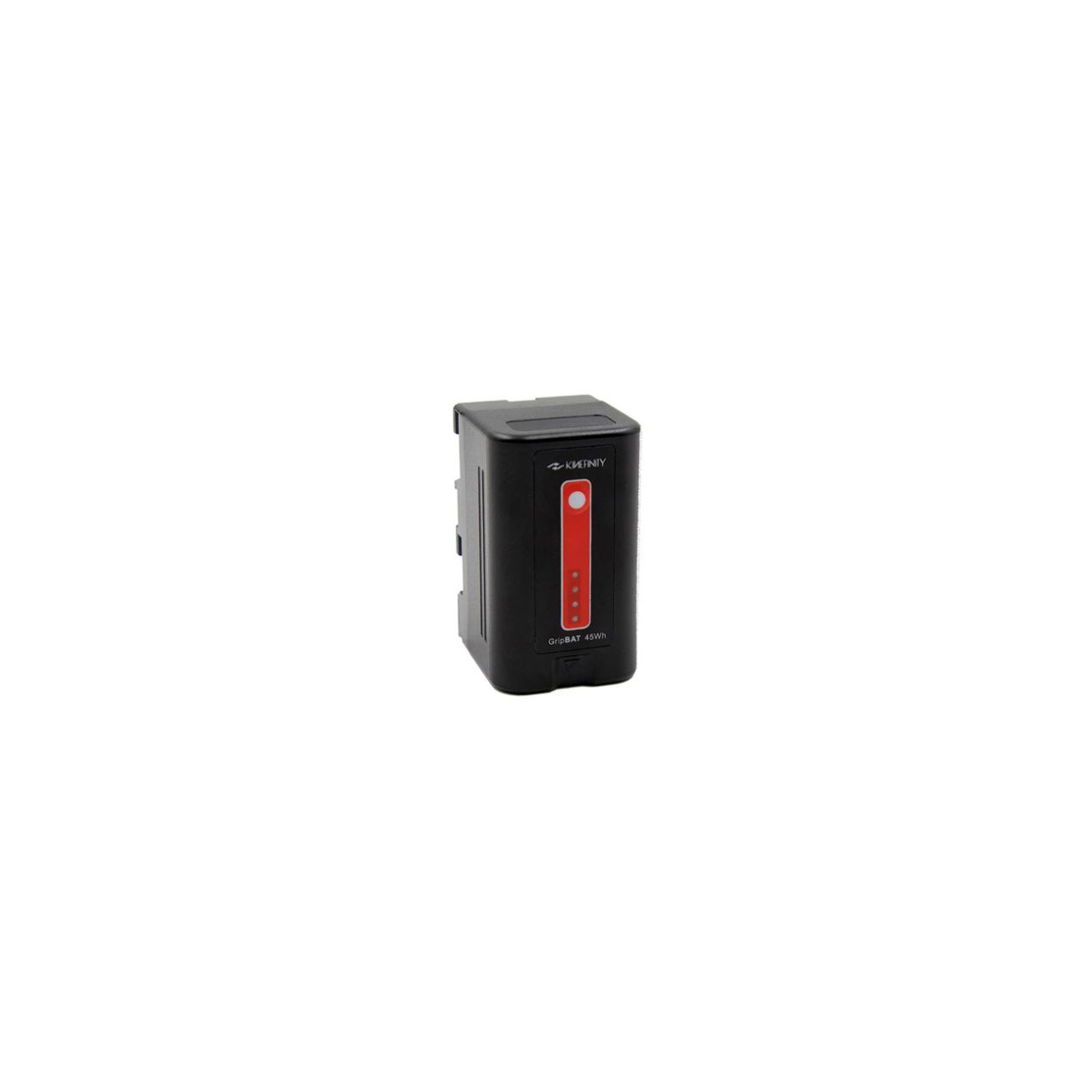

GripBAT 4S
Whole-new high capacity GripBAT 4S matches SideGrip for MAVO/TERRA. The GripBAT 4S updates from 45Wh to 52Wh with higher capacity. Even with KineMON-5U mounting on MAVO/TERRA, it still enables a power supply about 80 mins. The GripBAT 4S is not only friendly to handheld, but serves as an UPS if MAVO/TERRA is powered by V-mount battery at a time.

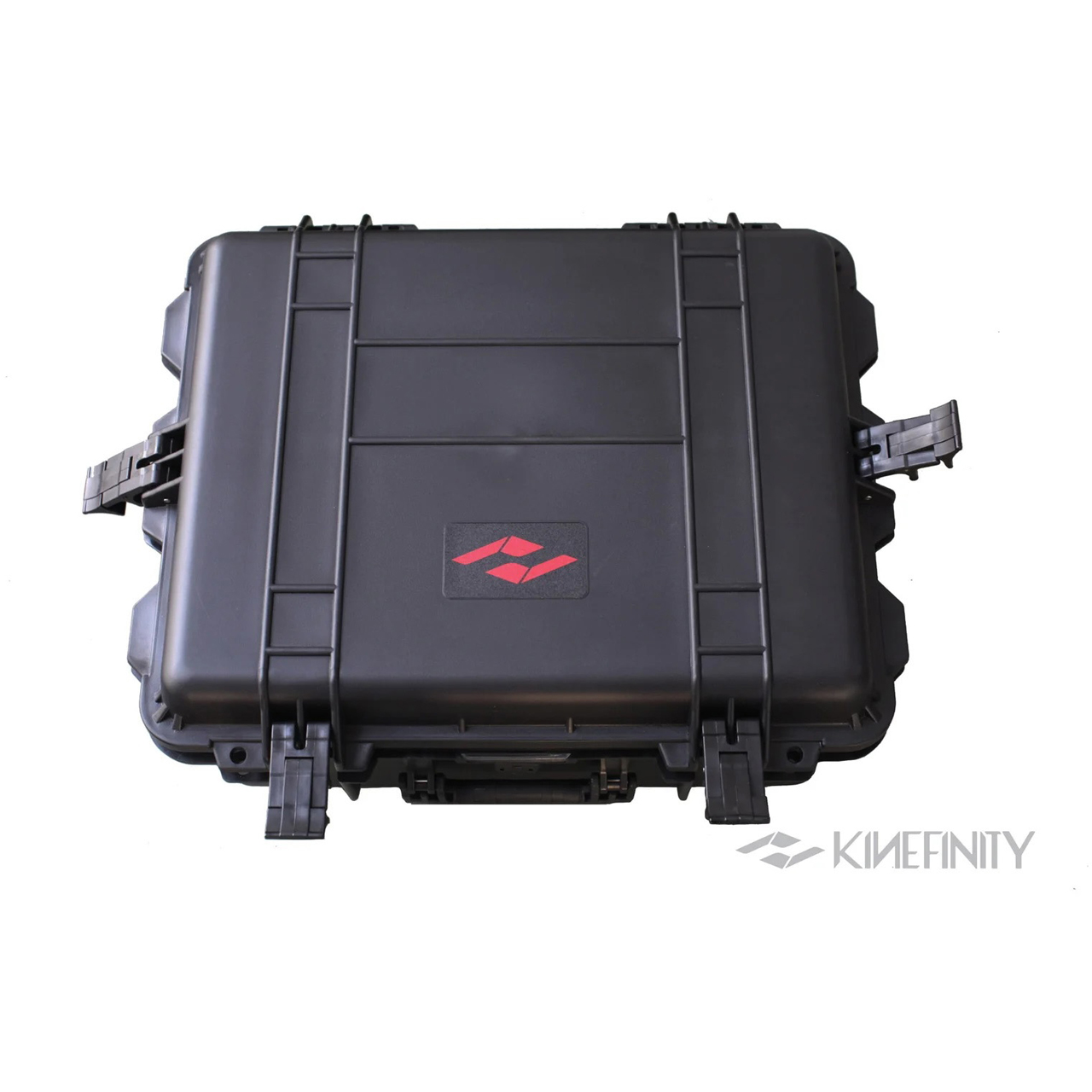

Kinefinity Hard-Shell Carry Case for MAVO Edge 6K/8K
Protect and transport your MAVO Edge 6K or 8K camera and accessories with this Hard-Shell Carry Case from Kinefinity. The durable hard case features a custom-cut foam insert to hold your MAVO Edge 6K or 8K camera along with batteries, charger, cables, media, and other accessories. The case closes via locking latches on three sides, and padlock holes allow you to secure it further. A handle provides a durable carry option.

  • Specifications:

    • KineMAG Nano 1TB
    • Recording Time:
      - 4K@25fps ProRes422HQ(.mov): 5 hrs 24 mins
      - 4K@25fps ProRes4444(.mov): 2 hrs 36mins
      - 8K@25fps ProRes422HQ(.mov): 1 hr 20 mins
      - 8K@25fps ProRes4444(.mov): 54 mins

      GripBAT 4S
    • Nominal Output Voltage: 14.8V
    • Capacity: 52Wh
    • Maximum Output Power: 70W
    • Maximum Output Current: 5A
    • Working Temp: 32°F - 104°F (0°C - 40°C)
    • Weight: 0.44lbs
    • Size: 2.6" x 1.9" x 1.5" (66mm x 47mm x 38mm)

  • Item Includes:

    • 1x KineEVF2 OLED Viewfinder
    • 1x Kine Video Cord with two L Shape ends (0.3m)
    • 1x KineMAG Nano 1TB SSD
    • 1x USB-C 10Gbps cable
    • 2x PD 200 KineBAT
    • 2x 65W PD USB-C Chargers
    • 2x GripBAT 4S battery
    • 1x PD Hybrid Dual Charger
    • 1x Movcam Enclosed Top Handgrip
    • 1x Movcam Top Plate
    • 1x Movcam Mini EVF Bracket
    • 1x MAVO Edge Solid Case
