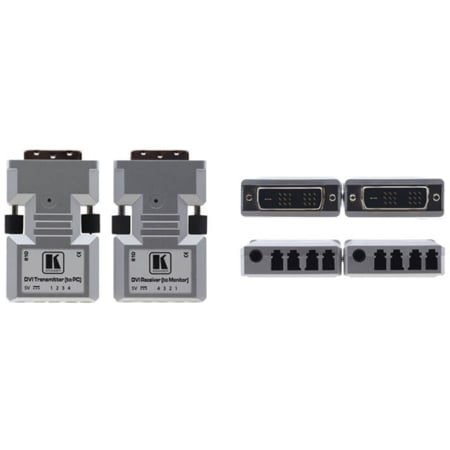

Kramer 610R/T Detachable DVI LC Optical Fiber Extender Transmitter and Receiver Set

610R/T - Overview

HDTV Digital Signage Compatible!

• Features:

  • Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).
  • Standards Compliance - Certified for medical applications according to IEC 60601-1-2 (Electromagnetic Compatibility).
  • HDTV Compatible.
  • Not HDCP Compliant.
  • System Range - Up to 400m (1312ft).
  • EDID Capture - Copies and stores the EDID from a display device (610T).
  • Cable - Multimode fiber optic cable with 4 simplex or 2 duplex LC fiber connectors.
  • Power - External power adapter (supplied) or 5V DC from source.


• Specifications:

  • INPUTS
  • Single-link DVI-D on a DVI-I connector (610T)
  • 4 LC optical connectors for R, G, B & clock (610R)


  • OUTPUTS
  • 4 LC optical connectors for R, G, B & clock (610T)
  • single-link DVI-D on a DVI-I connector (610R)


  • RESOLUTION
  • Up to WUXGA @60Hz (1.65Gbps)


  • HUMIDITY
  • Operating: 5% to 65%
  • Storage 5% to 95%


  • POWER CONSUMPTION
  • 5V DC, 240mA max. (610T)
  • 390mA max. (610R)


• Item Includes:

  • 610 Receiver and Power Supply
  • 610 Transmitter and Power Supply


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063040871
