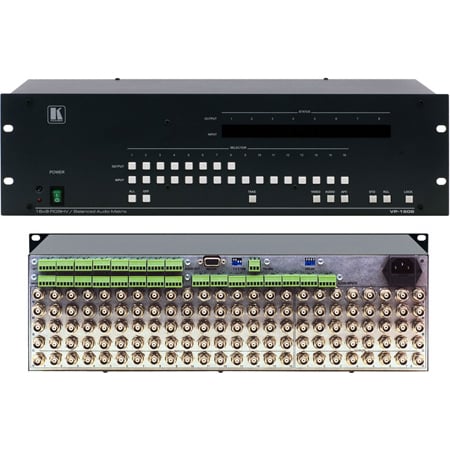

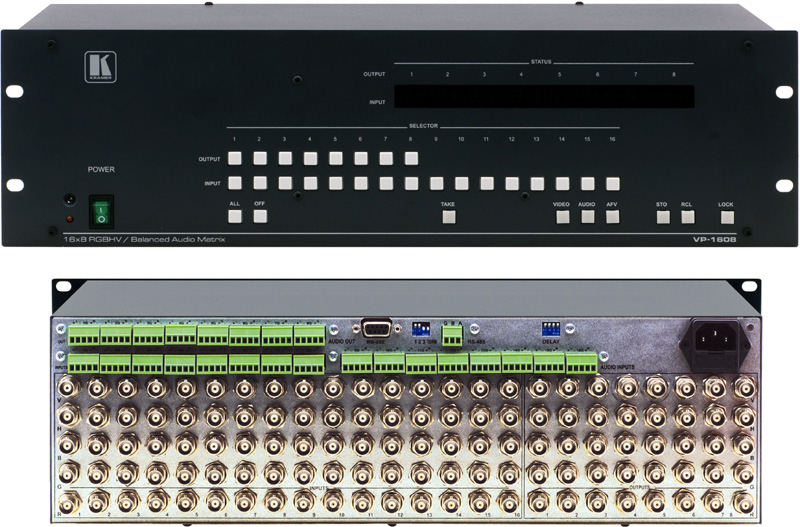

Kramer VP-1608 16x8 RGBHV & Balanced Stereo Audio Matrix Switcher

VP-1608 - Overview

16x8 RGBHV & Balanced Stereo Audio Matrix Switcher

• Features:

  • High Bandwidth - 400MHz (-3dB) fully loaded.
  • HDTV Compatible.
  • Control - Front panel, RS-232 (K-Router™ Windows®-based Kramer software is included), & RS-485, IR remote (available upon request) .
  • Front Panel Control Lockout.
  • Take Button - Executes multiple switches all at once.
  • Memory Locations - Stores multiple switches as presets to be recalled and executed when needed.
  • Delayed Switching™ - Switches sync ahead of video to provide near glitch-free switching of non-genlocked sources.
  • Audio Breakaway Switching.


• Specifications:

  • INPUTS
  • 16 x 3 RGB video, 0.7Vpp/75Ω on BNC connectors
  • 16 x 2 H&V, TTL level on BNC connectors
  • 16 balanced stereo audio on detachable terminal blocks

    OUTPUTS
  • 8 x 3 RGB video, 0.7Vpp/75Ω on BNC connectors
  • 8 x 2 H&V, TTL level/75Ω on BNC connectors
  • 8 balanced stereo audio on detachable terminal blocks

    VIDEO BANDWIDTH (-3DB)
  • 400MHz

    AUDIO BANDWIDTH (-3DB)
  • 30kHz

    VIDEO S/N RATIO
  • 71.7dB

    AUDIO S/N RATIO
  • 74.5dB unweighted (1Vpp)

    VIDEO CROSSTALK
  • -62.5dB @5MHz

    AUDIO CONTROL
  • Mute, - 46dB to +10dB gain range, via RS-232, RS-485, IR

    AUDIO THD
  • 0.028% (1kHz)

    CONTROL
  • Front panel buttons and IR. RS-232 and RS-485 may also control input and output audio levels

    INDICATORS
  • Multi-character display on the front panel

    POWER CONSUMPTION
  • 230V AC, 50/60Hz (115V AC, USA), 28VA


• Item Includes:

  • VP1608 Switcher
  • Power cord
  • Windows®-based Kramer control software
  • Null-modem adapter


• Warranty:

  • 7 Year Limited Warranty


• GTIN:

  7291063012113
