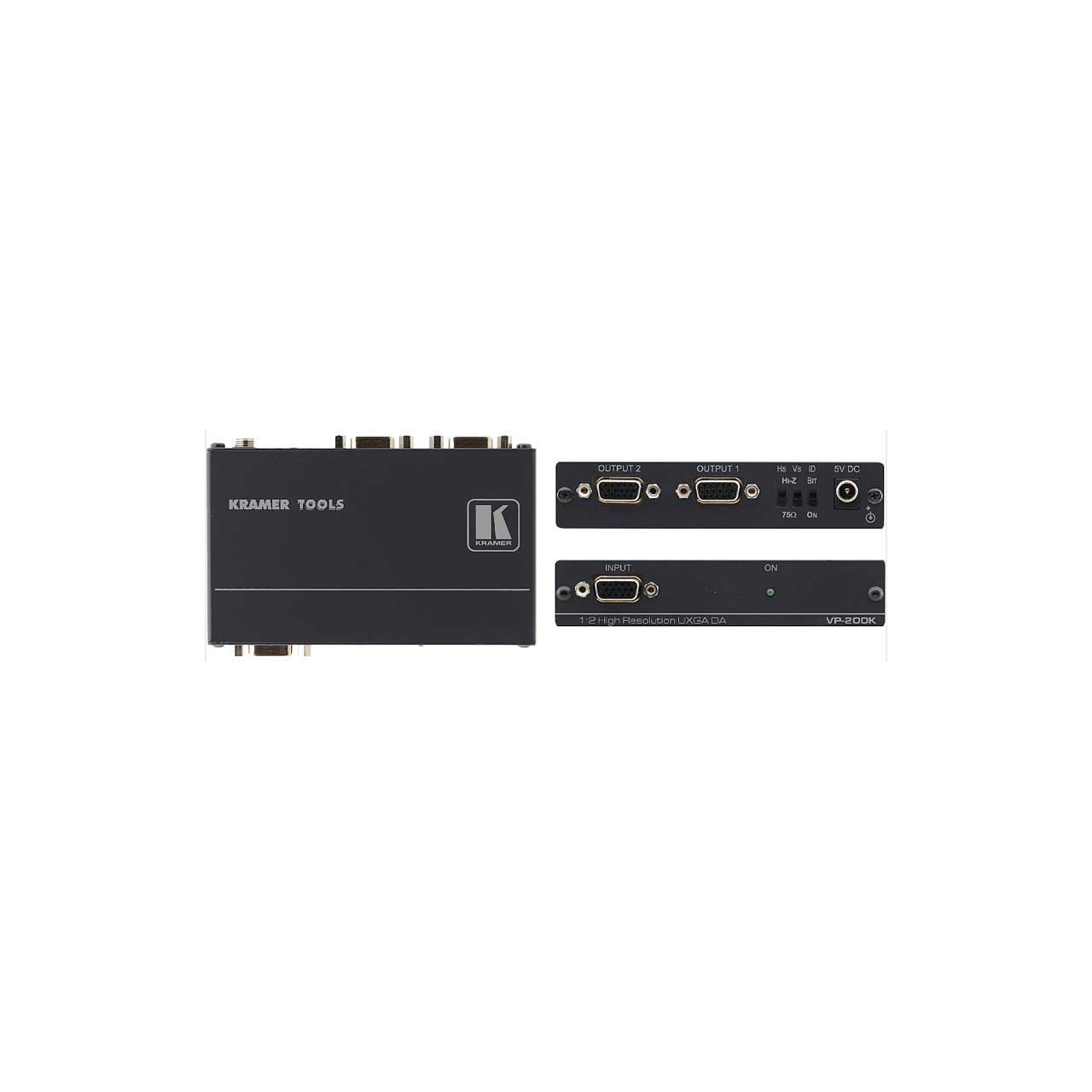

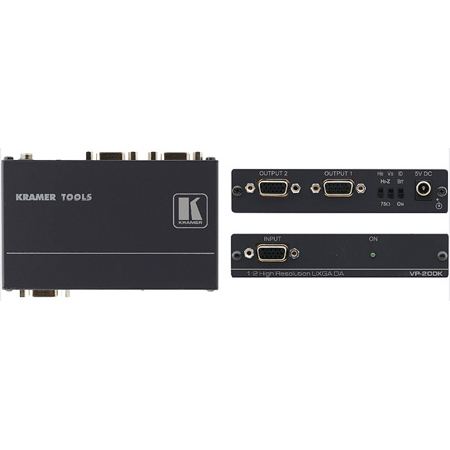

Kramer VP-200K 1x2 Computer Graphics VGA/UXGA Video Distribution Amplifier

VP-200K - Overview

High Bandwidth - 400MHz (-3dB)

• Features:

  • High Bandwidth - 400MHz (-3dB).
  • HDTV Compatible.
  • ID Bit Control.
  • Kr-isp® Advanced Sync Processing - Ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform. Kr-isp® advanced sync processing can be enabled or disabled.
  • EDID PassThru - Passes EDID signal from display to source via output 1.
  • Selectable Sync Input Impedance - 75Ω(video), 510Ω (Graphics/TTL).
  • DC Coupling.


• Specifications:

  • INPUT
  • 1 UXGA on an 15-pin HD connector


  • OUTPUTS
  • 2 UXGA on 15-pin HD connectors


  • MAX. OUTPUT LEVEL
  • 2.2Vpp


  • BANDWIDTH (-3DB)
  • 400MHz


  • DIFF. GAIN
  • 0.03%


  • DIFF. PHASE
  • 0.03Deg


  • K-FACTOR
  • <0.05%


  • S/N RATIO
  • 72dB @5MHz


  • CONTROLS
  • ID BIT switch
  • analog/TTL switches for setting the sync


  • COUPLING
  • DC


  • POWER CONSUMPTION
  • 5V DC, 130mA


• Item Includes:

  • VP-200K DA
  • 3ft 15-pin HD Cable
  • Power supply (5V/2.6A)
  • Mounting bracket


• Warranty:

  • Limited 7 Year Warranty


• Applications:

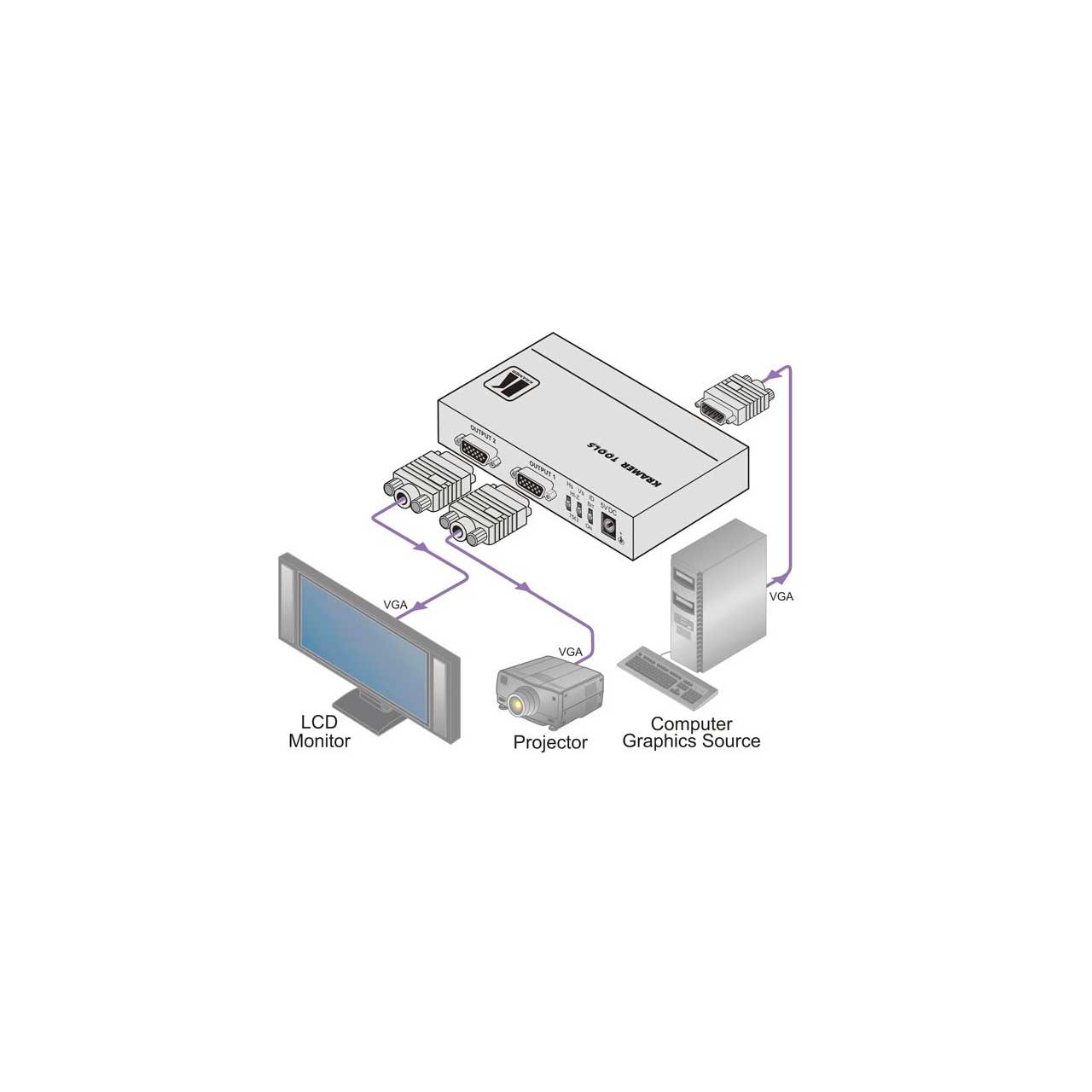

  • Dual monitor systems, stores, and points of sale
  • Presentation systems


• GTIN:

  7290012307706
