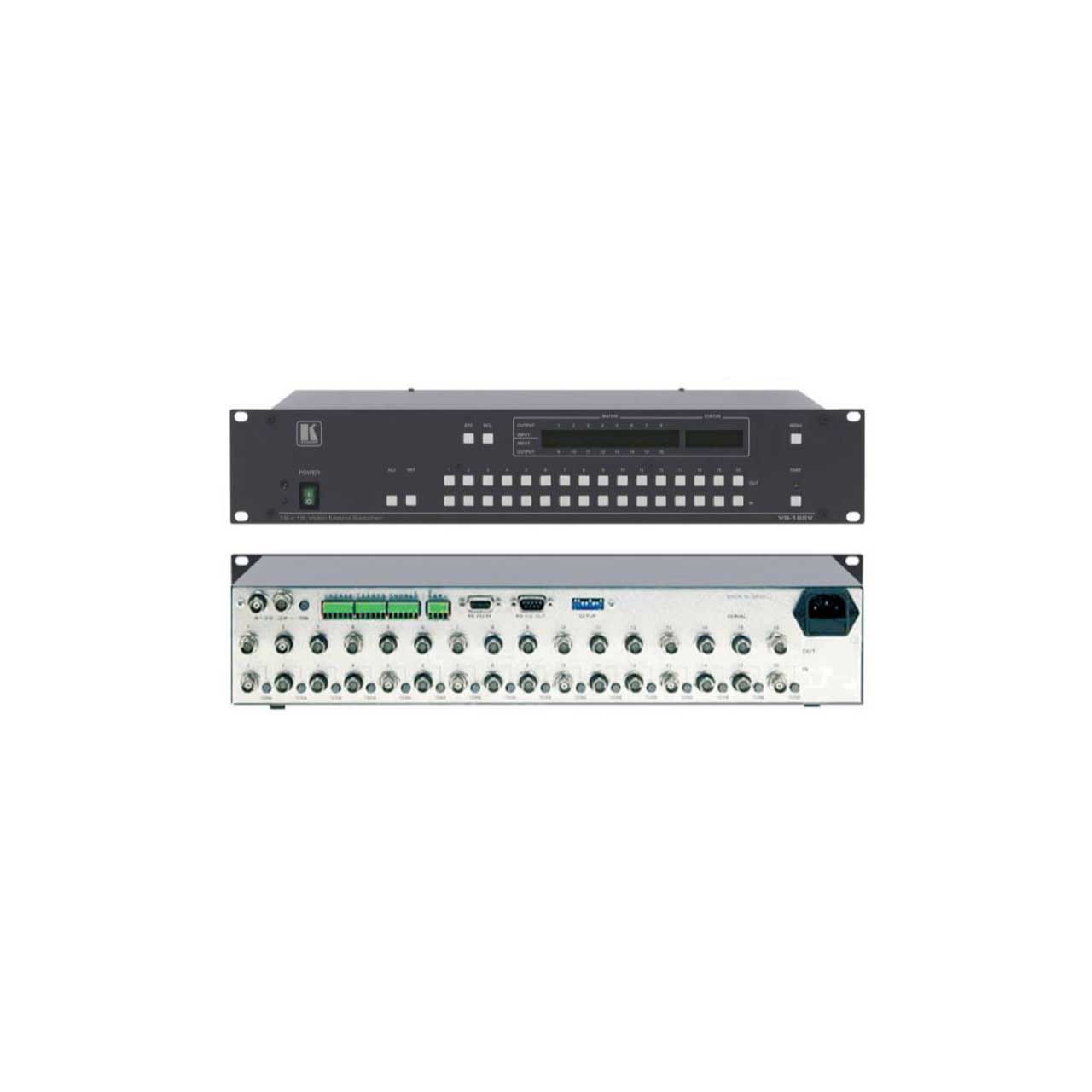

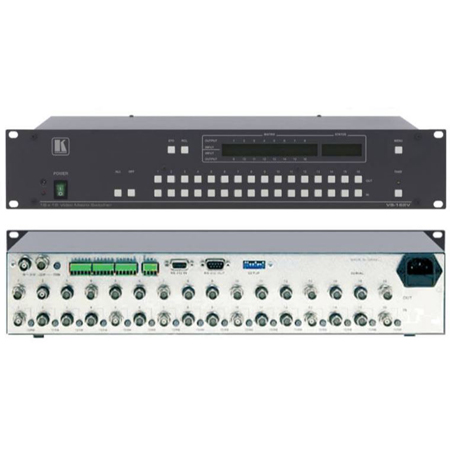

Kramer VS-162V 16x16 Composite Video Matrix Switcher 90MHz Y/C & Component

VS-162V - Overview

16 composite video or 8 s-Video(Y/C) or 4 RGBS or 5 YUV Video Matrix Switcher

• Features:

  • Bandwidth - 90MHz (-3dB) fully loaded.
  • Multi-Mode Operation - Configure as either a 16x16 composite, an 8x8 s-Video (Y/C), a 5x5 component (YUV), or 4x4 RGBS switcher.
  • Looping Inputs and Sync.
  • Selectable Input and Sync Signal Termination.
  • Control - Front panel, RS-232 (K-Router™ Windows®-based Kramer software is included), RS-485, contact closure, & IR remote (available upon request) .
  • Take Button - Executes multiple switches all at once.
  • Memory Locations - Stores multiple switches as presets to be recalled and executed when needed.
  • Standard 19" Rack Mount Size - 2U.


• Specifications:

  • INPUTS
  • 16 composite video, or 8 s-Video (Y/C), or 4 RGBS, or 5 YUV, 1Vpp/75Ω , on BNC connectors
  • 1 genlock with loop, 75Ω /Hi-Z on BNC connectors

    OUTPUTS
  • 16 composite video, or 8 s-Video (Y/C), or 4 RGBS, or 5 YUV, 1Vpp/75Ω , on BNC connectors

    NON-LINEARITY
  • <0.01%

    VIDEO BANDWIDTH (-3DB)
  • 90MHz

    DIFF. GAIN
  • 0.01%

    DIFF. PHASE
  • 0.01Deg

    K-FACTOR
  • <0.05%

    VIDEO S/N RATIO
  • 70.2dB

    VIDEO CROSSTALK
  • <-52dB @5MHz

    SWITCHING
  • Vertical interval

    CONTROLS
  • 38 front panel buttons, RS-232, RS-485, IR remote, contact closure keyboard extension

    INDICATORS
  • 2 multiple-character front panel displays

    POWER CONSUMPTION
  • 230V AC


• Item Includes:

  • VS-162V Switcher
  • Power cord
  • Null®modem adapter
  • Windows®based Kramer control software


• GTIN:

  7291063004781
