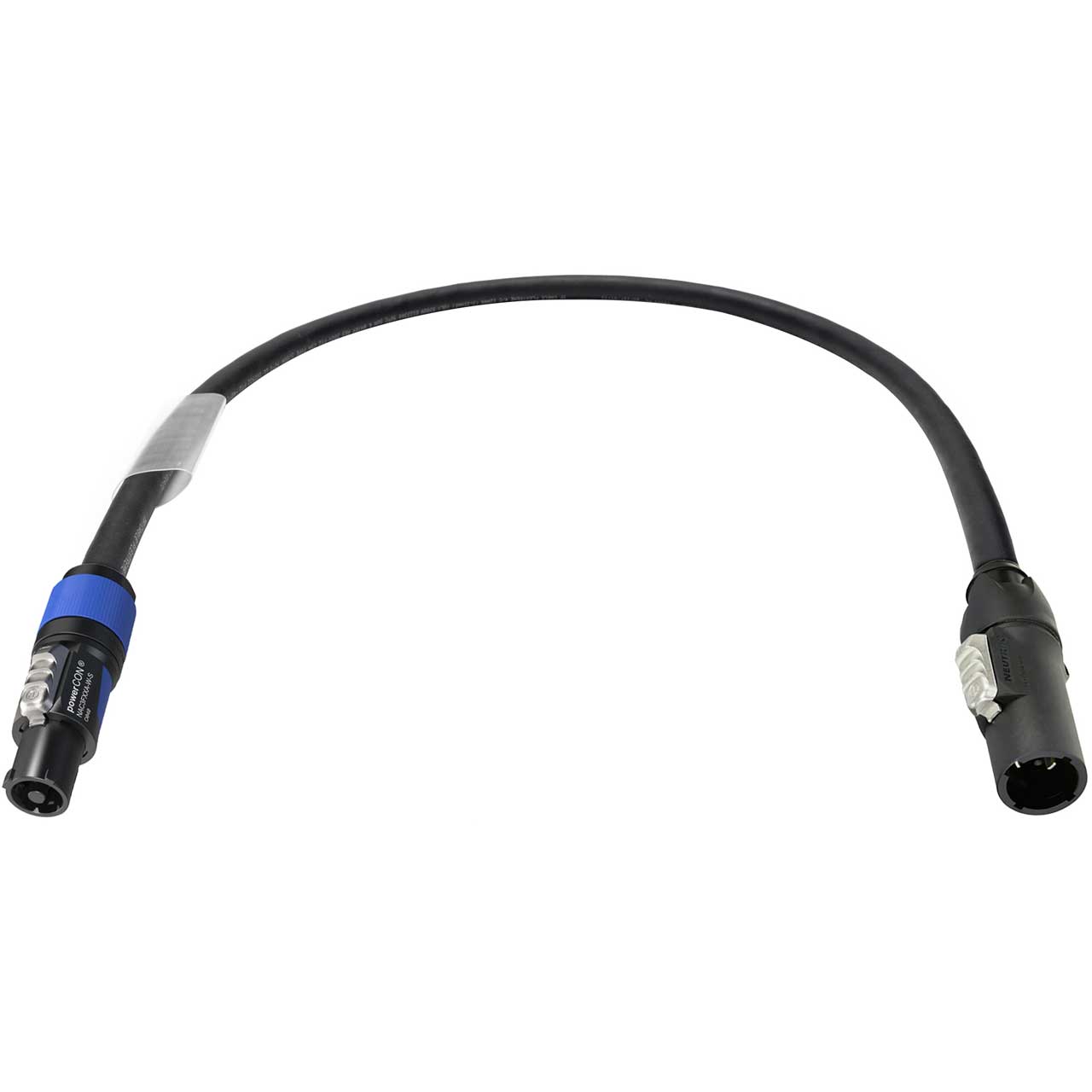

Laird powerCON TRUE1 TOP Male to powerCON Type A Power Adapter Cable - 2 Foot

LDC-PCTM-PCTA - Overview

• Features:

  • Neutrik powerCON XX Series Connector
  • Neutrik powerCON TRUE1 TOP Connector
  • PWR-12/3 - SJOOW - 300V 12 AWG Heavy Duty Power Cable
  • Flexibility in Low Temperatures
  • IP20 Rated
  • Water and Oil Resistant
  • Fully Annealed Stranded Bare Copper Conductors for Strength and Abrasion Resistance


• Specifications:

  • PWR-12/3 - SJOOW - 300V 12 AWG Heavy Duty Power Cable:
  • UL Listed 3 Conductor Jacketed Heavy Duty Power Cord
  • TPrene Jacket - Black
  • 3 conductor colors: Black, White and Green

    NAC3MX-W-TOP:
  • Contact Resistance: ≤ 2 mΩ
  • Dielectric Strength: 4 kVdc / 2.8 kVac
  • Insulation Resistance: > 0.1 GΩ (after damp heat test IEC 68-2-30)
  • Number of Electrical Contacts: 2 + PE
  • Lifetime: > 5000 mating cycles
  • Flammability: UL 94 V-0
  • Protection Class: IP65, UL50E Enclosure Type 4 (Mated)
  • Temperature Range: -22°F to 176°F
  • Rating Europe: EN 60320-1: 16A 250V AC
  • Rating USA: UL 498: 20A 250V AC

    Neutrik powerCON XX Series:
  • Contact Resistance: ≤ 2 mΩ
  • Dielectric Strength: > 3 kVac (after mating cycle)
  • Insulation Resistance: > 10 GΩ (initially)
  • Number of Electrical Contacts: 2 + PE
  • Lifetime: typically 5000 mating cycles
  • Flammability: UL 94 V-0
  • Protection Class: IP20
  • Temperature Range: -33°F to 80°F
  • Rating Europe: EN 60320-1: 16A 250V AC, CBC
  • Rating USA/Canada: cUL 60320-1: 20 A 127 V AC, CBC
