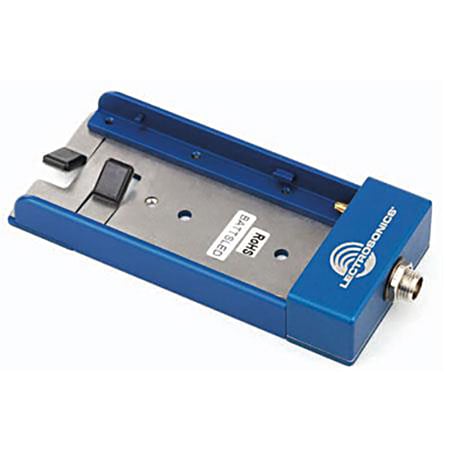

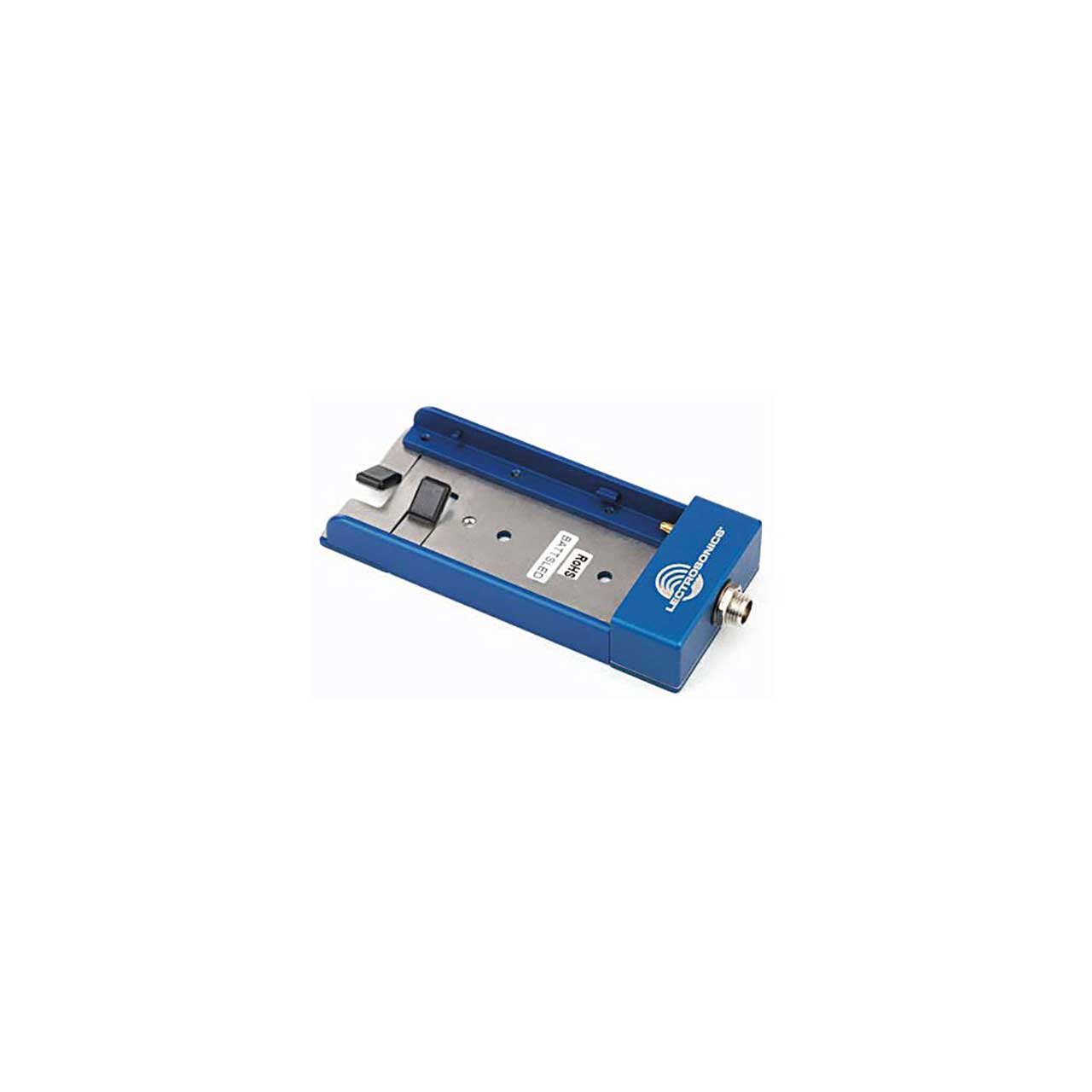

The BATTSLED is a universal battery sled power supply adapter for L or M style battery packs. This handy accessory provides extended operating time and serves as a backup power supply for Lectrosonics transmitters and receivers. Common L and M style video camera rechargeable batteries are retained by spring tabs in the bottom plate. 9 volt batteries can also be used with the optional SR9VBP adapter.
The power output is a threaded locking coaxial connector that is used on many Lectrosonics products. The connections are fused at 500 mA and diode protected against reversed polarity. The unit is constructed of machined aluminum and stainless steel to provide the ruggedness needed for field production. A Velcro swatch is included for mounting the adapter on a flat surface.
Note: This adapter is NOT for use in recharging batteries. Do not connect a battery charger to the output jack.
