Lectrosonics ZS-LRLMB-A1 Complete L-Series Camera Mount Lavalier Mic Kit Band A1 470.100 - 537.575 MHz

ITEM #: LEC-ZS-LRLMB-A1 MFG #: ZS-LRLMB-A1

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Lectrosonics
Free Shipping with $49 Minimum Order

List Price:

$4,223.00

Our Price:

$3,282.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

ZS-LRLMB-A1 - Overview

The new L Series units all share a wide tuning range of three standard Lectrosonics blocks, or 67.5 to 76.8 MHz, depending on the specific frequency band, and employ Lectrosonics' patented Digital Hybrid Wirelessr technology for compandor-free audio along with compatibility modes for interoperability with older analog systems. Like all our other products, the L Series units are made in the USA and feature machined aluminum housings, user-friendly setup and reliable operation. The ZS-LRLMb kit [or ZS-LRLT kit] makes it easy to put these products right to work on the job. Everything you need is here: transmitter, receiver, mounting hardware, lav mic and connecting cables. Even batteries are included!

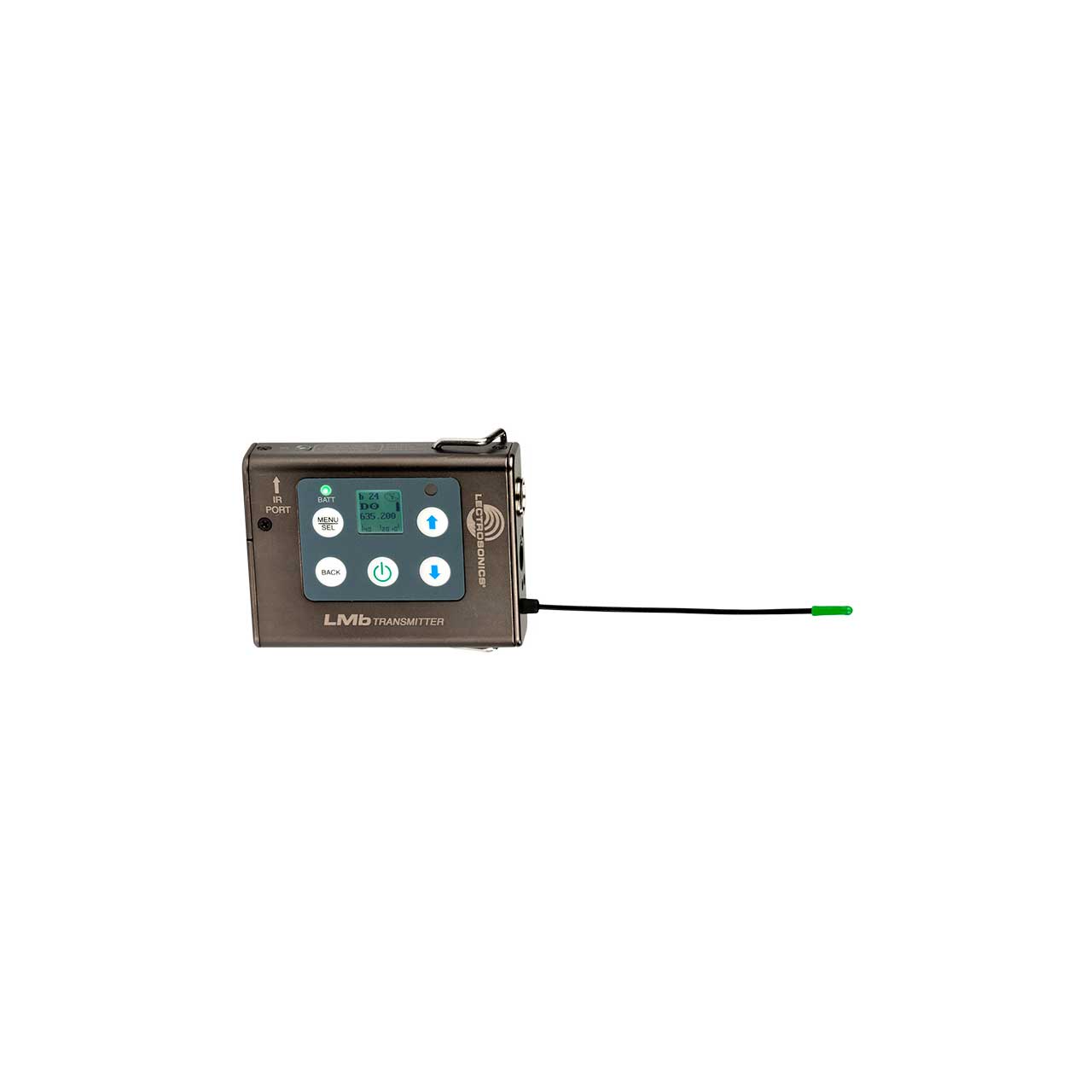

The LMb transmitter can be configured to operate as a "one touch" device with a single power on/off switch on the top panel, or with full access to all operational parameters using the side panel membrane switches and LCD interface. The top panel switch can also be configured to provide a mute or talkback function. This versatility makes the transmitter at home in a wide variety of applications from video production to theater, stage and house of worship. Frequencies are selectable in 100 kHz or 25 kHz steps across a maximum tuning range of 76.7 MHz. This yields a total of 3072 available frequencies across three standard frequency blocks. The tuning range varies in other blocks to meet applicable frequency allocations.

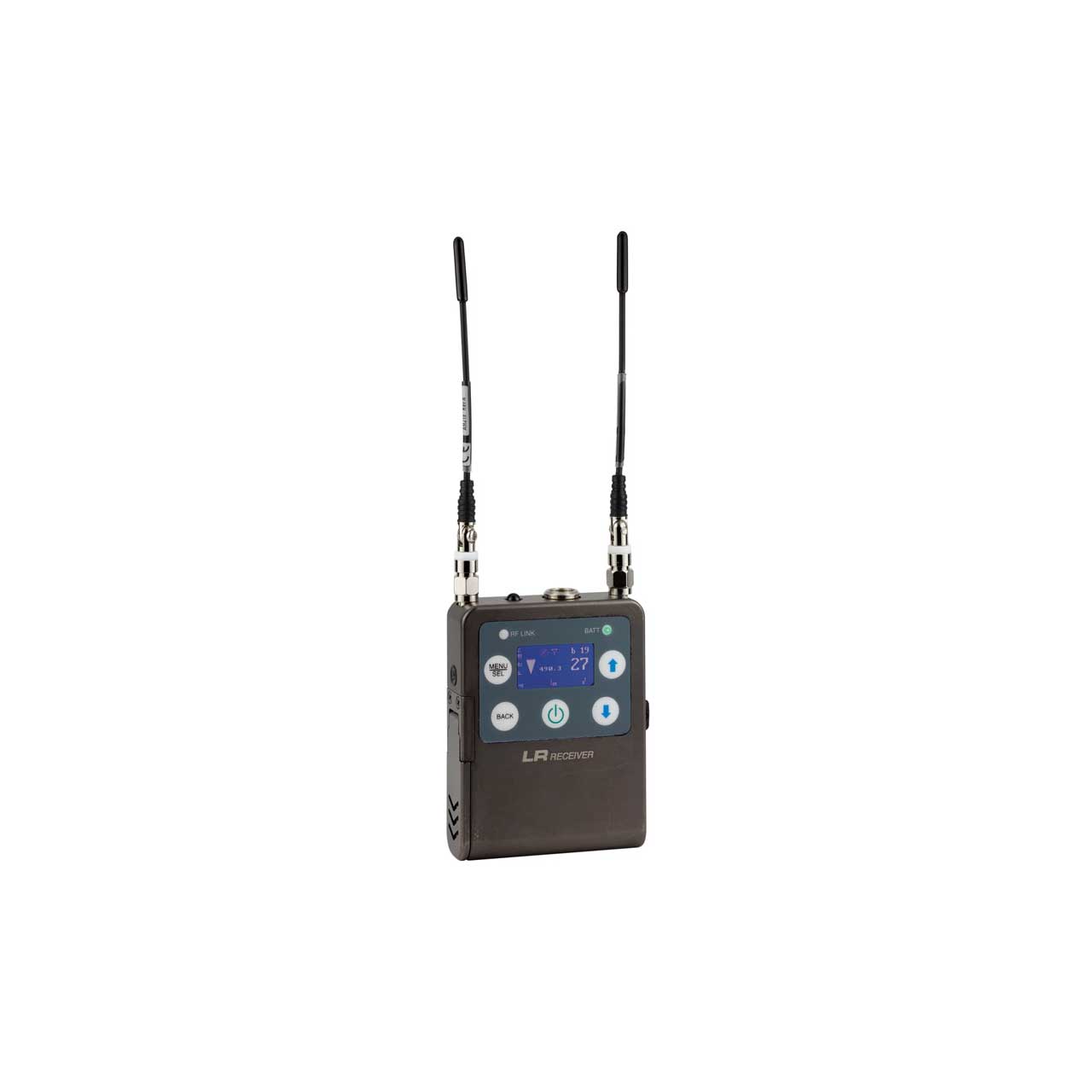

Excellent performance in a small package for ENG and DSLR video production is the purpose and intent of the LR receiver design. Tracking front-end filters block interference from high powered RF signals on nearby channels to preserve the extended operating range. RF spectrum scanning displays accurate results on the LCD to make finding clear spectrum quick and easy.

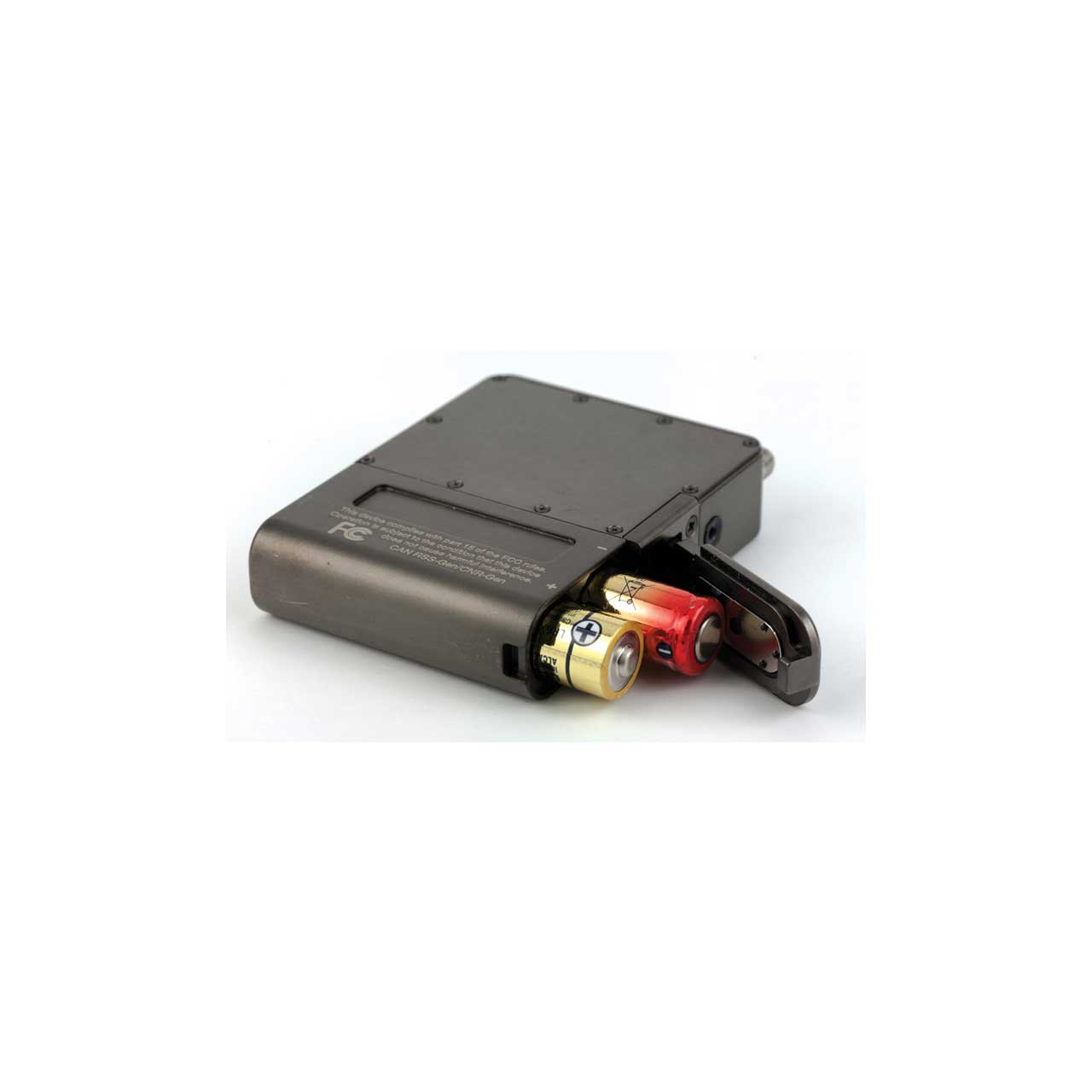

The receiver is powered by internal AA batteries or with an optional battery eliminator. The top panel includes an IR port for transmitter setup. Firmware updates are enabled via a USB port on the side panel. The housing is made from a solid machined aluminum billet.

  • Features:

    • Receiver
    • Tunes over a 75 MHz range
    • Tracking front-end filters
    • Digital Hybrid Wireless with compatibility modes for use with earlier transmitters
    • Compact size powered by two AA batteries
    • LCD with RF spectrum scanning
    • SmartSquelchTM noiseless muting adapts automatically for near/far operation
    • DSP-based pilot tone for squelch control
    • USB port for firmware updates
    • IR sync port for transmitter setup

      Transmitter
    • Covers three standard frequency blocks
    • Digital Hybrid Wireless for compandor-free audio
    • 50 mW RF power
    • Compatibility modes for use with analog receivers
    • 25 or 100 kHz tuning steps for up to 3072 selectable frequencies
    • Integrated multi-function switch for mute or talkback modes
    • Wide range input gain control in 1 dB steps


  • Specifications:

    • Receiver
    • Operating Frequencies: Band A1: 470.100 - 537.575 MHz, Band B1: 537.600 - 614.375 MHz, Band 606: 606.000 - 631.500 MHz, Band C1: 614.400 - 691.175 MHz.
    • Frequency selection steps: Selectable; 100 kHz or 25 kHz.
    • Receiver Type: Dual conversion, superheterodyne.
    • IF Frequencies: 243.950 MHz and 250.000 kHz.
    • Front end bandwidth: 20 MHz @ -3 dB.
    • Squelch quieting: Greater than 100 dB typical.
    • Image and spurious rejection: 85 dB.
    • FM detector: Digital Pulse Counting Detector.
    • RF spectrum analyzer: Single and multiple block scanning modes; coarse and fine views of results.
    • Antenna inputs: 50 Ohm; SMA female connectors.
    • Audio output: TA3 male (mini XLR) balanced output.
    • Audio output level: Adjustable -50 to +5 dBu in 1 dB steps; unbalanced output level is 6 dB lower.
    • Transmitter battery type selection: AA alkaline or lithium; timer available for use with alkaline, lithium and HiMH.
    • Operating temperature: -20° C to +50°C.
    • Weight: 185.4 grams (6.54 ozs.) with two AA lithium batteries.
    • Dimensions (housing): 3.21 x 2.45 x .84 in. (82 x 62 x 21 mm).

      Transmitter
    • Operating Frequencies: Block A1: 470.100 - 537.575, Block B1: 537.600 - 614.375, Block C1: 614.400 - 691.175.
    • Frequency Selection Steps: Selectable; 100 kHz or 25 kHz.
    • RF Power output: 50 mW.
    • Frequency Stability: ± 0.002%.
    • Input level: Nominal 2 mV to 300 mV, before limiting, Greater than 1V maximum, with limiting.
    • Input impedance: 2k Ohm.
    • Input limiter: DSP controlled, dual envelope "soft" limiter with greater than 30 dB range.
    • Gain control range: 44 dB; digital control.
    • Modulation indicators: Dual bicolor LEDs indicate modulation of
    • -20, -10, 0 and +10 dB referenced to full modulation, LCD bar graph.
    • Frequency Response: 90 Hz to 20 kHz (+/-1dB).
    • Low frequency roll-off: -12 dB/octave; 70 Hz.
    • THD: 0.2% (typical).
    • Controls: Top panel slide switch; programmable as power, mute, talkback or no (off) function, Side panel membrane switches with LCD
    • interface for power on/off and all setup and configuration controls.
    • Audio Input Jack: Switchcraft 5-pin locking (TA5F).
    • Antenna: Galvanized steel, flexible wire.

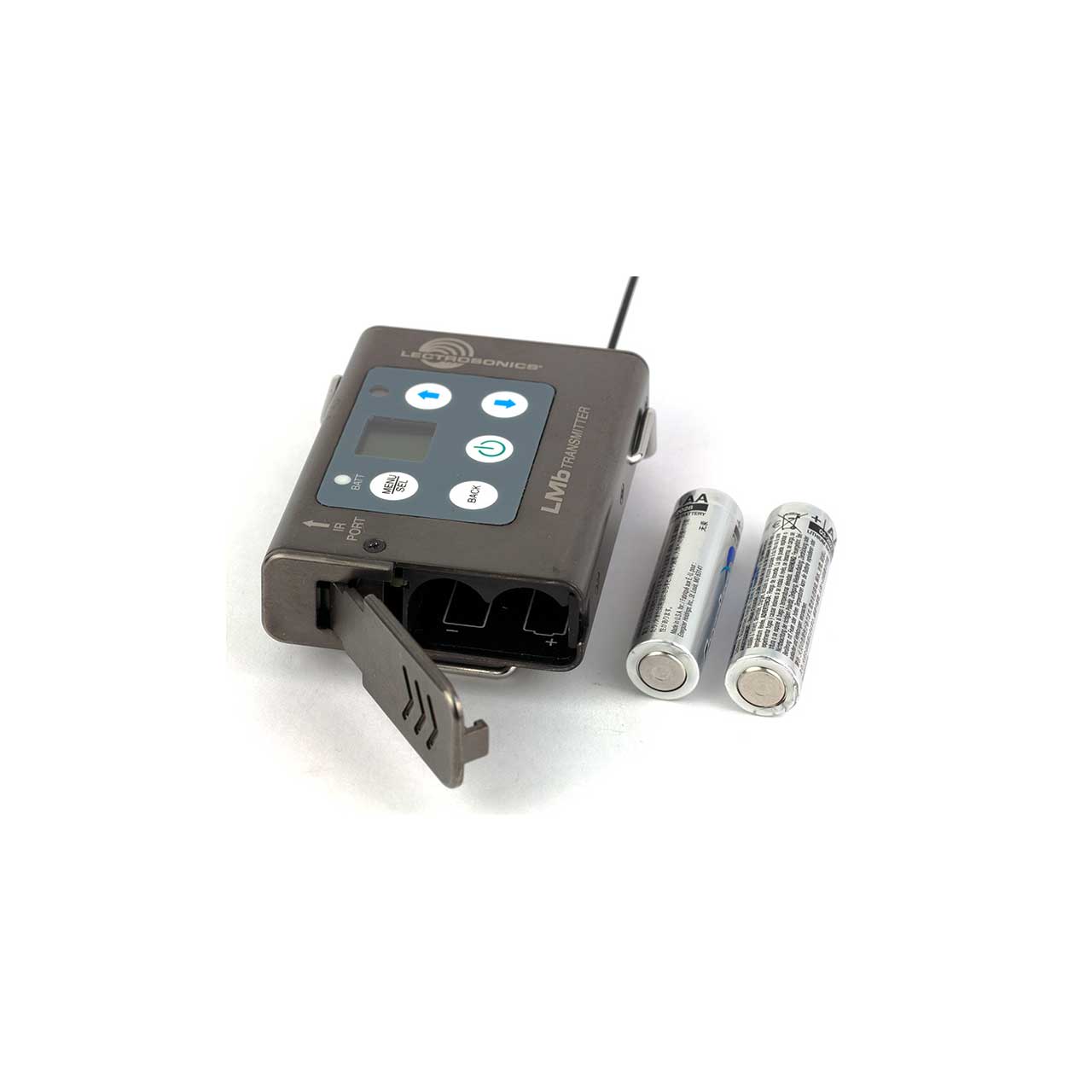

    • Battery: Two AA; alkaline, lithium, NiMH rechargeable.
    • Weight: 5 ounces (141 grams), including lithium AA batteries
    • and wire belt clip.
    • Dimensions: 3.2 x 2.4 x .8 in. (81 x 61 x 20 mm)

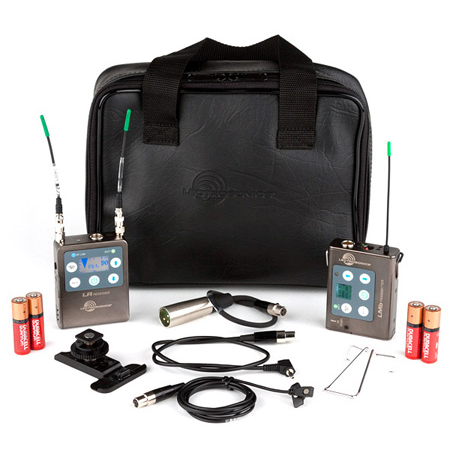

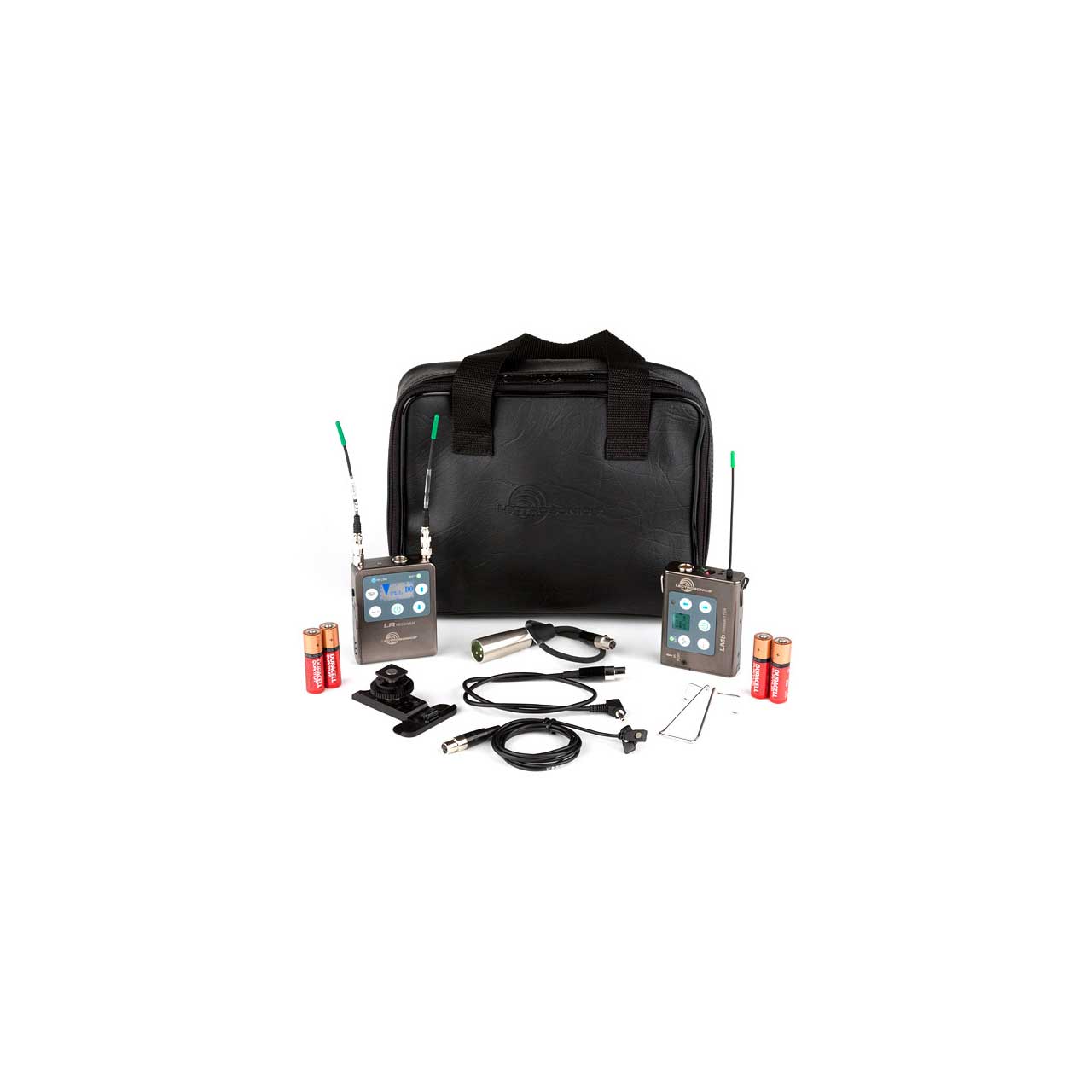

  • Item Includes:

    • 1) LR-XX receiver (Frequency band A1, B1 or C1)
    • 1) LMb-XX transmitter (Frequency band A1, B1 or C1)
    • 1) M152/5P lavaliere Microphone
    • 1) LRSHOE camera shoe mount for LR Receiver
    • 1) MCSRXLR cable, TA3F to XLRM
    • 1) MCLRTRS cable, TA3F to 1/8" TRS
    • 1) CCMINI zippered pouch
