Lex DB100NP-AQQ-S3 PowerHOUSE Portable Power Distribution Box -100 Amp Pagoda to GFCI Duplex Receptacles - Outdoor Rated

DB100NP-AQQ-S3 - Overview

• Features:

  • Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion

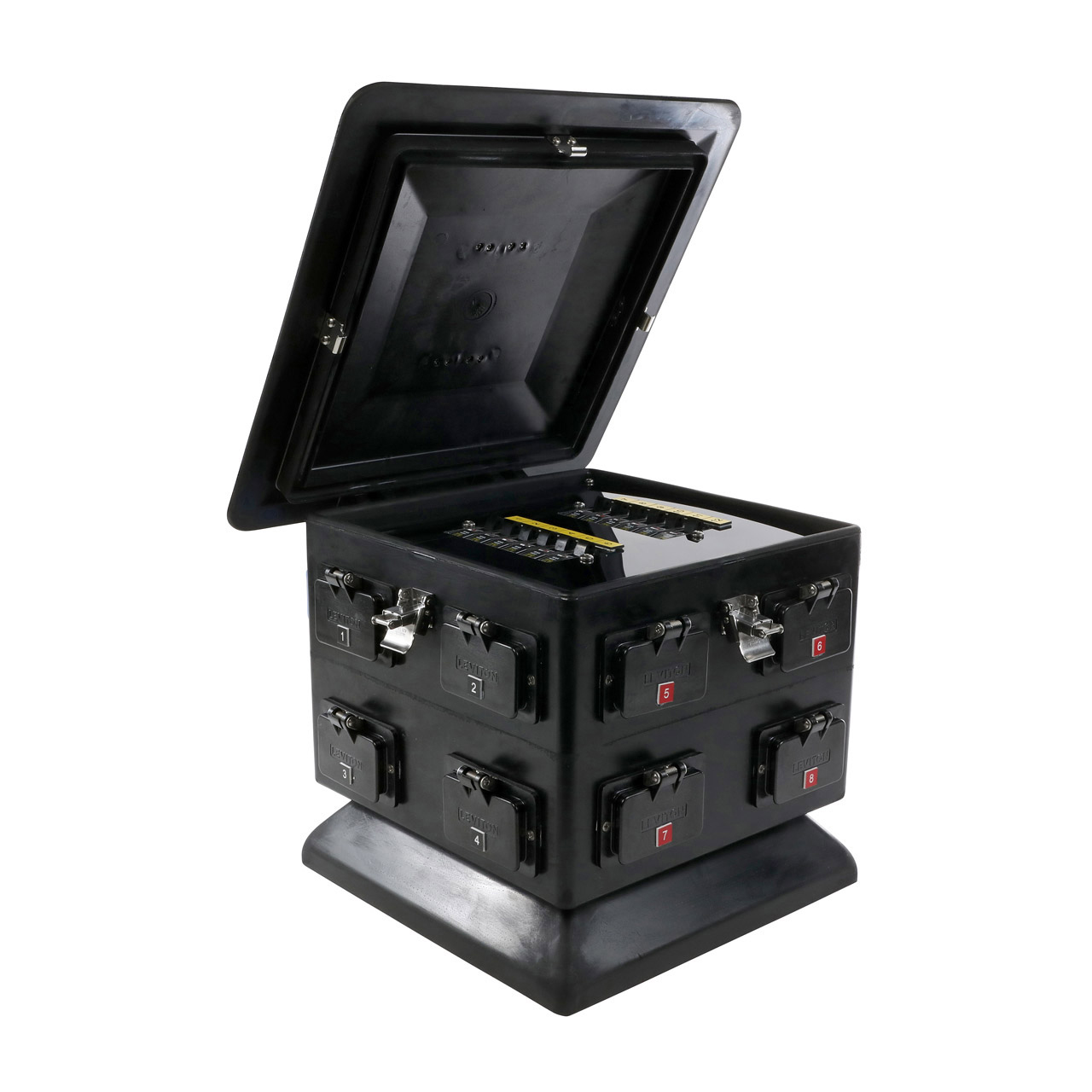

  • Breakers are mounted under hinged lid for enhanced safety
  • Stackable and compact for easy storage and convenient portability
  • Elevated base keeps receptacles above ground level


• Specifications:

  • Rating: 100 Amp, Three-phase (H,H,H,N,G), 4-pole, 5-wire, 120/208Y VAC, 60Hz
  • Environmental Rating: NEMA 3R (Weather Resistant)
  • Input: One set of 5x 16 Series, 400 Amp, single pole, single wire, 600 VAC, BRBWG color-coded, cover doors, cam-type inlets, panel mount
  • Feed Thru: None
  • Main Breaker: None
  • Output: 12x NEMA 5-20 GFCI, 20 Amp, 2-pole, 3-wire, 125 VAC, straight blade duplex receptacles, cover doors, panel mount
  • Overcurrent Protection: 12x 20 Amp, 125 VAC, single-pole, hydraulic magnetic, branch-rated circuit breakers
  • Enclosure Type: Pagoda
  • Dimensions (LxWxH): 14.25" x 14.25" x 14.15"
  • Weight: 32.0lbs
  • Agency Approval: cULus Listed


• Item Includes:

  • 1x DB100NP-AQQ-S3 PowerHOUSE Portable Power Distribution Box


• Warranty:

  • 1-year limited
