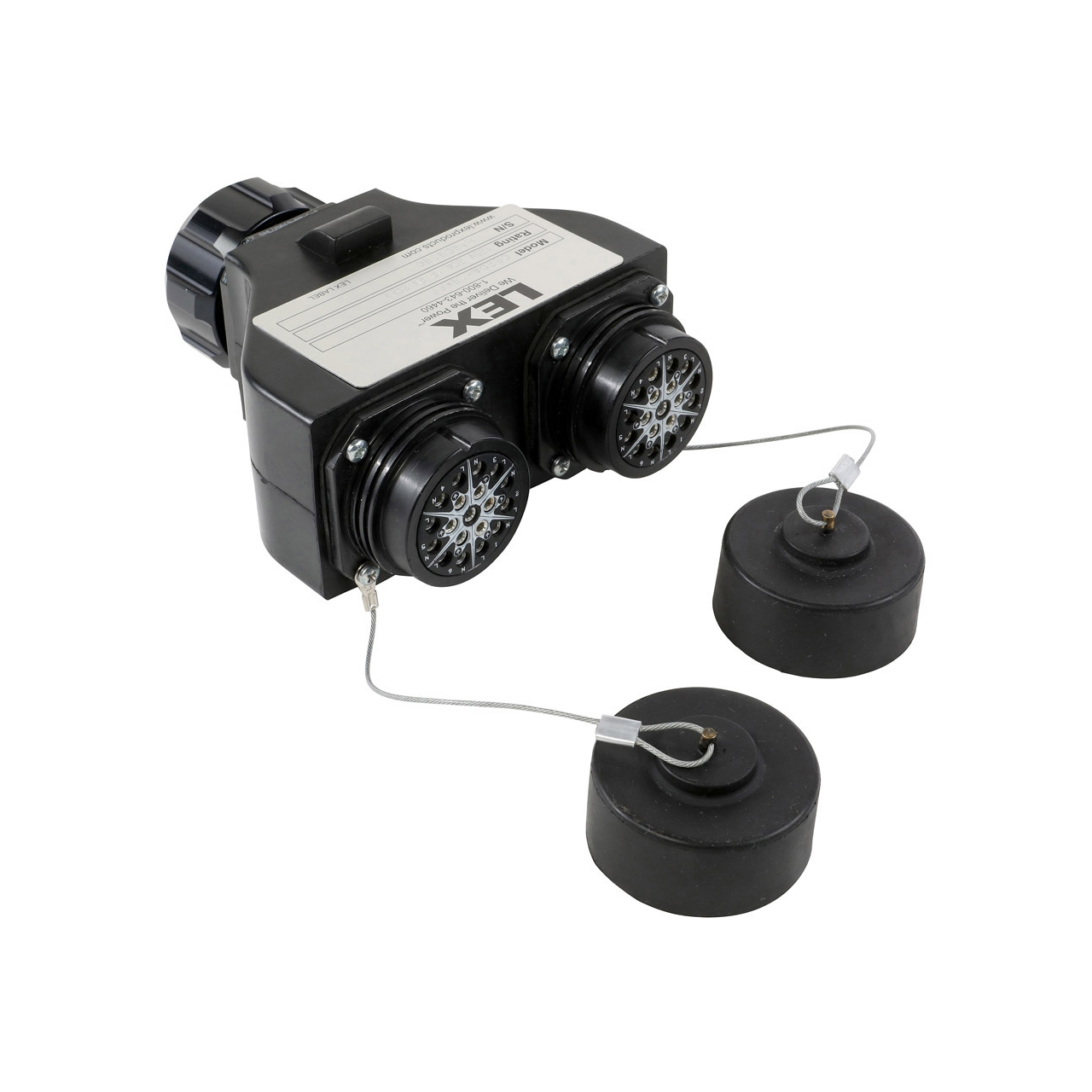

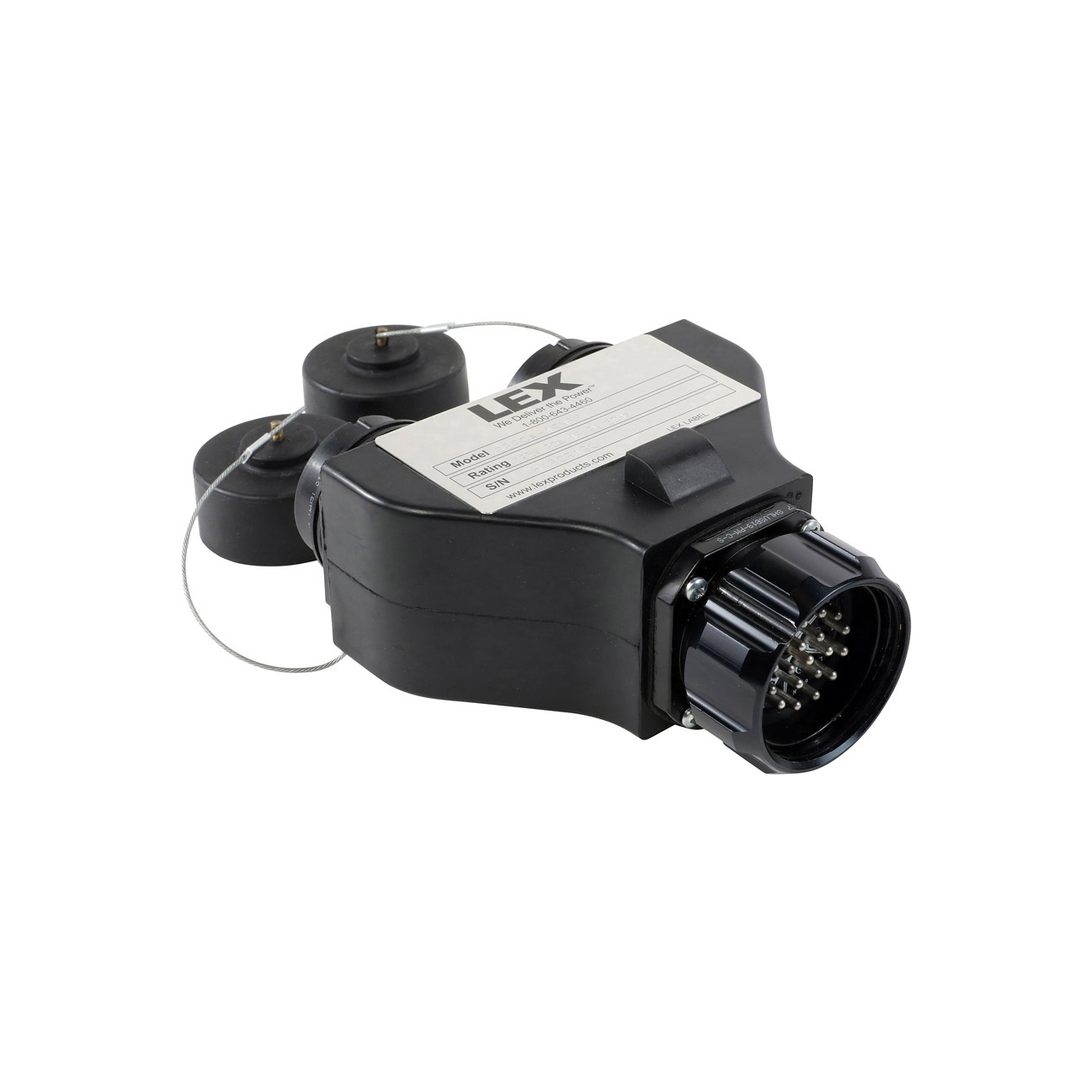

LEX DB20A-19MFF 20A 250VAC 19-Pin 6 Circuit Splitter Panel Mount Adapter - 1x SC19 19-Pin Male to 2x LSC19 19-Pin Female

ITEM #: LEX-DB20A-19MFF MFG #: DB20A-19MFF

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
LEX Products Corp
Free Shipping with $49 Minimum Order

List Price:

$833.75

Our Price:

$750.38

Add to Wish ListLeasing Options
Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

DB20A-19MFF - Overview

LEX DB20A-19MFF is a 20A/250 VAC 19-Pin 6 Circuit Splitter Panel Mount Adapter. Its heavy duty molded rubber enclosure is fully insulated, resistant to shock, impact, and corrosion.

Markets Served:
- Theatrical
- Motion Picture
- Live Events

  • Features:

    • Heavy duty molded rubber enclosure is fully insulated, resistant to shock, impact, and corrosion
    • Optional multi-cable tails for input or outputs available
    • UL Listed, NEMA Type 1 Indoor


  • Specifications:

    • Rating: 20 Amp, 250 VAC, 2-Pole, 3-Wire
      Note: Maximum when used with 50% diversity of load (in accordance with table NEC 520-44)
    • Male Plug: 1x 20A 19-Pin Male (Plug) Panel Mount, Black
    • Cable/Cord: 6x #12/3 Type SJOOW, Black
    • Dimensions (LxWxH): 6.50" x 5.50" x 2.5"
    • Female Connector: 2x 20A 19-Pin Female (Receptacle) Panel Mount, Black
    • Weight: 3lbs
    • Agency Approval: UL Listed, NEMA Type 1


  • Item Includes:

    • 1x LEX DB20A-19MFF 20A 250VAC 19-Pin 6 Circuit Splitter Panel Mount Adapter - 1x SC19 19-Pin Male to 2x LSC19 19-Pin Female
