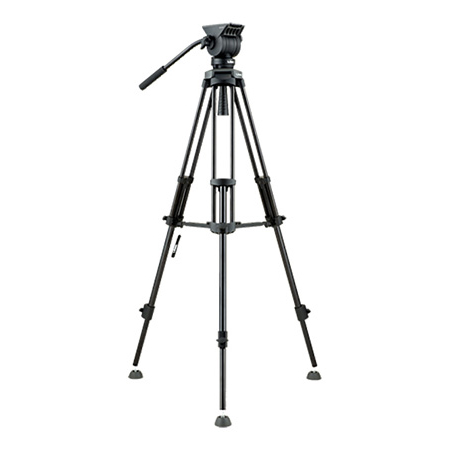

The Libec ALX KIT with Head and Tripod consists of the ALX H Head and ALX T Tripod, and allows you to pan and tilt your camera elevated on a tripod. A padded carrying case with shoulder strap is included. All components are modular allowing users to have multi style configurations for any shooting environment. For example, adding an ALX S4, ALX S8, or ALX S12 slider allows users to have a pan, tilt, and slide configuration. A double platform configuration can also be achieved by having the following: 1x ALX S12, 2x ALXSP, 2x ALX H, 2x ALX T. Moreover, by using this configuration, a still image and a motion picture can be captured at the same time.

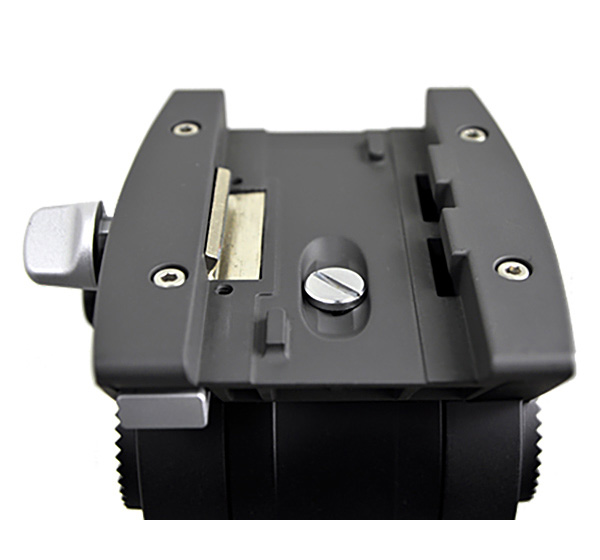

The ALX H is a fluid head supporting up to 4kg / 9 lb. of payload. It has a dual base design consisting of a 75mm ball base and a flat base bottom. The flat base, featuring a 3/8"-16 mounting thread, can be useful for attaching the head to various other flat base gear. The ALX H features a 360° pan angle and +90°/-80° tilt angle. A quick release camera plate is included with a 1/4"-20 mounting screw and video pin. A 3/8"-16 mounting screw is also supplied as a spare, and it installs for safekeeping into a thread under the plate. The camera plate comes off at the press of a knob on the side of the head. A pan handle is also included and can be attached to rosette adapters on the left or right side. The ALX H Dual Head is designed for both 75mm ball diameter and flat base tripods, made to fit sliders, skater dollies, and other equipment. The ALX H is conveniently lightweight (1.3kg/2.9lb) and equipped with an LED bubble level for easy leveling in the dark.

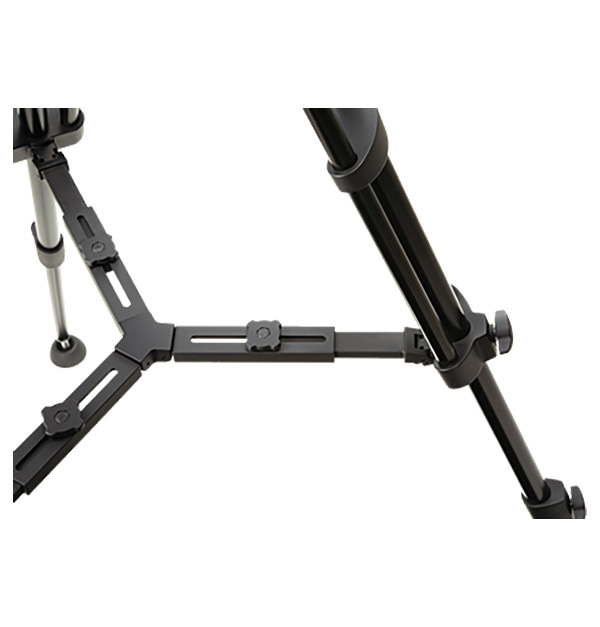

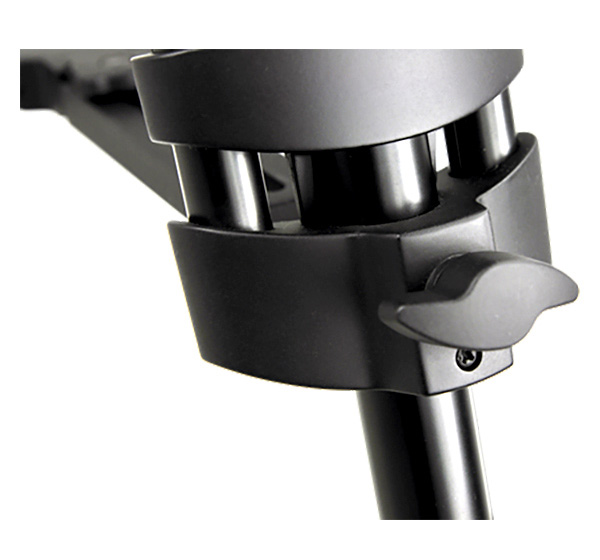

The ALX T is an aluminum tripod with three leg sections and a mid-level spreader that increases stability. The spreader conveniently telescopes out to full width. The legs have rubber foot pads on the ends and integrated metal spiked feet within the pads. The rubber pads retract to reveal the spiked feet for use on soft ground, such as on grass. The tripod has a minimum height of 23.5" and reaches a max height of 59". The leg stages and spreader tighten into position by twist knobs. The ALX T features a 75mm bowl base, which directly supports the head and slider. The ALX T is conveniently lightweight (2.5kg/5.5lb) and has a significantly higher rigidity than other existing compact tripods. This supreme rigidity is achieved by its newly modified leg stoppers. Not only is it highly rigid, it is also perfectly stable thanks to its integrated extendable brace and spikes with foot pads.
