Libec NH30 75mm Ball and Flat Base Video Head with Pan Handle - 10kg Payload

ITEM #: LIB-NH30 MFG #: NH30

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$960.00

Our Price:

$869.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


NH30 - Overview

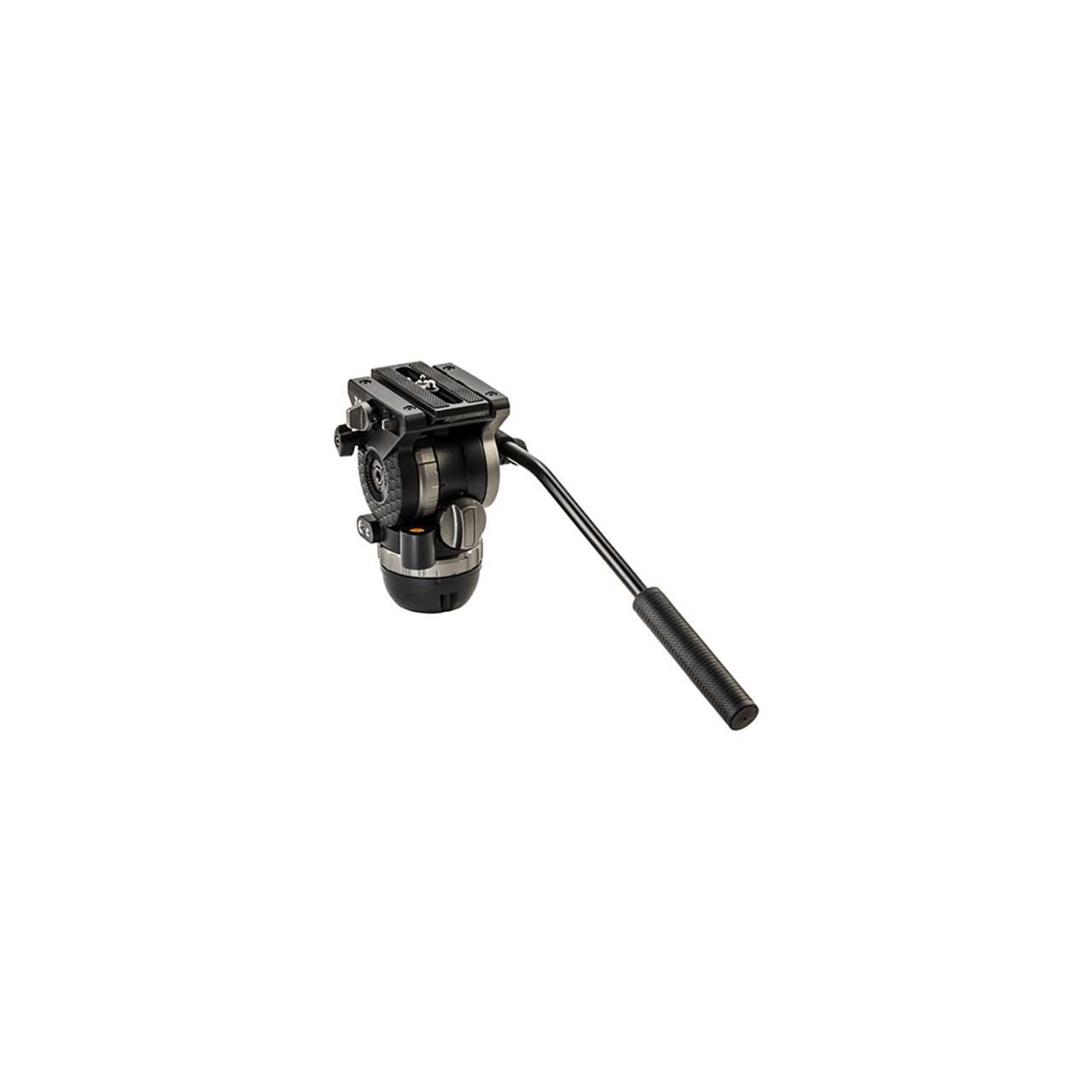

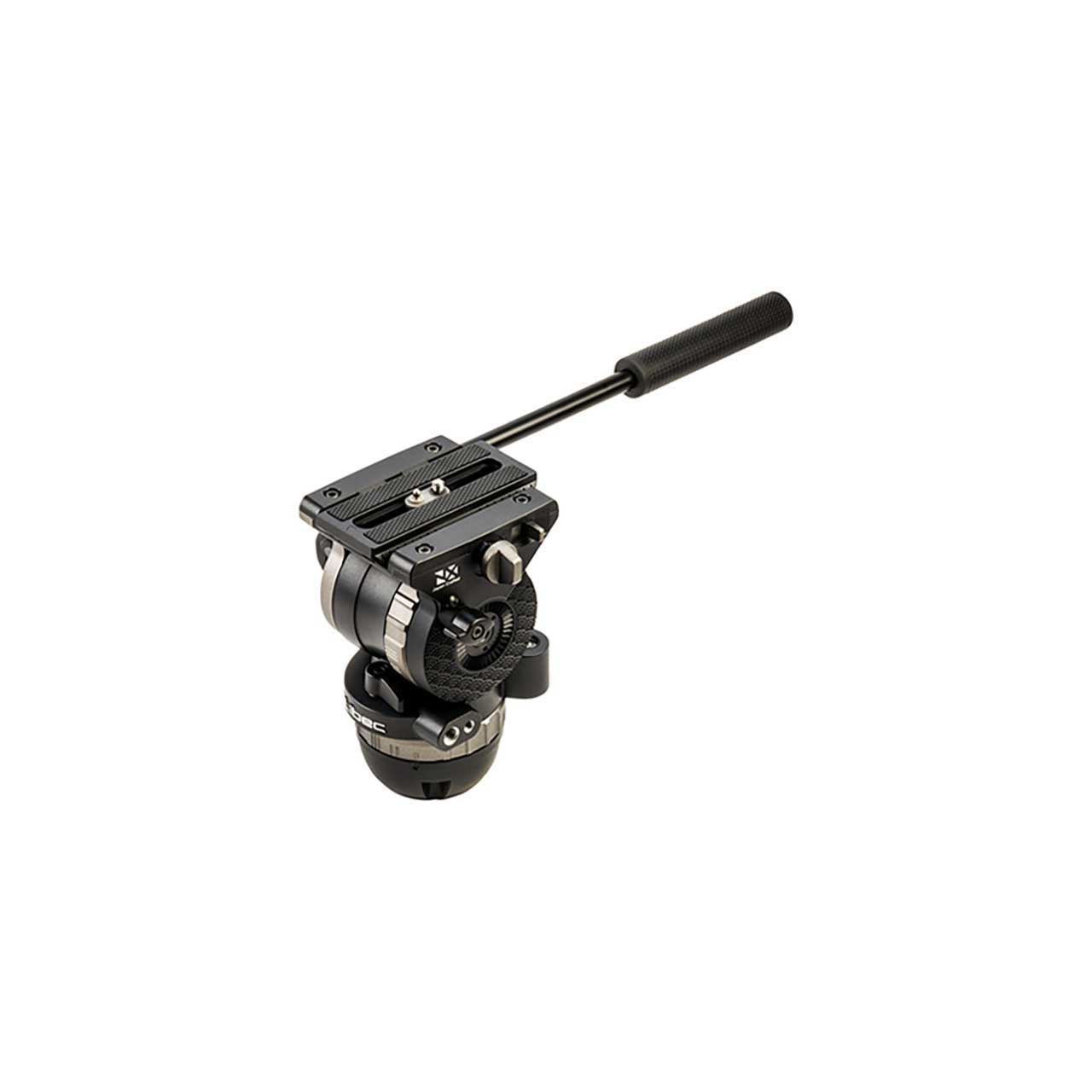

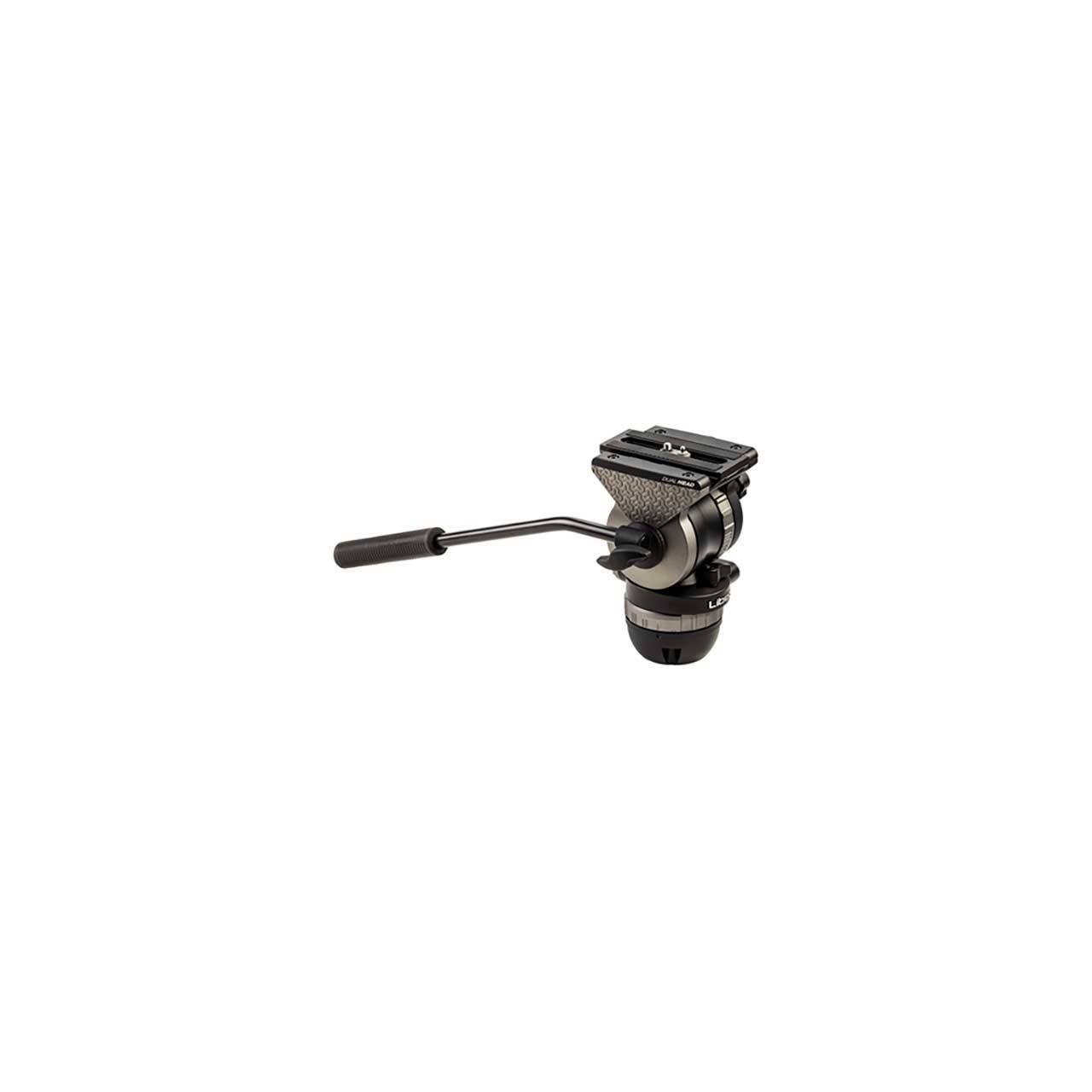

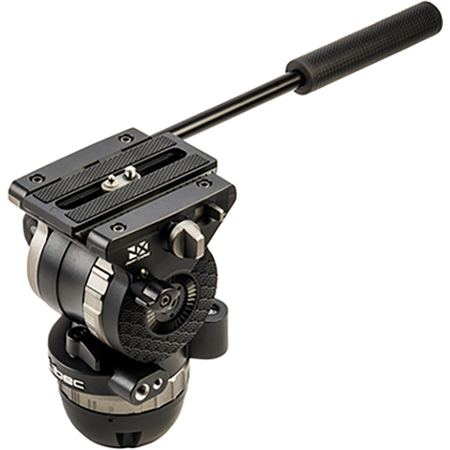

The Libec NH30 is a 75mm Ball and Flat Base Video Head with Pan Handle and has a maximum payload of 10kg.

Snap OF/OFF Plate
Equipped with a One touch attach and release mechanism. Also, the sliding plate is compatible with Manfrotto and Sachtler heads, for speedy and easy setups in the field.

Dual Head

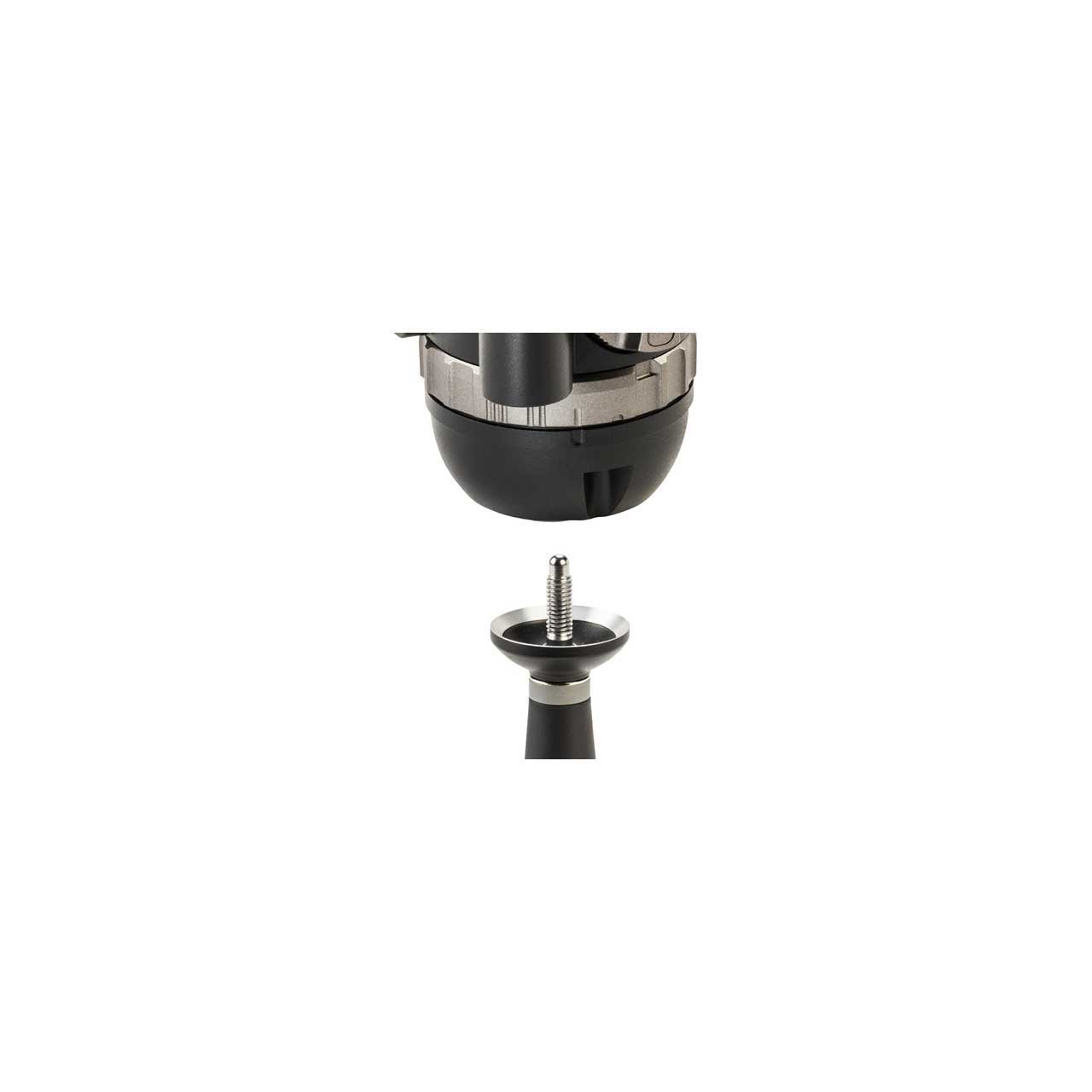

Dual head structure (flat base/75mm bowl) compatible with 75mm bowl tripods/flat base tripods, monopods, sliders, skater dollies, and other equipment with 3/8 inch screws.

Newly Designed Multistep Counterbalance Mechanism
The NX series can support a wide range of camera configurations with a newly designed multistep counterbalance system that fits variety of production styles. Users can select from 5 steps of counterbalance including a zero "free" mode option for speedy set-up.

Operability with Precision
Thanks to specially skilled craftsmen in Libec Japan, we adapted an innovative design to maximize NX's performance. As result, a significant reduction in wobbling and backlash in pan and tilt movements are achieved and offers the best precision operability in its range by far.

  • Features:

    • Snap On/Off Plate
    • Double-sided Serrations
    • Dual Head structure
    • Newly Designed Multistep Counterbalance Mechanism
    • Advanced Drag Unit

  • Specifications:

    • Counterbalance Range: 0 to 10kg / 0 to 22lb(C.G.55mm)
    • Payload: 10kg / 22lb
    • Counterbalance: Multistep Counterbalance
    • Counterbalance mode: Free plus 5STEP
    • Pan drag mode: Free plus 3STEP
    • Tilt drag mode: Free plus 3STEP
    • Drag system: Multilayered Metal Structure
    • Tilt angle: +90° / -70°
    • Temperature range: -40°C to +60°C / -40°F to +140°F

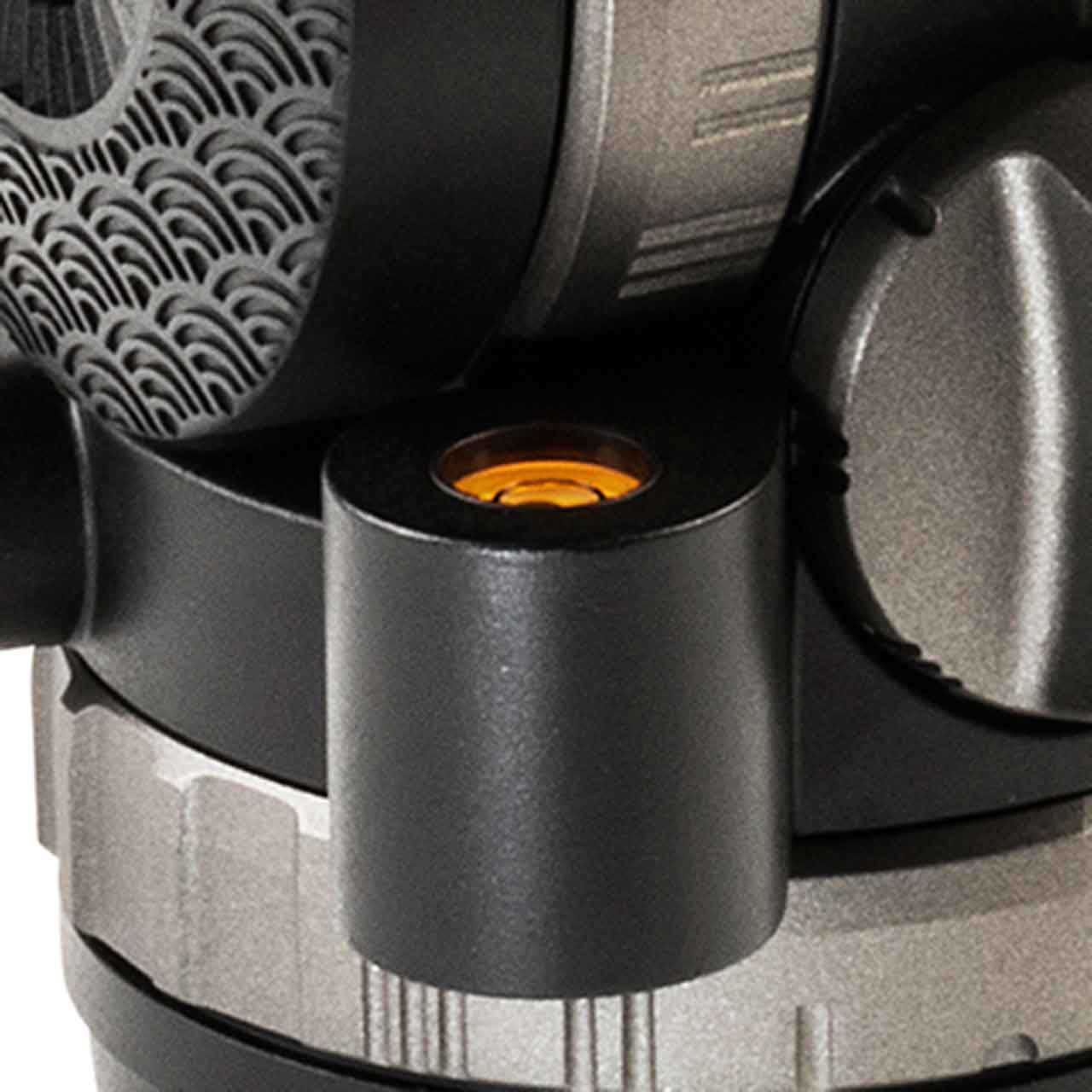

    • Bubble level: Illuminated
    • Camera plate: Sliding plate
    • Compatible with: Manfrotto and Sachtler heads
    • Sliding range: +/-30mm / 1.2"
    • Head attachment: 75mm ball / Flat base
    • Plate attachment: 1/4" screw with video pin
    • Accessory attachment: 1/4" and 3/8" screws holes
    • Spare screw: 1/4" and 3/8" screws
    • Weight: 1.8kg / 4.0lb

  • GTIN:

    4986397462026


NH30 - Required Accessories
