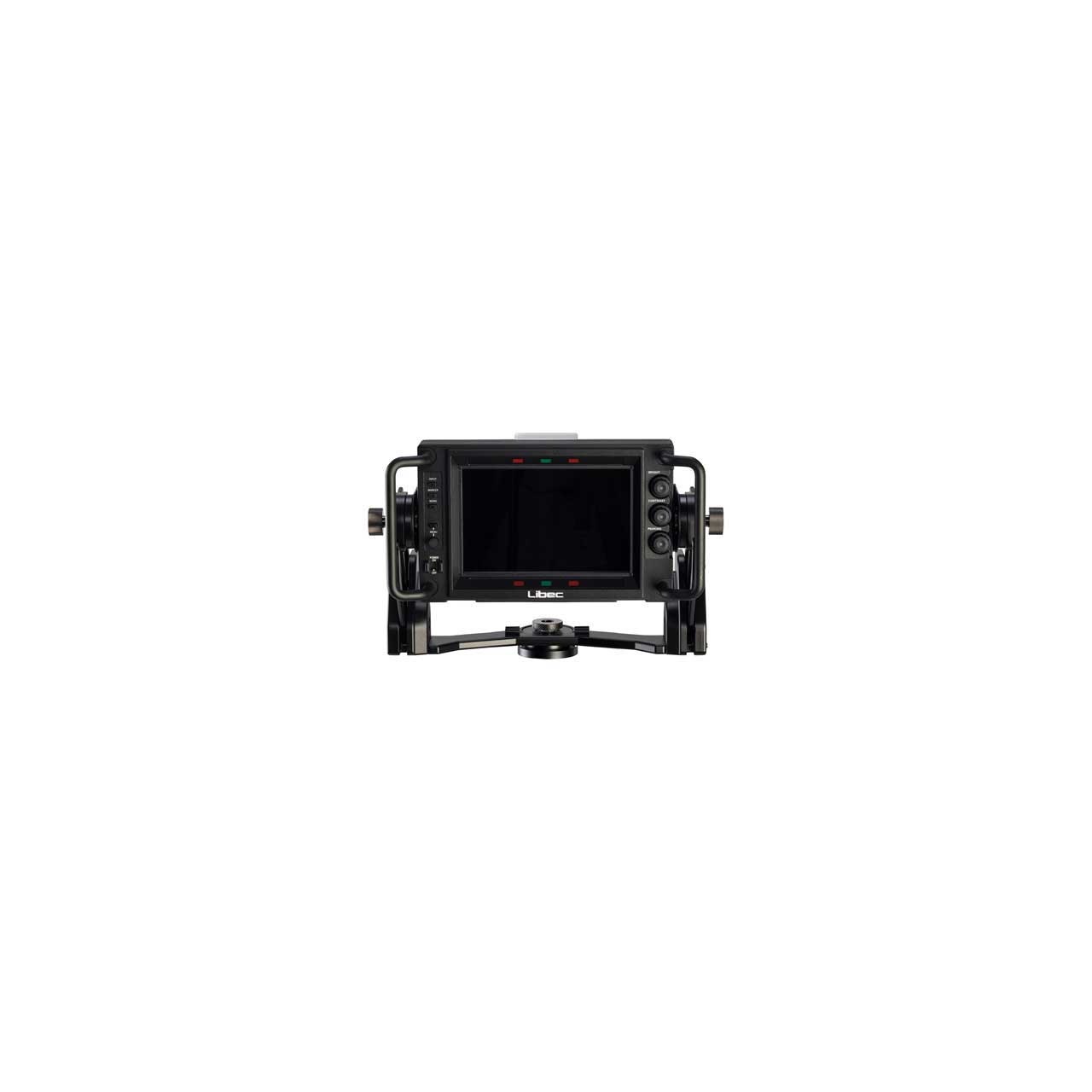

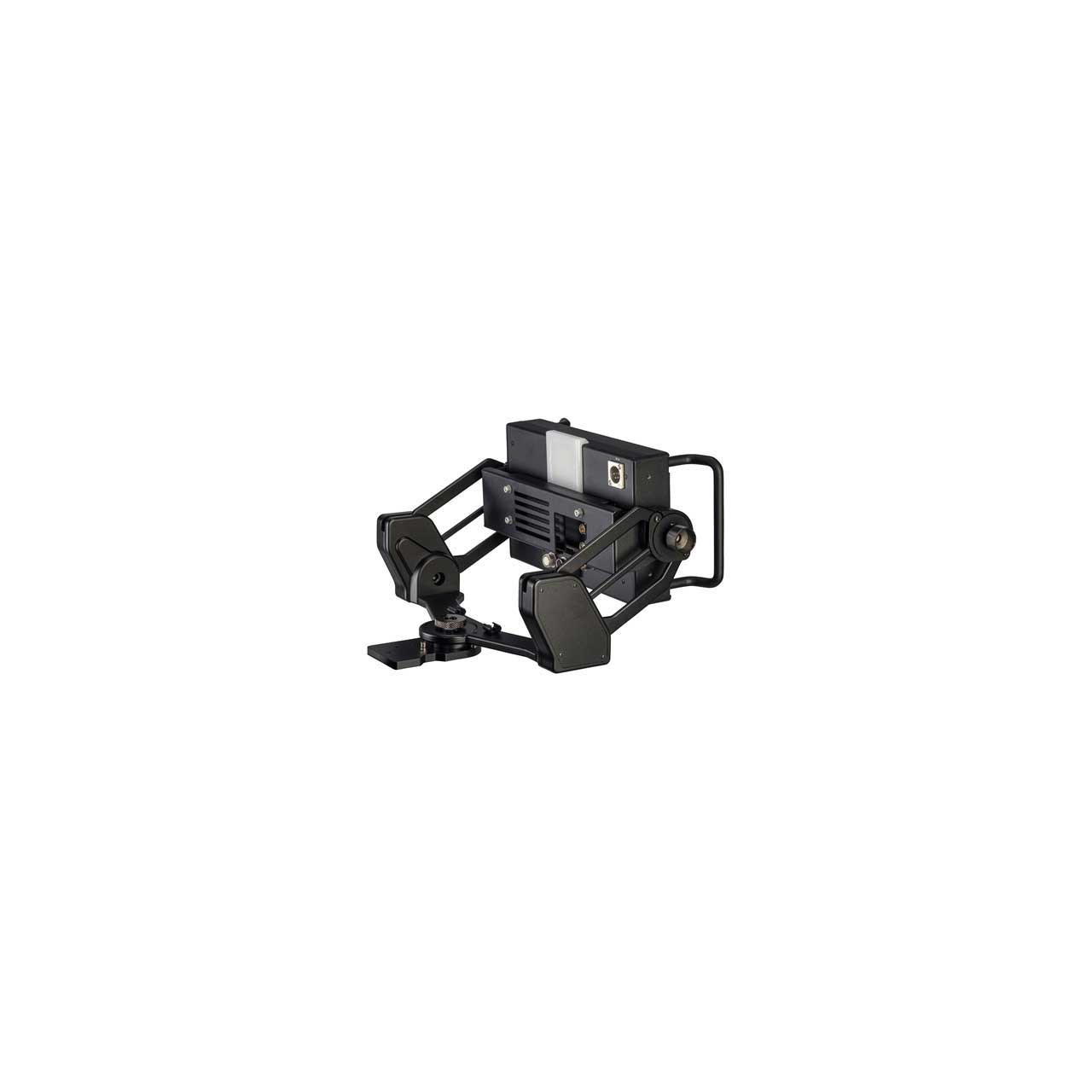

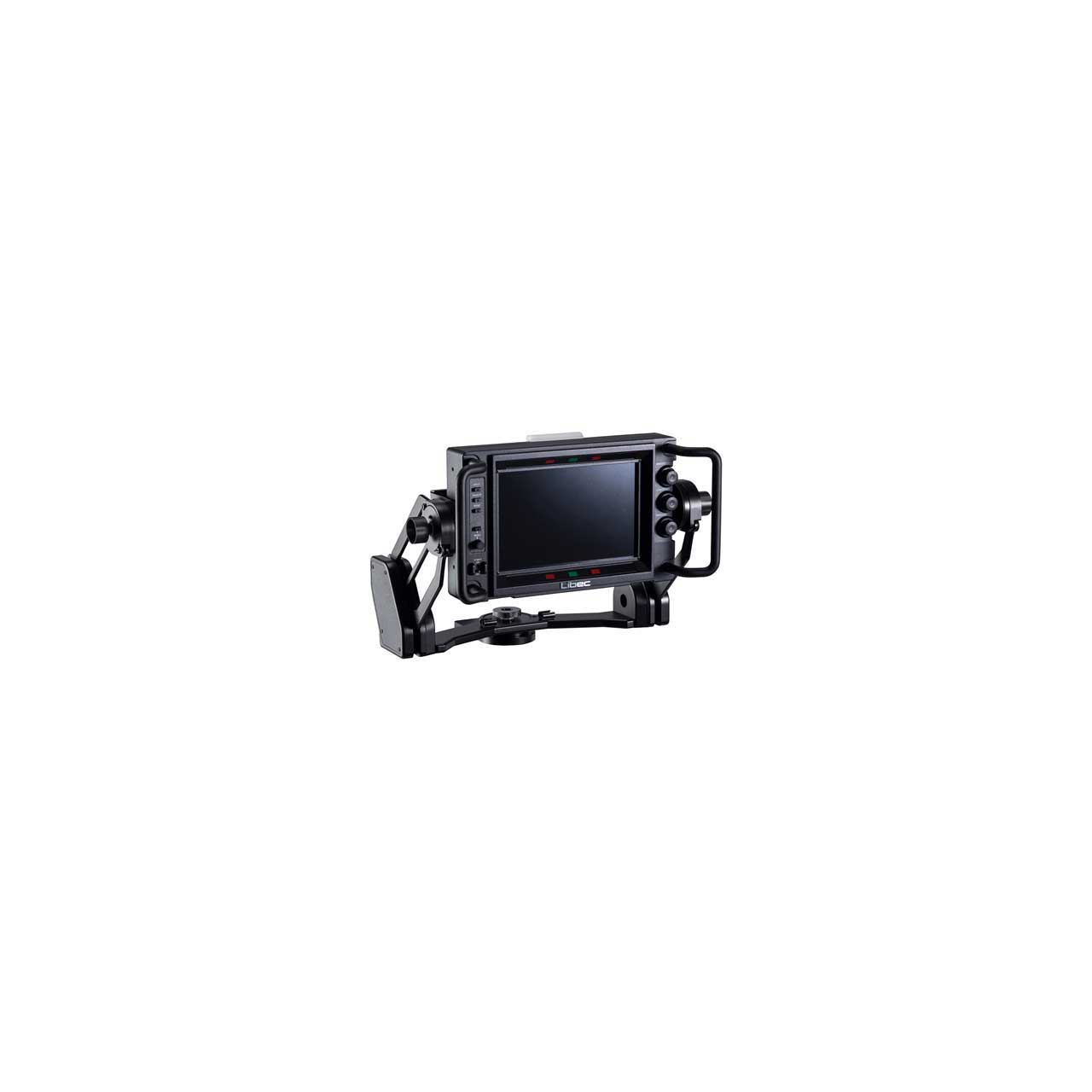

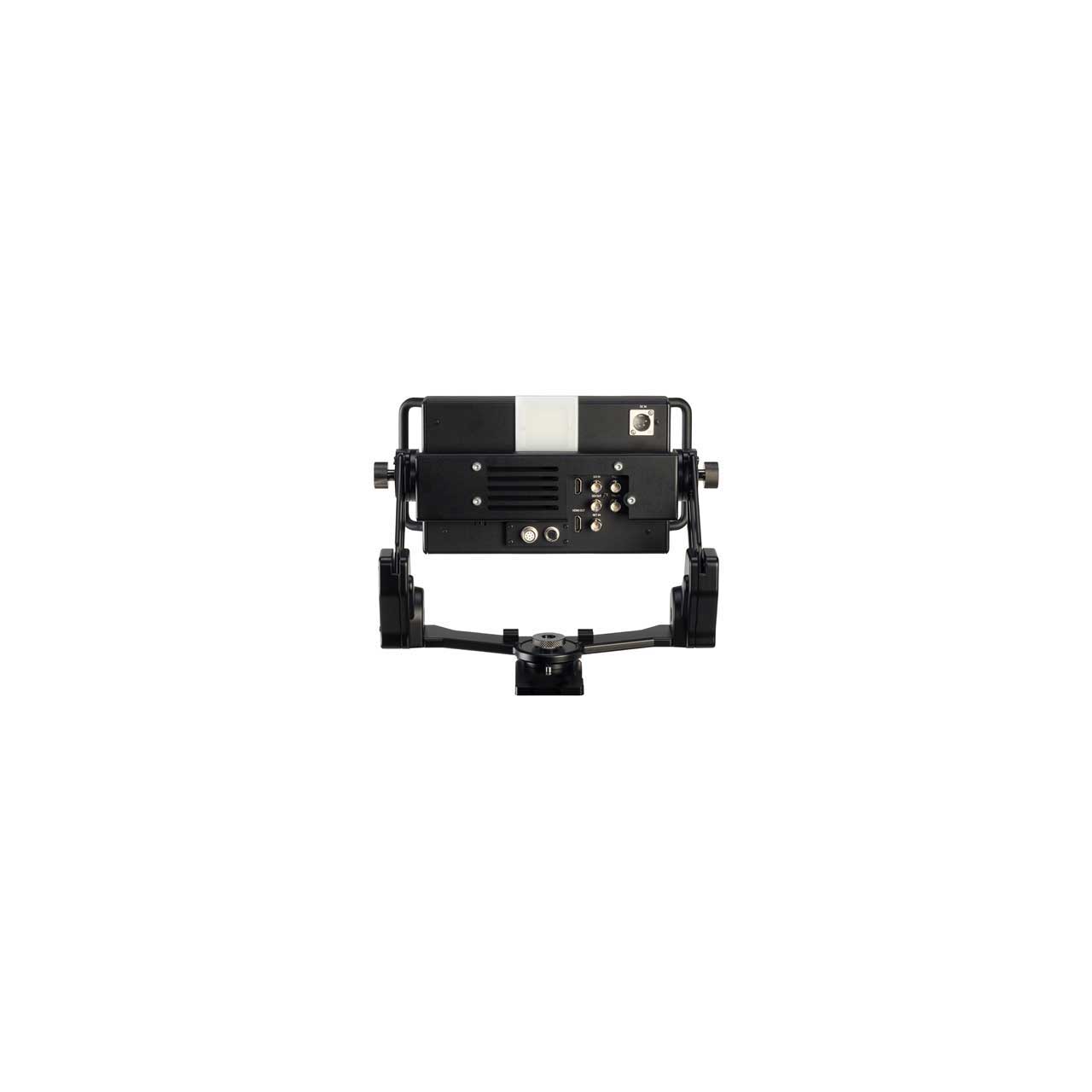

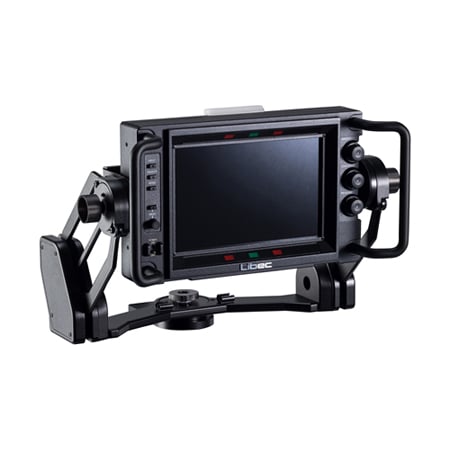

Libec SVF-7PRO Full HD 7-Inch Viewfinder for Studio Cameras

SVF-7PRO - Overview

• Features:

  • Full HD 7-inch Monitor This Japan made high-quality viewfinder with a 1920 x 1080 Full HD TFT LCD panel enables users to clearly view footage detail with a high brightness & contrast ratio, achieving vivid and excellent color gradation.
  • 170 Degree View Angle 170 degree wide view angle offers clear images without a color and contrast shift at any angle.
  • Multi-connectivity Libec Viewfinder provides multi-connectivity with 3G-SDI, HDMI, Analog HD component and a lot more terminals. In addition, it allows return input and through output.
  • Compatible with Different Types of Video Input Signals Compatible with various frame rates and interlace/progressive input signals. Input signals are automatically recognized without adjusting settings.
  • A Variety of Measure Functions A waveform monitor, vector scope and other scopes can be easily displayed to monitor footage. The professional scopes allow to precisely adjust overexposure/underexposure, white balance and more on site.
  • A Variety of Marker Displays The center marker, the aspect marker, the safety zone marker and flexible area markers are all available. The markers help users frame the perfect video shot.

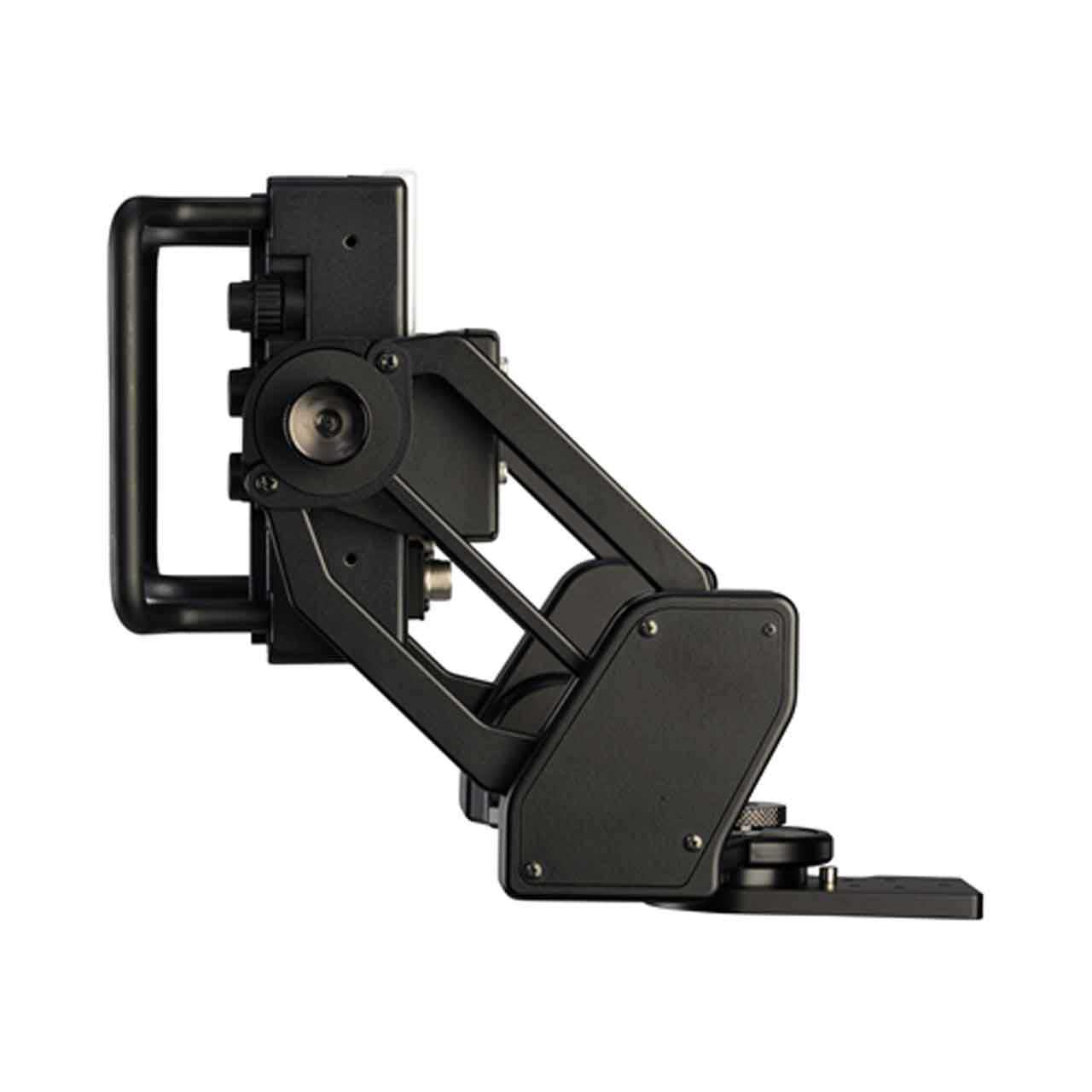

  • Large Grip Handles and Variable Tension Pivot Points The large left and right grip handles make positioning the viewfinder and adjusting its angle a piece of cake, even while cameras are on air.
  • A Variety of Shoe Attachments The shoe attachments, which securely set on the camera, are available as optional accessories to attach Sony, Ikegami and Hitachi cameras.
  • Tally Indicators The Viewfinder comes with three tally indicators, two sets for the Front Tally (Green and Red), and one for the Rear Tally (Red). The brightness is adjustable for better viewing.
  • Lightweight and Robust Body In order to achieve the enhanced lightweight and robust texture, magnesium alloy is adopted to the main body.


• Specifications:

  • Picture Resolution: 1920 x 1080
  • Brightness: 350cd/m²
  • Viewing Angle: 170°(H) / 170°(V)
  • Color Reproduction: 16.7M colors
  • Display Area (HxV): 5.94 x 3.35" (151 x 85mm)
  • SDI Input: BNC x1
  • SDI Output: BNC x1
  • SDI Return Input: BNC x1
  • HDMI Input: HDMI x1
  • HDMI Output: HDMI x1
  • CAMERA Input: 20-pin x1, Analog HD component (Y/PB/PR or G/B/R)
  • TALLY In:
    TALLY1: BNC x 1, Green (2V- 4V) / Red (4.1V- 5V) / OFF (0V- 2V)
    TALLY2: BNC x 1, Red (ON / Short to GND) / OFF (Open)
  • TALLY Indicator:
    Front tally x 2 sets, Green / Red Brightness adjustable in MENU
    Rear tally x 1, Red Brightness adjustable in MENU
  • Weight: 2.65Lbs (1.2kg) (without accessories)
  • Size: 9.13 x 5.75 x 1.85" (232 x 146 x 47mm) (excluding protrusions)
  • Power Consumption: 12W
  • Operating Temperature:
  • Operating Humidity: 30 to 85%
  • Storage Temperature: 14° to 113°F (-10° to 45°C)
  • Storage Humidity: 0 to 90%
  • Video Input Signal:
    1080p (59.94 / 50 / 29.97 / 25 / 24 / 23.98)
    1080i (59.94 / 50)
    1080PsF (29.97 / 25 / 24 / 23.98)
    720p (59.94 / 50)


• GTIN:

  4986397469049
