AVMATRIX PVS0615U Portable 6 Channel SDI/HDMI Multi-Format Streaming Video Switcher

PVS0615U - Overview

• Features:

  • Uncompressed capture for live streaming, comply with UVC & UAC

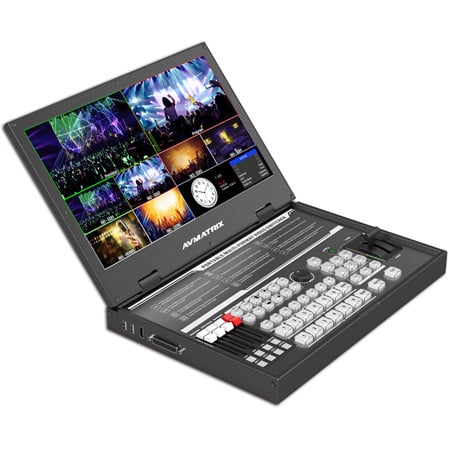

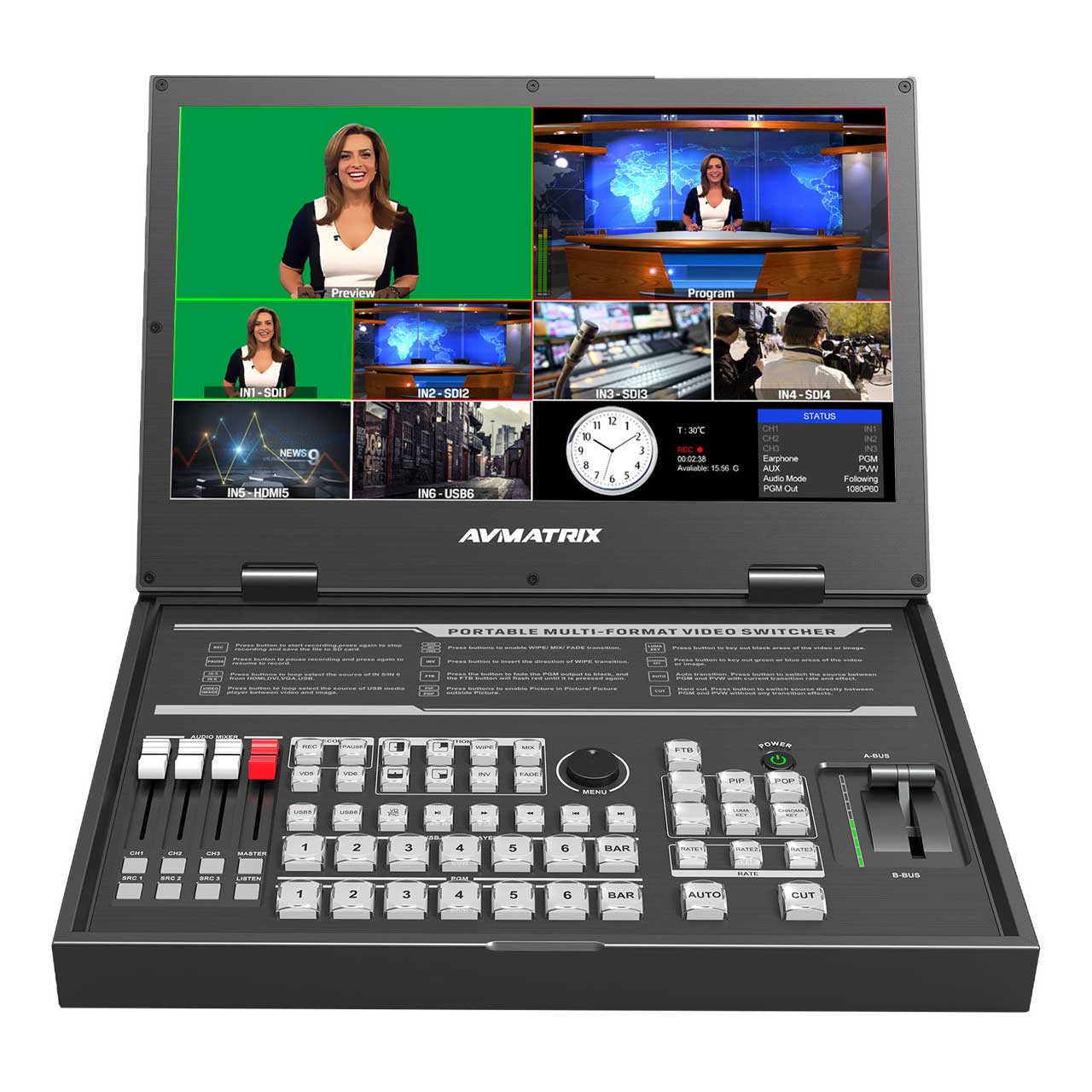

  • Portable All-In-One design with 15.6 inch FHD LCD display for multiview
  • Multiformat input auto-detected and PGM/AUX output format selectable
  • T-Bar/AUTO/CUT transitions and MIX/FADE/WIPE effects
  • Luma Key/Chroma Key/Recorder
  • Audio Mixer: TRS audio & SDI, HDMI, USB embedded audio


• Specifications:

  • Functions
  • Transitions & Effects:
    - Manual T-Bar
    - AUTO
    - CUT
    - Wipe
    - Mix
    - Fade
    - FTB
    - Color Bar
  • Streaming: USB Type C uncompressed capture - compliant with UVC and UAC
  • Keys & Layouts:
    - Luma Key
    - Chroma Key
    - PiP
    - PoP
    - Multiview
  • Audio Mixer:
    - Following
    - Mixing
  • LCD Display: 15.6", 1920 x 1080 resolution
  • Record: SD Card, H.264, record for PGM up to 1080p60

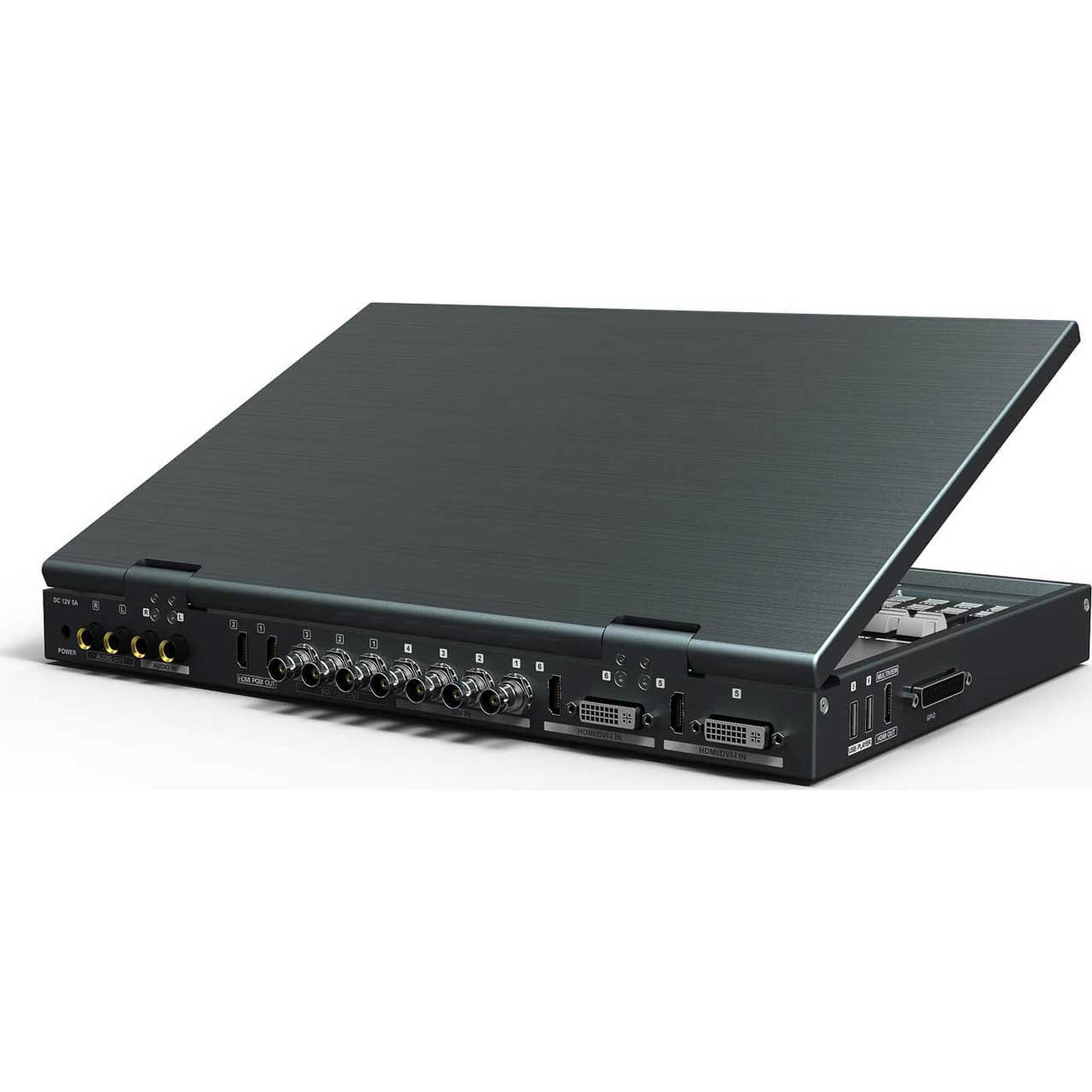

    Inputs
  • Video Inputs:
    - 4x SD/HD/3G-SDI (75Ω)
    - 2x HDMI 2.0 (100Ω)
    - 2x DVI-I (VGA-compatible)
  • USB Media Player: 2x USB-A
  • Analog Audio Inputs: 1x TRS (L/R)

    Outputs
  • PGM Streaming Outputs: 1x USB-C
  • PGM Outputs:
    - 2x HD/3G-SDI (75Ω)
    - 2x HDMI (100Ω)
  • AUX Output (PGM/PVW): 1x HD/3G-SDI (75Ω)
  • Multiview Output: 1x HDMI
  • Analog Audio Output: 1x TRS (L/R)

    Data Interfaces
  • LAN: Synchronize local time
  • Tally: GPIO

    Standard
  • SDI Input Format Support:
    - 1080p 60/59.94/50/30/29.97/25/24/ 23.98
    - 1080PsF 30/29.97/25/24/23.98
    - 1080i - 60/59.94/50
    - 720p - 60/59.94/50/30/29.97/25/24/23.98
    - 625i 50 PAL
    - 525i 59.94 NTSC
  • HDMI Input Format Support:
    - 4K 60/50/30
    - 2K 60/50/30
    - 1080p 60/59.94/50/30/29.97/25/24/23.98
    - 1080i 50/59.94/60
    - 720p 60/59.94/50/30/29.97/25/24/23.98
    - 576i 50
    - 576p 50
  • SDI & HDMI Scaling Output:
    - 1080p 60/50/30/25/24
    - 1080i 60/50
  • Multiview HDMI Output: 1080p 60
  • SDI Compliance: SMPTE 292M/259M/424M
  • USB Capture: Compatible with USB 3.0 and USB 2.0, up to 1080p60Hz

    Size

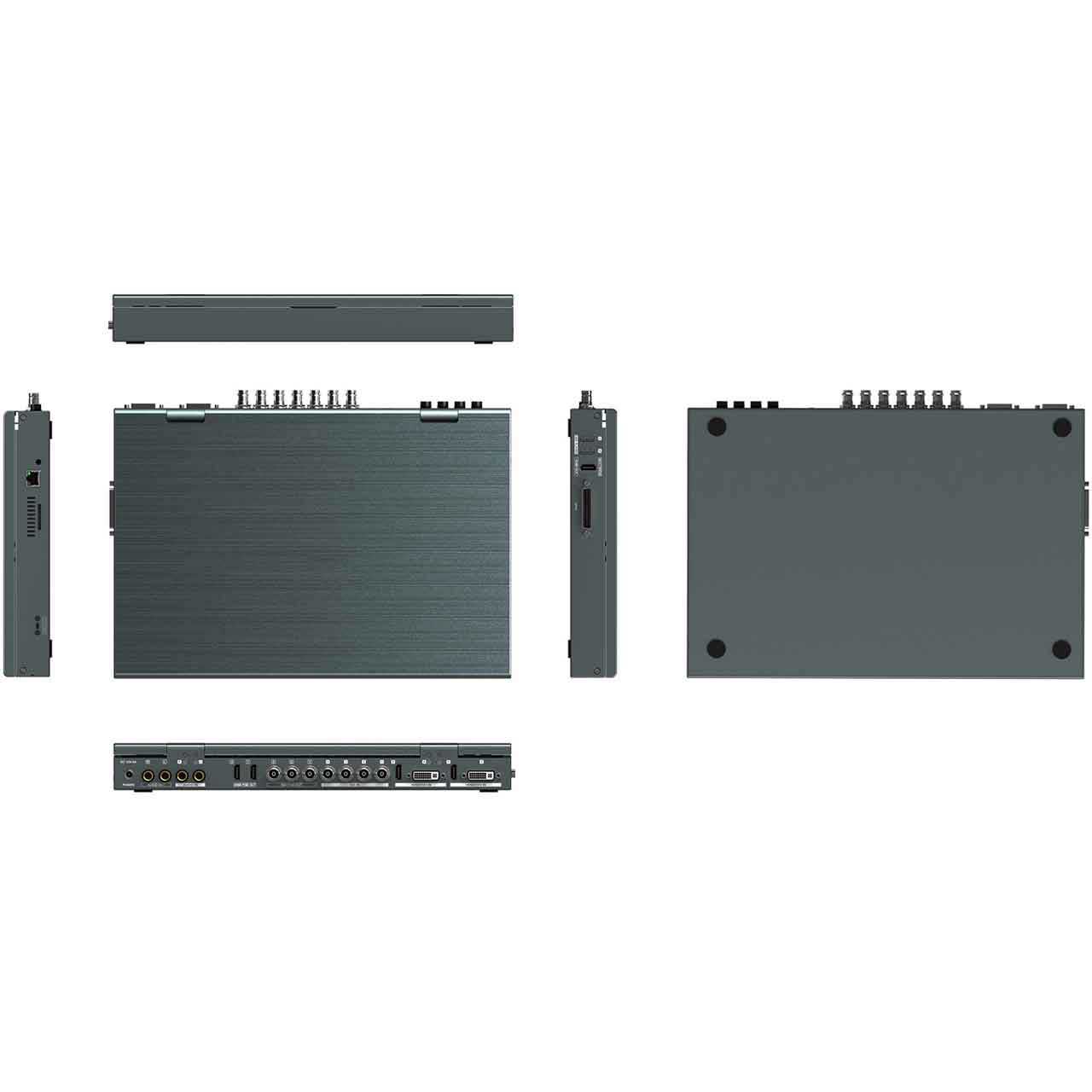

  • Dimensions (LxWxD): 14.76" x 10.69" x 1.72" (375mm x 271.5mm x 43.7mm)
  • Weight: 8.82lbs (4.0kg)


  • Power Supply: DC 12V 5A/33W


• Item Includes:

  • 1x AVMATRIX PVS0615U 15.6" Portable 6 Channel SDI/HDMI Multi-Format Streaming Video Switcher


• GTIN:

  6971118000395
