Lowell 810-T72 15W 8 Inch Dual-Cone Transducer w/ 25V/70V Transformer

ITEM #: LMC-810-T72 MFG #: 810-T72

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$48.40

Our Price:

$42.59

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


810-T72 - Overview

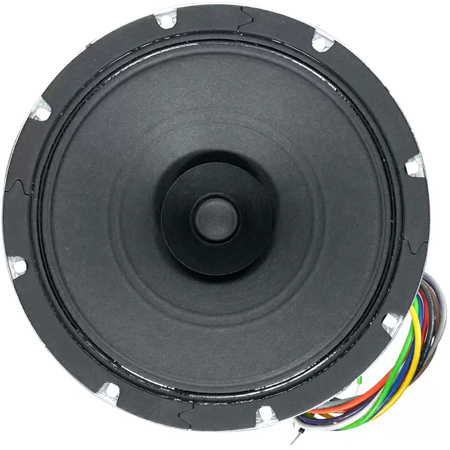

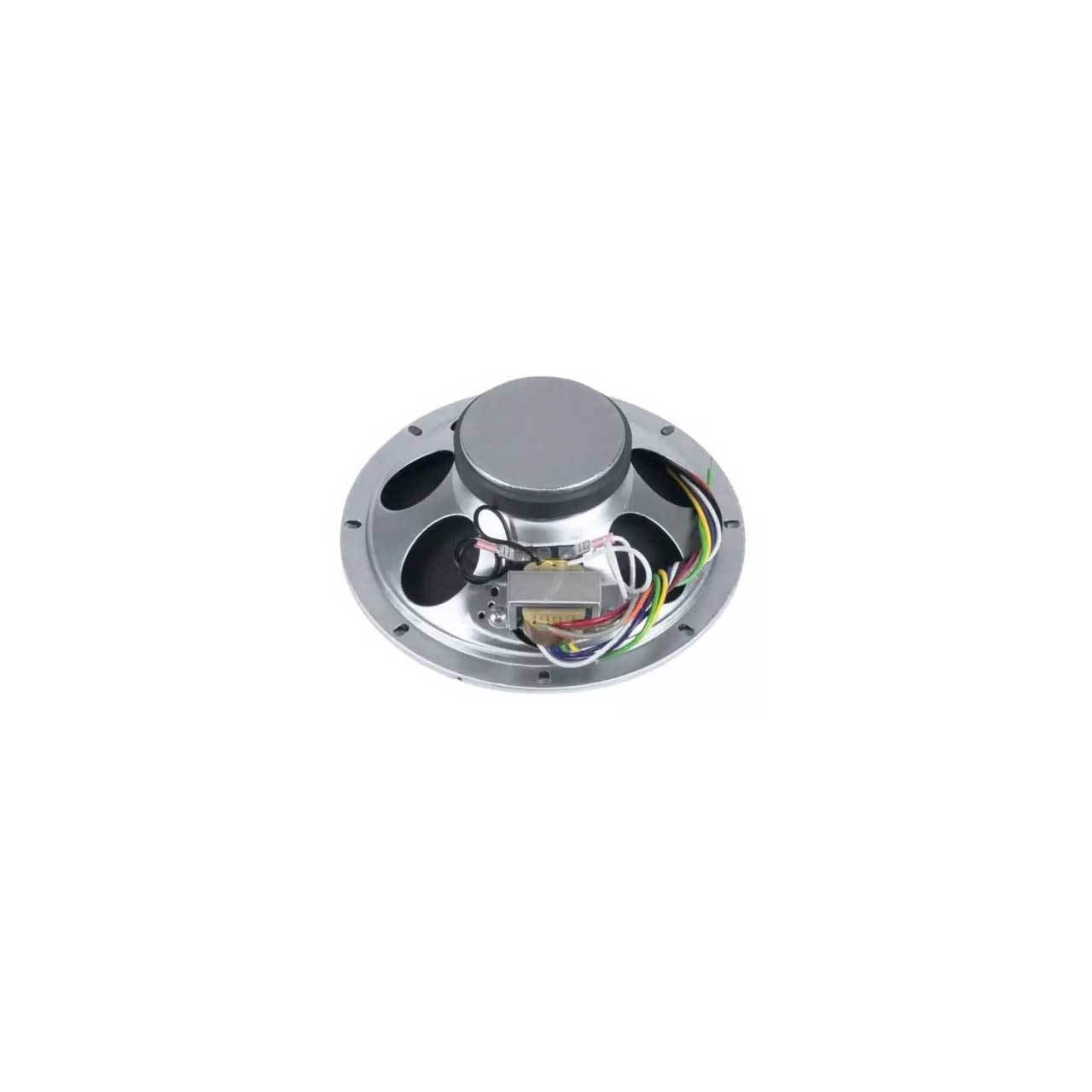

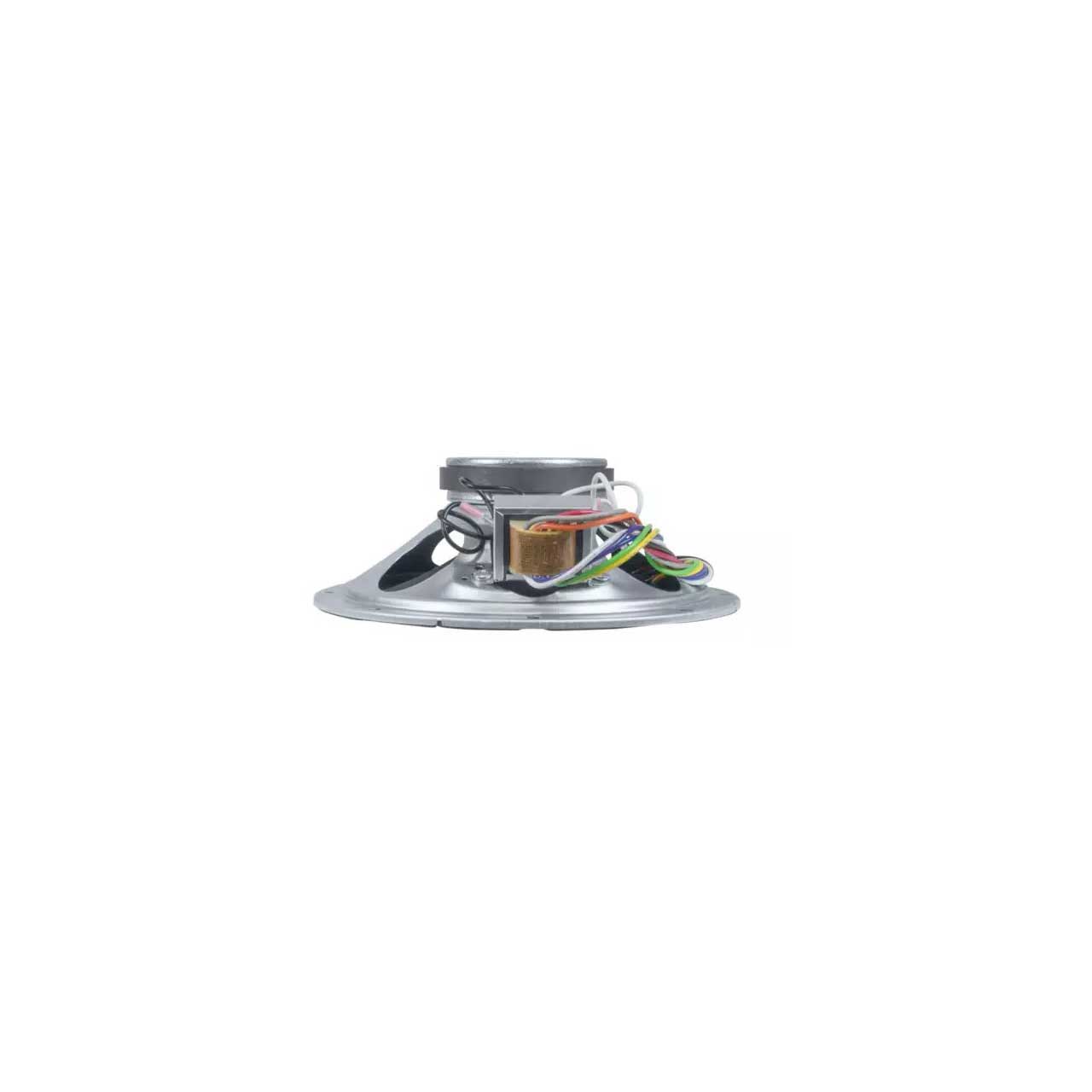

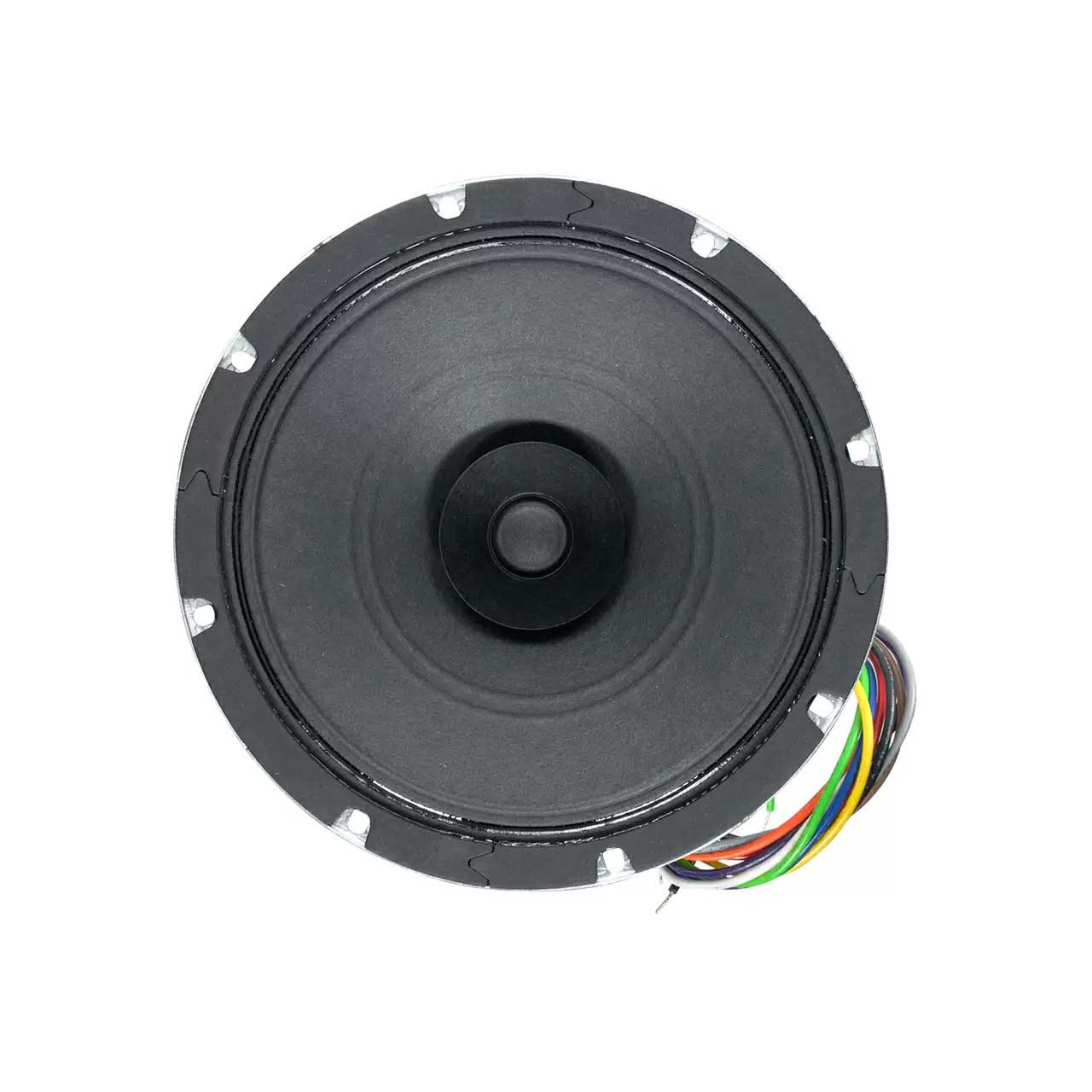

The Lowell 810-T72 dual cone 8-inch 15W driver with mounted dual voltage (25V/70V) 5W transformer provides solid performance for paging and background music. The driver features a 10 oz. ceramic magnet, 3/4-inch hard fiber whizzer cone, 1-inch voice coil and 20-gauge steel frame with zinc-plated finish. Meets or exceeds applicable E.I.A. standards.

  • Specifications:

    • Driver: 8 in. 15W dual cone driver with 10 oz. ceramic magnet, hard fiber whizzer cone and 1 in. voice coil.
    • Frame: 20-gauge stamped steel with zinc-plated finish.
    • Mounting Bolt Circle: 7.625 in.
    • Transformer: 25V/70V with taps at 0.25, .5, 1, 2, 5W
    • Assembly Frequency Response: 51Hz-11.6kHz (±6dB) and 50Hz- 20kHz (±6.4dB)
    • Assembly Mounting Depth: 2.84 in.
    • Assembly Dispersion Angle: 95 degrees conical
    • Assembly Average Sensitivity: 97.9dB

  • Warranty:

    • 3 years
