Lowell ACR-2009 20A Power Panel w/ Surge Protection - 5 Switched / 4 Unswitched Outlets

ITEM #: LMC-ACR-2009 MFG #: ACR-2009

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$386.00

Our Price:

$339.68

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ACR-2009 - Overview

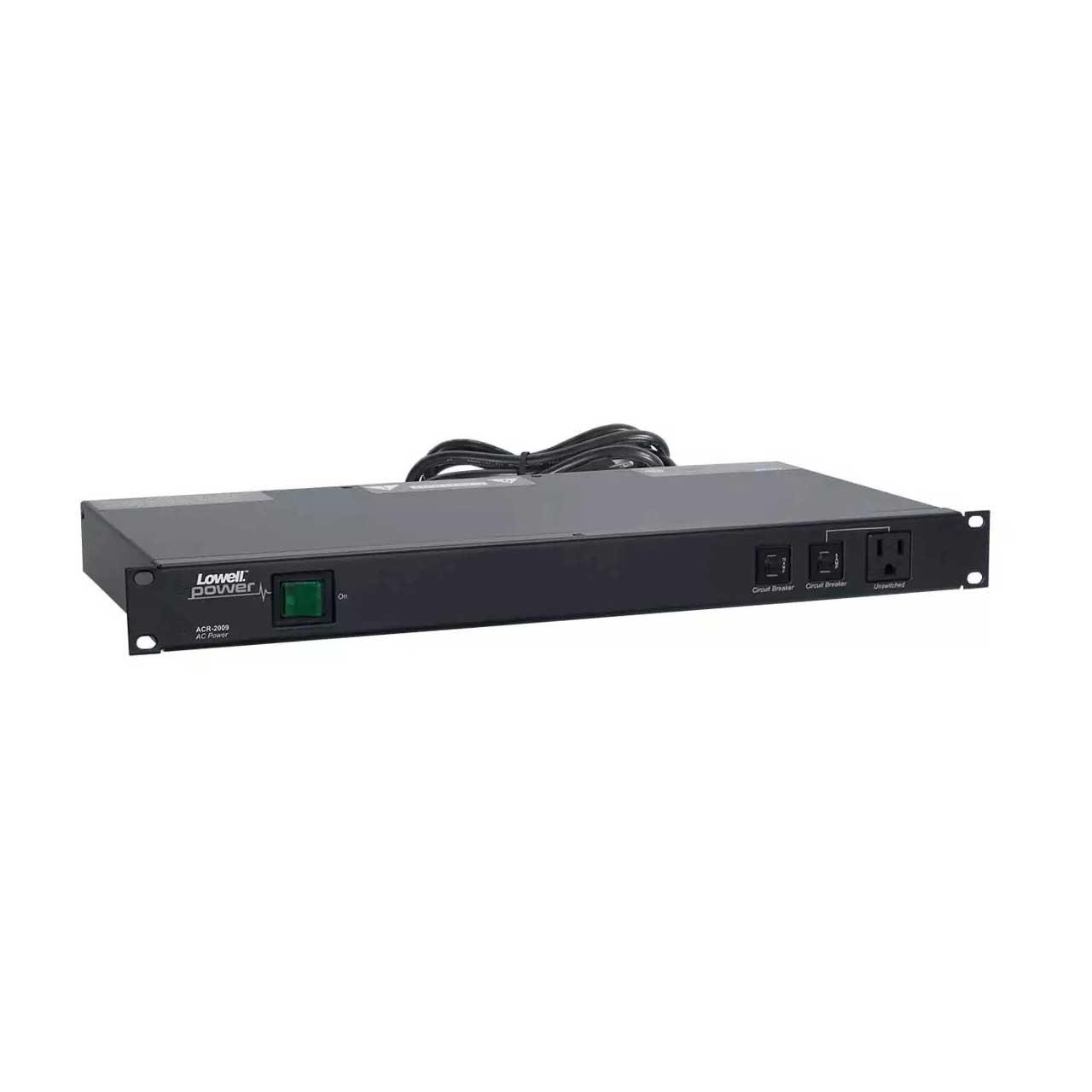

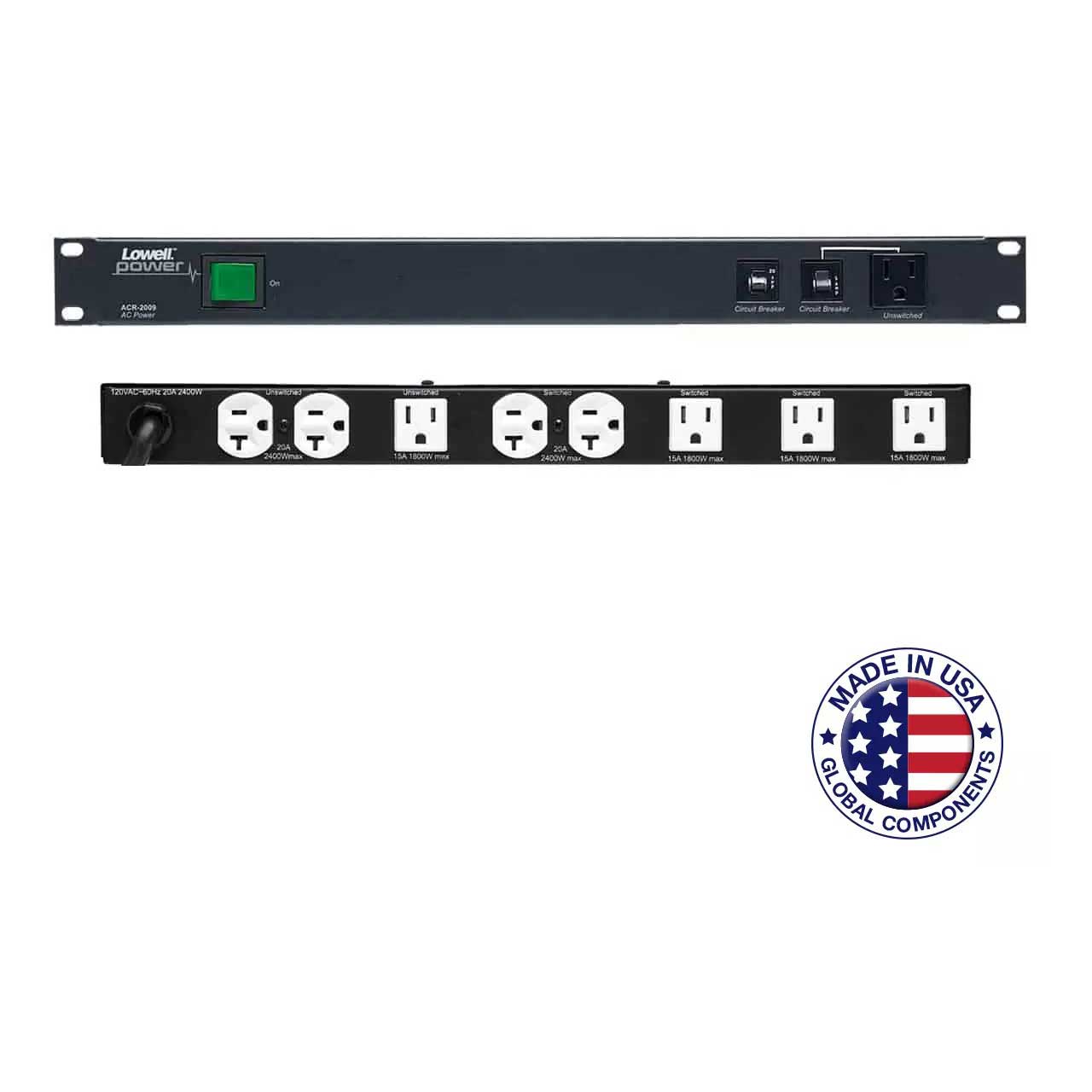

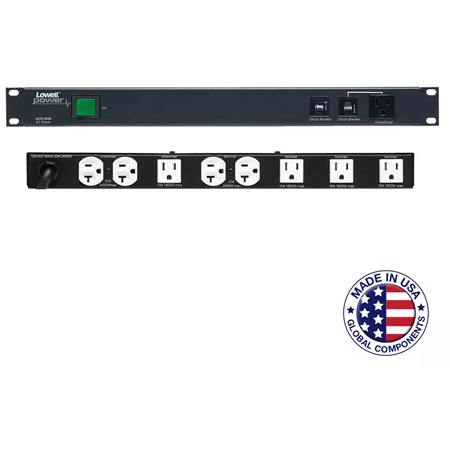

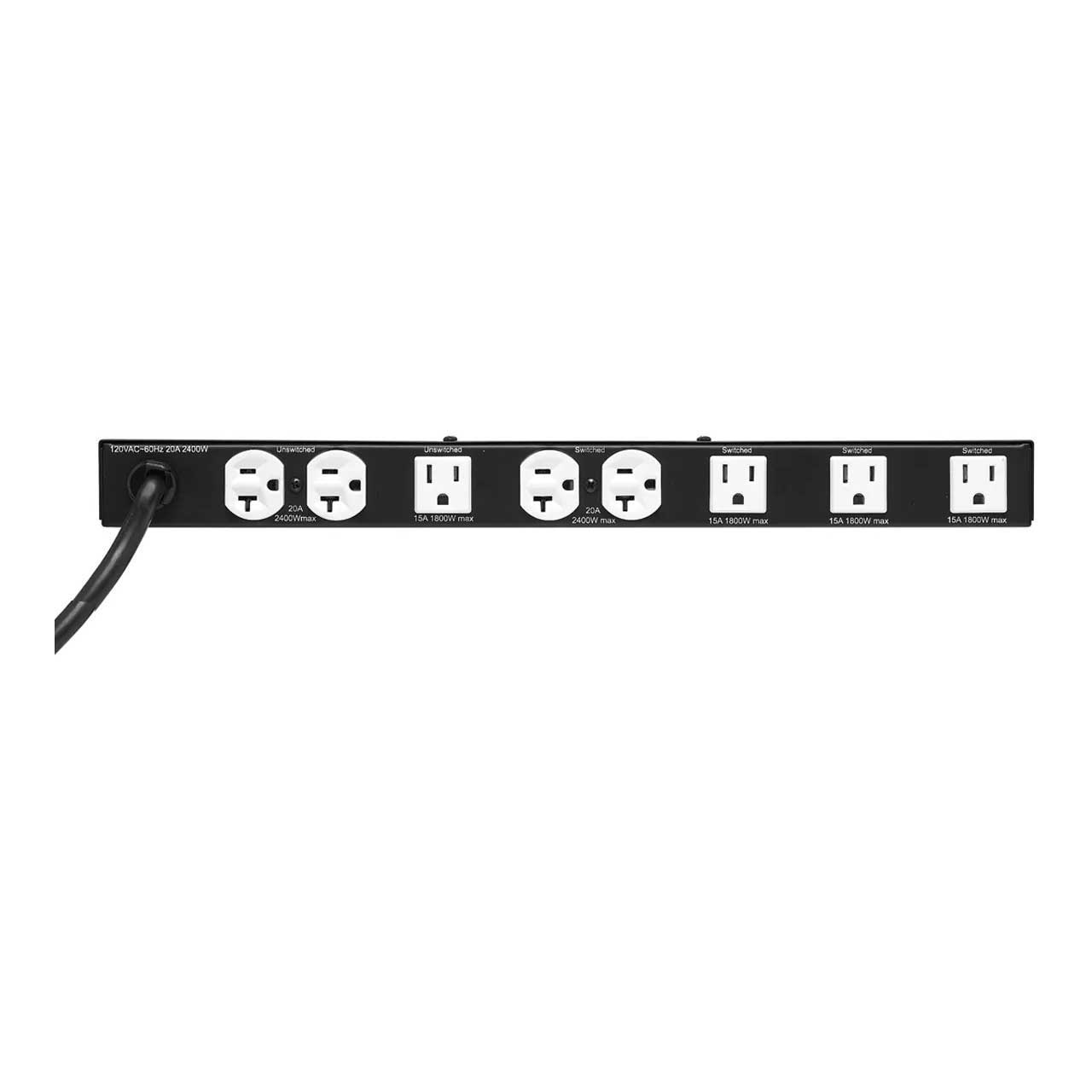

The Lowell ACR-2009 power distribution panel with a total of nine receptacles (NEMA 5-15R/5-20R) includes eight rear receptacles, some controlled by the front rocker switch and a front convenience outlet that's always on. The 120VAC 60Hz 20A panel has a system circuit breaker and a separate circuit breaker to independently protect the front outlet, minimizing the possibility of system disruption when a non-system device is connected there. Includes attached 9-ft. cord with NEMA 5-20P plug.

  • Specifications:

    • Power Rating: 120VAC, 60Hz, 20A
    • Outlets: 9 (15A/20A) NEMA outlets (1 front, 8 rear).
    • Termination: 9 ft. attached cord with NEMA 5-20P plug
    • Chassis: 19 in. x 9 in. x 1.75 in. (1U)
    • On/off Switch: Rocker switch controls 5 rear outlets (others are always on)

  • Item Includes:

    • 1x 20A Power Panel
    • 5x Switched Outlets, 1U
    • 4x Unswitched Outlets, 1U
    • 1x 9ft Cord

  • Warranty:

    • 1 year
