Lowell RPAK-810-72 Pair Of 8 Inch 25V/70V Speakers w/ Grilles / Backcans / Bridges

Name: Lowell RPAK-810-72 Pair Of 8 Inch 25V/70V Speakers w/ Grilles / Backcans / Bridges
Brand: Lowell Manufacturing Co.
SKU: LMC-RPAK-810-72
Price: 183.04 USD
Availability: PreSale

ITEM #: LMC-RPAK-810-72 MFG #: RPAK-810-72

Lowell Manufacturing Co.

List Price:

$208.00

Our Price:

$183.04

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

RPAK-810-72 - Overview

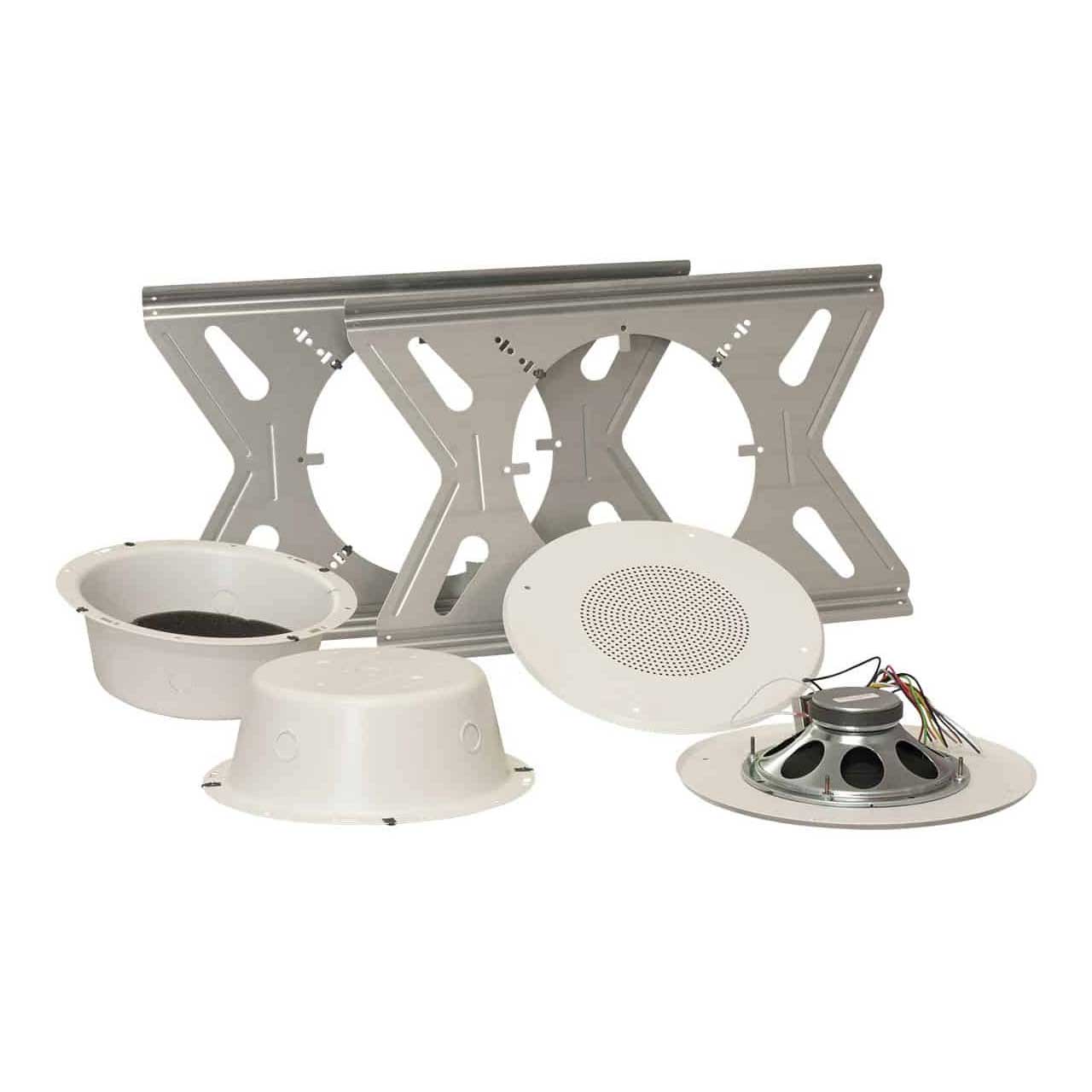

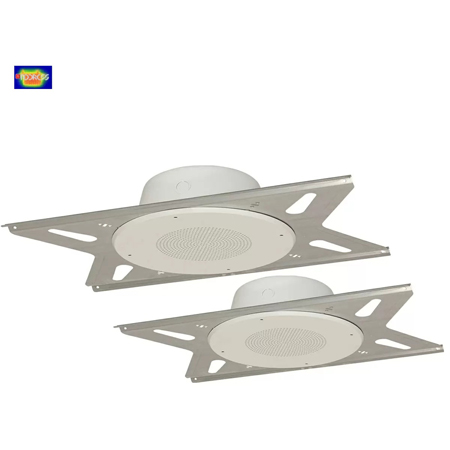

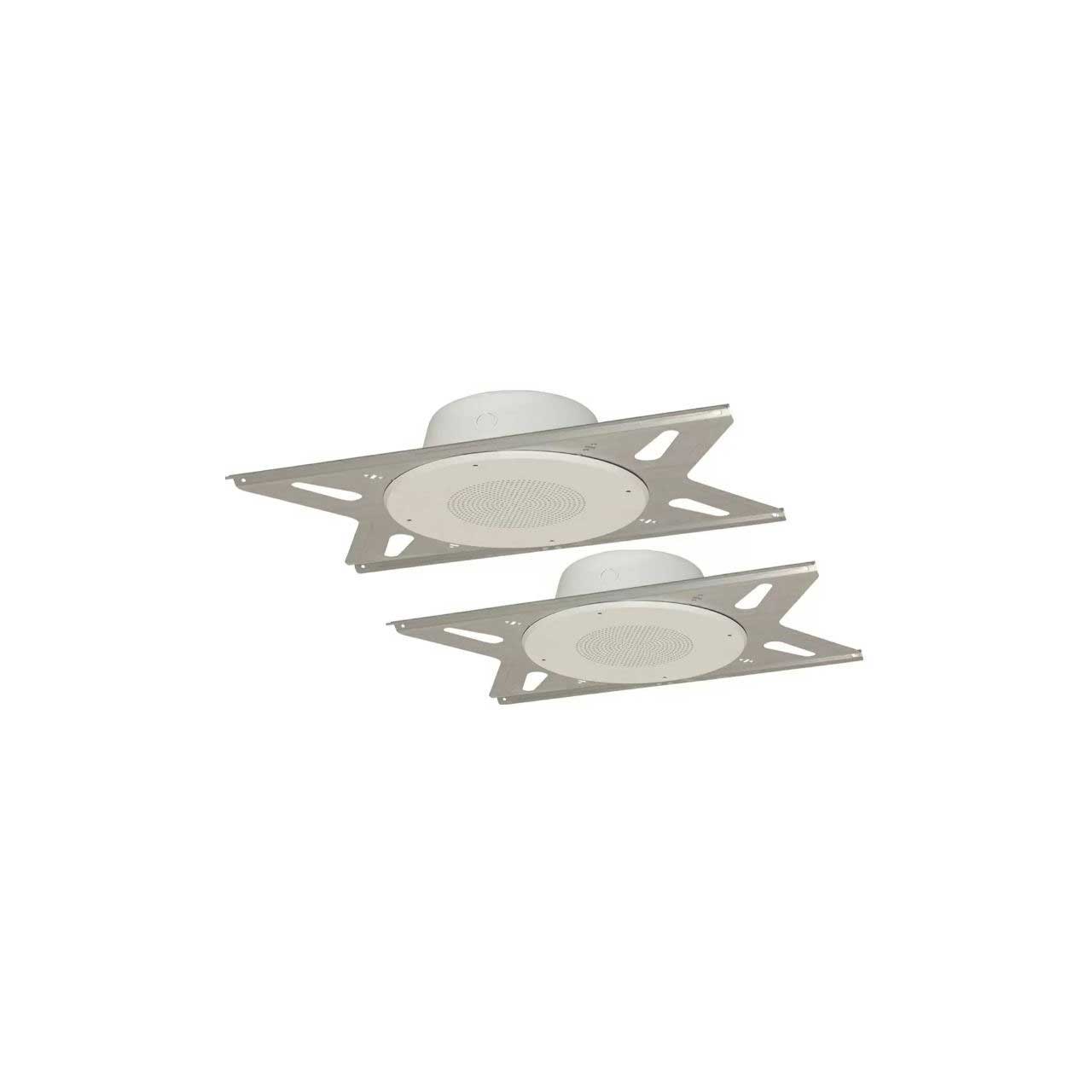

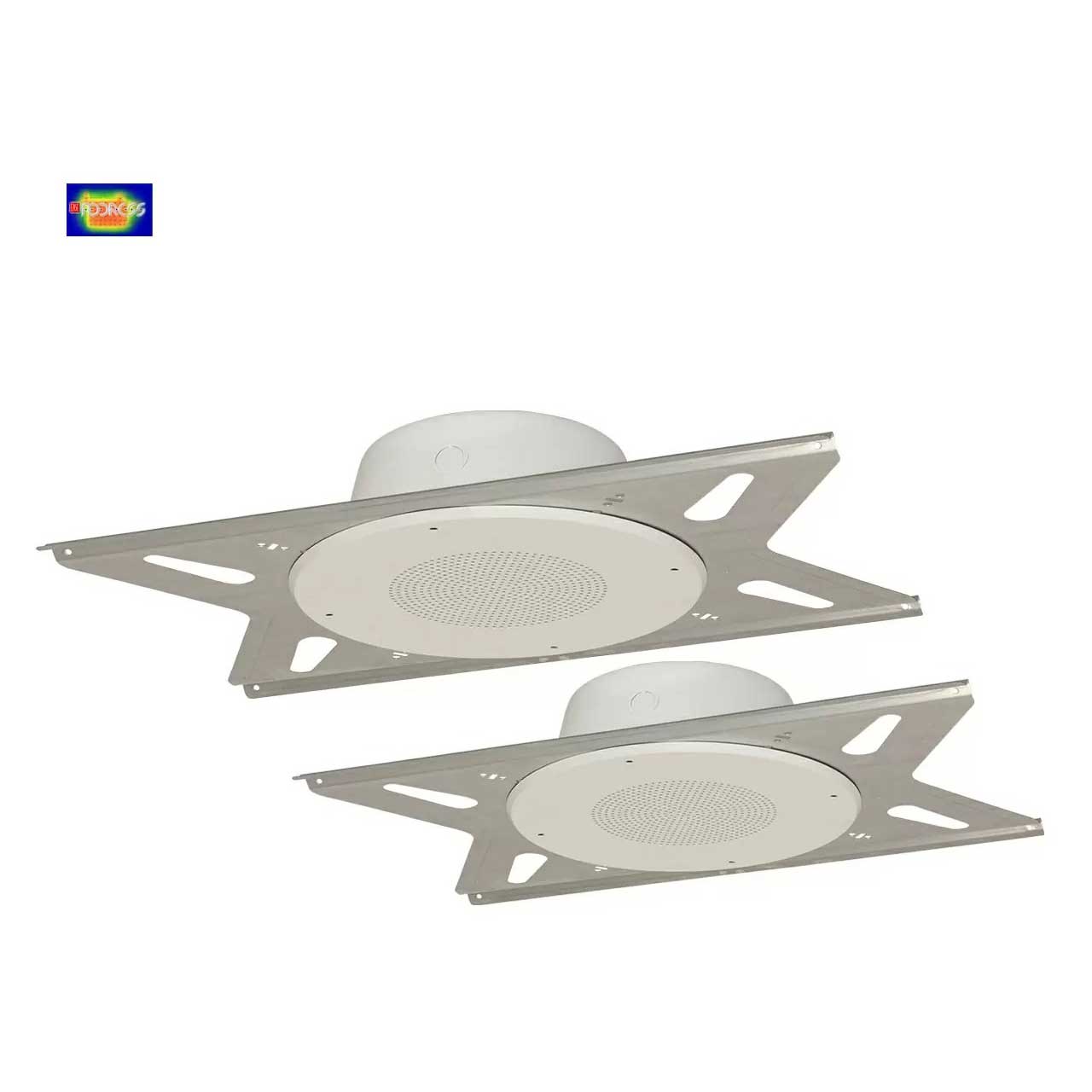

The Lowell RPAK-810-72 ceiling speaker kit for general purpose paging and background music. The kit includes a set of two (2) 8-inch 15W dual cone speakers with factory-mounted dual-voltage (25V/70V) transformers, round steel grilles, round enclosures and tile-bridges.

Specifications:
- Driver (No. 810): 8 in. 15W dual cone with 10 oz. magnet, 54Hz–11.6kHz (±6dB) and 50Hz–20kHz (±6.6dB) frequency response, 97.9dB average sensitivity measured 1W/1M.
- Dual-Voltage Transformer: 25V/70V transformer with primary taps at .25, .5, 1, 2 and 5W.
- Steel Grille (No. WB-8): Factory mounted to driver with welded studs. Installs to enclosure and T-bridge with four white screws (provided). White finish.
- Enclosure (No. 8XD4): Heavy gauge steel with acoustic pad and four 1/2 – 3/4 in. knockouts for conduit. Punched lip for screw-mount installation of T-bridge. 10 in. diameter x 4 in. deep. White. Note: Does not include 8- 32 screws to mount enclosure to tile bridge.
- Tile-Bridge (No. LBS8-R1): Transfers weight to ceiling support structure in suspended tile ceilings. Galvanized steel with 4 wire-tie holes for seismic anchoring. 23.75 in. long.
Item Includes:
- 2x 8" Speaker, 5W 70/25V xfmr
- 2x Can
- 2x Tile Bridge
- 2x Grille
Warranty:
- 3 years
