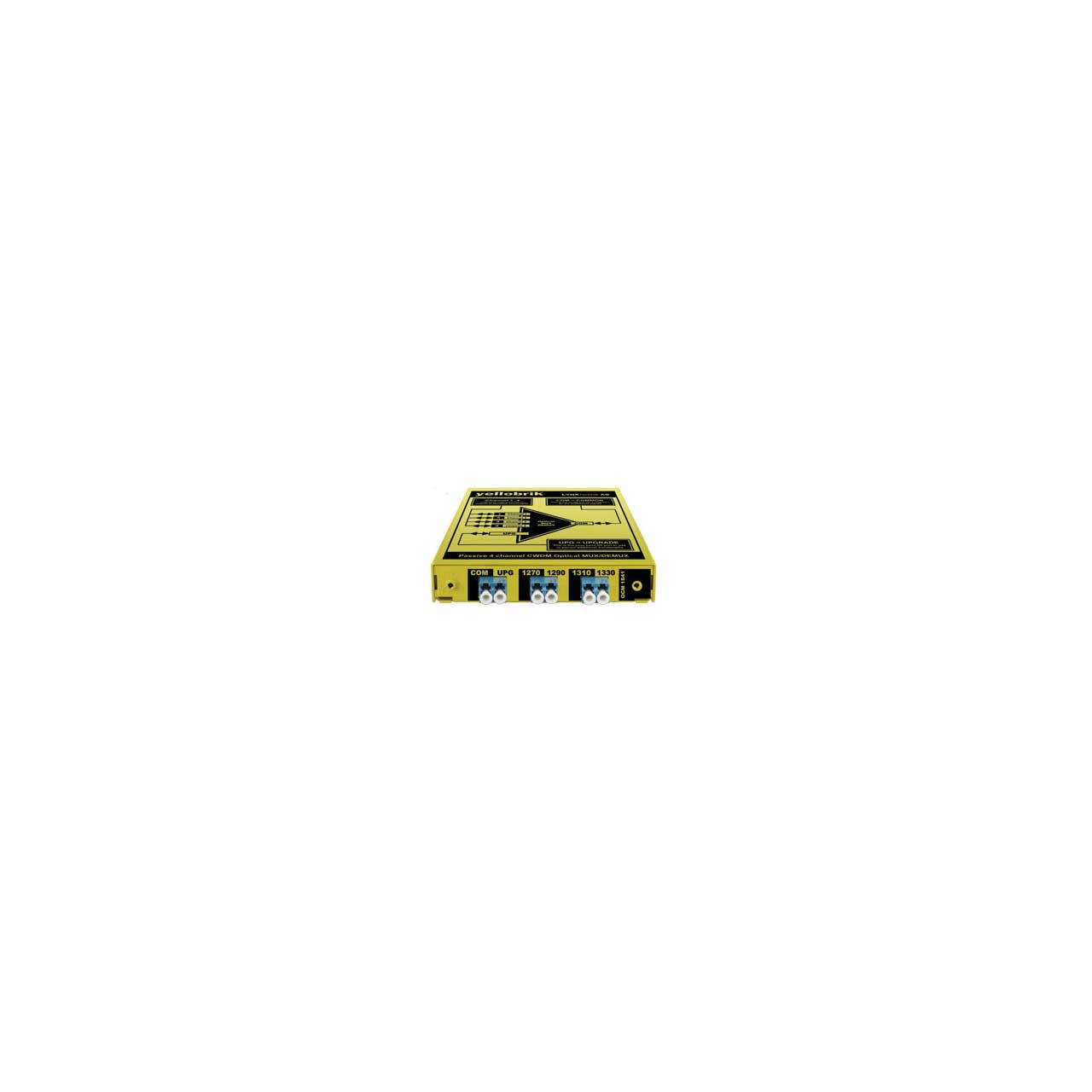

Primary Image
LYNX Technik Inc
Free Shipping with $49 Minimum Order

List Price:

$1,175.00

Our Price:

$1,116.25

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

OCM 1841 - Overview

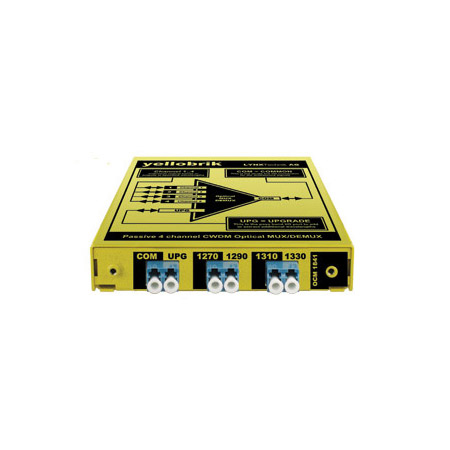

The LYNX Technik O CM 1841, OCM 1842, OCM 1843, OCM 1844 are compact CWDM passive 4-channel optical multiplexers/demultiplexers designed to send and receive up to 4 individual signals over a single fiber link. Each module has an UPG (Upgrade) port to cascade into the other 4 channel modules, expanding the capability of the system to a maximum of 16-channels.

The modules can be used standalone or integrated into the optional RFR 1018 1/2 RU 19" rack frame, which can accommodate all four modules. Ideal for system installations.

Ideally suited for use with the CWDM yellobrik fiber modules (all 16 wavelengths are available).

Please Note: SFP Modules Required, Sold Separately. Images for reference only.

  • Features:

    • Send and receive up to 4 channels over a single fiber link
    • Passive operation (no power required)
    • Combine all four modules for up to 16 channels
    • LC/PC single mode optical connections
    • Optional 1/2 RU 19" rack frame (RFR 1018)


  • Specifications:

    • Optical I/O
    • 4x Fiber Optic I/O channels
    • Center frequencies taken from ITU-T G.694.2
    • OCM 1841 = 1270,1290,1310,1330nm
    • 1x COM (common) connection = multiplexed I/O
    • 1x UPG (Upgrade) I/O connection
    • (pass band connection to other OCM 189x modules)
    • LC/PC connectors SMF (single mode)
    • Channel Insertion Loss: 2.7dB , UPG Insertion loss: 2.7dB
    • Polarization Dependant Loss: max 0.2dB
    • Return Loss: > 45dB
    • Isolation (to adjacent channel): > 30dB
    • Directivity > 55dB
    • Temp. Dependant Loss: < 0.005dB/°C
    • Temp. Dependant Change of Wavelength: < 0.003nm/°C
    • Max. Input Power: 500mw
    • Single or full duplex operation

      Physical
    • Power: None required (passive operation)
    • Size: 4.72" x 3.93" x 0.75" (120mm x 100mm x 18mm)
    • Weight: 4.94oz (140g)


  • Item Includes:

    • 1x Lynx LNX-OCM1841
    • SFP Modules Required, Sold Separately.


  • GTIN:

    4250479319417
