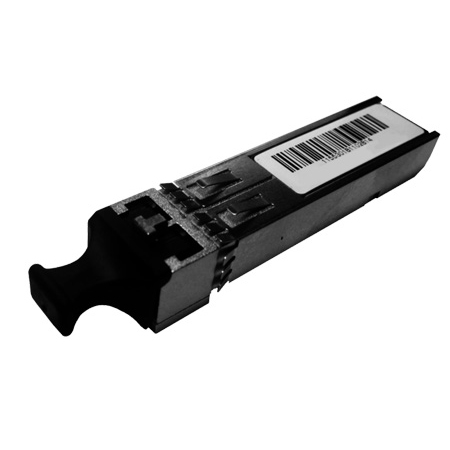

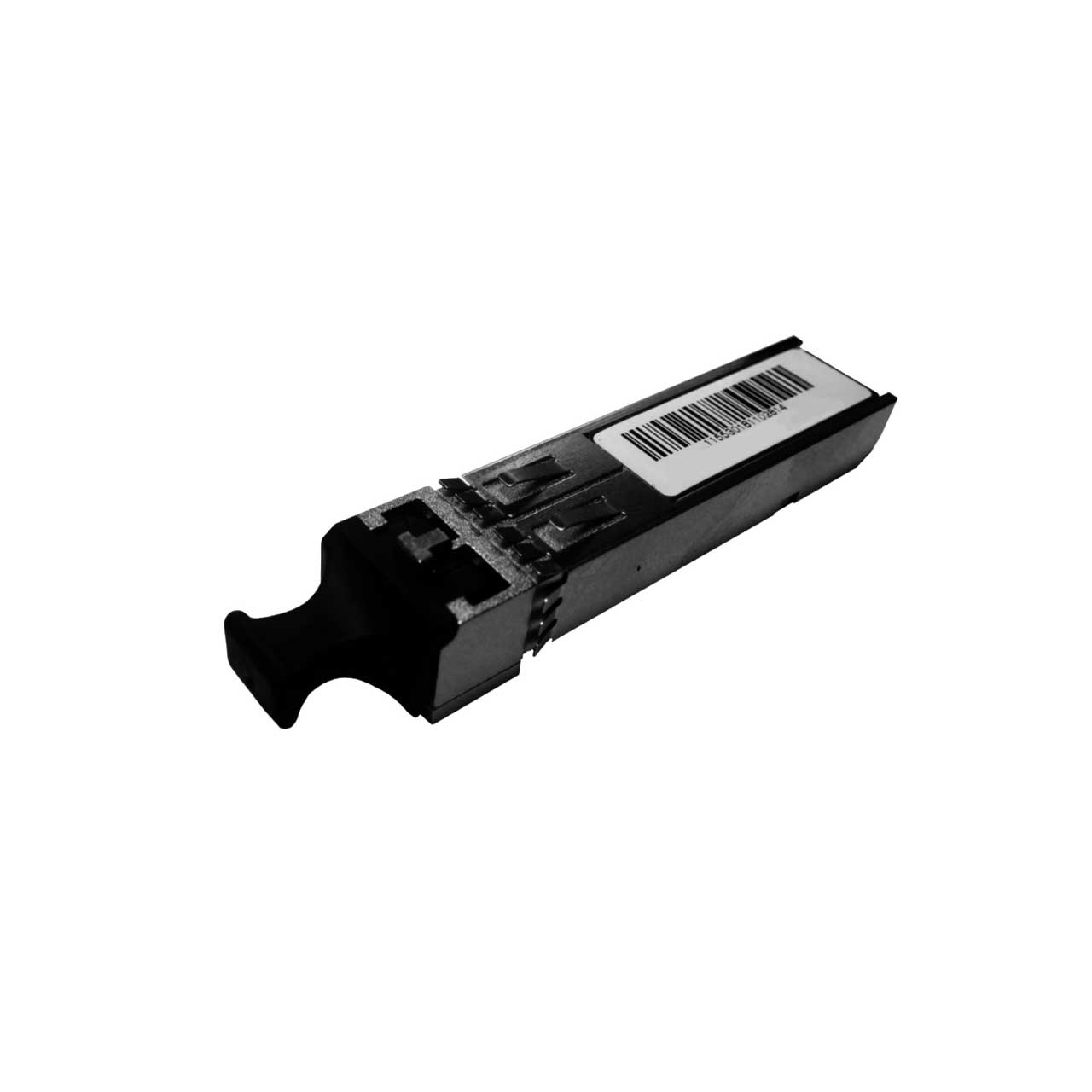

LYNX Technik Yellobrik OH-TR-1 SDI Optical Transceiver SFP module

ITEM #: LNX-OH-TR-1 MFG #: OH-TR-1

Primary Image
LYNX Technik Inc
Free Shipping with $49 Minimum Order

List Price:

$335.00

Our Price:

$318.25

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

OH-TR-1 - Overview

The LYNX Technik OH-TR-1 SDI optical transceiver is an integrated part or plug in option for select LYNX Technik yellobrik and Series 5000 products. This SFP module includes a receiver and a transmitter which facilitates the conversion of an electrical SDI signal into an optical signal for transmission over fiber, and also receives an optical SDI signal and converts to an electrical signal for further processing. Wavelength is a fixed 1310nm and suitable for distances up to 10km**. The module accommodates 270Mbit / 1.485Gbit and 2.97Gbit SDI signals conforming to SMPTE 424M, 292M, 259M and DVB-ASI.

A socket, or "cage" is provided for the SFP in the supporting LYNX product for easy installation or upgrade. The SFP is hot swappable.

  • Features:

    • SDI multi-rate optical transciever for 3G-SDI, HD-SDI and SD-SDI signals
    • Receiver and transmitter in single package
    • Support for SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
    • 1310nm TX Wavelength - singlemode
    • LC Duplex fiber connections
    • Receive wavelengths 1260 to 1620nm according to ITU-T G694.2
    • TX Distances up to 10km**
    • For use with yellobrik and Series 5000 product lines
    • Pluggable and hot swappable
    • Lead free and RoHS compliant


  • Specifications:

    • TX Specifications
    • Intrinsic Jitter (ps):
      2.97 Gb/s - Typ: 45 Max: 80
      1.485 Gbit/s - Typ: 45 Max: 80
      270 Mbit/s - Typ: 45 Max: 80
    • Wavelength: Min: 1290nm Typ: 1310nm Max: 1330nm
    • Optical Power: Min: -8dBm Typ: -5dBm Max: -3dBm
    • Linear Extinction Ratio: Min: 5.0 Typ: 8.0

      RX Specifications
    • Receiver Sensitivity
      2.97 Gb/s Min: -16 dBm
      1.485 Gbit/s Min: -16 dBm
      270 Mbit/s Min: -16 dBm
    • Wavelength: Min: 1260nm Max: 1620nm
    • Overload: Max: -3 dBm
    • Loss of Signal Asserted: Min: -35 dBm
    • Loss of Signal De-Asserted: Max: -16 dBm
    • Optical Hysteresis: Min: 0.5 dB Max: 2dB

      Mechanical
    • Size (not including connector - typ): 57 x 13.4 x 12.4mm (2.24 x 0.53 x 0.49")
    • Weight: 50g
    • SFP Connector pinning: MSA
    • Fiber connections: LC / Duplex - Singlemode
    • Operating Temperature Range: 41° to 104°F (5ºC - 40ºC)
    • Power Supply Voltage: 3.3VDC
    • Power Consumption: 130mA typical 180mA max


  • Item Includes:

    • 1 x SFP Transceiver Fiber Stick


  • GTIN:

    4250479318137
